H163131 Double Knife Section for John Deere Combine Harvesters

Product Specifications

Application	John Deere Combine Cutting Platform:600F,600R,618F,620R,625D,630D,635D,635F,635R
SKU	JD5394
Reference Code	H163131
Manufacturer	Raydafon Group
Brand	EP
Weight	0.11KG
Finishing	Painting Green Color or Galvanize or Red or OEM
Packing	Carton or Wooden box or Iron Box

Note: Our products are replacement parts and not original equipment. We provide perfect replacement products for original equipment. If you need to purchase the original equipment, please contact the original supplier.

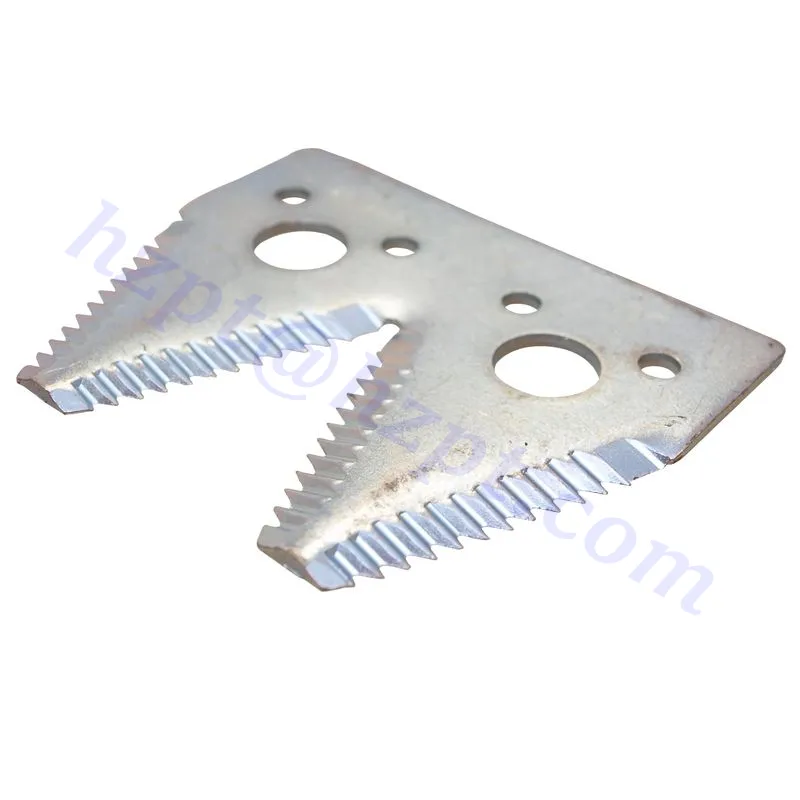

Overview of H163131 Double Knife Section for John Deere Combine Harvesters

The H163131 Double Knife Section is a high-quality replacement part specifically designed for John Deere combine harvesters, including 600F,600R,618F,620R,625D,630D,635D,635F, and 635R models. This component is a crucial part of the cutting system in the header assembly, which is responsible for efficiently cutting crops during harvesting operations. The double knife section features a dual-edged design, providing increased cutting capacity and improved durability. This design allows for cutting in both forward and reverse directions, enhancing the effectiveness of the combine harvester, particularly in dense or tough crop conditions. Manufactured from hardened steel, the H163131 is built to withstand the demanding environments of agricultural harvesting. Its sharp edges ensure clean and precise cuts, reducing crop loss and maintaining the quality of the harvested material. The double knife section is compatible with a variety of John Deere combine models, making it a versatile and widely used part. Easy to install and replace, this section helps ensure the combine operates at peak efficiency, minimizing downtime and maximizing productivity in the field.

Function and Use of H163131 Double Knife Section for John Deere Combine Harvesters

The H163131 Double Knife Section is a critical component designed for John Deere combine harvesters, specifically engineered to enhance the efficiency of the cutting mechanism in the agricultural harvesting process. This part is a central element of the combine's header assembly, which is responsible for the initial stage of harvesting—cutting and feeding crops into the machine for further processing. Its design and construction ensure optimal performance in various field and crop conditions. The primary function of the H163131 Double Knife Section is to cut crops cleanly and efficiently as the combine moves through the field. Its double-edged design allows for bi-directional cutting, enabling the knife to cut both during the forward and return strokes of the reciprocating knife assembly. This dual-edge functionality reduces wear on individual cutting edges, prolonging the lifespan of the knife section while also increasing the efficiency of the harvesting process. It is particularly beneficial in demanding conditions, such as working with thick, tough, or tangled crops, where traditional single-edge sections might struggle to maintain consistent performance. Constructed from high-quality, hardened steel, the H163131 Double Knife Section is designed to endure the rigors of continuous use in harsh agricultural environments. The hardened steel provides resistance to wear, chipping, and bending, ensuring a longer service life even when exposed to abrasive or dense crop materials. The sharp edges of the knife section ensure clean and precise cuts, which are essential for minimizing crop damage and loss. Clean cuts also improve feeding efficiency into the combine, reducing the risk of blockages or mechanical strain on other components.

Advantages of H163131 Double Knife Section for John Deere Combine Harvesters

The H163131 Double Knife Section for John Deere Combine Harvesters offers several key advantages that contribute to the efficient and effective operation of the harvesting equipment. Some of the notable benefits of this component include:

1. Enhanced Cutting Efficiency: The H163131 Double Knife Section is designed with dual-edged blades, allowing it to cut during both the forward and return strokes of the knife assembly. This bi-directional cutting capability improves harvesting efficiency by ensuring crops are cut cleanly and quickly, even in dense or tough field conditions. This reduces the time required to cover large fields.
2. Durability and Longevity: Constructed from high-quality, hardened steel, the knife section is built to withstand the demanding conditions of agricultural work. The hardened material resists wear, bending, and chipping, ensuring a longer service life. This durability reduces the frequency of replacements, saving farmers on maintenance costs and downtime during critical harvesting seasons.
3. Precision Cutting for Minimal Crop Loss: The sharp, dual-edged design ensures precise and clean cuts, which are crucial for reducing crop damage and loss. Cleanly cut crops are less likely to fall to the ground or get tangled in the harvester’s mechanism, ensuring maximum yield and improved overall harvesting efficiency.
4. Adaptability to Varied Crop Conditions: The H163131 Double Knife Section performs effectively across a wide range of crop types and field conditions. Whether working with fine grains or tougher crops like soybeans, the knife section maintains reliable cutting performance. This versatility makes it a valuable part for farmers managing diverse agricultural operations.
5. Reduced Wear on Combine Components: By delivering clean and efficient cuts, the knife section minimizes mechanical strain on the combine’s other components, such as the knife drive and header assembly. This helps reduce wear and tear on these parts, extending their lifespan and lowering the overall maintenance costs of the machine.
6. Ease of Installation and Replacement: The knife section is designed for straightforward installation and replacement, making it easy for operators to maintain their combines without requiring extensive downtime or specialized tools. This feature ensures farmers can quickly resume harvesting operations when replacements are necessary.

How to Replace a Damaged H163131 Double Knife Section for John Deere Combine Harvesters

Replacing a damaged H163131 Double Knife Section on a John Deere Combine Harvester requires careful attention to detail and adherence to proper procedures. Here is a general guide on how to replace this component:

1. Inspect and Identify the Damaged Knife Section: Carefully examine the header assembly to locate the damaged H163131 double knife section. Look for visible cracks, dull edges, or bends in the knife section. Identifying the exact location of the damaged component helps streamline the replacement process and ensures you address the issue accurately.
2. Remove the Header Guards: Detach the guards or hold-down clamps that secure the knife section in place. Use the appropriate tools, such as a wrench or socket set, to loosen the bolts or screws. Removing these guards provides clear access to the knife section, making it easier to replace.
3. Detach the Damaged Knife Section: Locate the bolts or rivets securing the damaged knife section to the knife bar. Use a wrench, pliers, or rivet removal tool to carefully remove them. Be cautious when handling the knife section, as the edges may still be sharp and could cause injury during removal.
4. Install the New H163131 Knife Section: Position the replacement knife section in the same spot as the damaged one, ensuring it aligns properly with the knife bar. Secure the new knife section using bolts or rivets. Tighten them firmly, but avoid over-tightening, as this can cause unnecessary strain on the knife section.
5. Reattach the Header Guards or Clamps: Once the new knife section is installed, reattach the header guards or hold-down clamps to secure the assembly. Ensure all bolts and screws are tightened properly, as loose components can lead to operational issues or further damage during harvesting.
6. Test the Knife Assembly for Alignment: Manually move the knife assembly back and forth to ensure the new section is properly aligned and moves smoothly without obstruction. Check for any unusual resistance or misalignment, as these can affect the performance of the cutting mechanism.
7. Reconnect the Battery and Test the Harvester: After confirming the knife assembly is secure and aligned, reconnect the harvester’s battery. Start the combine and test the header at low speed to verify that the new knife section operates efficiently and without any issues. Once satisfied, resume normal harvesting operations.

Other Replacement Combine Harvester Parts for John Deere

John Deere combines are high-performing machines that require regular maintenance to keep them running smoothly. Along with the double knife section, there are several other essential replacement parts for these harvesters. Here are some of the critical parts that ensure smooth and efficient operation:

1. Chain Sprockets

Chain sprockets are crucial components in the combine harvester. They help transfer power within the machine, ensuring smooth operation of different components. Made from robust materials, chains sprockets can withstand rigorous harvesting conditions. However, they require regular maintenance to prevent wear and maintain efficient power transmission. Failure to maintain them can lead to chain slack, misalignment, and reduced power transmission, which can adversely impact the overall performance of the combine harvester.

2. Idler Sprockets

Idler sprockets are also critical components that help guide and maintain proper tension in chains. Though they do not transmit power, they are crucial for preventing chain slack and misalignment, which can affect chain system longevity. Regular inspections ensure they remain in good condition and support the overall efficiency of the harvester.

3. Drive Pulleys

Drive pulleys are key components in the belt-driven systems of John Deere harvesters. They transfer engine power to various parts, making their proper alignment and maintenance crucial. Failure to maintain them can lead to belt wear, reducing efficiency and performance. It is essential to ensure that drive pulleys remain in good condition to maintain efficient harvesting operations.

4. Idler Pulleys

Idler pulleys are also key components in the belt systems of John Deere harvesters. They help maintain tension and guide belts within the machine, ensuring proper belt alignment and preventing slippage. Regular checks and maintenance ensure they function effectively, supporting the overall efficiency of belt systems.

5. Gears

Gears are crucial for facilitating changes in speed and direction of power within the combine harvester. They enable precise control over machinery functions, making them essential to efficient harvesting operations. Regular lubrication and inspection are necessary to prevent wear and ensure smooth and efficient operation throughout the harvest season.

6. Drive Shaft

The drive shaft is a critical component that transmits power from the engine to various harvester parts. It must withstand high torque and be correctly balanced to reduce vibrations. Regular maintenance, including lubrication, is vital to ensure reliable performance and prevent mechanical failures.

7. Knives

Knives are essential for cutting crops efficiently in the combine harvester. They must be sharp and well-maintained to ensure clean cuts, reducing fuel consumption and increasing harvesting speed. Regular inspection and sharpening are necessary to keep them effective and prolong their lifespan.

8. Concaves

Concaves work with the threshing drum to separate grain from chaff. Their setup affects threshing efficiency, and it is essential to adjust them based on crop type. Regular checks ensure they remain free of damage and obstructions, optimizing grain separation and quality.

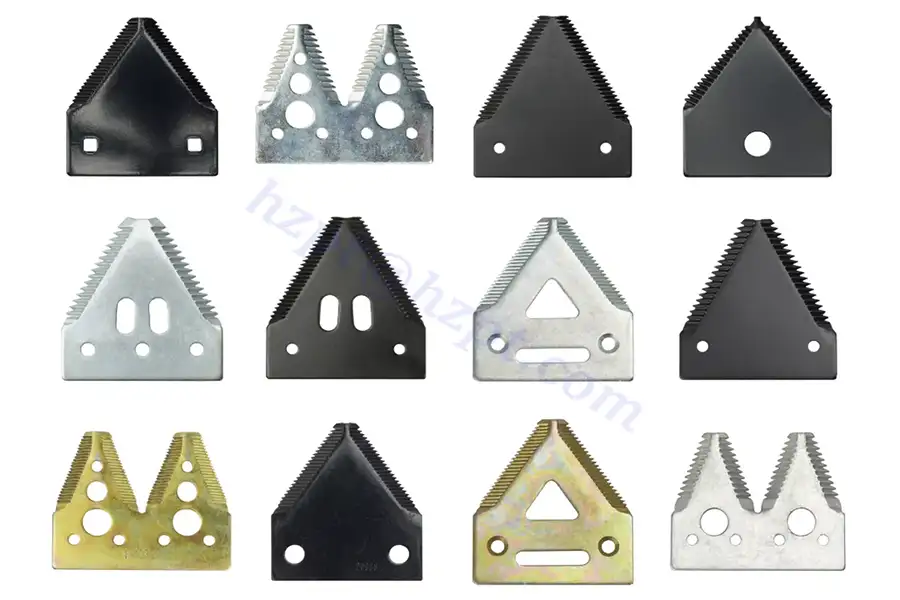

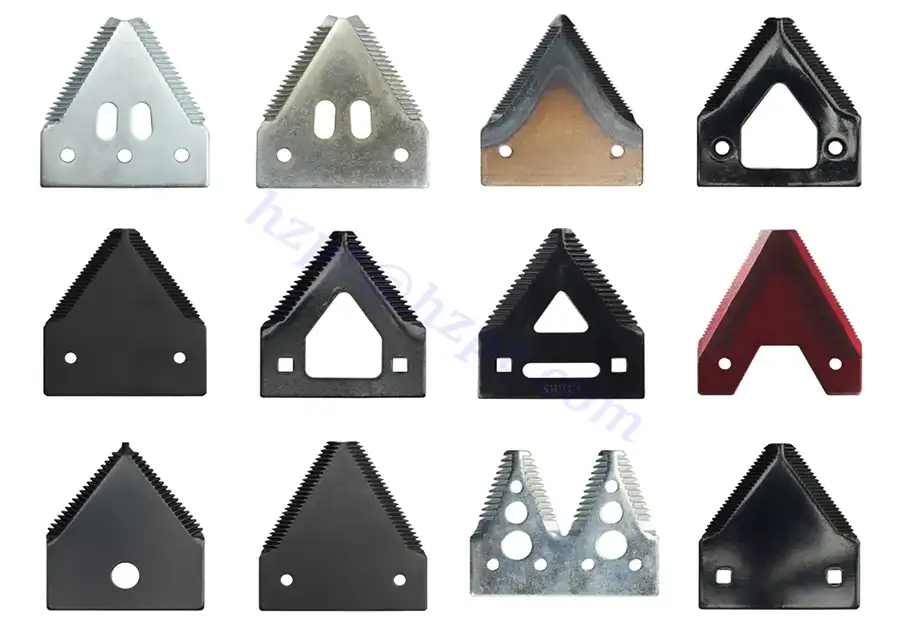

Why Choose Raydafon's Grain Head Cutter Bar Knife Section?

As one of the leading manufacturers and wholesale distributors of aftermarket replacement parts for combine harvesters, balers, tractors, and corn heads in domestic and global markets, Raydafon has a comprehensive range of agricultural spare parts. Our product range consists of best quality aftermarket spare parts for combine harvesters such as John Deere, New Holland, Case, Claas, Welger, KMC, Amadas, Gallignani, Kubota, Laverda, MTZ, Ford, Maschio, Goldoni, Howard, BCS; which are all the world’s leading brands in the agricultural machinery industry. You can view our entire product range in detail on our product page. Our company supplies products to its local customers in whole world. Over time, it has come a long way in this field, too. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. We continue to work with all our strengths to provide the best service to our business partners with our professional human resources, strong infrastructure and customer-oriented service approach. 1. Quality Products: Our products are crafted with precision and high-quality materials to ensure durability and performance. We adhere to stringent quality standards, ensuring each part meets the demands of rigorous agricultural operations. 2. Wide Range of Products: We offer an extensive selection of aftermarket spare parts for leading agricultural machinery brands. Our diverse product range meets the varied needs of farmers and businesses worldwide. 3. Competitive Prices: We provide top-quality products at competitive prices, offering exceptional value without compromising on quality. Our efficient manufacturing and strategic partnerships help keep costs low. 4. Excellent Customer Service: Customer satisfaction is our priority. Our dedicated team is ready to assist with inquiries, orders, and technical support. We focus on building long-term relationships through personalized service and expert advice. 5. Fast Delivery: We understand the importance of timely delivery in agriculture. Our efficient logistics network ensures that orders are delivered promptly, minimizing downtime during critical operations. 6. Customization Products: We offer tailored solutions by welcoming customer specifications and designs. Provide drawings or samples, and our expert team will create customized parts to meet your unique needs, ensuring optimal performance.
