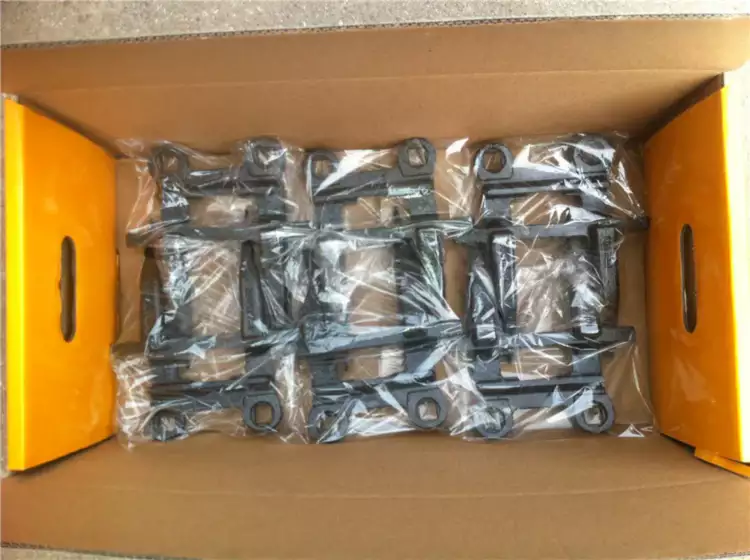

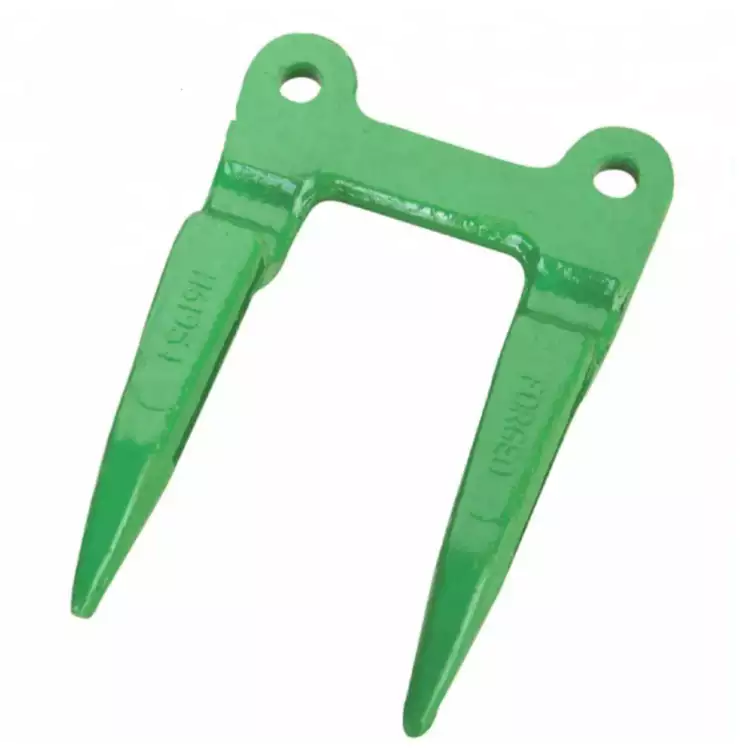

H61954 cutting platform double sickle knife guard

H61954 cutting platform double sickle knife guard

Sickle Guard is a crucial component of agricultural machinery that protects the cutting tools from damage and reduces the risk of injury to the operator. Our Sickle Guard not only fulfills these basic requirements, but it also provides several additional benefits, including:

• High-quality steel construction for superior durability and resistance to wear and tear
• Special edge design that reduces crop entanglement and improves cutting performance
• Easy to install and replace, with compatibility across most common brands and models
• Compliance with industry standards and regulations for safety and performance

[ninja_tables id="408263"] We manufacture this product and offer it as a replacement part for most common brands and models. We also offer customization services for specialized needs. Our advantages include:

• Expertise in the agricultural machinery industry and a commitment to quality
• A comprehensive selection of replacement parts for all types of agricultural machinery
• Competitive pricing and fast shipping for maximum convenience

The H61954 cutting platform double sickle knife guard is compatible with several brands and models of agricultural machinery, including:

Brand	Model
John Deere	220, 230, 330, 335, 375, 380, 385, 430, 435, 530, 535, 780, 800, 880, 885, 990, 1100, 1200, 1209, 1214, 1380, 1424, 1460, 1465, 1470, 2270, 2280, 2320, 240, 260, 280, 290
New Holland	450, 451, 455, 456, 458, 460, 467, 469, 472, 474, 477, 478, 479, 488, 495, 616, 617, 675, 676, 680, 685, 688, 845, 846, 847, 848, 850, 851, 852, 853, 855, 858, 859, 860, 861, 865, 890, 892, 1100, 1112, 1114, 1116, 1118, 1411, 1412, 1413, 1415, 1416, 1417, 1418, 1419, 1431, 1432, 1433, 1435, 1436, 1441, 1442, 1443, 1445, 1450, 1451, 1452, 1454, 1455, 1465, 1475, 1495, 1496, 1499, 2550, 2551, 256, 258, 260, 2580, 2581, 2600, 2601, 2602, 2604, 2605, 2606, 2607, 2608, 2609, 2610, 2615, 2620, 2625, 270, 271, 272, 273, 275, 276, 277, 278, 280, 281, 282, 283, 285, 286, 290, 310, 311, 315, 316, 320, 326, 420, 425, 426, 430, 435, 442, 445, 450, 455, 460, 467, 469, 474, 477, 478, 479, 488, 489, 492, 495, 616, 617, 675, 676, 680, 685, 688, 845, 846, 847, 848, 850, 851, 852, 853, 855, 858, 859, 860, 861

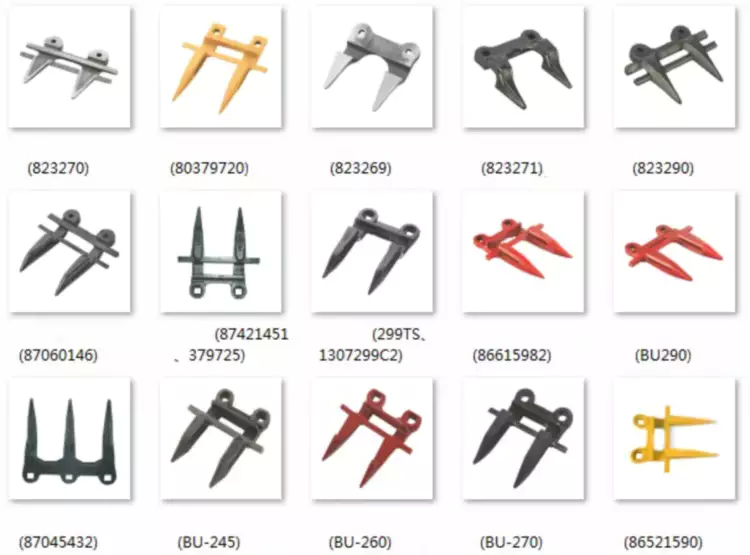

In addition to the Sickle Guard, we offer a wide range of other replacement parts for agricultural machinery, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, and concave. There are several signs that indicate the need to replace the Sickle Guard:

1. Visible damage or wear to the guard plate: Check for cracks, deformation, severe wear or even partial loss of the guard plate. These signs indicate that the guard plate has lost its original protective function and continued use may cause damage to the cutting tool or personal injury.
2. Frequent cutting obstacles: If crop blockages, tangled cutting tools, and other similar issues occur frequently during harvesting operations, it may be due to Sickle Guard wear, leading to the cutting tool being too close to the crop. Check and replace the guard plate at the appropriate time.
3. Accelerated cutting tool wear: If the cutting tool wear rate is significantly faster, even under normal maintenance, this may be because the Sickle Guard has lost its effective protection of the cutting tool, making it more susceptible to external impact damage or wear.
4. Increased noise during machine operation: When the Sickle Guard is damaged or loose, it may increase the noise level during machine operation. This is because the original vibration and stability of the machine are lost. At this time, the guard plate should be checked and replaced.
5. Decreased machine efficiency: If a significant decrease in harvesting efficiency is observed and other factors are excluded, it may be due to the Sickle Guard failure, which prevents the cutting tool from functioning properly and needs to be replaced.

The selection of the appropriate Sickle Guard requires considering several factors, including:

1. Size matching: First, confirm that the guard plate's size matches the cutting tool or blade assembly on the agricultural machinery, including the guard plate's length, width, and thickness, as well as the position and size of the mounting holes.
2. Material: The material of the guard plate has a significant impact on its durability. Common materials include steel, cast iron, and wear-resistant plastics. Users should select the appropriate wear-resistant and impact-resistant materials based on factors such as the work environment and the hardness of the cutting object.
3. Shape design: The design of the guard plate must match the type of cutting tool being protected. For example, the design of the guard plate for a disc cutting tool and a reciprocating cutting tool will be different. Additionally, the shape of the guard plate should also help reduce crop entanglement and improve cutting efficiency.
4. Installation method: Understand how the guard plate is fixed on the agricultural machinery, such as whether there is a buckle, bolt fixation, welding, or other installation methods, and ensure that the newly purchased guard plate is consistent with the original installation method on the agricultural machinery.
5. Protection level: Evaluate the guard plate's protection level for the cutting tool, such as the size of the protective margin, whether it has anti-entanglement design, and whether it can effectively prevent direct impact of hard objects on the cutting tool.
6. Compatibility: Confirm the compatibility of the guard plate with the agricultural machinery's brand and model, ensuring seamless integration with your harvester, mower, or other agricultural machinery.
7. Regulatory standards: Some regions may have specific standards and certification requirements for agricultural machinery parts. When purchasing, ensure that the selected Sickle Guard complies with local laws, regulations, and safety standards.

Author: Miya
