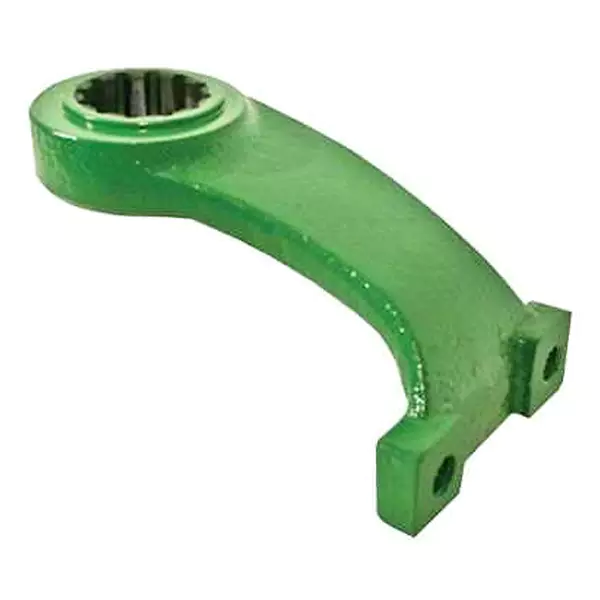

H86911 Kinfe Drive Arm For John Deere Combine Header

H86911 Kinfe Drive Arm For John Deere Combine Header

▍Description  This is Knife Drive Arm that fits multiple John Deere Cutting Platforms and Headers. Fits John Deere Header(s) 200 (s/n 530050-earlier), 213 (s/n 530050-earlier), 215 (s/n 530050-earlier), 216 (s/n 530050-earlier), 218 (s/n 530050-earlier), 220 (s/n 530050-earlier), 222 (s/n 530050-earlier), 224 (s/n 530050-earlier), 230 (s/n 530050-earlier) Replaces John Deere OEM nos H86911 For a Used version of this sku use 423436 Replaces John Deere OEM nos H86911 For a Used version of this sku use 423436 All new, rebuilt and used tractor parts have a 5-year warranty

▍Destination

The knife beam is designed to transmit oscillatory motion from the fork shaft to the head of the header knife. This spare part is used for replacing a worn out or damaged part during repairs.

▍Properties

The beam is made of cast iron by means of moulding molten metal. On the one side of the beam there is an opening with splines for mounting the beam on the wobble box, and on the opposite side there are fixing holes for the head of the beam.

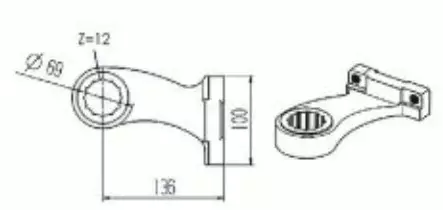

▍Parameters of H86911 Kinfe Drive Arm

Weight , W	kg	1.46
Inner diameter , d	mm	38
Number of splines , F		12
Number of mounting holes , N		2
Width , Wb	mm	85
Length , L	mm	80
Height , H	mm	136
Thread , M		M12
Distance between mounting holes , b	mm	72
Inner diameter , d1	mm	42
