Harvest Cutting Header Used Side Draper Belts replaced of harvester

Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Other
Weight (KG): 30 KG
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Type: Draper Belts
Use: Harvesters
Product Name: Draper Belts
Material: Rubber
Size: Customized Size
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Other
Weight (KG): 30 KG
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Condition: New
Type: Draper Belts
Use: Harvesters
Product Name: Draper Belts
Material: Rubber
Size: Customized Size
Packaging Details: pallet
Port: Ningbo, Shanghai

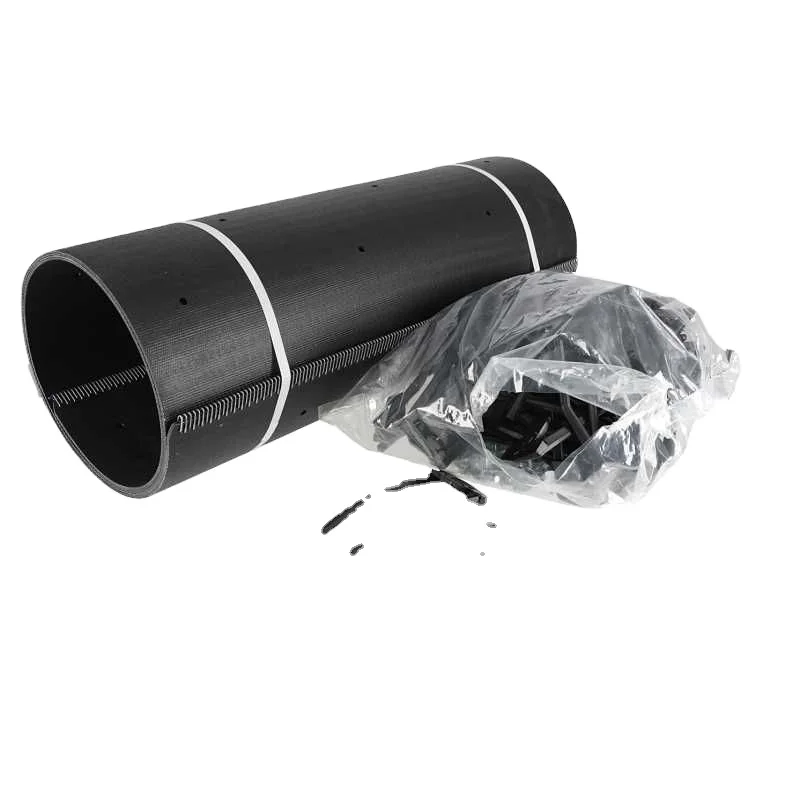

Buying Guides COMBINE Draper beltDraper belt is simply a conveyor belt, a device for collecting and transporting crops across the bridge.Since the harvest header market has been transitioning from traditional auger headers to more modern belted headers, it is estimated that two out of three new headers now contain draper belting. Belted headers will increase your capacity and decrease product loss, operate with an even feed, work with flex designs, and are less in weight compared to traditional augers.Type:Feed in draper belt: - in the middle of the cutting platform, only one piece, unfold size is short and wide.Storage of cutting cloth: - in the two sides of the cutting platform, two pieces, unfold size is long and narrow.PerformanceCOMBINE's draper belts uses 100% polyester filament fabric with a friction coating capability with higher tensile, tear,and puncture resistance. They have higher strength properties, superior durability and also features aninnovative teardrop-shaped fiberglass reinforcement rod inside of the cleat for increased stiffness, making it more significantly stiffer in the cross direction than its competition. PRODUCT SPECIFICATIONS COMBINE Draper belt -How to order it?Step 1:If you want to order draper belt, you can contact me firstly, we can give you a list of the draper belts which we have, and you can check it.

COMBINE NO.:	Replaced OEM No.	Application	Main sizes
4G1188	AH203047, AXE12053	JD 925D 930D 936D	1524x1600.2
4G1189	AXE12533	JD 625D 630D 635D 640D 725D 730D 735D 740D	1405x1473.5
4G1186	1009382, AH225872??AXE11897, AXE14603??AXE14603-A	JD 635D	1004x9071.1
4G1187	AXE14731, AH229394?? AXE11896, AXE15008	JD 730D	1004x7546.8
4G1183	AH159534, AXE39583	JD 930D	914x7721.6
4G1184	AH159535, AXE39584	JD 936D	914x8432.3
4G1185	AH159536, AXE39585	JD 936D	914x10668
More items information you need, please contact us

Step 2 (for Single V-Guide ):If the one you need is not in our products list, you need you to give us the sizes in below picture:- the length of reinforcement rod. - size A- the distance from guide rail to the edge of draper belt. - Size B- the total width of draper belt- the distance from the edge of reinforcement rod to the edge of draper belt. - Size C- the size of reinforcement rod.

Total width??mm??	Total width??inch??	A	B	C
914	36	874	132	20
1004	39.54	964	85	20
1405	55.3	1365	152.5	20
1524	60	1484	212	20
Please provide us above the sizes, then we can calculate the cost accordingly.

Step 2 (for Double V-Guide ):If the one you need is not in our products list, you need you to give us the sizes in below picture:- the total width of draper belt - size W1- the total width of reinforcement rod - Size W2- the size of Guide rails - size W3, W4, H

W1	W2	W3	W4	H	L
1000	870	8	12	8	Arbitrary length customization
1010	870	8	12	8
1060	1025	8	12	8
1260	1170	8	12	8
1490	1340	8	12	8
1570	1420	8	12	8
Please provide us above the sizes, then we can calculate the cost accordingly.

Product packaging Packing way- several pieces /carton- several cartons/ wooden case Why Choose Us 1??Guarantee Quality and Avoid your lossCOMBINE guarantees quality 100% - for any parts failing to meet the agreed standards, we offer 100% refund or free replacement. This can apparently avoid your loss and save your time to solve disputes. 2??Deliver Your Order In timeOur own production and regular stock in the warehouse can well manage your order and deliver them in time for the selling season. 3??Reduce Your CostWith experience since 2001, our genuine supply of over 6000 distinct wearing parts, can greatly reduce both selection risk and costs associated with time-sensitive, decentralized global purchasing.OEM quality but China price can optimize the cost performance to the best. Contact Us

Harvest Cutting Header Used Side Draper Belts Replaced of Harvester

Introduction

Harvest cutting header used side draper belts are an essential part of the harvester. These belts are used to transfer the cut crop from the header to the feeder house of the harvester. The side draper belts are located at the side of the header and help in guiding the crop towards the center of the header.

Function

The side draper belts are responsible for transferring the cut crop from the header to the feeder house of the harvester. These belts help in ensuring that the crop is collected efficiently and without any damage. The side draper belts also help in guiding the crop towards the center of the header, which ensures that the crop is cut uniformly.

Advantages

We can produce these belts and replace most of the commonly used models of harvester parts. Our belts are made from high-quality materials, which ensures durability and longevity. We also provide customizations as per the client's requirements. Our belts are cost-effective and offer value for money.

Compatibility

We can provide side draper belts for various brands and models of harvesters. Some of the commonly compatible brands include John Deere, Case IH, New Holland, Claas, and Massey Ferguson. Please refer to the table below for the list of compatible brands and models.

Brand	Model
John Deere	S Series, T Series, W Series
Case IH	Axial-Flow series, 1400 series, 1600 series
New Holland	CR series, CX series, TC series
Claas	Lexion series, Dominator series, Tucano series
Massey Ferguson	Activa series, Centora series, Delta series

Other Parts

Apart from side draper belts, we also provide other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, etc.

Commonly Worn Parts of Harvester

1. Blades/cutting parts: This includes main cutting blades, guards, and cutter drive belts.
2. Threshing drum and concave
3. Sieve and fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: This includes hydraulic cylinders, hoses, and seals.
7. Bearings
8. Filters: Air filters, fuel filters, and oil filters, etc.

Signs of Wear and Tear

1. Poor harvesting results: If there is too much crop residue left after harvesting or the grain separation is not clean, it may indicate that the threshing drum and concave are severely worn and need to be replaced accordingly.
2. Power loss or overheating: If the engine power is insufficient or the operating temperature is too high, it may be due to the blocked air filter, which causes poor air intake, or a cooling system failure. It is necessary to consider replacing the air filter element or check and repair the cooling system in time.
3. Reduced harvesting efficiency: If the header runs slowly or the material conveying speed slows down, it may be due to the aging and loosening of the drive belt, the elongation of the chain, or the wear of the driving gear. It is necessary to check and replace the corresponding belt, chain or gear.
4. Difficulties in walking or increased noise: If it is a rubber track harvester, it needs to be replaced if the track is loose or there are obvious cracks. If it is a tire harvester, the tire needs to be replaced if it is excessively worn or blown. In addition, if there is abnormal noise during walking, it may be due to bearing wear or damage, and the relevant bearings need to be replaced.
5. Hydraulic system instability: If the lifting and steering are slow or powerless, it may be due to problems with hydraulic components such as hydraulic pumps, oil cylinders, valves, or seals. It is necessary to check and replace the corresponding components in time.
6. Large-scale oil leakage: whether it is oil, hydraulic oil, or fuel leakage, it indicates that the sealing element has failed or other parts are damaged. It is necessary to find the leakage point in time and replace the damaged sealing element or part.
