Harvester cutting platform blade Knife Section For Case 191256A1

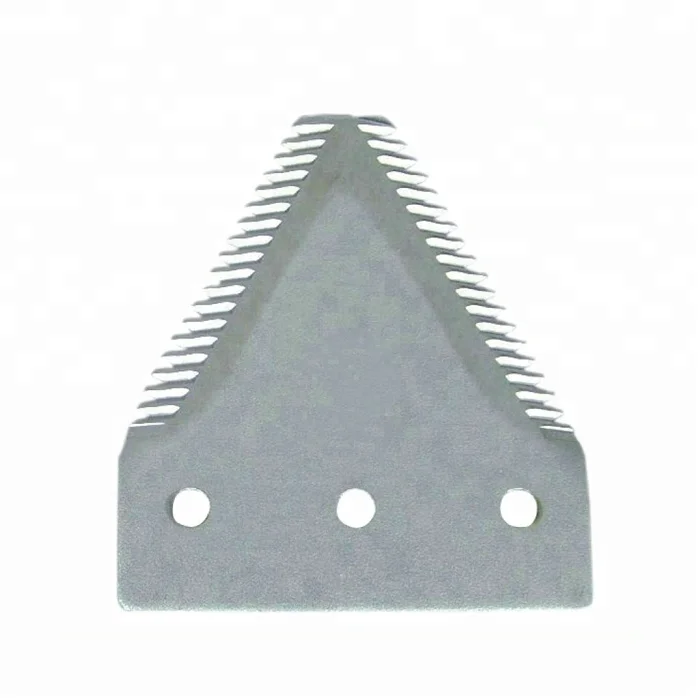

Harvester Cutting Platform Blade Knife Section for Case 191256A1

Material:	65Mn or T9
Hardness:	HRC50-55, Induction hardening process guarantees long wear
Thickness:	2.00-2.8mm
Teeth:	Pressing or MillingUpper serrated and under serrated knife sections with any special teeth number
Surface:	Only with anti-rust oil; varnish stoving; galvanized; Chrome finish; blueing, etc,Different surface treatment to protect against corrosion
Colors:	natural varnished, red or green varnish, chromated sections or as requested
Use:	All kinds of knife sections suitable Yanmar, Ford and so on
Other advantage	End section / half section, which reduces troublesome cutter bar clogging in thick and badly tangled crops



Introduction

The Harvester Cutting Platform Blade Knife Section, also known as Knife Guard, is an important component in the harvester that enables it to cut and harvest crops with ease. It is specifically designed for Case 191256A1 model harvester and is made up of high-quality materials that ensure durability and efficiency.

Function and Working Principle

The Knife Section is located in the cutting platform of the harvester and works by cutting the crops when the platform moves over them. The blade is fixed in the guard, which is then attached to the platform. When the blade makes contact with the crop, it cuts it and moves it along the conveyor to the threshing section where the grain is separated from the rest of the plant.

Our Advantages

• We manufacture Knife Sections that can replace most of the common models available in the market.
• Our products are made of high-quality materials that ensure durability and increase the life of the harvester.
• Customers can also contact us for customized Knife Sections that meet their specific requirements.

Compatible Brands and Models

Brand	Model
Case	191256A1
John Deere	4 bolt, 8 bolt, & 9 bolt sections
New Holland	1100 Series

Other Agricultural Machinery Parts

We also provide other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, and concave. Our customers can find all the agricultural machinery parts they need at our store.

Commonly Worn-Out Parts

Harvesters have several parts that are prone to wear and tear. Following are some of the parts and their details:

1. Blades/Cutting Platform Parts: This includes the main cutting blade, skid shoes, and cutter drive belts.
2. Threshing Drum and Concave: These parts are responsible for separating the grain from the rest of the plant. If they wear out, the separation efficiency decreases.
3. Separation and Cleaning Components: These include the sieves and fan blades. If they wear out, the cleaning and separation efficiency decreases.
4. Conveyor Chains and Sprockets: These components are responsible for moving the crop along the conveyor. If they wear out, the movement efficiency decreases.
5. Rubber Tracks or Tires: If the rubber tracks or tires wear out, the movement efficiency of the harvester decreases.
6. Hydraulic Components: These include hydraulic cylinders, hoses, and seals. If they wear out, the hydraulic system efficiency decreases.
7. Bearings: If the bearings wear out, there is increased friction, leading to decreased efficiency and increased fuel consumption.
8. Filters: If the filters get clogged or worn out, the engine efficiency decreases.

When to Replace Parts

• If the harvested crop residue is too much or the grain is not separated properly, the threshing drum and concave need to be checked and replaced if necessary.
• If the engine power decreases or overheats, the air filter needs to be replaced, or the cooling system needs to be checked and repaired.
• If the cutting platform runs slowly or the material handling speed decreases, the corresponding belt, chain, or gear needs to be checked and replaced if necessary.
• If the rubber tracks or tires are loose or cracked, they need to be replaced. If there is abnormal noise while traveling, the bearings need to be replaced.
• If the hydraulic system works unstably, the hydraulic pump, cylinder, valve, or seal needs to be checked and replaced if necessary.
• If there is a significant oil leakage, it indicates that the seals or other components are damaged and need to be replaced in time.
