The head method orchid type metallurgical hydraulic cylinder is a versatile and high-performance hydraulic component specifically designed for metallurgical applications. This product offers exceptional functionality, precise control, and reliable operation in demanding industrial environments. With its head method orchid type design, it ensures optimal performance, stability, and safety during operation.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

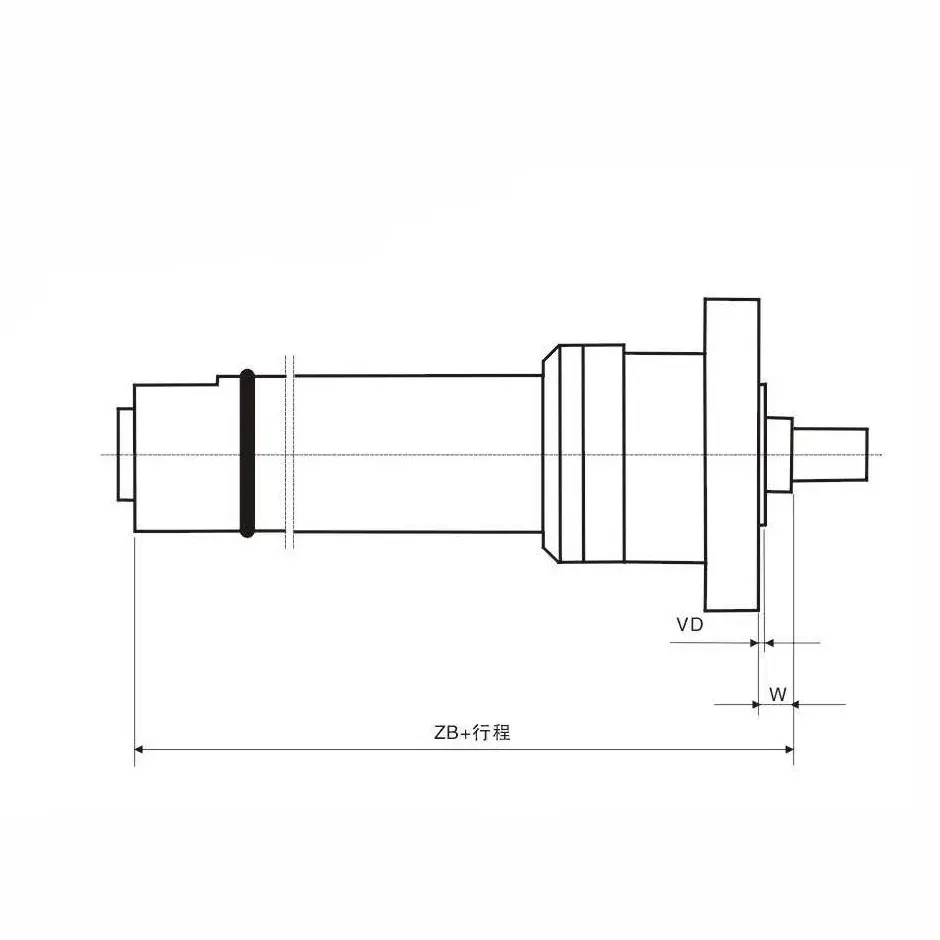

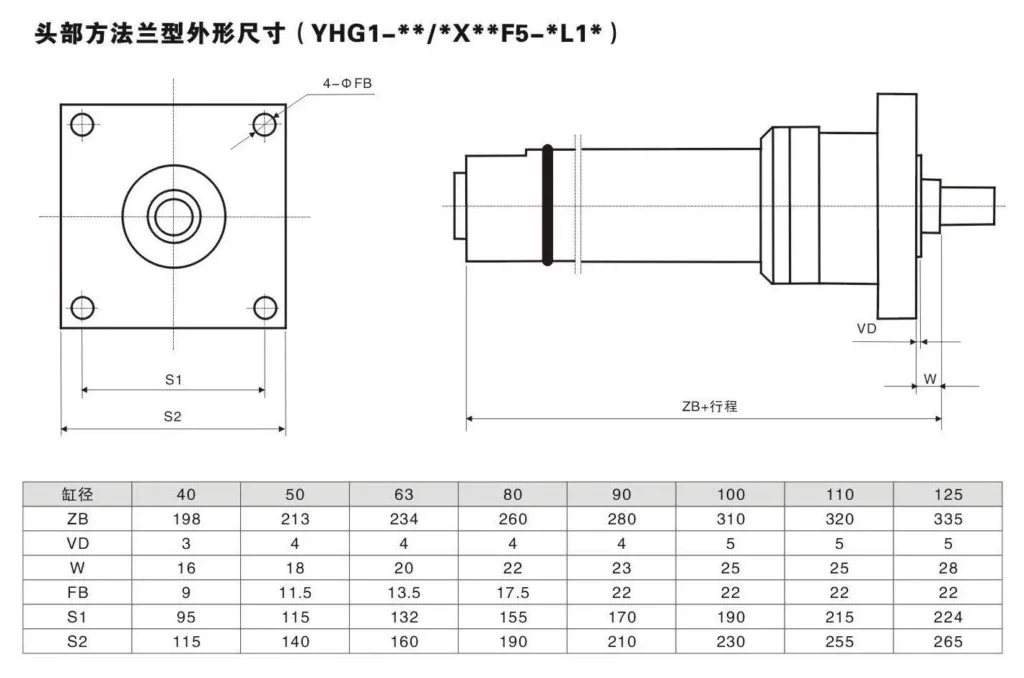

Head Method Orchid Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Head Method Orchid Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific metallurgical application and equipment requirements.
   • Ensure that the mounting surface is clean, flat, and capable of withstanding the cylinder's load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connection to prevent leaks.
3. System Integration and Calibration:
   • Integrate the metallurgical hydraulic cylinder into the metallurgical equipment or system as per the manufacturer's guidelines.
   • Calibrate the system to achieve the desired performance and operation parameters.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Control the cylinder's extension, retraction, and positioning through the hydraulic control system.

Maintenance Of Head Method Orchid Type Metallurgical Hydraulic Cylinder:

1. Regular Inspection:
   • Conduct routine inspections of the hydraulic cylinder to check for leaks, signs of wear, or damage.
   • Inspect the mounting brackets, fasteners, and connections to ensure they are secure and functioning properly.
2. Lubrication:
   • Follow the manufacturer's recommendations regarding lubrication intervals and the type of lubricant to use.
   • Apply lubricant to the necessary parts, such as the piston rod, seals, and bearings, to reduce friction and ensure smooth operation.
3. Cleaning:
   • Keep the hydraulic cylinder and surrounding area clean from dirt, debris, and contaminants that may affect its performance.
   • Use appropriate cleaning methods and materials to avoid damaging the cylinder or its components.

How To Take Apart A Hydraulic Cylinder?

Taking apart a hydraulic cylinder requires careful disassembly to avoid damage and ensure safe handling. Here are the general steps to follow:

1. Safety Precautions:
   • Ensure the hydraulic system is depressurized and the cylinder is in a retracted position.
   • Use appropriate personal protective equipment, such as gloves and safety glasses.
   • Prepare a clean and organized workspace with adequate lighting and ventilation.
2. Identify Cylinder Components:
   • Familiarize yourself with the different parts of the hydraulic cylinder, including the cylinder body, piston, rod, seals, and end caps.
3. Remove External Connections:
   • Disconnect any hydraulic hoses, fittings, or other external connections attached to the cylinder.
   • Use appropriate tools, such as wrenches or pliers, to loosen and remove the connections carefully.
4. Secure the Cylinder:
   • Place the cylinder securely in a vise or similar holding fixture, ensuring it is stable and won't move during disassembly.
5. Remove the Rod End Cap:
   • Locate the rod end cap, which is typically situated at the end of the cylinder opposite the piston.
   • Use the appropriate wrench or socket to loosen and remove the bolts securing the rod end cap.
   • Tap the end cap gently with a rubber mallet if needed to break any seal or adhesive bond.
6. Separate the Rod and Piston Assembly:
   • Once the rod end cap is removed, carefully slide the rod and piston assembly out of the cylinder body.
   • Support the weight of the assembly to prevent it from falling or causing damage.
7. Disassemble the Rod and Piston Assembly:
   • Examine the rod and piston assembly for retaining rings, snap rings, or other retaining devices.
   • Use appropriate tools, such as pliers or snap ring pliers, to remove these retaining devices, allowing the disassembly of the assembly into its individual components.
   • Take note of the order and orientation of each component for reassembly.
8. Inspect and Clean:
   • Inspect all the disassembled components for wear, damage, or signs of leakage.
   • Clean each component thoroughly using an appropriate solvent or cleaning agent to remove dirt, debris, and hydraulic fluid residue.
   • Dry the components completely before reassembly.
9. Reassembly or Component Replacement:
   • If necessary, replace any damaged or worn components with new ones following the manufacturer's specifications.
   • Reassemble the hydraulic cylinder in the reverse order of disassembly, ensuring proper alignment and orientation of components.
   • Tighten bolts or fasteners to the manufacturer's recommended torque specifications.
