Head Pin Type Metallurgical Hydraulic Cylinder

Head Pin Type Metallurgical Hydraulic Cylinder

The head pin type metallurgical hydraulic cylinder is a cutting-edge hydraulic component designed specifically for metallurgical applications. With its advanced features and robust construction, this hydraulic cylinder offers exceptional performance, precise control, and reliable operation in demanding industrial environments. Whether used in steel mills, foundries, or other metallurgical processes, the head pin type cylinder delivers efficiency and durability.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

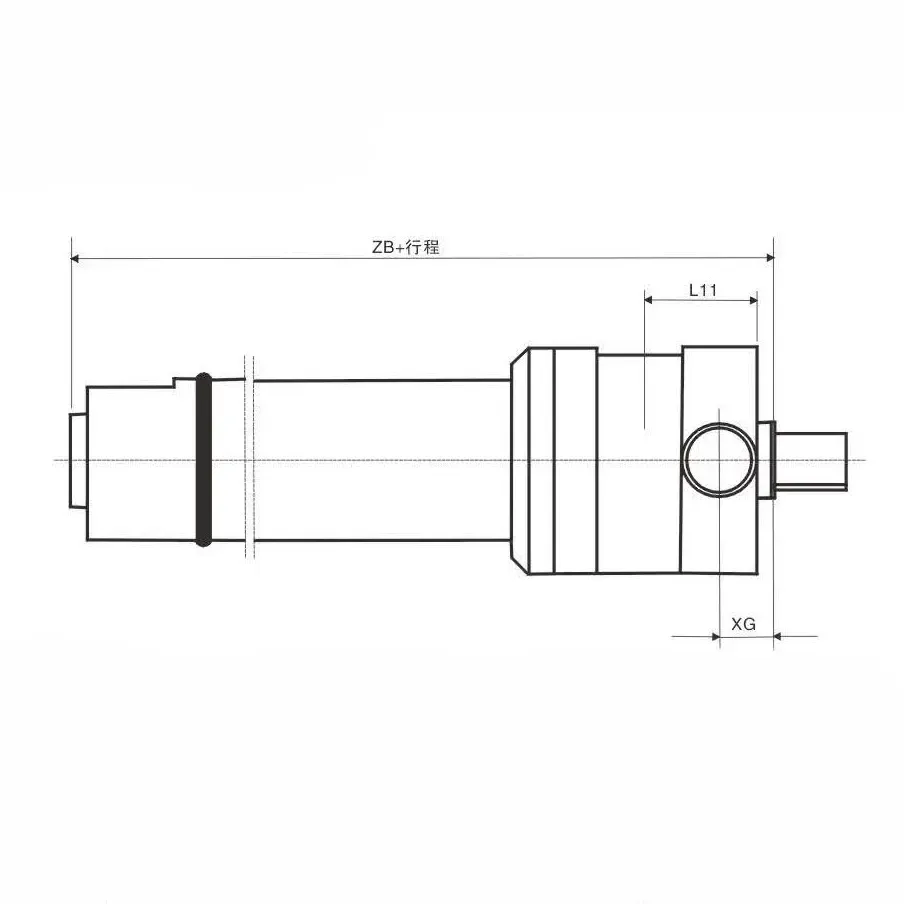

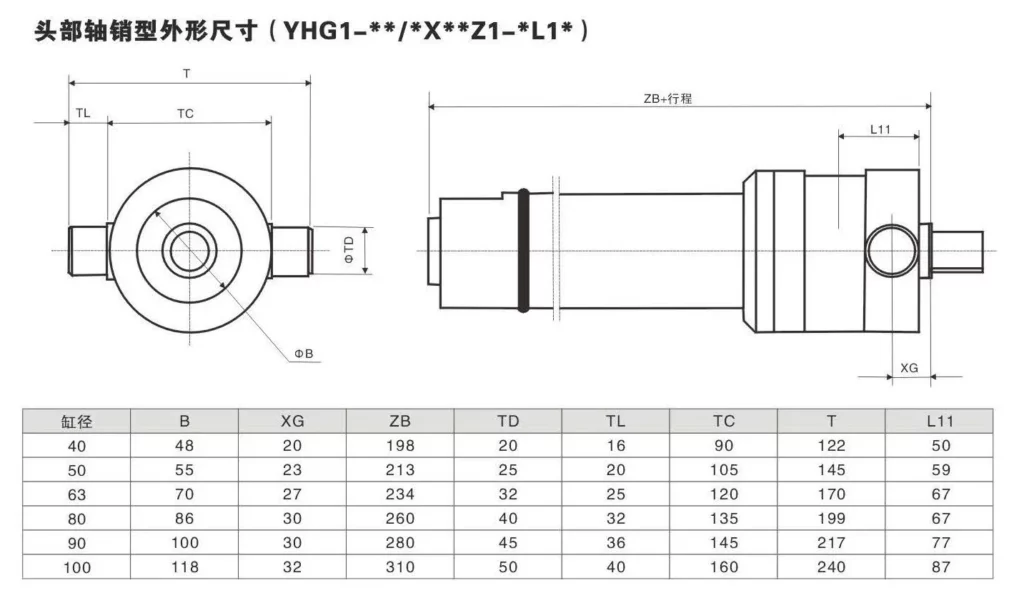

Head Pin Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Head Pin Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure that the mounting surface is clean, flat, and capable of supporting the weight and load of the cylinder.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks.
3. System Integration and Calibration:
   • Integrate the hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve optimal performance and desired operation parameters.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to control the cylinder's extension, retraction, and positioning for precise metallurgical operations.

Characteristics Of Head Pin Type Metallurgical Hydraulic Cylinder:

• Head Pin Type Design: The unique Head Pin Type design ensures enhanced stability, precise control, and improved load distribution during operation.
• Metallurgical Application Focus: The hydraulic cylinder is precisely engineered to meet the demanding requirements of metallurgical processes, providing optimal performance in extreme conditions.
• Durability and Reliability: Constructed from high-quality materials and subjected to rigorous testing, the cylinder offers long-term durability and reliable operation.
• Accurate Positioning: The hydraulic cylinder allows precise positioning and movement control, enabling accurate and efficient metallurgical operations.
• Safety Features: The design incorporates overload protection and emergency stop mechanisms, prioritizing operator safety.

How To Replace Hydraulic Cylinder Seals?

Replacing hydraulic cylinder seals requires careful attention to detail and adherence to proper procedures. Here's a step-by-step guide to help you with the process:

1. Gather the Necessary Tools and Materials:
   • New seals for the hydraulic cylinder.
   • Seal installation tool kit (if available).
   • Clean rags or towels.
   • Proper personal protective equipment, such as gloves and safety glasses.
2. Prepare the Work Area:
   • Ensure you have a clean and well-lit workspace to perform the seal replacement.
   • Clean the exterior of the hydraulic cylinder to prevent dirt and debris from entering during the process.
3. Depressurize the Hydraulic System:
   • Shut off the hydraulic power source and relieve the pressure from the system.
   • Follow the manufacturer's instructions or consult the equipment manual for the proper depressurization procedure.
4. Remove the Cylinder:
   • Disconnect any hydraulic hoses or fittings attached to the cylinder.
   • Unfasten the mounting bolts or brackets securing the cylinder to the equipment.
   • Carefully remove the cylinder from its mounting location.
5. Disassemble the Cylinder:
   • If necessary, remove any external components or accessories attached to the cylinder, such as rod end caps or piston heads.
   • Inspect and clean the cylinder thoroughly to remove any dirt or contaminants.
6. Remove the Old Seals:
   • Identify the location of the seals on the cylinder.
   • Use an appropriate tool, such as a seal pick or seal removal tool, to carefully pry out the old seals.
   • Take note of the seal orientation and arrangement for properly installing the new seals.
7. Clean and Inspect:
   • Clean the seal grooves and the surrounding areas using a lint-free cloth or rag.
   • Inspect the cylinder bore and other components for any signs of damage or wear.
   • If any damage is detected, consult a professional or replace the damaged components.
8. Install the New Seals:
   • Apply a thin layer of hydraulic oil or lubricant to the new seals to aid their installation.
   • Carefully place the new seals into their grooves, ensuring they are appropriately seated and aligned correctly.
   • Use a seal installation or suitable tool with a flat, smooth surface to gently press the seals into place.
   • Take care not to damage or distort the seals during the installation process.
9. Reassemble and Reinstall the Cylinder:
   • Reassemble any disassembled components or accessories onto the cylinder.
   • Reinstall the cylinder into its mounting location, ensuring proper alignment and secure fastening.
   • Reconnect the hydraulic hoses or fittings, ensuring they are correctly tightened and secured.
10. Test and Inspect:

• Restore the hydraulic system's power and pressurize it according to the manufacturer's instructions.
• Test the cylinder's operation and check for any signs of leaks or abnormal behavior.
• If any issues are detected, troubleshoot or consult a professional for further assistance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
