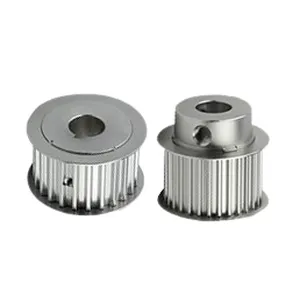

Heavy Load Drive Timing Belt Pulley AT5/AT10/AT20 Type

The heavy load drive timing belt pulley is suitable for trapezoidal tooth heavy load transmission. Timing belt pulleys are a wheel on a shaft or an axle. It is developed to support the change of direction and movement of a belt or a cable along the circumference. Pulley is grooved in between two flanges all over its rim. Toothed belts and pulleys are important in synchronous drives based on flexible components. Their curvilinear tooth profile was designed with high speed and provided excellent registration without a loss in torque carrying capability, making them ideal for precise registration applications and heavy loads. Timing belt drives are increasingly replacing inefficientroller chain sprockets for power transfer from shaft to shaft, torque multiplication, speed reduction, speed increase, and shaft synchronization.

Products Description

What Are the Advantages of Timing Belt Pulleys?

1. High Power Transmission Capacity: Timing belt pulleys can give more power than a friction drive belt because of the Minimum radial load on the shafts and the bearings. A non-extendable belt transmits the motion without significant stretching and, therefore, without lost activity. The transmit capacity has a feature of high torques at low speed. High mechanical efficiency, as much as 98% when properly maintained. By contrast, chain drives are in the 91-98% efficiency range, while V-Belts average in the 93-98% range.
2. Good performance at high speed: Transmission of absolute asynchronous motion because absolutely without slipping in movement. Regular and constant exercise, since the toothed belt is free from polygonal winding and the consequent speed variation typical of chain transmissions. The timing belt pulley has a Wide speed range, essential when the entire speed range is developed from a single source.
3. Silent running, good performance, minimum overall dimensions
4. Clean operation is easy and does not need lubrication, and is rust-resistant.

The Application of Timing Belt Pulleys

Timing belt pulleys are applied in many ways, such as using forces, lifting loads, and transmitting power. The two main reasons to use a timing belt and pulley system are for power transmission in which a motor drives the pulley system or conveyance in which parts are moved along or with a belt.In the packaging industry, they are commonly used in bagging machines. You may see them utilized in the sealer part of the machine. A pulley and belt system allows the sealer to come down on top of the bag by sliding along the belt, a conveyance application. Long timing belts with attachments are typically used for workplaces to move along the belts or as separators to continue with the conveyance. For example, simultaneous transportation is an application in which workpieces regularly drive on the straps.Light load parts can be placed on belt attachments for vertical conveyance applications.Circuit board conveyance typically uses two timing belts to transfer the board a long distance. For accumulation conveyance, using a cloth-lined belt is recommended to reduce friction.Tractor conveyance is an application in which parts are sandwiched between belts.The most popular and familiar use of timing belts and pulley systems are applications for power transmission. Your driver pulley, which is connected to your motor, transfers the power via the timing belt to the other pulley- the driven pulley. A simple application would be two pulleys and one belt system. There are more complex power transmission applications. For example, an engine's power steering utilizes different pulleys and belts. Depending on your application specifications, various sizes, lengths, bore, and profile types can be chosen to create your system.

Why Choose Our Timing Belt Pulley?

Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing pulleys are fabricated by our skilled personnel using advanced technology.Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.
