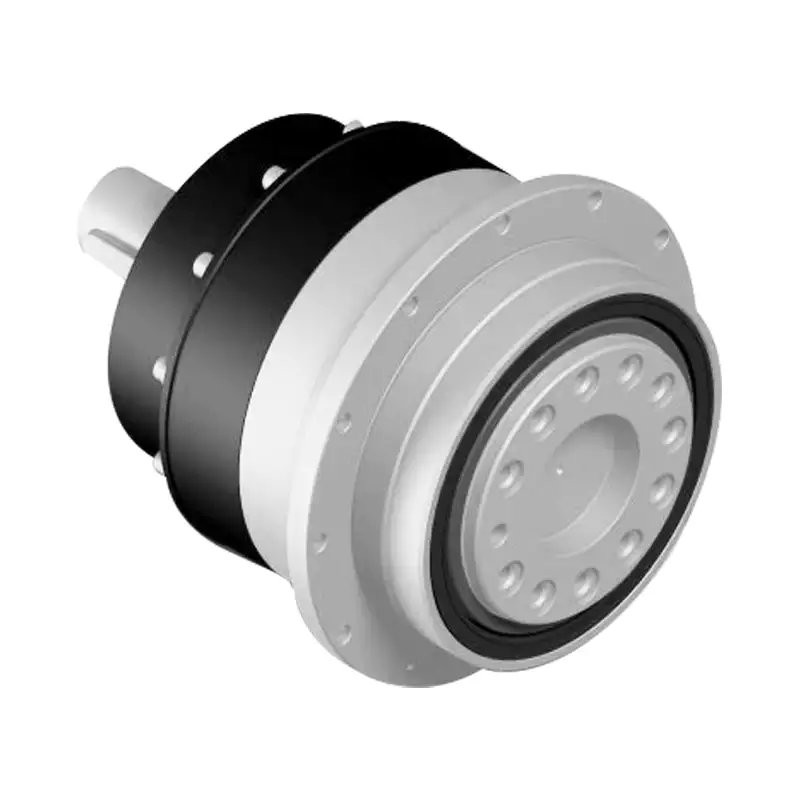

High Precision Planetary Gearbox Replacement of APEX ADS140 is a type of gearbox used in servo motors. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The gearbox has a compact structure and high precision, making it suitable for use in various industries, including automation, robotics, and machine tools.
Our High Precision Planetary Gearbox can replace the APEX brand perfectly. Our products have similar installation methods, outer dimensions, and technical parameters as the APEX brand. However, we do not sell APEX brand products, and we only mention APEX brand models to help our customers choose the right gearbox. Besides, we can customize the gearbox according to different sizes.
| Parameters | Value |
|---|---|
| Output Torque (1-stage) | 5 Nm - 160 Nm |
| Output Torque (2-stage) | 15 Nm - 500 Nm |
| Ratios (1-stage) | 3, 4, 5, 6, 7, 8, 9, 10 |
| Ratios (2-stage) | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 |
| Emergency Stop Torque | 2.5 times rated torque |
| Nominal Input Speed | 3000 rpm |
| Max Input Speed | 6000 rpm |
| Micro Backlash | <3 arcmin |
| Reduced Backlash | <5 arcmin |
| Standard Backlash | <8 arcmin |
| Torsional Rigidity | 7 Nm/arcmin |
| Max Radial Load | 1000 N - 12500 N |
| Max Axial Load | 500 N - 8000 N |
| Service Life | 20,000 hours |
| Efficiency | >95% |
| Weight | 0.5 kg - 18.5 kg |
| Operating Temp | -10??C - 90??C |
| Lubrication | Lubrication for life |
| Degree of Gearbox Protection | IP65 |
| Mounting Position | Any position |
| Noise | <65 dB(A) |
Compared to other brands, our High Precision Planetary Gearbox has several advantages:
Our gearbox has micro backlash, reduced backlash, and standard backlash options to ensure high precision. We use high-precision gear grinding technology to ensure low backlash, which can meet the needs of various high-precision motion control systems.
Our gearbox has a large output torque and a high load-carrying capacity. The maximum radial load is up to 12500 N, and the maximum axial load is up to 8000 N. The gearbox has high torsional rigidity, which can ensure the accuracy of the motion control system.
Our gearbox has a service life of up to 20,000 hours, which can reduce the maintenance cost of the motion control system and improve the production efficiency.
Our gearbox has a wide range of ratios, which can meet the needs of various motion control systems. The ratio of 1-stage gearbox is 3-10, and the ratio of 2-stage gearbox is 15-100.
We can customize the gearbox according to different sizes to meet the needs of various motion control systems.
Our High Precision Planetary Gearbox can be used in various fields, including:
Our gearbox can be used in various automated systems, such as packaging machines, assembly lines, and robots. It can ensure the accuracy and stability of the system.
Our gearbox can be used in various types of robots, such as industrial robots, collaborative robots, and service robots. It can ensure the smooth and accurate movement of the robot.
Our gearbox can be used in various types of machine tools, such as CNC machine tools, grinding machines, and milling machines. It can ensure the high precision and stability of the machine tool.
Raydafon is a professional manufacturer of transmission equipment located in Ningbo, China. We strictly operate according to the international quality management system standard ISO90012015, and our products have received mandatory CCC certification in China and CE certification in the European Union. Our products are produced according to international standards and have reached the advanced level of similar international products.
Our advantages include:
