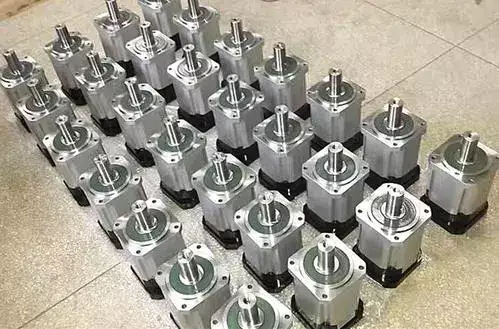

High Precision Planetary Gearbox Replacement of APEX AFH075, also known as servo motor planetary gearbox or low backlash planetary gearbox, is a type of gearbox that is used to transmit torque and reduce speed in various industrial applications. It is known for its high precision and low backlash capabilities, making it ideal for applications that require high accuracy and repeatability.
Our High Precision Planetary Gearbox is designed to replace APEX brand gearboxes. It has similar installation methods, dimensions, and technical specifications as APEX gearboxes. We do not sell APEX brand products, but we use APEX brand model numbers for customer convenience in selecting the appropriate replacement. We offer customized sizes for different applications.
| Parameter | Value |
|---|---|
| Output torque (1-stage) | 10-95 Nm |
| Output torque (2-stage) | 100-500 Nm |
| Ratios (1-stage) | 3, 4, 5, 7, 8, 10, 12, 16, 20, 25, 28, 35, 40, 50, 70, 100 |
| Ratios (2-stage) | 85, 120, 170, 240, 340, 480, 680, 960, 1360, 1920, 2720 |
| Emergency stop torque | 2.5 x Output torque |
| Nominal input speed | 3000 rpm |
| Max input speed | 6000 rpm |
| Micro backlash | ??3 arcmin |
| Reduced backlash | ??5 arcmin |
| Standard backlash | ??7 arcmin |
| Torsional rigidity | ??14 Nm/arcmin |
| Max radial load | 5000 N |
| Max axial load | 2500 N |
| Service life | 20000 hours |
| Efficiency | ??95% |
| Weight | 0.4-12 kg |
| Operating temp | -10??C to 90??C |
| Lubrication | Lubrication for life (no need to replace) |
| Degree of gearbox protection | IP65 |
| Mounting position | Any position |
| Noise | ??65 dB(A) |
Compared to other brands, our High Precision Planetary Gearbox has the following advantages:
Our High Precision Planetary Gearbox is designed to provide high accuracy and repeatability in various applications. Its high torsional rigidity and low backlash make it ideal for precision motion control applications. Our gearboxes also have a long service life and high efficiency, making them a cost-effective solution for many industrial applications.
Our High Precision Planetary Gearbox can be used in various applications, including:
In CNC machines, our High Precision Planetary Gearbox provides accurate and repeatable positioning. In robotics, it provides precise motion control. In printing machines, it ensures accurate registration. In medical equipment, it provides smooth and quiet operation. In packaging machinery, it ensures consistent and reliable packaging. In textile machinery, it provides precise control over fabric tension.
We, Raydafon, are a professional manufacturer of power transmission equipment. We specialize in research, development, production, and sales of various transmission equipment. Our company is located in Ningbo, Zhejiang, and operates according to international quality management system standard ISO 9001:2015. Our products have passed China's mandatory CCC certification and the European Community's CE certification. Our products are produced in accordance with international IC standards and have reached the advanced level of similar products internationally.
Our advantages include:
At Raydafon, we strive to provide high-quality products and services to our customers. We are committed to innovation, efficiency, and customer satisfaction.
