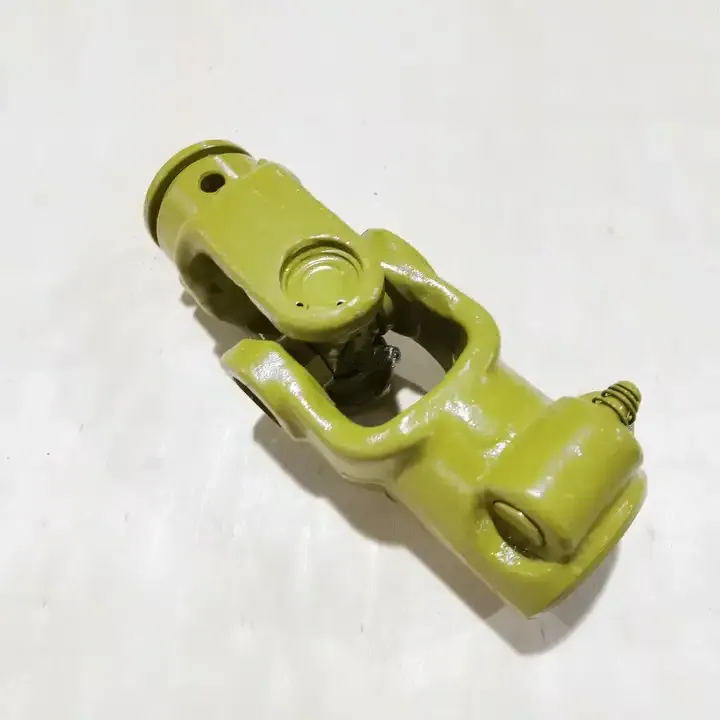

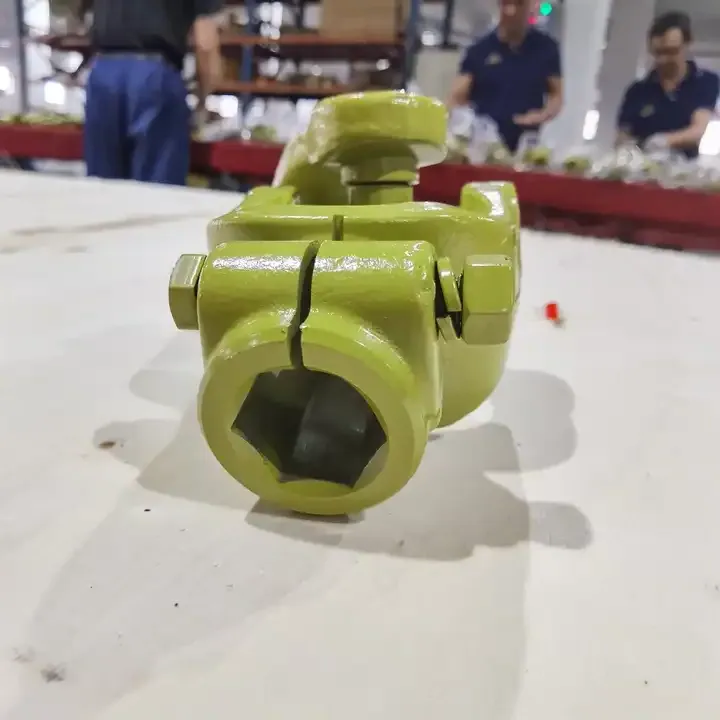

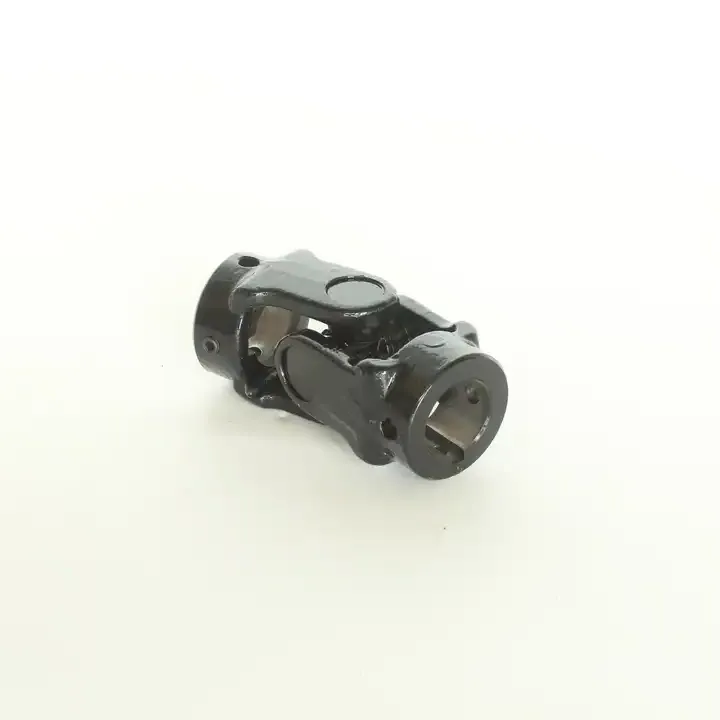

High Precision Pto Shaft Universal Joint 1.06L+1.0501B Lemon Yoke and Spline Yoke for 10hp tractor

Aiming to enhance the efficiency and functionality of your 10hp tractor, the High Precision Pto Shaft Universal Joint 1.06L+1.0501B Lemon Yoke and Spline Yoke is a high-quality product designed to deliver the best performance. This product is new, certified by CE ISO TS, and comes with a 1-year warranty and is manufactured from 1045C material, renowned for its strength and durability. The product comes in yellow, with a weight of 5 KG, and is suitable for a wide range of industries.

Advantages of the SD Double Universal Joint for Tractor PTO Shaft

The SD Double Universal Joint offers numerous advantages for a tractor PTO shaft. These include:

1. Increased torque transmission: The SD Double Universal Joint is designed to efficiently handle high torque levels. It can effectively transmit power from the tractor's engine to the PTO-driven implement without significant power loss or damage to the joint itself.
2. Angular misalignment compensation: The SD Double Universal Joint can accommodate angular misalignment between the tractor and the implement.
3. Reduced vibration and noise: Thanks to its design, the SD Double Universal Joint helps to dampen vibrations and reduce noise levels during operation.
4. Longevity and durability: Made from hardened steel or alloy, the SD Double Universal Joint is built to withstand heavy loads and harsh operating conditions, offering excellent strength and durability.
5. Easy maintenance and replacement: The design of the SD Double Universal Joint allows for straightforward maintenance and replacement. In case of wear or damage, the joint can be easily disassembled and serviced.
6. Compatibility with other equipment: The SD Double Universal Joint is a widely used design and is compatible with various PTO-driven implements.

Applications of the SD Double Universal Joint for Tractor PTO Shaft

SD Double Universal Joints are commonly used in various agricultural applications due to their ability to transmit power smoothly and efficiently at high operating angles. They are commonly used in:

1. Harvesting Machinery: Enables the transfer of power from the engine to the various cutting, threshing, and conveying mechanisms of the machines, allowing for efficient harvesting operations.
2. Rotary Cutters and Mowers: Transmits power from the tractor's power take-off (PTO) to the cutting blades, ensuring smooth and consistent operation even at varying angles of operation.
3. Tillage Equipment: Transfers power from the tractor's PTO to the rotating components, facilitating the tillage process.
4. Balers: Transmits power from the tractor's PTO to the baling mechanism, ensuring the consistent and efficient formation of bales.
5. Seeders and Planters: Transfers power from the tractor's PTO to the seed metering mechanisms, ensuring accurate and uniform seed distribution.
6. Manure Spreaders: Transfers power from the tractor's PTO to the spreading mechanism, allowing for efficient and uniform distribution.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. The common types include:

1. 1. Shear Bolt Torque Limiter: Ideal for situations where overload conditions are clear and easily detectable.
   2. Friction Clutch Torque Limiter: Used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.

1. Ratchet Torque Limiter: Suitable for implements like augers where unidirectional operation is required.
2. Overrunning Clutch Torque Limiter: Commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.

How Does the Double Universal Joint for Tractor PTO Shaft Work?

The SD Double Universal Joint for a tractor PTO shaft is a mechanical device that allows for the transmission of power from the tractor's engine to attached implements. The working mechanism includes:

1. Universal Joints: The SD Double Universal Joint incorporates two universal joints, also known as Cardan joints. The needle bearings allow for smooth rotation and transfer of torque between the two connected shafts.
2. Centering Yoke: The centering yoke provides stability and alignment between the two universal joints, ensuring proper power transmission.
3. Attached Implements: One end of the SD Double Universal Joint is connected to the tractor's PTO shaft, which is driven by the engine power. The other end of the universal joint is connected to the implement or machinery that requires power.
4. Power Transmission: The PTO shaft, in turn, transmits this power to the universal joint at one end of the SD Double Universal Joint. The universal joint allows the PTO shaft's rotational motion to be transferred smoothly to the second universal joint through the centering yoke.

Choose the Right SD Double Universal Joints for PTO Shaft

When selecting the right SD Double Universal Joints for a tractor PTO shaft, consider the following factors:

1. Compatibility: Ensure that the SD Double Universal Joints are compatible with your tractor's PTO shaft.
2. Power Rating: Consider the power rating of the SD Double Universal Joints.
3. Operating Angles: Determine the range of operating angles required for your application.
4. Durability and Quality: Look for SD Double Universal Joints that are made from high-quality materials and have a reputation for durability.
5. Maintenance Requirements: Look for joints that are designed for ease of maintenance.

Maintenance of the SD Double Universal Joint for Tractor PTO Shaft

Proper maintenance of SD Double Universal Joints for a tractor PTO shaft is essential to ensure their longevity and reliable performance. The key maintenance practices include:

1. Regular Inspection: Perform regular visual inspections of the SD Double Universal Joints to check for any signs of wear, damage, or looseness.
2. Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use the appropriate grease or lubricant specified for the joints.
3. Torque Check: Periodically check the torque on the fasteners that secure the joints to the PTO shaft and the implement.
4. Operating Angle: Be mindful of the operating angles of the PTO shaft during use.
5. Replacement: If any signs of significant wear, damage, or play are detected during inspections, consider replacing the SD Double Universal Joints.

Why Choose Raydafon's SD Double Universal Joint for PTO Shaft?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. With a strong focus on quality, we adhere to the principles of Quality first, Deliver quickly, and Price Competitive. We have earned the CE, TS/16949, and ISO9001 certificates and are the top professional OEM supplier for many agricultural implement factories in the domestic market. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.Author: Yjx
