High quality harvester machine flexible Ball Joint

Product Overview

Item Name	Sickle Knife head
COMBINE No.	4B1013
Ref. OEM No.	670120.1+676231.0
Application	CL AAS MEGA series

Item Name	Sickle Knife head
COMBINE No.	4B1014
Ref. OEM No.	611217.0611218.0613304.2
Application	CL AAS COMPACT 20, 25, 30, MERCATOR 50

Item Name	Sickle Knife head
COMBINE No.	4B1015
Ref. OEM No.	616411.1
Application	CL AAS LEXION / MEGA / MEDION / DOMINATOR series

Item Name	Sickle Knife head
COMBINE No.	4B1016
Ref. OEM No.	110033001
Application

Item Name	Sickle Knife head
COMBINE No.	4B1017
Ref. OEM No.	110033101
Application

PRODUCT SPECIFICATIONS

No	No.	Ref. No.	Description	Application
1	4B1009	84998148	Including: Bearing: SGE35ES/K Bolt: M16*1-60
2	4B1010	84996264	Including: Bearing: SGE35ES/K Bolt: M16*1-61
3	4B1011	807538628443377984437437	Including: Bearing: SGE35ES/K Bolt: M16*1-60
4	4B1012	1316161C95	Including: Flange: 1313797C2 Mounting holes: 16*Φ6	CA*SE 1010,1020
5	4B1024	462378R1156692C91	Including: Plug Bushing
6	4B1057	824594C91		MOWER CONDITIONERS 1190. WINDROWERS 210,230,4000,5000,5500
7	4B1053	87561157C132896	Including: Bearing: B2020	N*H 82C, 83C, 86C
8	4B1060	84275285	Thread: M20X1.5 Mounting holes Dia.:6.5 Mounting holes NO.: 17	740CF/760CG/3050/3020 Case-IH 3020-20, 3020-25, 3020-30, 3020-35, 3050-16FT, 3050-18FT, 3050-20FT, 3050-22FT, 3050-25FT H,3050-25FT L, 3050-30FT, 3050-35FT
9	4B1018	28283011		CA*SE 151
10	4B1003-5.5	AH89498-5.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
11	4B1003-6.5	AH89498-6.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
12	4B1004	AZ50341AZ41726	WT (kg/pc): 1.765	J&D 810, 812, 814, 816, 818, 820
13	4B1005-5.5	AH121075-5.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
14	4B1005-6.5	AH121075-6.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
15	4B1006	AH21346	WT (kg/pc): 1.735	J&D 530/630, 730, 925, 935, 945, 930/940, 932/942, 950/960/970, 952, 955, 965/965H/968H, 975, 985, 1032/1042/1052, 1055,1065/1068H, 1072/1075
16	4B1007	AH220051H178599	WT (kg/pc): 1.100	J&D 600R&F, 600 series
17	4B1008	H212086AH212050	WT (kg/pc): 1.030	J&D 600, 614, 615, 618, 620, 622, 625, 630
18	4B1059	AH231842	With sleeve H157812 Mounting holes Dia.:6.2 Mounting holes NO.:9 WT(kg/pc):1.42	J&D 630FD, 635FD, 645FD
19	4B1056	AH75308AZ502562	WT (kg/pc): 1.900	J&D 6601, 6602, 6622
20	4B1018	28283011	Knife head: 28283011 Half section 44104000 & 44103800 Knife section:44103700 101pcsWT(kg/pc): 17.6	CA*SE 151 M&F 7274 7278
21	4B1022	3469524+3099334M2	3469524 & 3099334M2 riveted together WT(kg/pc): 1.010
22	4B1049	059509P1	Matching with 4B2003 Thread: 1"-12 UNF WT(kg/pc): 0.990
23	4B1020	4804850	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
24	4B1021	4804851	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
25	4B1053	132896	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
26	4B1054	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO..:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
27	4B1055	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
28	4B1055	120832	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.: 9 WT(kg/pc):1.1	MacDon 7000 9000 LH
29	4B1027	1261000	Bores:M22*1.5 Mounting holes Dia.:6.5 Mounting holes NO.:15 WT(kg/pc):1.28
30	4B1028	1507030	Bores:51 Mounting holes Dia.:M6 Mounting holes NO.: 9 WT(kg/pc):1.7
31	4B1029	16665	Bores:51 Mounting holes Dia.:M6 Mounting holes NO. :9 WT(kg/pc):1.56



Introduction

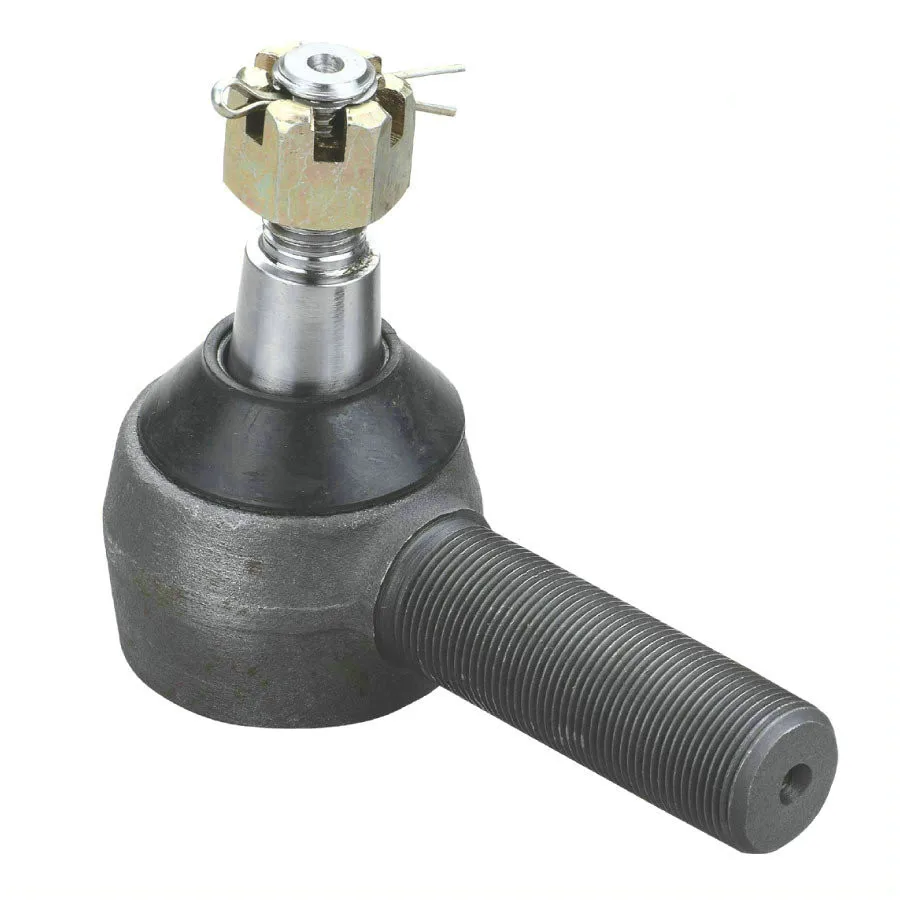

The high quality harvester machine flexible ball joint is an essential part of a harvester machine. It is used to connect the rod ends of the steering cylinder to the steering knuckle. The ball joint operates by allowing a limited range of movement in any direction, which is necessary for the proper function of the harvester.

Product Details

Our company produces this product, which can replace most of the commonly used models of harvester machine parts. Additionally, we offer customized solutions to meet specific needs. Our advantages include:

• High quality materials
• Strict quality control
• Competitive pricing

Compatible Brands and Models

We can provide this product for various harvester brands and models, including but not limited to:

Brand	Model
John Deere	9870 STS
Case IH	Axial-Flow 9230
Claas	Lexion 780

Other Agricultural Machinery Parts

In addition to the harvester machine flexible ball joint, we provide a wide range of other agricultural machinery parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Commonly Worn Out Components of a Harvester Machine

During the operation of a harvester machine, some parts may wear out more quickly than others. Commonly worn out components include:

1. Blades/cutting parts: including main blades, protective blades, cutting blade drive belts, etc.
2. Threshing drum and concave
3. Separation screen and cleaning fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: including hydraulic cylinders, hoses, seals, etc.
7. Bearings
8. Filters: air filters, fuel filters, and oil filters, etc.

Please refer to the image below for a better understanding of these components:

Signs that Indicate the Need for Replacement of Harvester Machine Parts

Here are some common signs that indicate the need to replace specific parts of a harvester machine:

1. Poor harvesting performance: if there is too much crop residue after harvesting or the grains are not well separated, it may indicate severe wear of threshing drum and concave, which needs to be inspected and replaced in a timely manner.
2. Reduced power or overheating: if the engine power is insufficient or the running temperature is too high, it may be due to air filter clogging or cooling system failure. Replacing the air filter or checking and repairing the cooling system is necessary.
3. Reduced harvesting efficiency: if the cutting platform runs slowly or the material conveying speed slows down, it may be due to aging and slackening of the transmission belt, chain elongation, or worn drive gears. The corresponding belt, chain, or gear needs to be inspected and replaced accordingly.
4. Difficult to move or increased noise: if a rubber track harvester machine, loose or significantly cracked tracks need to be replaced; if a tire-type harvester machine, worn tires or a tire rupture requires tire replacement. Additionally, if there is abnormal noise during movement, it may be due to bearing wear or damage, which needs to be replaced.
5. Unstable hydraulic system operation: if the lifting or steering is slow or weak, it may be due to the problem of hydraulic pump, oil cylinder, valve, or sealing ring, etc. The relevant components need to be checked and replaced in a timely manner.
6. Significant oil leakage: whether it is oil, hydraulic oil, or fuel leakage, it indicates the failure of sealing rings or other damaged components, and the damaged sealing rings or components need to be replaced promptly.

Author: Miya
