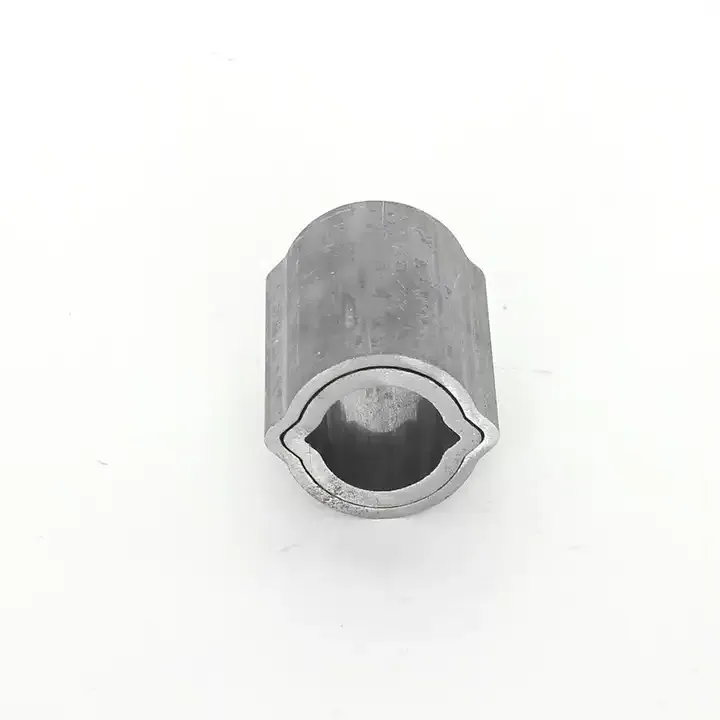

High Quality Lemon Tube PTO Shaft Tube for Agricultural Tractor Parts

[embed]https://youtu.be/zmwW0-sbEgo[/embed]Discover the high-quality Lemon Tube Power Take-Off (PTO) shaft tube, an essential component for agricultural tractor parts. This product is geared towards enhancing the efficiency and safety of your agricultural operations. The Lemon Tube PTO shaft tube, constructed from 16Mn steel, is known for its robustness and durability. It weighs 5 KG and is available in a natural color. The product is ISO, CE, and TS certified and comes with a 1-year warranty. It is perfect for use in various industries including hotels, garment shops, building material shops, manufacturing plants and more.

PTO Shaft Lemon Tube Specifications

Model Number	Lemon Tube
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc

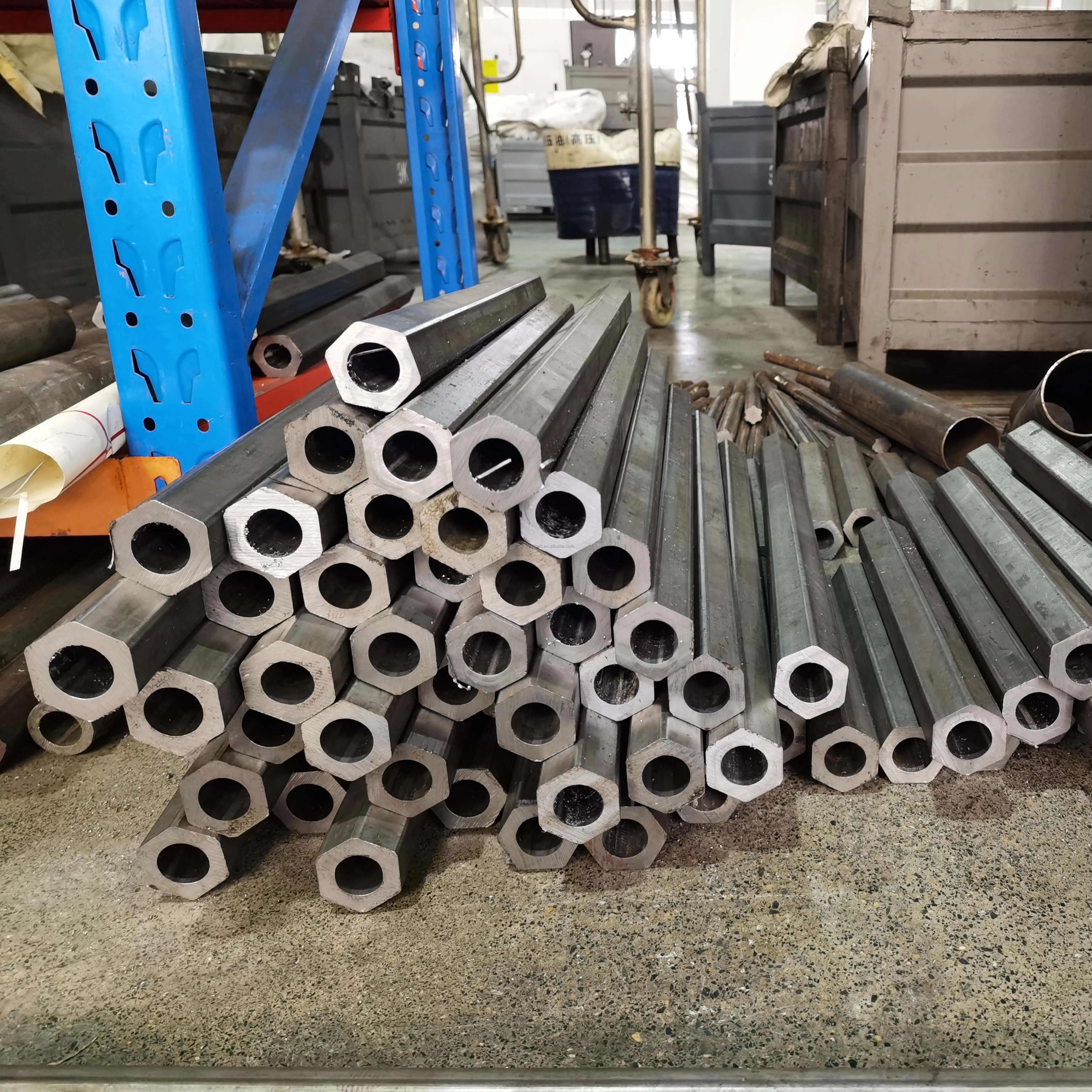

Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Advantages of the PTO Shaft Lemon Tubes

Agricultural Power Take-Off (PTO) shaft tubes are essential components in farm machinery, connecting tractors to various implements like mowers, balers, tillers, and more. These tubes play a crucial role in the efficient and safe operation of agricultural equipment. Here are some of the key advantages of agricultural PTO shaft tubes:

• Effective Power Delivery: PTO shaft tubes are designed to transfer power from the tractor to the implement efficiently, ensuring optimal performance of the machinery.
• Robust Construction: These tubes are typically made from high-strength materials, making them durable and capable of withstanding the rigors of agricultural work. The construction material often has properties that resist wear, corrosion, and damage from environmental factors.
• Protective Shielding: Most PTO shaft tubes come with protective coverings or guards, which help prevent accidents and injuries caused by entanglement with the rotating shaft. They are often designed to meet specific safety standards, reducing the risk of accidents during operation.

• Accommodates Various Equipment: PTO shaft tubes are adaptable to a wide range of agricultural machinery, offering flexibility in connecting different types of implements. Many PTO shafts have telescopic designs, allowing them to accommodate different distances between the tractor and the implement.
• Easy to Service: They are generally designed for easy maintenance, with the ability to replace worn or damaged parts like bearings or u-joints. Many PTO shaft tubes have standardized components, making it easier to find replacement parts.
• Variety of Sizes and Types: PTO shaft tubes come in various sizes and types to match specific torque and speed requirements, offering customization options for different farming needs.

Applications of the Lemon Tube for PTO Shaft

Agricultural Power Take-Off (PTO) shaft tubes are essential components in a wide range of farm machinery, playing a critical role in the transmission of power from a tractor to various implements. Here are some key applications of agricultural PTO shaft tubes:

• Rotary Cutters and Mowers: Used to transfer power to rotary cutters and mowers for cutting grass, crops, and other vegetation.
• Balers: Vital in operating balers, especially for hay or straw baling. PTO shaft tubes ensure the efficient functioning of these machines during the compacting and binding process.
• Tillage Equipment: Essential for powering tillage tools like plows, harrows, and cultivators, which are used for soil preparation and weed control.
• Seeders and Planters: Facilitate the operation of seed drills and planters, ensuring seeds are sown effectively and at the right depth.
• Harvesting Machinery: Crucial in the operation of harvesting equipment, such as combines and forage harvesters.
• Manure Spreaders: Enable the functioning of manure spreaders, crucial for distributing organic fertilizers evenly across fields.

Agricultural PTO Shaft Tube Types

Agricultural Power Take-Off (PTO) shaft tubes are essential components in farm machinery, connecting the tractor to various implements. There are several types of PTO shaft tubes, each designed to meet specific requirements and applications in agriculture. Here are some PTO shaft tube types:

• Standard Duty Tubes: Ideal for light-duty work and smaller implements. They are typically lighter and used with equipment that doesn't require high torque or power transfer.
• Heavy-Duty Tubes: Suited for heavy-duty applications, demanding higher torque and power transmission. These tubes are more robust and capable of handling the stress of more intensive tasks like deep plowing or heavy-duty mowing.
• Lemon-Shaped or Star-Shaped Tubes: Designed for specific torque transmission requirements. These tubes have unique profiles (lemon or star-shaped) to provide different levels of flexibility and torque handling capabilities.
• Wide-Angle Tubes: Ideal for situations where the PTO shaft needs to operate at greater angles. They allow for wider operating angles between the tractor and implement, useful in uneven terrain.
• Splined Tubes: Common in most agricultural applications for secure attachment. These tubes feature internal and external splines for a secure fit and efficient power transmission.
• Telescopic Tubes: Used when a variable distance between the tractor and implement needs to be accommodated. These shafts can extend or retract to adjust the length, providing flexibility and convenience in operation.

Agricultural PTO Shaft Tube Replacement Steps

Replacing an Agricultural Power Take-Off (PTO) shaft tube is an important maintenance task that ensures the effective and safe operation of your farm machinery. Here's a step-by-step guide on how to replace a PTO shaft tube:

1. Disconnect Power: Ensure the tractor or any power source is turned off. Remove the key to prevent accidental starting. Make sure the implement attached to the PTO is properly supported and stable.
2. Remove the Old PTO Shaft: Detach the PTO shaft from the implement and the tractor. This usually involves removing a locking pin or clip at each end. Carefully slide the PTO shaft off the tractor??s PTO stub and then away from the implement.
3. Disassemble the PTO Shaft: Secure the PTO shaft in a vise or lay it on a flat surface. Remove any guards or chains. Locate and remove the fasteners or pins that hold the tube in place on the shaft assembly.
4. Remove the Old Tube: Slide the old tube off the shaft. You may need to tap it gently with a hammer if it's stuck.
5. Prepare the New Tube: Apply grease to the inside of the new tube and to any moving parts to ensure smooth operation.
6. Install the New Tube: Slide the new tube onto the shaft. Ensure it aligns correctly with the yokes and any other components. Secure the tube with the original fasteners or pins.
7. Reassemble the PTO Shaft: Replace any guards or chains that were removed. Ensure all components are secured properly. Carefully align and attach one end of the PTO shaft to the implement and then the other end to the tractor??s PTO stub. Secure both ends with locking pins or clips.
8. Test the Installation: Engage the PTO at a low speed while stationary to ensure the shaft rotates freely without wobbling or noise. Perform a functional test under normal operating conditions.

Choosing the Right PTO Shaft Tube

Choosing the right PTO (Power Take-Off) shaft tube for your agricultural equipment is crucial for efficient and safe operation. Here are some key factors to consider when selecting a PTO shaft tube:

• Length of the Shaft: Measure the distance between the tractor's PTO stub and the implement's input shaft. Consider the required length when the implement is in operation, as some implements may move further away from the tractor during use. Ensure the shaft can extend and retract. A telescopic shaft allows for flexibility in length, accommodating movement during operation.
• Shaft Diameter and Spline Specification: Determine the size and type of the PTO stub on the tractor. Common sizes are 540 RPM (6 splines, 1 3/8 inch diameter) and 1000 RPM (21 splines, 1 3/8 inch diameter or 20 splines, 1 3/4 inch diameter). Check the implement's input shaft size and spline count to ensure compatibility with the PTO shaft.
• Torque and Horsepower Requirements: Review the tractor and implement specifications for torque and horsepower requirements. The PTO shaft should be capable of handling the maximum torque and horsepower output of the tractor.
• Safety Features: Ensure the PTO shaft comes with appropriate safety guards to protect against entanglement and other accidents. Look for shafts that comply with recognized safety standards.
• Type of Work: The type of implement (e.g., mower, baler, tiller) often dictates the type of PTO shaft needed. Some implements require specific types of shafts for optimal performance. Consider the intensity and duration of the work. Frequent, heavy use requires a more robust shaft.
• Material and Build Quality: Opt for high-quality materials that offer durability and resistance to wear and corrosion.

Maintenance of PTO Shaft Lemon Tube

Maintaining an agricultural PTO (Power Take-Off) shaft tube is crucial for the safe and efficient operation of farm machinery. Regular maintenance ensures the longevity of the PTO shaft and helps prevent accidents. Here are key steps in maintaining an agricultural PTO shaft tube:

1. Regular Inspection: Regularly inspect the PTO shaft tube for any signs of wear, cracks, bends, or other damage. Ensure that all safety guards are in place and in good condition. They are essential for preventing entanglement injuries.
2. Lubrication: Lubricate the shaft regularly, focusing on universal joints, yokes, and the telescoping parts of the shaft. Use a high-quality grease that's suitable for agricultural equipment.
3. Cleaning: Keep the shaft clean from dirt, crop residue, and other debris. Dirt accumulation can hinder the telescopic action of the shaft and hide potential damage.
4. Checking and Adjusting Length: Ensure the shaft is the correct length for the tractor-implement combination. A shaft that's too short can disconnect, while one that's too long can compress and cause damage. Check the telescoping parts of the shaft for smooth operation. If they're difficult to slide, they may need cleaning or lubrication.
5. Inspect and Replace Worn Parts: Look for signs of wear in the yokes, universal joints, and tubing. Replace any worn or damaged parts promptly. Check and replace shear bolts and pins as necessary. These are designed to break under excess load to protect the tractor and implement.
6. Storage: When not in use, store the PTO shaft in a dry, covered area to prevent rust and corrosion. Hanging the shaft can prevent bending and warping.

Why Choose Raydafon's PTO Shaft Tubes?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, two hours to the Pudong Airport and one hour to the Xiaoshan Airport & the East of Ningbo Station, Covered more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc.The annual turnover is 60 million RMB, 9 Million Dollars, and it is increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive.We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.Our company offers professionalism, international certifications, customized services, production facilities, and excellent after-sales services. We believe in delivering the best quality products to our customers, ensuring their satisfaction and business growth. We are committed to providing the best service to our customers, ensuring they have the best products for their agricultural needs.Author: Yjx
