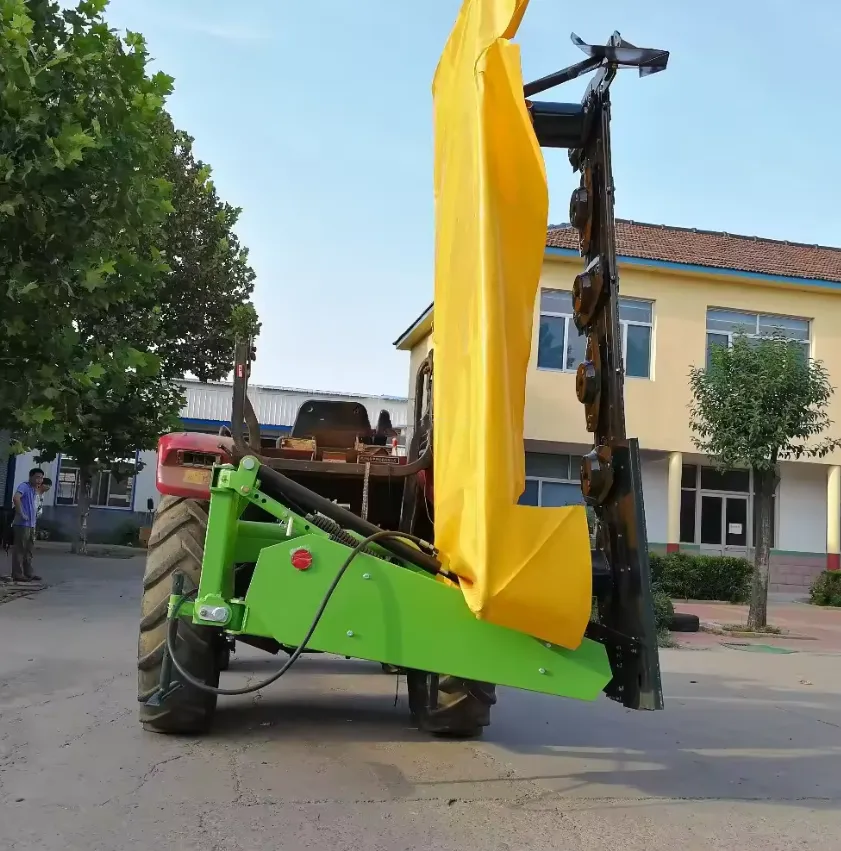

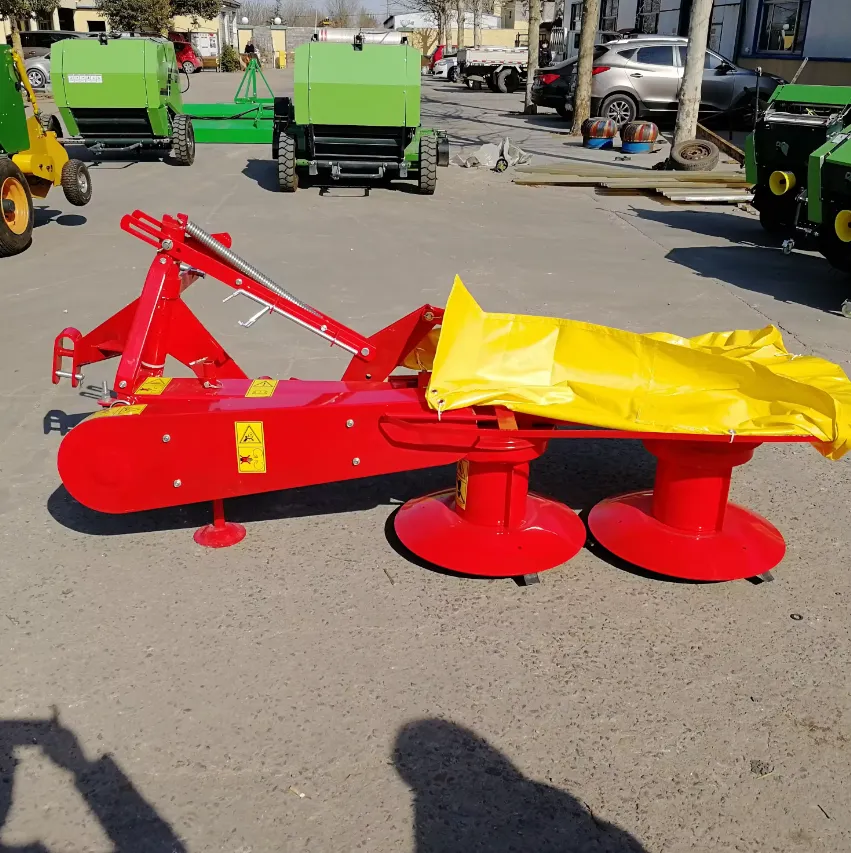

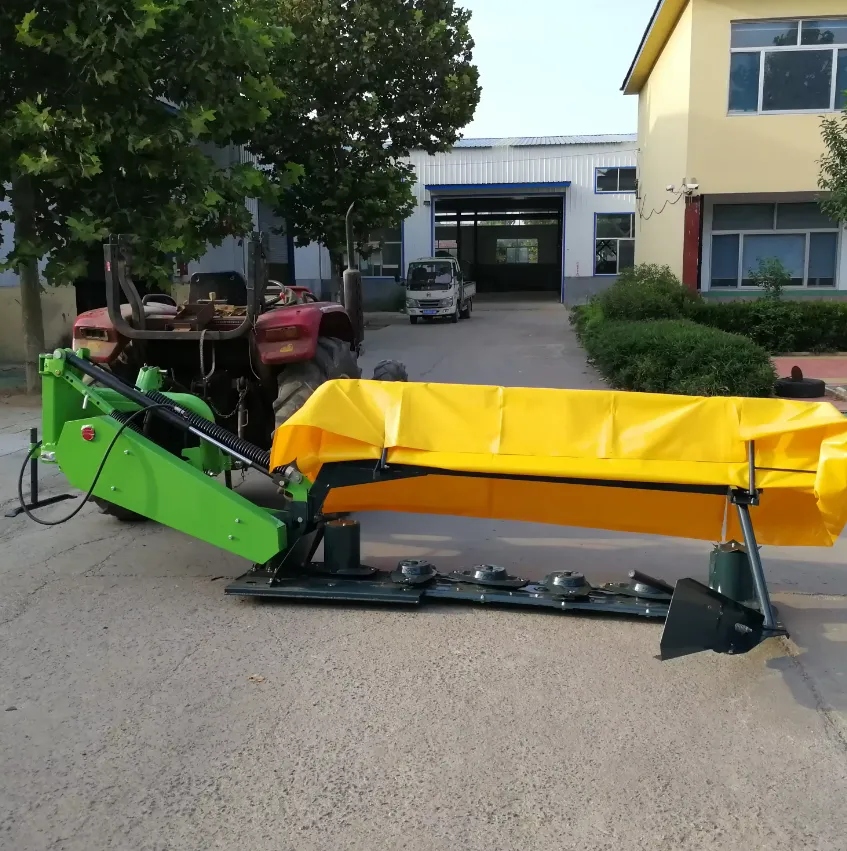

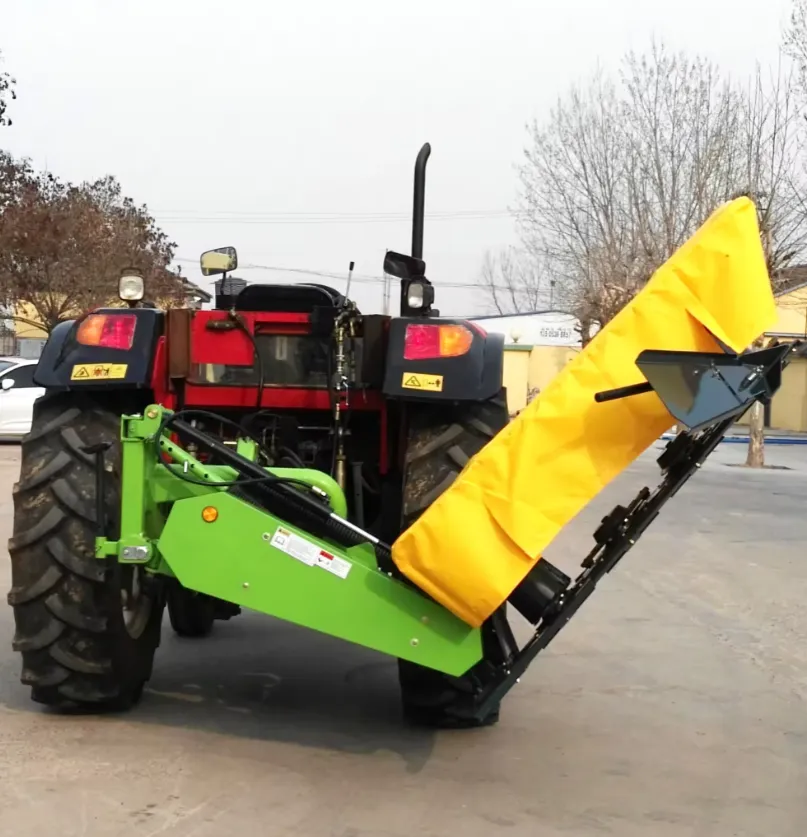

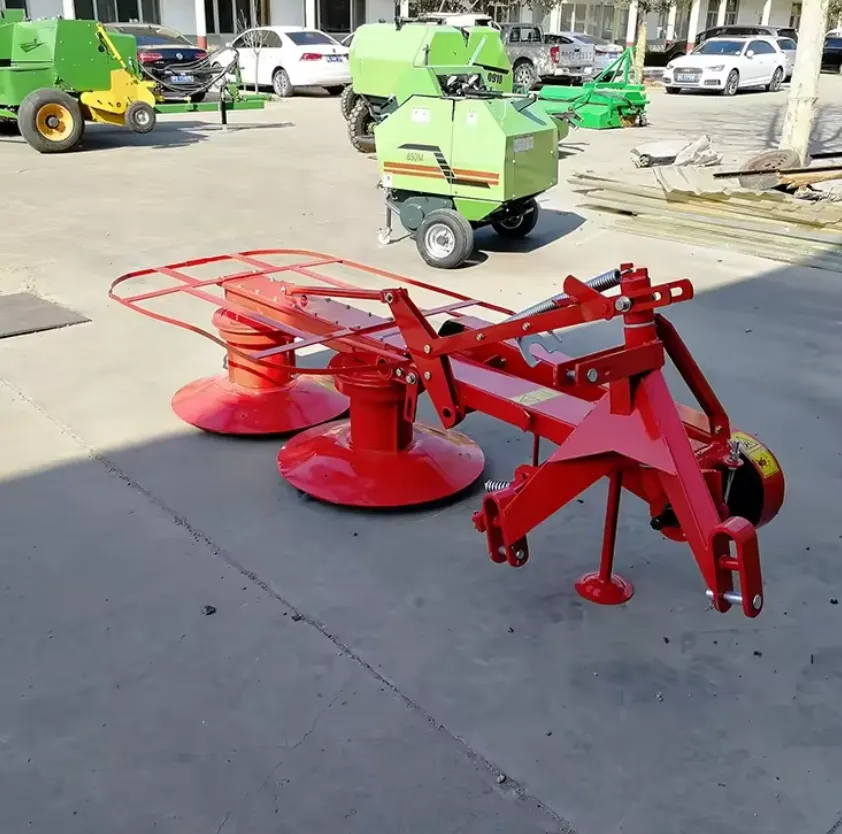

High Quality Mini Hay Mower/ Rotary Disc Mower for Cutting Grass

Introducing the high-quality Mini Hay Mower/Rotary Disc Mower - a top-tier piece of farm equipment specifically designed for high-efficiency agricultural operations. This Disc Mower is perfect for cutting grass, hay, corn, wheat, and more. It comes with the model number DM1300, and is brand new. Our engineers are available to service machinery overseas, ensuring you never have to worry about maintenance or repairs. The cutting width is customizable, ranging between 1300-2550mm, and it comes with a 3-point linkage - Cat. I or II. You can also choose the number of disks, which can be either 2pcs or 3pcs. The working speed is between 4-10km/h, with a matched power of 18-50HP. The color of the mower is customizable, and it comes with ISO certification.

The Advantages of the Mini Hay Mower/Rotary Disc Mower

Our Mini Hay Mower/Rotary Disc Mower is not just another piece of farm equipment. It is a product of advanced technology, designed to provide the following benefits:

1. 1. Efficiency: With a working speed of 4-10km/h, it enables you to cover a large area within a short time, increasing your overall productivity.
   2. Versatility: It is ideal for cutting various types of crops such as grass, hay, corn, wheat, and more.

1. 1. Customizable: The cutting width, color, and the number of disks can be customized to meet your specific needs.

1. Reliable After-sales Service: Our team of experienced engineers is always ready to provide overseas services, ensuring your operations are not interrupted.
2. High Quality: Made under ISO certification standards, this disc mower guarantees excellent performance and durability.
3. User-friendly: With its 3-point linkage, it can be easily attached to and detached from the tractor.

Applications of the Mini Hay Mower/Rotary Disc Mower

The Mini Hay Mower/Rotary Disc Mower is a versatile piece of farm equipment with numerous applications. These include:

1. Agriculture: It can be used in large scale farming to cut various types of crops.
2. Landscape Maintenance: Ideal for maintaining landscapes like golf courses, parks, and large lawns.
3. Animal Farming: It can be used in animal farms to cut hay for livestock feed.
4. Biofuel Production: Can be used to cut and collect crops used in biofuel production.
5. Research: Used in agricultural research institutions for practical learning and research purposes.
6. Horticulture: It can be used in the cultivation of gardens, flowers, and other ornamental plants.

How Does the 3 Point Hitch Disc Drum Mower Work?

The 3-point hitch disc drum mower is a type of agricultural machinery used for cutting and harvesting hay or grass. It is typically attached to the rear of a tractor using a three-point hitch, which provides stability and allows for easy maneuverability. Here's how the 3-point hitch disc drum mower works:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.
3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.
4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Installing a disc drum mower to a tractor generally involves the following steps:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.
6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of the Mini Hay Mower/Rotary Disc Mower

Proper maintenance of a 3-point hitch disc drum mower is essential to ensure its optimal performance, extend its lifespan, and promote safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?
