High Strength Durability V-belt Idler Pulleys

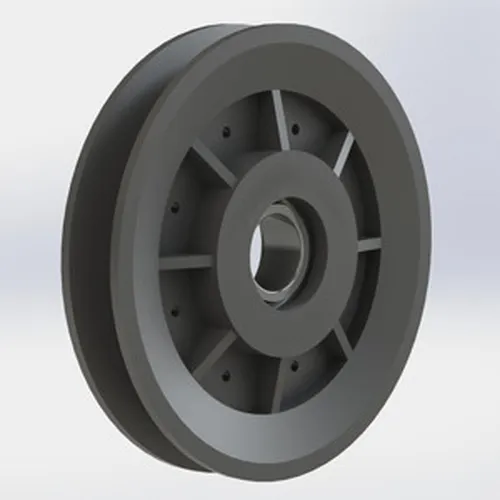

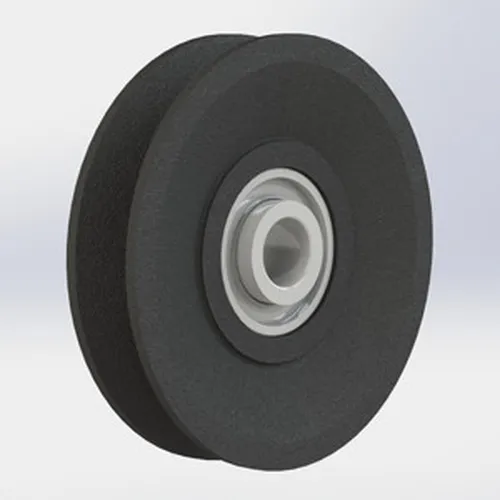

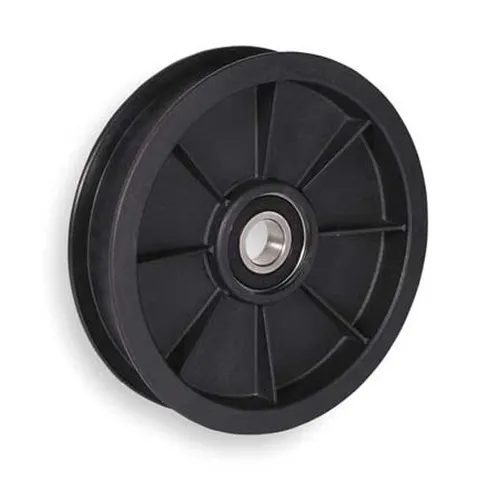

Available for use with most popular sizes of v-belts ("o," "a," or "b" sections), v-belt idler pulleys are provided with a series of radial reinforcing ribs to prevent deformation caused by the wedging action of the belt. The smooth and durable grooved surface promotes perfect tracking and ensures quiet, long-lived operation. Molded construction provides a bright, attractive appearance that speaks of the high quality of the final product. Plus, versatile bore adapters can be factory-installed to facilitate mounting.

Cast Iron	Composite Nylon

Product Specifications

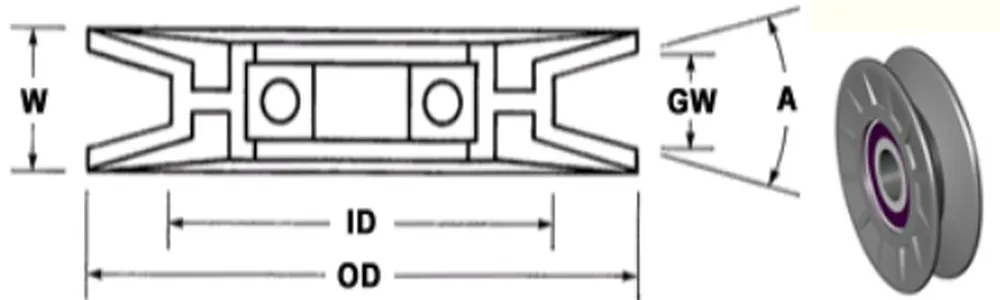

Part Number	OD	ID	GW	W	A	Belt size
Idler A-sec x 2" dia *	50.8 mm	34.5 mm	9.4 mm	15.7 mm	32°	M, 3L & A
Idler/Drive A-sec x 2.5" dia	63.5 mm	44.5 mm	13 mm	18.8 mm	32°	A
Idler/Drive A-sec x 2.75" dia	69.9 mm	45.5 mm	14.7 mm	19.3 mm	32°	A
Idler/Drive A-sec x 2.87" dia	73.2 mm	44.5 mm	12.4 mm	18 mm	32°	A
Idler/Drive A-sec x 3" dia	76.2 mm	49.8 mm	12.4 mm	17.8 mm	32°	A
Idler/Drive A-sec x 3.5" dia	88.4 mm	65.5 mm	12.7 mm	17.3 mm	34°	A
Idler/Drive A-sec x 3.56" dia	90.4 mm	63 mm	14.7 mm	19.8 mm	34°	A
Idler/Drive A-sec x 4" dia	101.6 mm	64.3 mm	12.7 mm	21.6 mm	34°	A
Idler/Drive B-sec x 3" dia	76.2 mm	45.5 mm	16.3 mm	20.1 mm	34°	B
Idler/Drive B-sec x 3.5" dia	88.1 mm	57.4 mm	16.3 mm	19.8 mm	34°	B
Idler/Drive B-sec x 4" dia	101.6 mm	70.9 mm	16.3 mm	19.8 mm	34°	B
Idler/Drive B-sec x 5" dia	127 mm	95.3 mm	16.3 mm	21.6 mm	34°	B
Idler/Drive B-sec x 6" dia	152.4 mm	121.2 mm	15.7 mm	21.3 mm	34°	B
Idler/Drive C-sec x 5" dia	127 mm	76.2 mm	22.4 mm	28.4 mm	36°	B & C
Idler/Drive C-sec x 6" dia	152.4 mm	101.6 mm	21.3 mm	28.4 mm	34°	B & C
Idler/Drive C-sec x 7" dia	177.8 mm	127 mm	23.6 mm	29.2 mm	34°	B & C

What is the Use of the V-belt Idler Pulleys?

V-belt pulleys are devices that transmit power between axles by using a v-belt, a mechanical linkage with a v-shaped cross-section. These pulleys have grooves located around the circumference, which help guide and gain traction on a v-belt, and are a notable upgrade from round or flat belt transmissions. V-belt idlers provide excellent traction, speed, and load capabilities.V-belt idler pulleys are used in a wide variety of applications, including:

• Material handling processes
• Hoisting equipment
• Fitness and lifting equipment
• Extra support to reduce belt vibration in other applications

Plastic Materials for V-Belt Idlers Pulleys

Raydafon expert plastic part designers will work on your new or existing idler pulley design to find the best plastic material for tensile strength and durability. We'll help you address your needs and build the best part possible out of the best materials available.Some of the plastic materials we use to make v-belt idler pulleys include:

• Glass-reinforced nylon
• Polyethylene
• ABS
• HDPE

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million US dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
