HRC Couplings

HRC Couplings

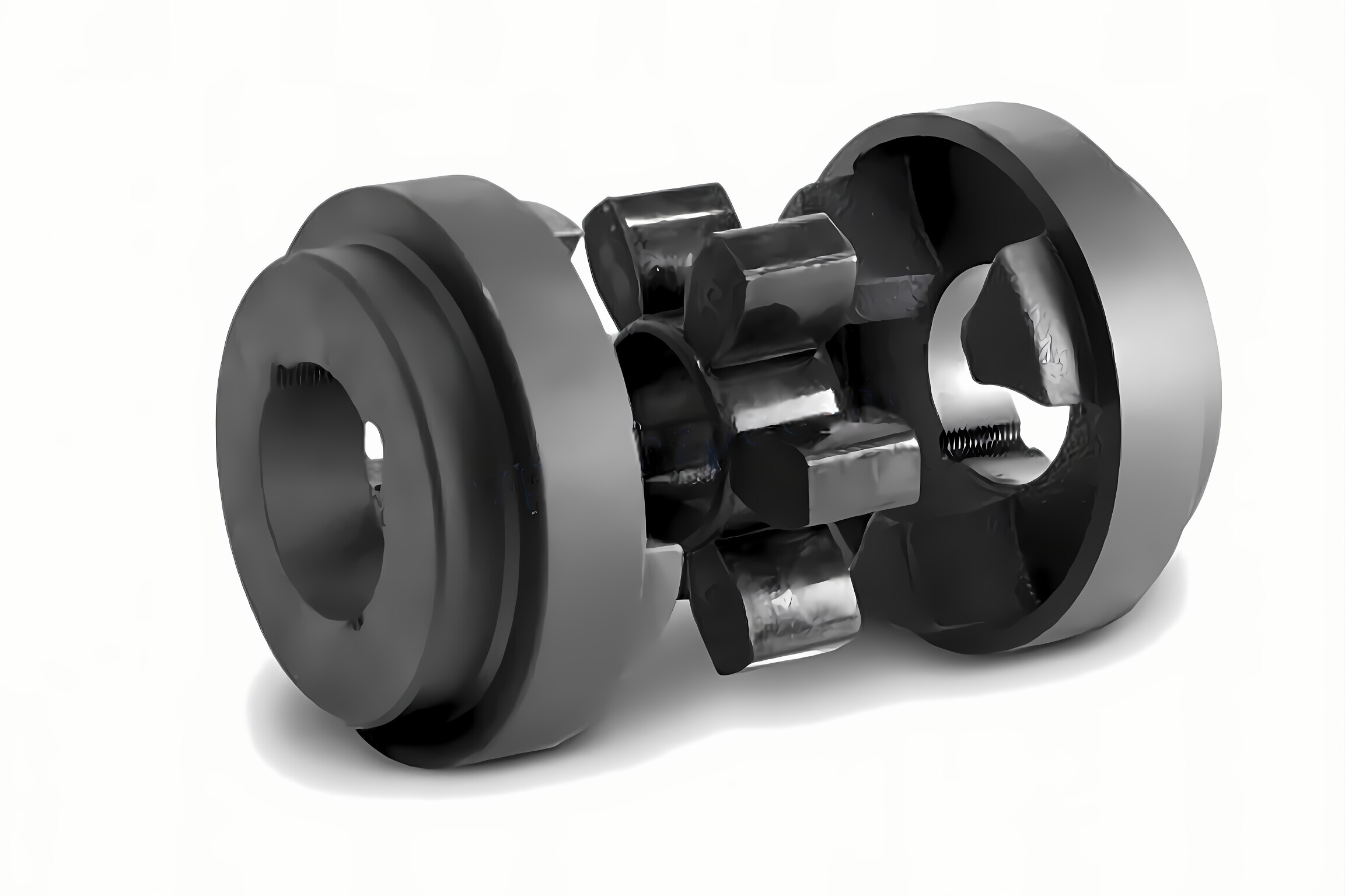

"HRC" is a registered trademark of the Fenner Group, but has become a widely used, generic term, to describe this coupling design.HRC couplings consist of 2 cast-iron halves attached to shafts through either hub mount (H Flange) or face mount (F Flange) taper bushes. Between these two halves is a rubber "spider" that serves as a shock absorber. HRC Couplings allow for a limited parallel misalignment (0.5mm) and axial misalignment (1.7mm).

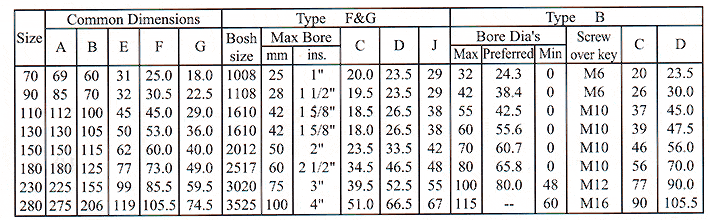

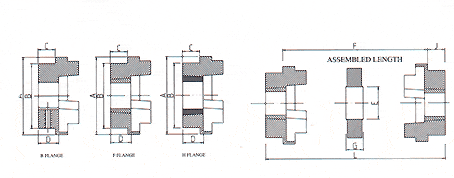

HRC Coupling Specifications

Features of HRC Couplings

Economy: The design of the HRC coupling has been optimized so that power capacities are balanced to the appropriate shaft diameters utilizing Taper-lock Bush fixingResilience: Transient peak loads are reduced by flexible components, the deflection of which is a prime design considerationMisalignment: Incidental parallel, angular and axial displacement of the connected shafts can be accommodatedInstallation: Quick and easy without special tools; only an allen key is requiredMaintenance: Virtually eliminated, and no lubricant is requiredEnvironment: The elastomeric component makes HRC coupling suitable for use in most conditions within a temperature range of -40℃ to +100℃Positive: In the unlikely event of the flexible component being destroyed, the drive will be maintained by the interaction of dogs which are integral with the flangesRaydafon, one of the professional coupling manufacturers that you can rely on, can offer high-durability China HRC couplings at reasonable prices! Feel free to contact us!
