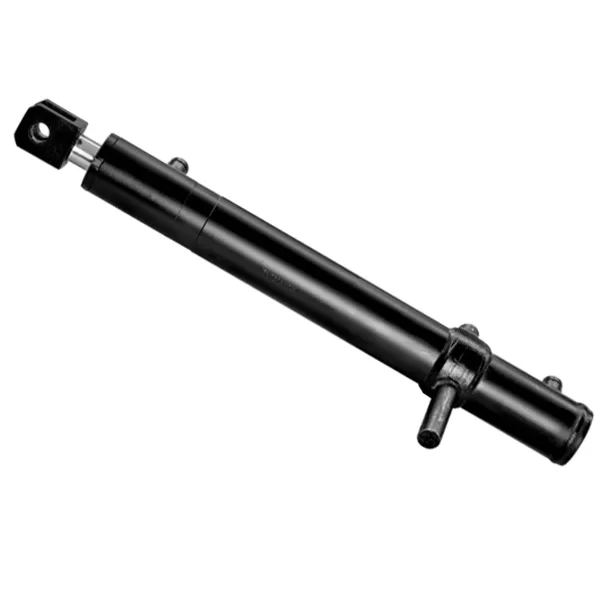

Hydraulic Cylinder for Pallet Lifting

Hydraulic Cylinder for Pallet Lifting

A hydraulic cylinder for pallet lifting is a type of hydraulic cylinder that is used to lift pallets. It is a key component of pallet jacks, which are used to move and stack pallets in warehouses and other industrial settings.

The hydraulic cylinder consists of a piston that moves inside a cylinder. The piston is connected to a rod that extends out of the cylinder. When hydraulic fluid is pumped into the cylinder, it pushes the piston and rod up, lifting the pallet. When the fluid is drained from the cylinder, the piston and rod return to their original position, lowering the pallet.

The size of the hydraulic cylinder needed for pallet lifting depends on the weight of the pallet and the height to which it needs to be lifted. For example, a pallet that weighs 1000 pounds and needs to be lifted 4 feet will require a hydraulic cylinder with a lifting capacity of at least 1000 pounds and a stroke of 4 feet.

The hydraulic cylinder is typically mounted on the frame of the pallet jack. The piston rod is connected to the pallet forks, which are used to lift the pallet. The hydraulic cylinder is operated by a hand pump, which is used to pump the hydraulic fluid into the cylinder. Hydraulic cylinders for pallet lifting are available in a variety of sizes and capacities. They are made from durable materials, such as steel and aluminum, and are designed to withstand the rigors of industrial use.

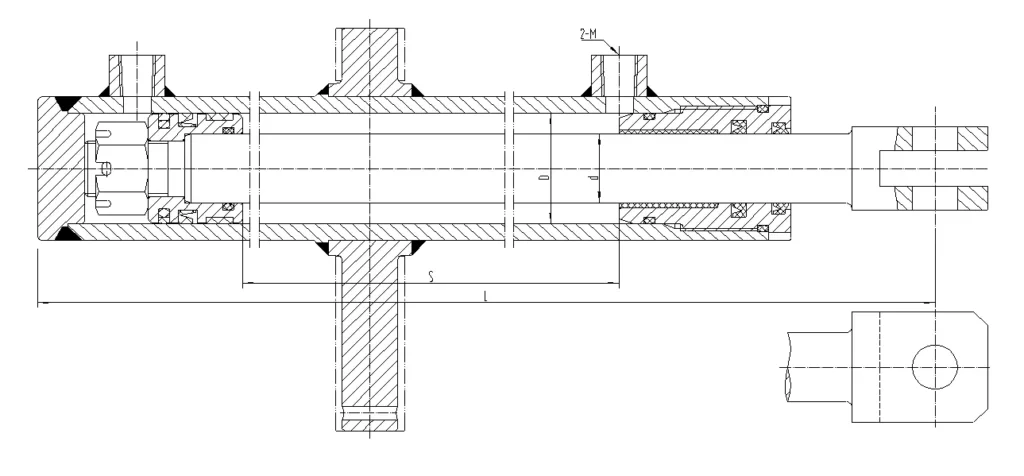

Hydraulic Cylinder for Pallet Lifting Dimensions:

图号drawing number	缸径Dbore diameter (D)	杆径drod diameter (d)	行程Sstroke (S)	总长LInstallation distance (L)	额定压力working pressure	接口尺寸MInterface dimensions (M)	重量weight
5T1678221-4-00	Φ40	Φ25	348	536	16.7MPa	2-RC1/4	6kg

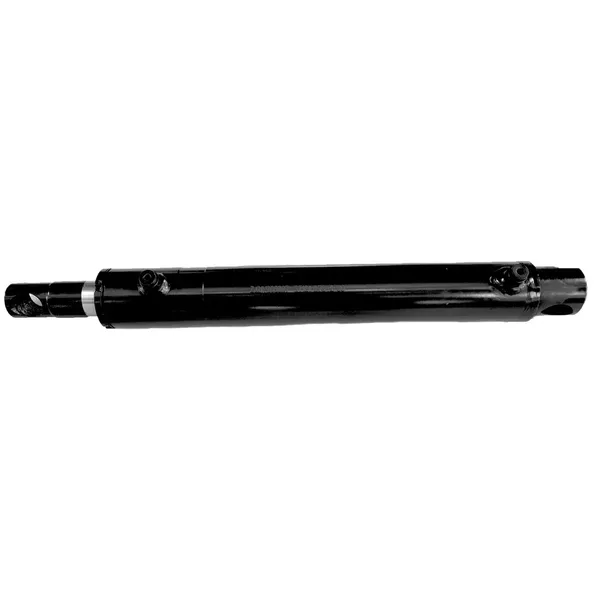

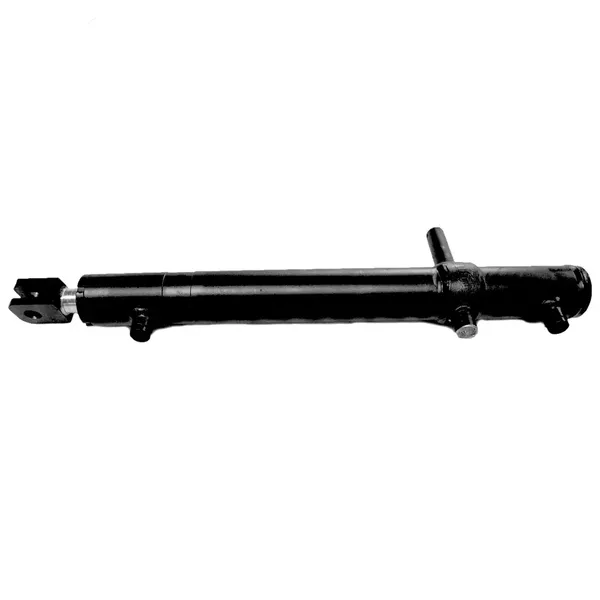

Advantages of Hydraulic Cylinder for Pallet Lifting:

Here are some of the advantages of using a hydraulic cylinder for pallet lifting:

1. Powerful and efficient: Hydraulic cylinders can lift heavy loads with ease, making them ideal for lifting pallets. They are also very efficient, using less energy than other lifting methods, such as manual lifting or using a winch.2. Easy to operate and maintain: Hydraulic cylinders are relatively easy to operate and maintain. They do not require a lot of specialized knowledge or skills to use. Most hydraulic cylinders come with instructions on how to operate and maintain them.3. Durable and long-lasting: Hydraulic cylinders are made from durable materials, such as steel and aluminum. They are designed to withstand the rigors of industrial use. With proper maintenance, a hydraulic cylinder can last for many years.4. Safe and reliable: Hydraulic cylinders are a safe and reliable way to lift pallets. They are designed to prevent accidents and injuries.

In addition to these advantages, hydraulic cylinders are also versatile and can be used for a variety of other lifting applications, such as lifting vehicles, machinery, and other heavy objects.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
