Hydraulic Press Centering Cylinder

Hydraulic Press Centering Cylinder

A hydraulic press centering cylinder is a component used in hydraulic press systems to ensure accurate and precise alignment of workpieces during pressing operations. It is designed to provide controlled and consistent centering force to the workpiece, allowing for uniform distribution of pressure and minimizing any potential misalignment.The hydraulic press centering cylinder typically consists of a cylindrical body with a piston inside it. The piston is driven by hydraulic pressure, either applied directly or through an interconnected hydraulic system. The cylinder is equipped with seals to prevent fluid leakage and maintain hydraulic pressure.During the pressing operation, the centering cylinder is positioned in such a way that it engages with the workpiece. As the hydraulic pressure is applied, the piston moves forward, exerting a centered force on the workpiece. This force helps to align the workpiece accurately and maintain its position during the pressing process. The hydraulic pressure can be precisely controlled, allowing for adjustable centering force according to the specific requirements of the application. This ensures consistent and repeatable centering performance, improving the quality and accuracy of the pressed components.Hydraulic press centering cylinders are commonly used in various industries, such as automotive, aerospace, metal fabrication, and manufacturing, where precise alignment and control are crucial for successful pressing operations.

Hydraulic Press Centering Cylinder Specifications:

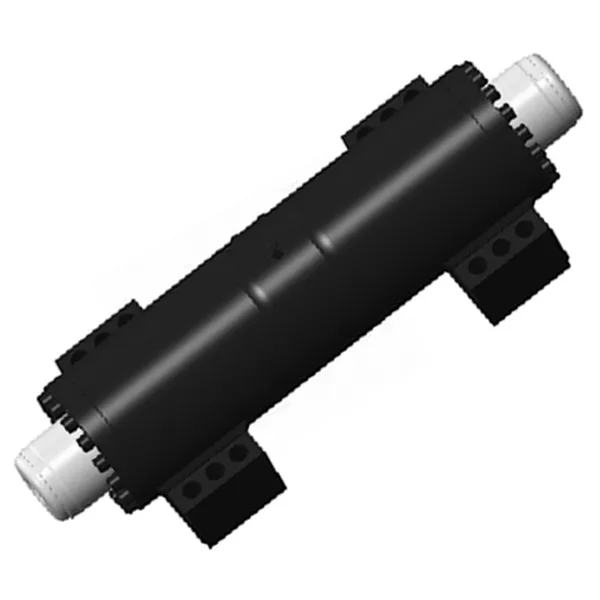

Product Name	Hydraulic Press Centering Cylinder
Features:	Ensure the middle position of the clamp head
Bore diameter:	50mm～190mm
Rod diameter:	35mm～150mmStroke≤1200mm
Thrust force:	Maximum 441KN(Cylinder diameter 190mm/pressure25MPa)
Centering Cylinder Applications:	Hydraulic Press

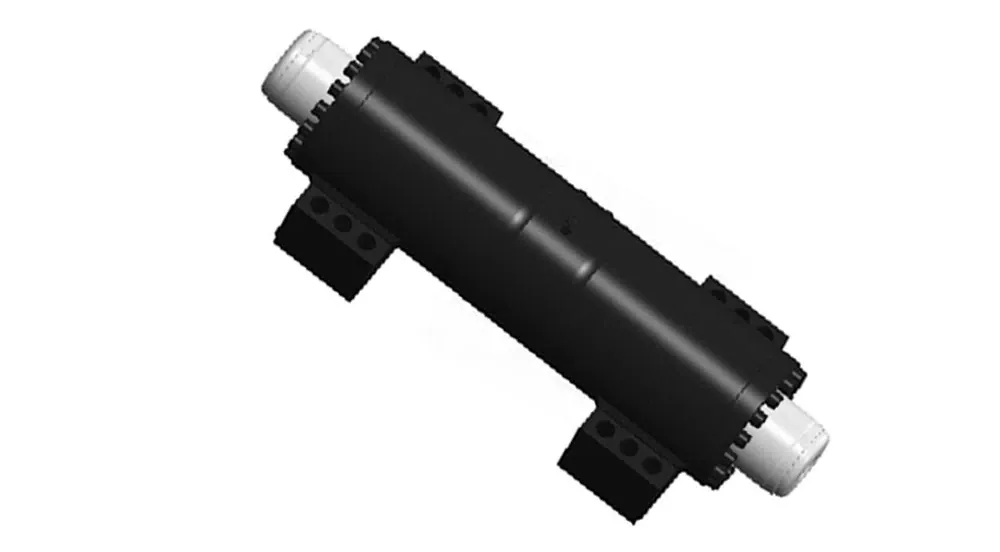

Advantages of Hydraulic Press Centering Cylinder:

Hydraulic press centering cylinders are used to center workpieces in a hydraulic press. They have a number of advantages over other types of centering devices, including:

1. Accuracy: Hydraulic press centering cylinders are very accurate, typically with a tolerance of ±0.0005". This is important for ensuring that the workpiece is properly aligned and that the pressing operation is performed correctly.2. Repeatability: Hydraulic press centering cylinders are repeatable, meaning that they can be used to center the same workpiece multiple times with the same accuracy. This is important for ensuring that the workpiece is always centered correctly, even if it is slightly out of alignment.3. Speed: Hydraulic press centering cylinders are fast, typically completing the centering operation in a few seconds. This is important for minimizing production time and increasing productivity.4. Ease of use: Hydraulic press centering cylinders are easy to use, even for operators with limited experience. This is important for ensuring that the centering operation is performed correctly and safely.5. Durability: Hydraulic press centering cylinders are durable and can withstand the rigors of a manufacturing environment. This is important for ensuring that the cylinders last for many years and require little maintenance.

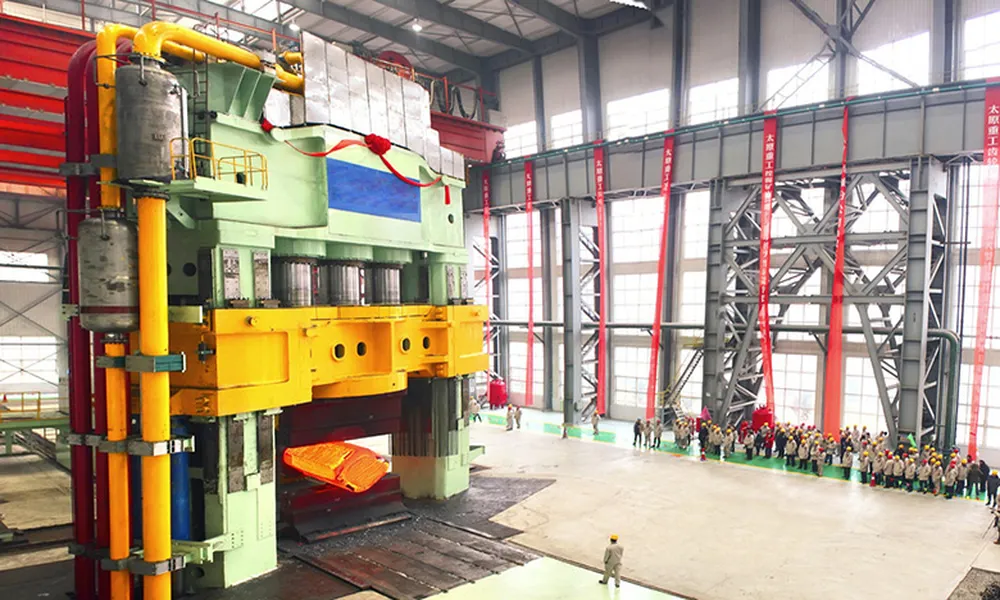

How Does a Hydraulic Press Centering Cylinder Work?

A hydraulic press centering cylinder is a type of hydraulic cylinder that is used to center workpieces in a hydraulic press. The cylinder has a piston that is connected to a ram. When the hydraulic fluid is pumped into the cylinder, the piston moves the ram forward, which centers the workpiece.

The centering cylinder works by using the principle of hydraulics. Hydraulics is the use of liquid under pressure to transmit force. In the case of a hydraulic press centering cylinder, the liquid is hydraulic fluid. The hydraulic fluid is pumped into the cylinder by a hydraulic pump. The pressure of the hydraulic fluid forces the piston to move forward, which moves the ram forward. The ram then centers the workpiece.

The hydraulic press centering cylinder is typically used in hydraulic presses that are used for stamping, forming, and forging operations. The centering cylinder helps to ensure that the workpiece is centered in the press, which helps to prevent the workpiece from being damaged.

Here are the steps on how a hydraulic press centering cylinder works:

1. The workpiece is placed on the bed of the hydraulic press.
2. The centering cylinder is lowered until the piston is in contact with the workpiece.
3. Hydraulic fluid is pumped into the cylinder, which forces the piston to move forward.
4. The ram moves forward, which centers the workpiece.
5. The hydraulic fluid is then released, which allows the piston to return to its original position.

The centering cylinder is a relatively simple device, but it is an important part of many hydraulic presses. It helps to ensure that the workpiece is centered in the press, which helps to prevent the workpiece from being damaged.

China Hydraulic Press Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, hydraulic press cushion cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
