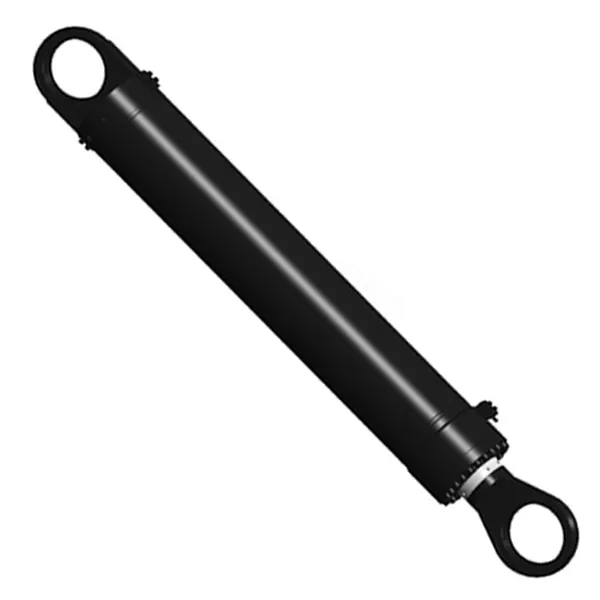

Hydraulic Press Leveling Cylinder

Hydraulic Press Leveling Cylinder

A hydraulic press leveling cylinder is a component used in hydraulic press systems to provide precise and controlled leveling of heavy objects or materials. It is designed to counteract any unevenness or irregularities in the surface of the object being pressed, ensuring a uniform distribution of force and improved accuracy during the pressing operation.The leveling cylinder is typically installed in the press bed and consists of a hydraulic cylinder, a piston, and a leveling plate. The hydraulic cylinder is responsible for generating the force required to move the leveling plate up or down. The piston is connected to the leveling plate and translates the hydraulic pressure into linear motion. The leveling plate, usually made of hardened steel or similar durable material, is the contact surface that comes into direct contact with the object being leveled.To use the hydraulic press leveling cylinder, the operator adjusts the hydraulic pressure to control the leveling plate's position and force. As the cylinder extends or retracts, the leveling plate moves up or down, compensating for any irregularities in the surface of the material. This helps to ensure that the force applied during the pressing operation is evenly distributed, preventing distortion or misalignment of the object.Hydraulic press leveling cylinders find applications in various industries where precise leveling is crucial, such as metalworking, automotive manufacturing, aerospace, and heavy machinery production. They are commonly used in processes such as stamping, bending, straightening, and forming, where accurate and uniform pressure distribution is essential for achieving high-quality results.

Hydraulic Press Leveling Cylinder Specifications:

Product Name	Hydraulic Press Leveling Cylinder
Features:	Parallel lifting of blanks or workpieces
Bore diameter:	90mm～380mm
Rod diameter:	50mm～280mmStroke≤2500mm
Thrust force:	Maximum 2835KN(Cylinder diameter 380mm/pressure25MPa)
Hydraulic Press Leveling Cylinder Applications:	Hydraulic Press

Benefits of Hydraulic Press Leveling Cylinder:

Hydraulic press leveling cylinders offer several benefits that contribute to their widespread use in various industries. Here are some key advantages:1. Precise Leveling: Hydraulic press leveling cylinders provide precise and controlled leveling of heavy objects or materials. They can compensate for surface irregularities, ensuring uniform pressure distribution across the object being pressed. This precision helps prevent distortion, misalignment, and defects in the final product.2. Improved Quality: By ensuring uniform pressure distribution, hydraulic press leveling cylinders contribute to improved product quality. They help eliminate inconsistencies and variations in the pressed material, resulting in higher accuracy and better overall performance of the finished product.3. Enhanced Safety: Uneven surfaces can pose safety risks during the pressing operation. Hydraulic press leveling cylinders help minimize these risks by leveling the object, reducing the chances of it shifting or toppling over. This improves operator safety and reduces the risk of accidents or injuries.4. Increased Efficiency: The use of hydraulic press leveling cylinders optimizes the pressing process and enhances overall efficiency. By eliminating the need for manual leveling adjustments or additional work to correct surface irregularities, the cylinders save time and effort. This leads to increased productivity and reduced downtime.5. Versatility: Hydraulic press leveling cylinders are highly versatile and can be used in a wide range of applications. They are compatible with different press sizes and can accommodate various materials, making them suitable for diverse industries such as metalworking, automotive, aerospace, and more.6. Easy Integration: Hydraulic press leveling cylinders are designed to be easily integrated into existing hydraulic press systems. They can typically be retrofitted or added as an accessory without significant modifications to the press. This ease of integration allows for seamless implementation and reduces downtime during installation.[embed]https://www.youtube.com/embedGJowmXYXrmI[/embed]

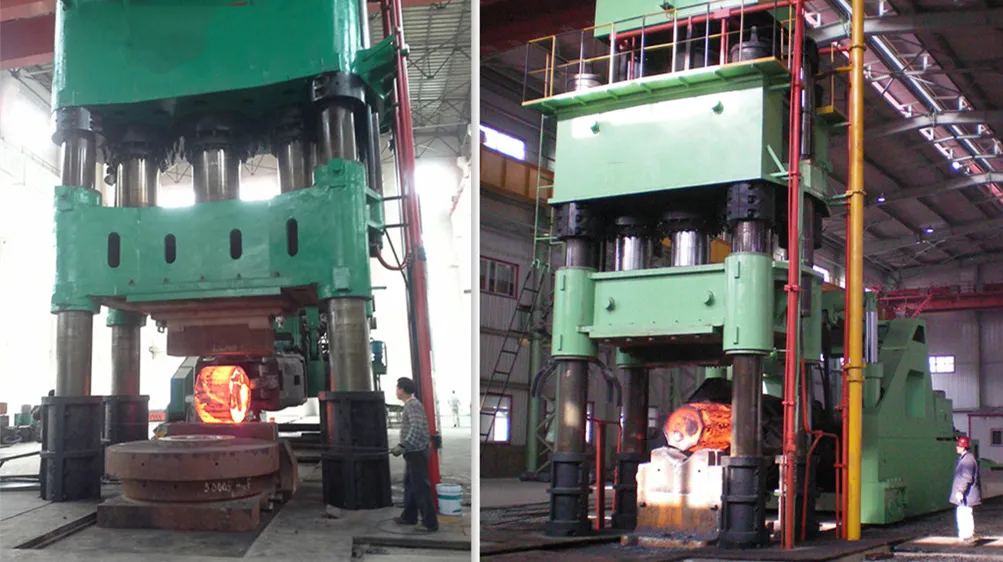

How to Choose the Right Hydraulic Press Leveling Cylinder?

Choosing the right hydraulic press leveling cylinder involves considering several factors to ensure compatibility with your specific application requirements. Here are some key considerations to keep in mind:(1) Load Capacity: Determine the maximum load or weight that the leveling cylinder needs to support. Ensure that the cylinder's load capacity matches or exceeds the weight of the objects or materials you will be leveling. It's crucial to consider both the static and dynamic loads to ensure safe and efficient operation.(2) Stroke Length: The stroke length refers to the maximum distance the leveling plate can travel. Consider the thickness or height variations of the materials you will be leveling and choose a hydraulic cylinder with a stroke length that accommodates those variations adequately. Ensure that the stroke length provides sufficient adjustability for your specific application needs.(3) Operating Pressure: Evaluate the required operating pressure of your hydraulic press system. The leveling cylinder should be capable of operating within the specified pressure range. Ensure that the cylinder's pressure rating matches or exceeds the maximum pressure that your press system can generate.(4) Speed and Precision: Consider the speed and precision requirements of your application. Some leveling cylinders offer adjustable speed controls to accommodate different pressing operations. If you require high precision, look for cylinders with fine control options to achieve accurate leveling.(5) Mounting and Integration: Assess the mounting options and compatibility of the leveling cylinder with your hydraulic press system. Consider factors such as space constraints, mounting hole patterns, and the ease of integration with your existing setup. Ensure that the cylinder can be easily installed and connected to your press bed.(6) Environmental Factors: Evaluate the operating environment in which the leveling cylinder will be used. Consider factors such as temperature extremes, moisture, dust, and potential exposure to corrosive substances. Choose a cylinder that is designed to withstand these environmental conditions and offers appropriate protection, such as seals or coatings.

China Hydraulic Press Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
