Hydraulic Press Rear Side Shift Cylinder

Hydraulic Press Rear Side Shift Cylinder

The hydraulic press rear side shift cylinder is a hydraulic component used in various industrial applications, particularly in hydraulic presses. It is designed to provide lateral or side-to-side movement to the press ram or any other heavy load that needs to be shifted horizontally.The rear side shift cylinder is typically mounted at the rear of the hydraulic press and is connected to the press frame and the ram assembly. It consists of a cylindrical tube, a piston, and hydraulic seals. The cylinder is filled with hydraulic fluid, usually oil, which is pressurized using a hydraulic pump.When hydraulic pressure is applied to one side of the piston, it creates a force that pushes the piston in the opposite direction, causing the ram or load to shift laterally. The amount of lateral movement depends on the stroke length of the cylinder and the applied hydraulic pressure.The hydraulic press rear side shift cylinder offers several advantages in industrial applications. It allows for precise and controlled lateral movement of heavy loads, making it ideal for tasks such as aligning workpieces, adjusting die positions, or transferring materials between different stations. It helps improve productivity, accuracy, and efficiency in manufacturing processes.

Hydraulic Press Rear Side Shift Cylinder Specifications:

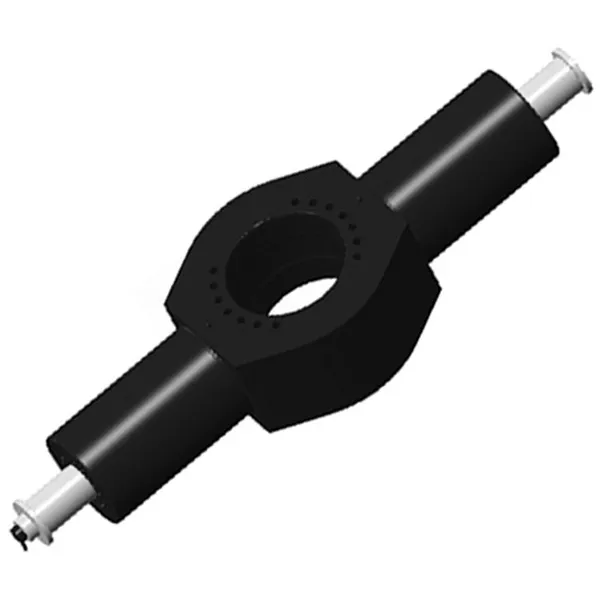

Product Name	Hydraulic Press Rear Side Shift Cylinder
Features:	Cooperate to realize the lifting of the clamp head of the manipulator
Plunger:	70mm～180mmStroke≤300 mm
Thrust force:	Maximum 636KN(Plunger 180mm/pressure25MPa)
Rear Side Shift Cylinder Applications:	Hydraulic Press

Hydraulic Press Rear Side Shift Cylinder Benefits:

The hydraulic press rear side shift cylinder offers several benefits in industrial applications. Here are some of its key advantages:1. Precise lateral movement: The rear side shift cylinder allows for precise and controlled lateral movement of heavy loads. It enables operators to accurately position and align workpieces or tools, ensuring proper alignment and reducing the risk of errors or misalignments.2. Increased productivity: By providing efficient side-to-side shifting of loads, the cylinder enhances productivity in industrial processes. It eliminates the need for manual handling or repositioning of heavy objects, saving time and effort. This allows operators to focus on other tasks, leading to improved overall productivity.3. Flexibility and versatility: The hydraulic press rear side shift cylinder offers flexibility in positioning and adjusting loads. It allows for easy transfer of materials between different stations, making it suitable for a wide range of applications. The ability to precisely shift loads horizontally provides versatility in various manufacturing or assembly processes.4. Improved safety: Hydraulic systems, including the rear side shift cylinder, contribute to enhanced safety in industrial settings. By automating the lateral movement of heavy loads, it reduces the risk of manual handling injuries or accidents. Operators can control the movement from a safe distance, minimizing potential hazards.5. Smooth and consistent operation: The hydraulic system ensures smooth and consistent movement of the rear side shift cylinder. This enables precise load positioning without sudden jerks or jolts, preventing damage to the load or equipment. The controlled movement also contributes to better overall product quality and accuracy.6. Enhanced efficiency: The hydraulic press rear side shift cylinder optimizes the efficiency of hydraulic press systems. It integrates seamlessly with other hydraulic components, such as pumps, valves, and control systems, to provide synchronized and coordinated movements. This results in efficient load shifting and improved overall system performance.

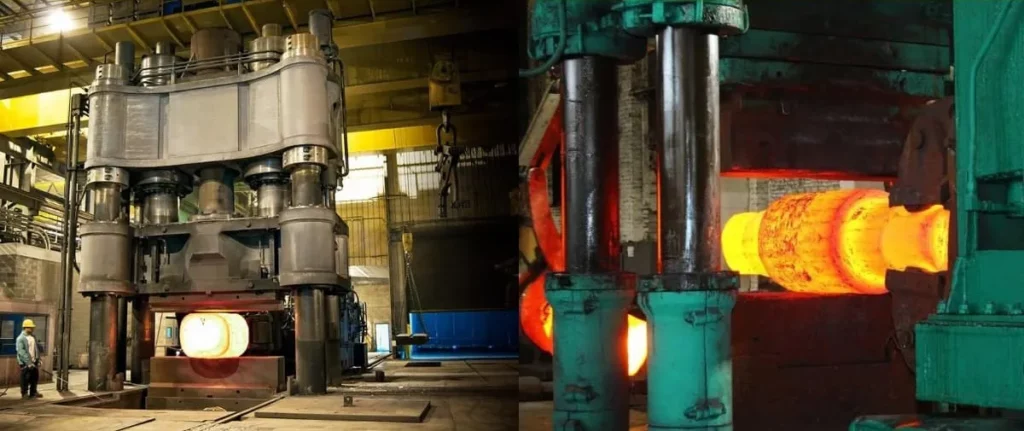

Hydraulic Press Rear Side Shift Cylinder Installation:

The installation of a hydraulic press rear side shift cylinder requires careful attention to ensure proper functionality and safety. Here are the general steps involved in installing the cylinder:(1) Prepare the hydraulic press: Ensure that the hydraulic press is turned off and disconnected from its power source. Follow any specific safety procedures provided by the manufacturer.(2) Identify the mounting location: Determine the suitable location at the rear of the hydraulic press where the hydraulic cylinder will be mounted. Consider factors such as accessibility, structural support, and alignment with the desired lateral movement.(3) Mounting bracket preparation: If necessary, fabricate or prepare a mounting bracket that aligns with the rear side shift cylinder's attachment points and the hydraulic press frame. Ensure the bracket is sturdy and securely attached to the press frame.(4) Attach the cylinder: Carefully position the rear side shift cylinder on the mounting bracket. Align the attachment holes on the rear side shift cylinder with the corresponding holes on the bracket. Use appropriate fasteners (bolts, screws, etc.) to securely attach the cylinder to the bracket.(5) Connect hydraulic lines: Connect the hydraulic lines from the hydraulic power unit or hydraulic system to the cylinder. Ensure proper alignment and tight connections to prevent leaks. Use appropriate fittings, hoses, and seals recommended by the manufacturer.(6) Test for leaks: Once the hydraulic lines are connected, pressurize the system and carefully inspect for any leaks around the connections or seals. Address any leaks by tightening connections or replacing defective seals.(7) Verify functionality: With the hydraulic system pressurized, test the rear side shift cylinder for proper functionality. Use the hydraulic controls to apply pressure to the appropriate side of the rear side shift cylinder and observe the lateral movement of the ram or load. Ensure that the movement is smooth, controlled, and within the desired range.(8) Adjust and align: If necessary, make any adjustments or alignments to the mounting bracket or rear side shift cylinder to achieve the desired lateral movement. This may involve fine-tuning the mounting position or adjusting the stroke length of the cylinder.(9) Secure all components: Once the hydraulic cylinder and mounting bracket are properly aligned and adjusted, ensure that all fasteners, fittings, and connections are securely tightened. This helps prevent any loosening or movement during operation.(10) Perform final testing: Conduct thorough testing of the hydraulic press with the rear side shift cylinder installed. Verify that the lateral movement of the ram or load meets the required specifications and operates smoothly.
