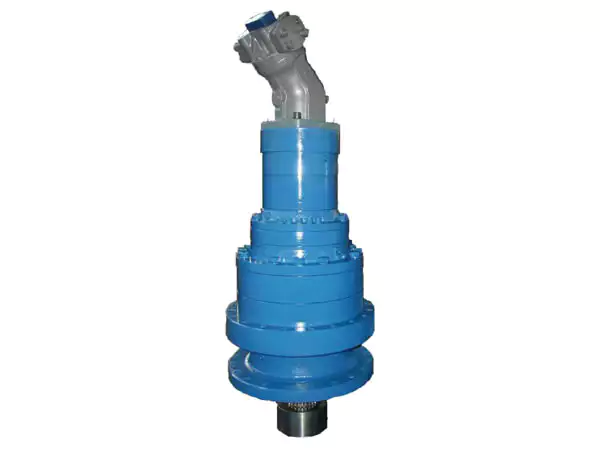

Industrial RPR Series Slewing Drive Planetary Gearbox Replace Replacement of Brevini Riduttori RPR046 RPR065 RPR150 RPR250 RPR255 RPR320 SLS300 SLS400

Description of RPR Series Slewing Drives

Slewing drive is a crucial component in keeping the weight and size of tower cranes, wind turbines, high-altitude platforms, unloading arms, excavation, and construction equipment to a minimum.Their planetary structure can withstand high torque values while maintaining small size, weight, and efficiency. There is a wide range of transmission ratios available, and you can choose the size and type of motor most suitable for user requirements: hydraulic, electric, and pneumatic. Simple installation, operational reliability, and versatility make these devices suitable for the worst work and environment.

Tech Data of RPR Series Slewing Drives

Type	planetary, bevel
Shaft orientation	coaxial, right angle
Torque	> 10 kNm, 2 - 5 kNm, 5 - 10 kNm
Shaft configuration	solid-shaft, vertical output shaft
Number of stages	multi-stage



Size	TorqueFEM M5 (T5, L2)[Nm]	Max Torque[Nm]
RPR046	3.400 - 5.500	6.000
RPR065	6.600 - 9.550	11.500
RPR150	13.450 - 18.100	23.000
RPR250	21.350 - 29.450	46.200
RPR255	21.350 - 29.450	46.200
RPR320	21.000 - 33.850	46.200
SLS300	31.850 - 48.700	74.600
SLS400	39.950 - 61.400	100.000



Feature of RPR Series Slewing Drives

1. Modular design
2. Stage composition from stage 1 to stage 6 reduction stage (stage 2-6 with bevel gear)
3. A variant of output bracket fixing solution: front flange and double socket
4. Integral output pinion and spline shaft with loose pinion
5. Various adapters for hydraulic and electric motors
6. Solid input shaft
7. Spring applied hydraulic release (Sahr) brake
8. Maritime certification
9. Fluoro rubber seals for high-temperature environments
10. Particular painting cycle according to EN ISO 12944

Application of RPR Series Slewing Drives

The slewing drive gearbox is used for mobile cranes, tower cranes, crawler cranes, deck cranes, planetary gear for scraper/loader, drilling rig slewing drive for concrete pump, etc.

Critical Points of Model Selection

 The high torque planetary gearbox is the most critical type of high torque planetary gearbox matching the servo motor. When selecting high torque planetary gearbox, first, determine the reduction ratio of the high torque planetary gearbox. If the standard high torque planetary gearbox does not have the transmission ratio you need, please choose a compact or customized high torque planetary gearbox.After determining the reduction ratio, multiply the rated torque of the servo motor you choose by the reduction ratio to obtain a value that is in principle, less than the rated output torque of the same kind of high torque planetary gearbox provided in the product record, and consider the overload capacity of the drive motor and the maximum operating torque required. The maximum operating torque required shall be injected into the 2-bit rated output torque. After meeting the above conditions, please choose the most miniature high torque planetary gearbox. The cost of the small high torque planetary gearbox is relatively low.Then consider the return clearance of the high torque planetary gearbox. The smaller the return clearance, the higher the accuracy and the higher the cost. Users must choose a series of planetary gearboxes that meet their accuracy requirements. Lateral/radial forces and average life should also be considered. The lateral/radial force ample torque planetary gearbox has high reliability and is not easy to make mistakes in installation and use. Generally speaking, the average service life of a servo motor is much longer than that of a servo motor.
