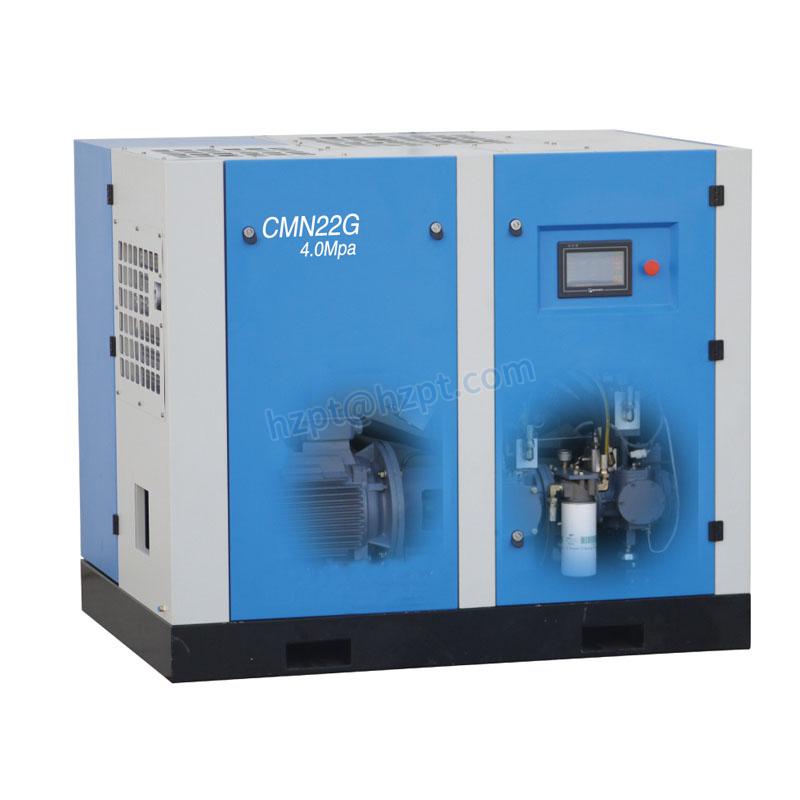

Industry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressor
  • Industry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressorIndustry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressor

Industry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressor

Raydafon Group's Industry advanced air compressor 10-20HP 7-10BAR 7.5-75KW 1.15-2.0m3/min air compressor delivers reliable, high-performance power for industrial applications like manufacturing and automotive repair, with durable construction, energy efficiency, and quiet operation to boost productivity and reduce downtime, making it a smart investment for professionals seeking advanced, cost-effective solutions.
Applicable Industries: Advertising Company, Building Material Shops, Construction works, Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Retail
Showroom Location: Argentina, Egypt, Indonesia, Japan, Malaysia, South Africa, Sri Lanka, United Kingdom, United States
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR30PM, SCR40PM, SCR50PM, SCR60PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 450-1280kg
Warranty: 1 Year
Working Pressure: 10 bar, 6 bar, 7 bar, 8 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 2 years
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump
Gas Type: Air
Color: Blue
Power(KW): 22-75
Porsepower(HP): 30-100
Capacity(m3/min): 1.06-11.8
Presssure(BAR): 7/8/10
Size: RC1,R1/1/2
Protection Grade: IP65
Operating Ambient Temp: 1-45℃ {28.8℉-114℉}
Cooling method: Air Cooling
Applicable Industries: Advertising Company, Building Material Shops, Construction works, Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Restaurant, Retail
Showroom Location: Argentina, Egypt, Indonesia, Japan, Malaysia, South Africa, Sri Lanka, United Kingdom, United States
Warranty: 1 Year
Working Pressure: 10 bar, 6 bar, 7 bar, 8 bar
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 2 years
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure vessel, Pump
Gas Type: Air
Condition: New
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Model Number: SCR30PM, SCR40PM, SCR50PM, SCR60PM
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1200*800*1100mm
Weight: 450-1280kg
Color: Blue
Power(KW): 22-75
Porsepower(HP): 30-100
Capacity(m3/min): 1.06-11.8
Presssure(BAR): 7/8/10
Size: RC1,R1/1/2
Protection Grade: IP65
Operating Ambient Temp: 1-45℃ {28.8℉-114℉}
Cooling method: Air Cooling
Port: shanghai

Products Description
Model :Energy Saving Series (PM)
Type:Oil Injected Permanent Magnetic Screw Compressor
Voltage:380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements
Working Pressure:7~13bar
Installed Motor Power:20~75 Kw
Color:Blue
Driven Method:Taper Connection Direct Driven
Air End:Original Ally-win Air End from Germany.
Trademark:EPT
Transport Package:Standard Wooden Packing
Available Certificate:CE, ISO, UL, ASME, GHOST
Origin:Shanghai, China
application:Packing,Painting,Precision Electroplating,Peparing
ModelPressureCapacityPowerHorse Power(HP)L*H*WWeightSize
(m3/min)(KW)HP(mm)(kg)
EPT30PM7/8/103.7/3.6/3.222301200*800*1100450Rc1
EPT40PM7/8/105.2/5.0/4.230401200*800*1100510Rc1
EPT50PM7/8/106.4/6.3/5.637501300*900*1270680Rc1 1/2
EPT60PM7/8/107.3/7.2/7.145601300*950*1370730Rc1 1/2
EPT75PM7/8/1010.2/10.1/8.455751800*1200*15501230Rc2
EPT100PM7/8/1013.3/12.9/11.8751001800*1200*15501280Rc2
Advantages:1. China-Japan latest technology cooperation, high reliability.2. Oil Cooling Permanent Magnetic Motor.3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.4. IE4 Efficiency motor efficiency.5. Most energy saving mode, Only work at loading.6. Wide frequency range 25%-100%.7. Premium Magnetic material resist more than 180℃ temp.8. Reliable PM motor supplier from Italy.9. Direct Taper connection, no transmission power loss, easy maintenance.10.Touch Screen PLC with preset running schedule, more intelligent control.11. Both main motor and fan motor are inverter control, more accurate control.12. Easy for installation and service.13. Fantastic Energy Saving, save up to more than 30-40%. Details Images Oil cooling PM motorThe motor widing take use of new technology vacuum expoxy potting process, it increase the thermal conductivity and motor insulation protection EPT heavy duty air filter OVERSIZE COOLEROversize cooler to make sure the compressor run max up to 46 degrees without any problem. LATEST TOUCH EPTEEN PLC* 7” Inch touch screen display.* Full feature protection.* Multi intelligent control, like running schedule. * Support Modbus RTU.* Remote monitoring is option. HIGH EFFICIENCY SEPARATION SYSTEMCyclone oil tank design ensure the high separation efficiency.First stage is mechanical centrifugal separation.Second stage is high efficiency oil separator.4000 hours life-span of oil separator.The oil content is lower than 3PPM. LATEST V/F Inverter* Latest V/F technology inverter.* CE/UL certificed inverter.* Both motor are inverter control.* High reliable inverter brand proofed in the market.* Professional service support.* Adjust airend speed to match your air demand automatically , help good energy saving.
ModelEPT100PM-7EPT100PM-8EPT100PM-10
Capacity/Pressure(m3/min,/BAR)13.3/712.9/811.8/10
PM MotorPower(KW)75KW(100H.P)
Speed(r/min)3000
Starting wayVSD Startup
Volt(V)380/400/415(220)
Motor safety gradeIP65
Motor isolation gradeF
Electrical Supply380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Outlet Temperature(ºC)≤ ambient Temperature+10ºC
Driven wayDirect Driven
Noise level at 1 meter76±3dB(A)
Cooling methodOil cooling
Oil content1~3 ppm
Outlet ConnectionRc 2
DimensionLength(mm)1800
Width(mm)1200
Height(mm)1550
Weight(KG)1280
Recommend Products Integrated Screw air compressors with air dryer and C,T,A air filter(EPT10-EPT20CPM)30% energy saving EPM series air compressor(EPT100EPM2-150EPM2) 100% Oil Free Screw Air CompressorGHH-RAND AirendClass 0 standard 1:2:1 Oil free scroll compressor(EPT5-60XA)Original Anest Iwata AirendHigh efficiency Two stage air compressor with TEFC motor and SKF bearings(EPT125H-400H) Classic Belt driven air compressor(EPT7.5M-100M)Certifications Company Profile Exhibition FAQ1 What trade terms do we provide? What kind of settlement currency do we offer?Trade term :CIF ,CFR ,FOB,Ex-Works As far Our business traded in Dollars ,Euros and RMB .2 How long is our delivery?Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case.3 What is the voltage of the compressor?The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement.4 Can our compressor run in high temperature environment? What is the working temperature range for our machine?Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which wouldmeet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. Work temperature range :1-45 ℃(33.8℉-113℉)5 What’s the min. Order requirement ?Min. Order requirement is 1PCS.
