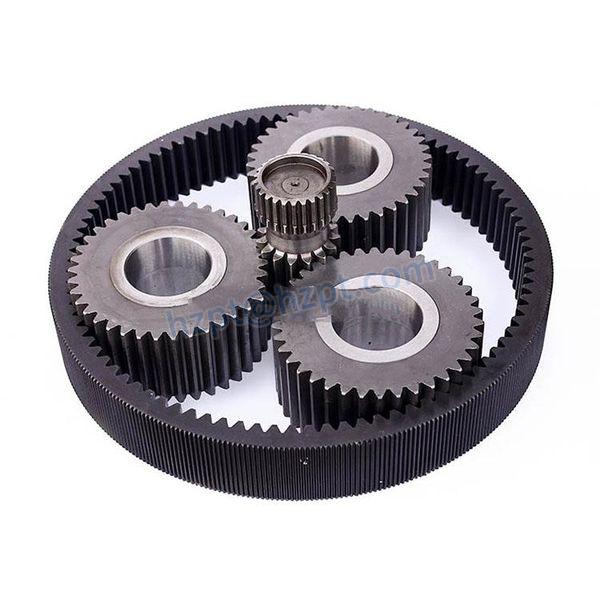

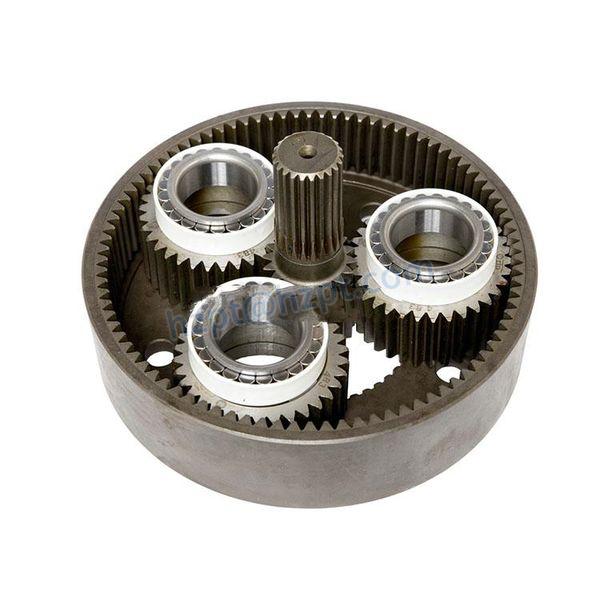

Internal Planetary Gear Kit

Internal planetary gear kit is also known as Planetary gear sets. Planetary gear sets possess numerous advantages over their parallel-axis counterparts in terms of their power density, tolerance insensitivity, noise attributes, and kinematic flexibility. One potential disadvantage of planetary gear sets is power losses due to multiple-planet branches, resulting from an increased number of gear meshes and bearings.

Product Description

Model Number	M3,M4,M5,M8,M12 and etc.
Material	Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface treatment	Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization,Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis
Standard	ISO, DIN, ANSI, JIS, BS, and Non-standard.
Precision	DIN6,DIN7,DIN8,DIN9.
Teeth treatment	Hardened, Milled, or Ground
Tolerance	0.001mm-0.01mm-0.1mm
Finish	shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items packing	Plastic bag+Cartons Or Wooden Packing
Payment terms	T/T, L/C
Production lead time	20  business days for sample,25 days for the bulk
Samples	Sample price range from $2 to $100.sample express request paid by clients
Application	1. Automatic controlling machine2. Semi-conductor industry3. General industry machinery4. Medical equipment5. Solar energy equipment6. Machine tool7. Parking system8. High-speed rail and aviation transportation equipment, etc.

A simple planetary gear mechanism is usually called a three-member mechanism, and the three members are the sun gear, the planet carrier, and the ring gear. Suppose these three components need to determine the relationship between each other. In that case, generally, one of the components needs to be fixed first, then decide who the active part is and determine the active region's speed and rotation direction.

The planetary gear has the following characteristics in structure:

1, The sun gear, planet carrier, and ring gear are all concentric. That is, they rotate about a common axis. This can eliminate countershafts and intermediate bags used in manual transmissions.2, All gears always mesh with each other. No gear sliding is required when shifting gears, so friction and wear are short and long life.3, Simple and compact structure, its load is distributed to many teeth, and its strength is high.4, Multiple transmission ratios available.

Products Show



FAQ

Q: Does your company have export qualifications?A: Yes.Q: Which shipping methods does your company support?A: Shipping, air transportation, parcel transportation, etc.Q: What is the MOQ？A: It depends on the products, please send us the drawing.Q: How much is the sample?A: The customer should pay the sample fee and freight. After the sample is confirmed, we will refund the sample fee to the customer.Q: If there is no stock, how can Raydafon gear rack Machinery provide such fast delivery?A: Our unique manufacturing process, coupled with a large inventory of tools, raw materials, and semi-finished products, allows us to complete orders in the shortest possible time.Q: Where is the company?A: Ningbo City, Zhengjiang Province, China
