JA-A QD Weld-On Hubs

JA-A QD Weld-On Hubs

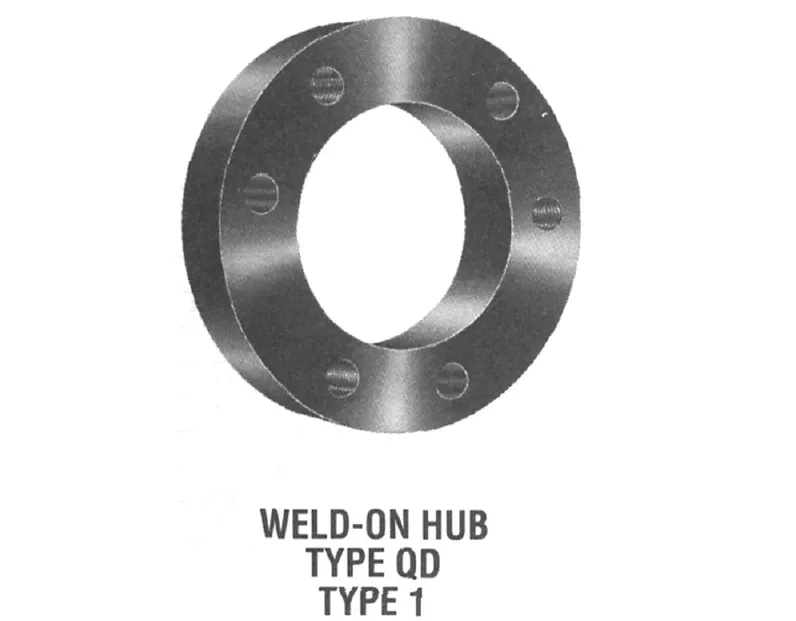

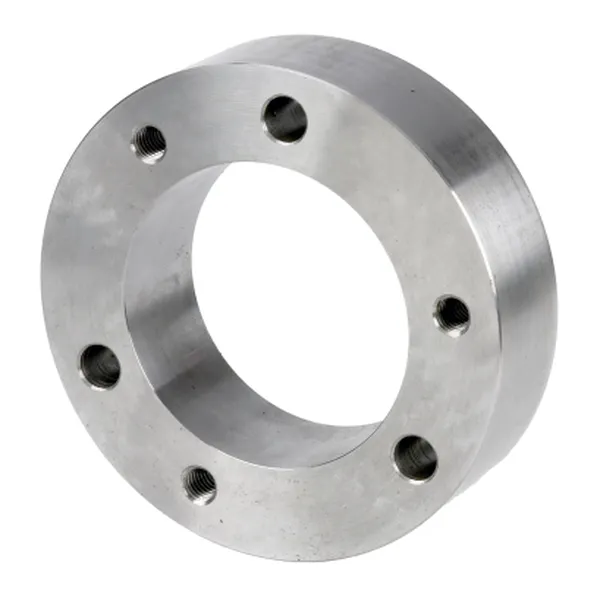

JA-A QD Type weld-on hubs are a type of mechanical component that is designed to be used in conjunction with a JA QD bushing. These hubs are typically made from steel and are used to attach a shaft or other component to a larger piece of machinery.The JA QD bushing is designed to fit over a shaft and provide a secure connection to the hub. The JA QD bushing is designed to be easily installed and removed, making it a popular choice for applications where frequent maintenance or replacement is required.The JA-A QD Type weld-on hubs are designed to be welded directly onto a piece of machinery, such as a gearbox or motor. They have a tapered bore that matches the internal structure of the JA QD bushing, allowing for a secure and precise fit. Once the hub is welded in place, the JA QD bushing can be easily installed or removed as needed, providing a flexible and reliable connection between the shaft and the machinery.JA-A QD Type weld-on hubs are commonly used in a wide range of industrial applications, including conveyor systems, pumps, and other heavy machinery. They are often used in applications where precise alignment is required, as the JA QD bushing allows for easy adjustment of the shaft position.

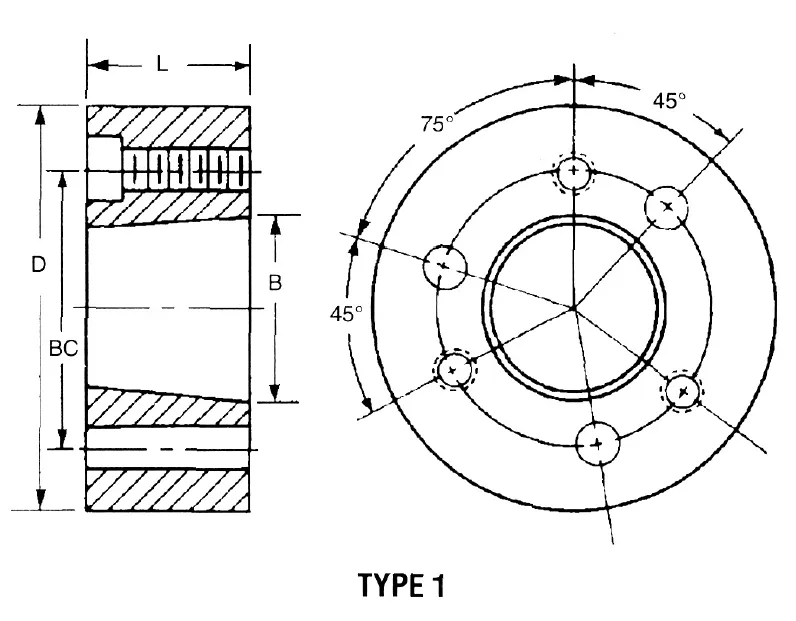

JA-A QD Weld-On Hubs Dimensions:

QD Hub Types		JA-A Weld-On Hubs
For Bushing		JA QD Bushings
Dimensions(Inches)	D	2.250"
	L	9/16"
	B	1.375"
	P	-
	L1	-
	BC	1 21/32"
Type Drilling		1"
Weight (lbs)		0.4 lbs

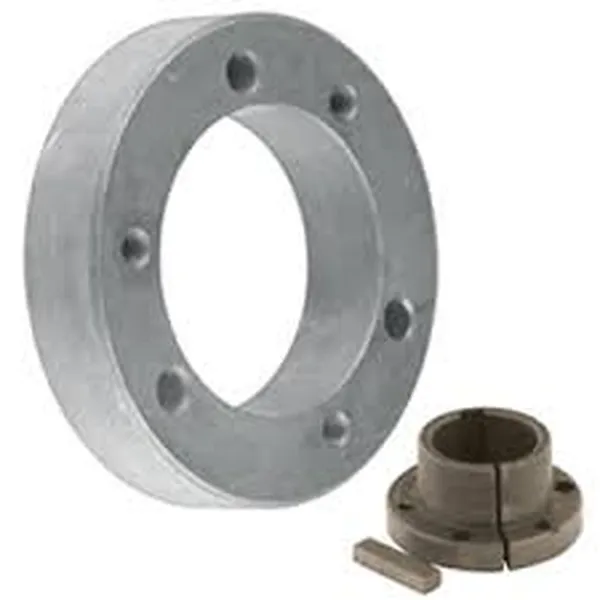

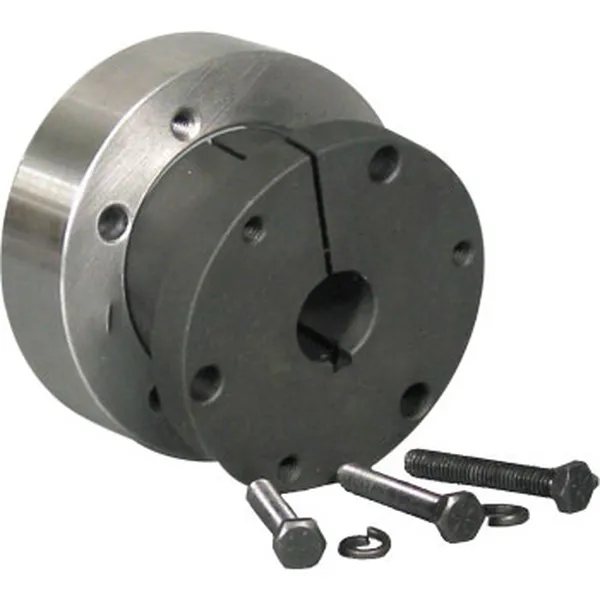

JA-A QD Weld-On Hubs Features:

JA-A QD weld-on hubs offer several features that make them suitable for various industrial applications. Here are some common features of JA-A QD Weld-On Hubs:1. Material: These JA-A QD weld-on hubs are typically made from high-quality steel to ensure strength, durability, and resistance to wear and tear. Steel is known for its robustness, making it suitable for demanding industrial environments.2. Compatibility: JA-A QD weld-on hubs are specifically designed to work with JA QD bushings. This compatibility ensures proper alignment and reliable performance when connecting shafts to machinery.3. Easy Installation: The weld-on design of these hubs simplifies the installation process. Once the JA-A QD weld-on hubs are properly welded onto the machinery, the JA QD bushing can be easily mounted or removed as needed, facilitating maintenance or component replacement.4. Versatility: JA-A QD weld-on hubs are versatile components suitable for a wide range of industrial applications. They are commonly used in conveyors, pumps, gearboxes, and other machinery that requires a secure and adjustable connection between shafts and equipment.5. Size Options: These JA-A QD weld-on hubs are available in various sizes to accommodate different shaft diameters and application requirements. It's essential to select the appropriate hub size that matches the bushing and shaft dimensions for optimal performance.

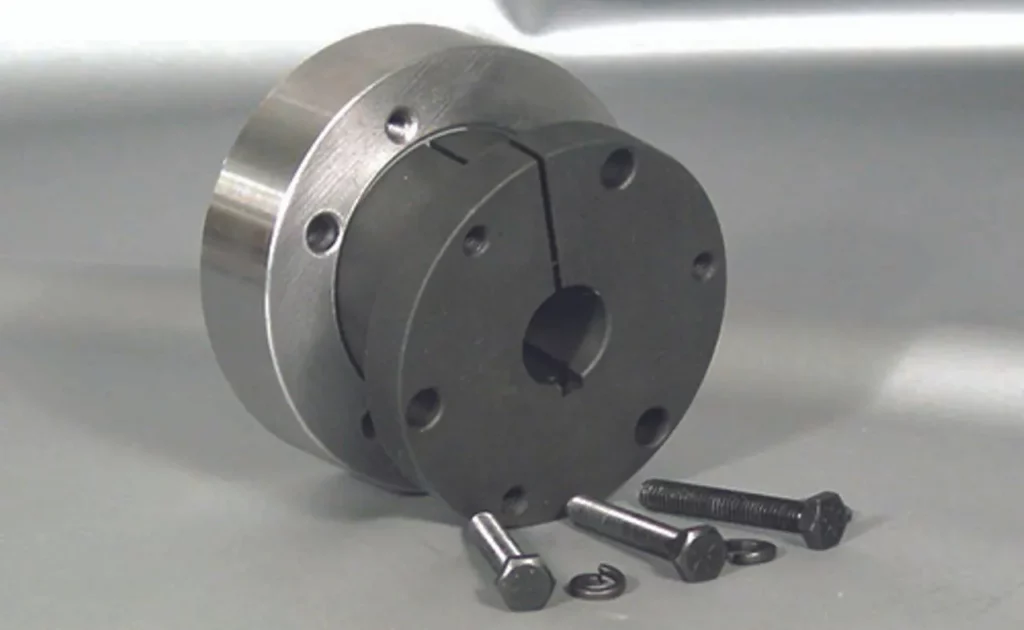

JA-A QD Weld-On Hubs for JA QD Bushings:

JA-A QD weld-on hubs and JA QD bushings work together to provide a secure and reliable connection between a shaft and a piece of machinery. Here's how they work together:JA QD bushings have a tapered bore and are designed to fit over a shaft. The bushing is installed by sliding it over the shaft and into the hub. The bushing's tapered bore provides a secure and precise fit over the shaft, which allows for easy adjustment of the shaft position.JA-A QD weld-on hubs have a similar tapered bore that matches the internal structure of the JA QD bushing. However, instead of fitting over a shaft, these hubs are designed to be welded onto a piece of machinery. Once the hub is welded in place, the JA QD bushing can be easily installed or removed as needed, providing a flexible and reliable connection between the shaft and the machinery.To install or remove a JA QD bushing, a simple mechanical tool is used to tighten or loosen a set of screws or bolts, which compress or release the bushing's tapered bore. This mechanism allows for easy adjustment of the shaft position and eliminates the need for expensive and time-consuming machining or press-fitting operations.The combination of JA-A QD weld-on hubs and JA QD Bushings provides a robust and efficient solution for connecting shafts to machinery. The bushing's tapered bore provides a secure and precise fit over the shaft, while the hub's weld-on design ensures a strong and rigid connection to the machinery. Additionally, the JA QD bushing's simple mechanical adjustment mechanism allows for easy maintenance and replacement, reducing downtime and increasing productivity.

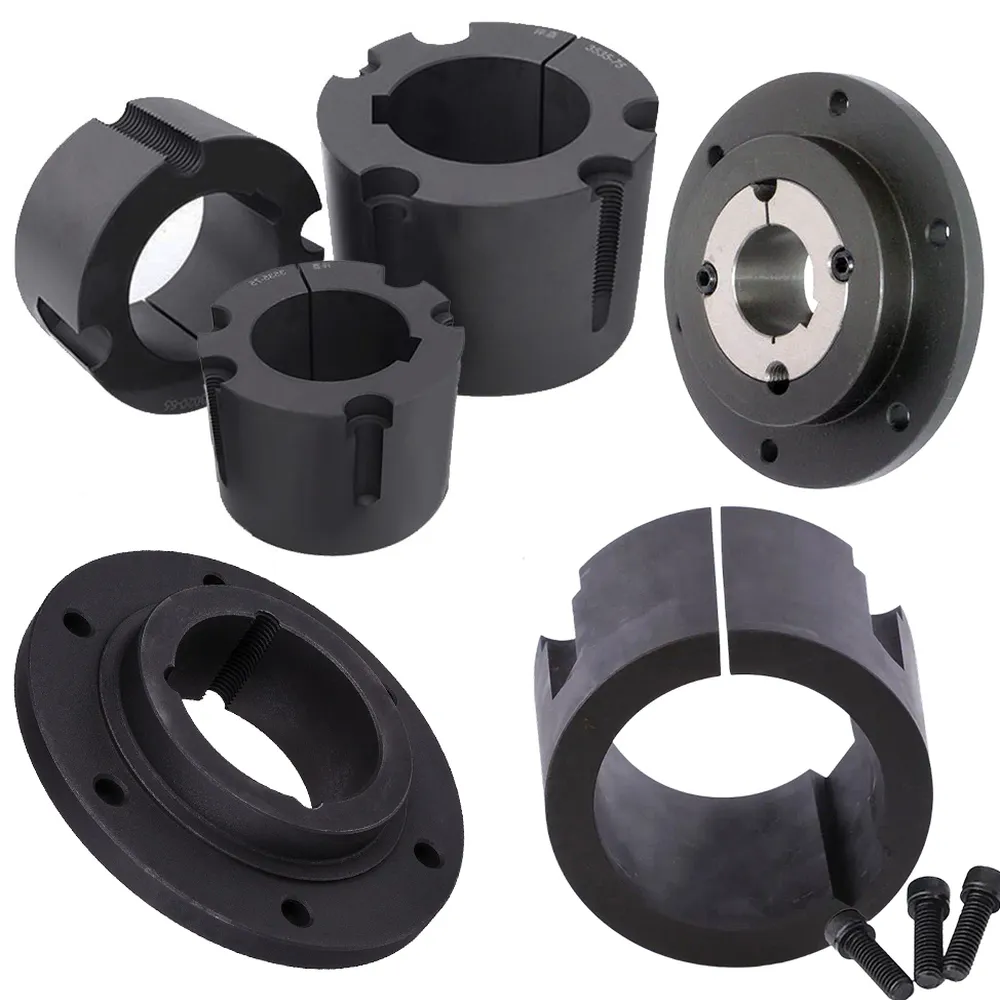

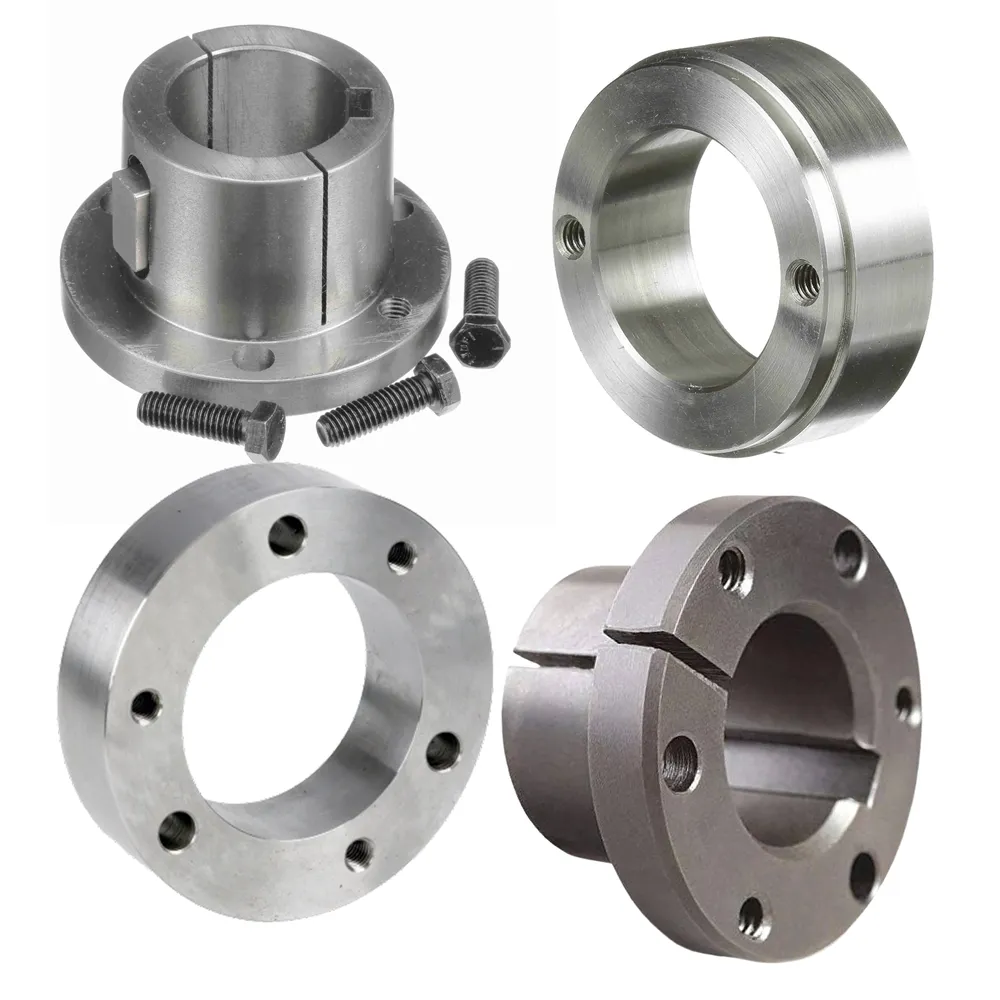

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
