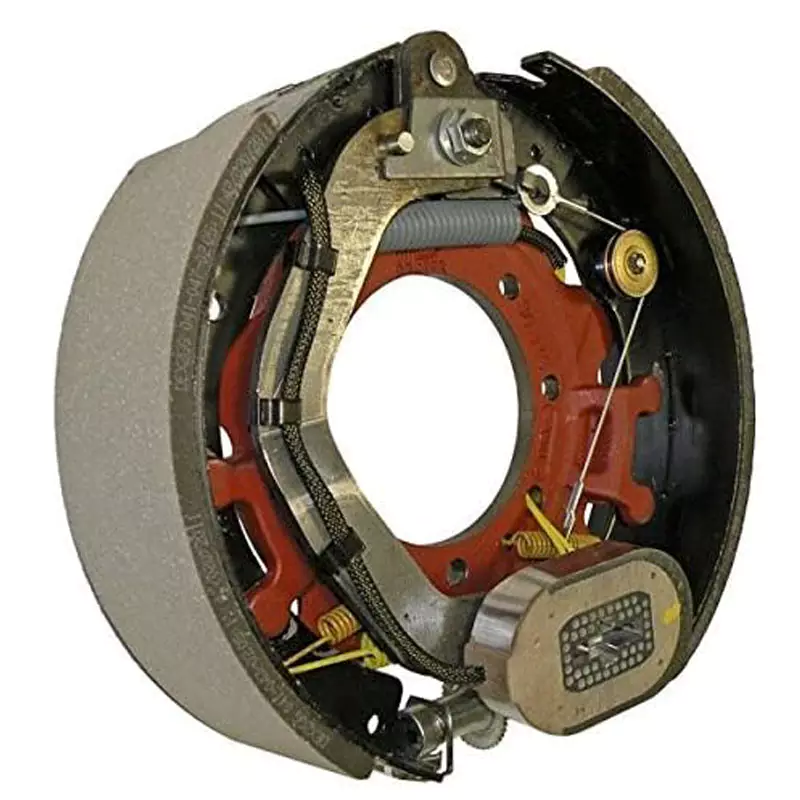

K23-450/451 Trailer Electric Brake 12.25 x 3-3/8'' 7 holes

K23-450/451 Trailer Electric Brake

• 12-1/4" x 3-3/8" electric brake assembly fits 9,000 to 10,000 lb. axles with 7-bolt pattern.
• Rated 10,000 lbs. capacity per pair
• 7-bolt mounting pattern - Mounting hardware not included
• Left hand, driver's side application

Types of Electric Brake

86435 L/R 10`Electric Brake	86435-S L/R 10`Electric Brake(self-adjusted)	86437 L/R 12`Electric Brake
86437-S L/R 12`Electric Brake (self-adjusted)	86439 L/R 12`Electric Brake (heavy duty) 7K	K23-438/439 12.25 x 4” Electric brake7 holes(Yellow wire)
K23-442/443 12.25 x 5” Electric brake7 holes (Black wire)	K23-446/447 12.25 x 5” Electric brake7 holes (blue wire)	K23-450/451 12.25 x 3-3/8” Electric brake7 holes (Yellow wire)

Are Trailer Brakes Self Adjusting?

The trailer brakes can adjust themselves or require regular manual adjustment, depending on the specific model components you install on the trailer. A simple way to determine if you have a self adjusting device is to remove the wheel hub/brake drum from the trailer spindle and check if there are adjustable cables passing through the brake assembly. If this situation exists, then you have a self adjusting brake assembly that will self adjust when you apply the brake during normal driving. Please remember that even self adjusting brakes require initial adjustment after installing a new device.Otherwise, if you find that the brake assembly does need to be manually adjusted (without adjusting the cables), it does need to be adjusted regularly.

How to Test Trailer Brakes？

For the safety of ourselves, our goods, our horses, and others on the road, it is important to be prepared for the terrifying moments when the car turns or stops in front of the tractor. If you are not 100% sure that your trailer brakes are working properly, then you are not ready to go.Today, we will pay special attention to testing trailer brakes in electric braking systems, which can be found in typical dual axle multi-purpose vehicles or horse trailers. Most trailers have two brakes on each axle, so if you have a two axle trailer, you will have four brakes.

With an electric trailer braking system, you can also install a brake controller (also known as a brake box) on the tractor. When you press the brake pedal of the tractor, the brake controller sends electricity to the brake itself through the trailer plug.The setting of the brake controller will determine how much braking power the brake pedal will transmit. The digital brake controller can be set to automatically override existing settings, providing you with maximum braking power in emergency situations.The problem is that during the test drive, it is not always easy to determine which (if any) trailer brake is working by simply pressing the pedal.On the contrary, you may want to find a slider on the brake controller. It should be between 0 and 10, or there will be an indicator light. If you have not found the brake controller manual immediately, please refer to it.After finding the slider, slowly move forward and begin to gradually pull the slider. When you move from 0 to 10, you should feel stronger and stronger resistance. If you don't feel too much or any braking towards 10 minutes, you know you have a problem.Because this testing method bypasses the truck pedal, you can have a more accurate understanding of the trailer braking function. You will know that any resistance comes entirely from the trailer itself, not the tractor brakes.If your trailer fails the brake test, it is likely due to one or more common issues:-Corrosion of wiring or brake components. This can sometimes happen if the trailer is parked for weeks or months at a time.-Improper brake adjustment.-Layered and/or grease saturated brake shoes.-Missing components, such as gap adjusters.
