KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted

Raydafon Group’s KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted delivers unparalleled precision and durability for industrial applications. Engineered with high-strength materials and advanced helical bevel technology, it ensures smooth, efficient power transmission in machinery, reducing downtime and maintenance. Ideal for engineers and manufacturers in automation, packaging, and material handling, this gearbox solves complex torque and space challenges. Its unique hollow shaft design and flange mounting offer superior flexibility and ease of installation, setting it apart from standard gearboxes. Experience enhanced performance and reliability—choose Raydafon for cutting-edge solutions that elevate your operations.

Send Inquiry

Product Description

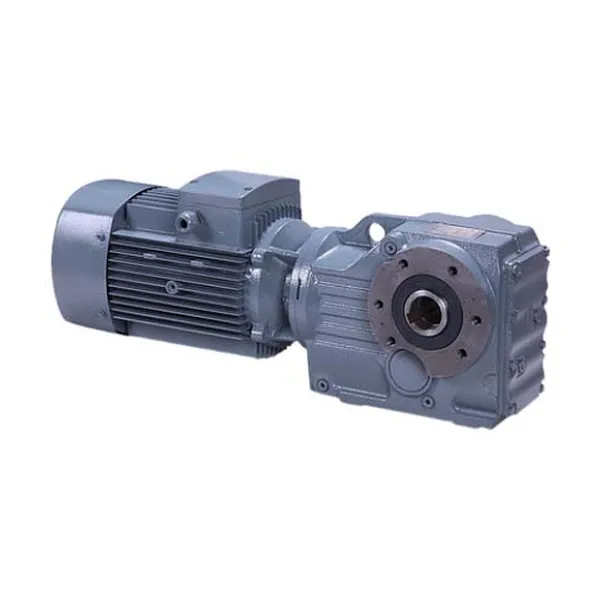

KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted

KAF series helical bevel gearbox is driven by bevel gears with right-angle output. Its transmission efficiency is as high as 95%, the installation forms are flexible and diverse, with high load capacity and superior performance, and the input power can reach up to 200kW. It can be equipped with a variable frequency motor, brake motor, explosion-proof motor, servo motor, AC motor, DC motor, three-phase motor, single-phase motor, etc. Therefore, it is widely used in many different fields. KAF series helical bevel gearbox is suitable for three-dimensional garages, lifting equipment, environmental protection equipment, metallurgical mining equipment, conveying equipment, etc.

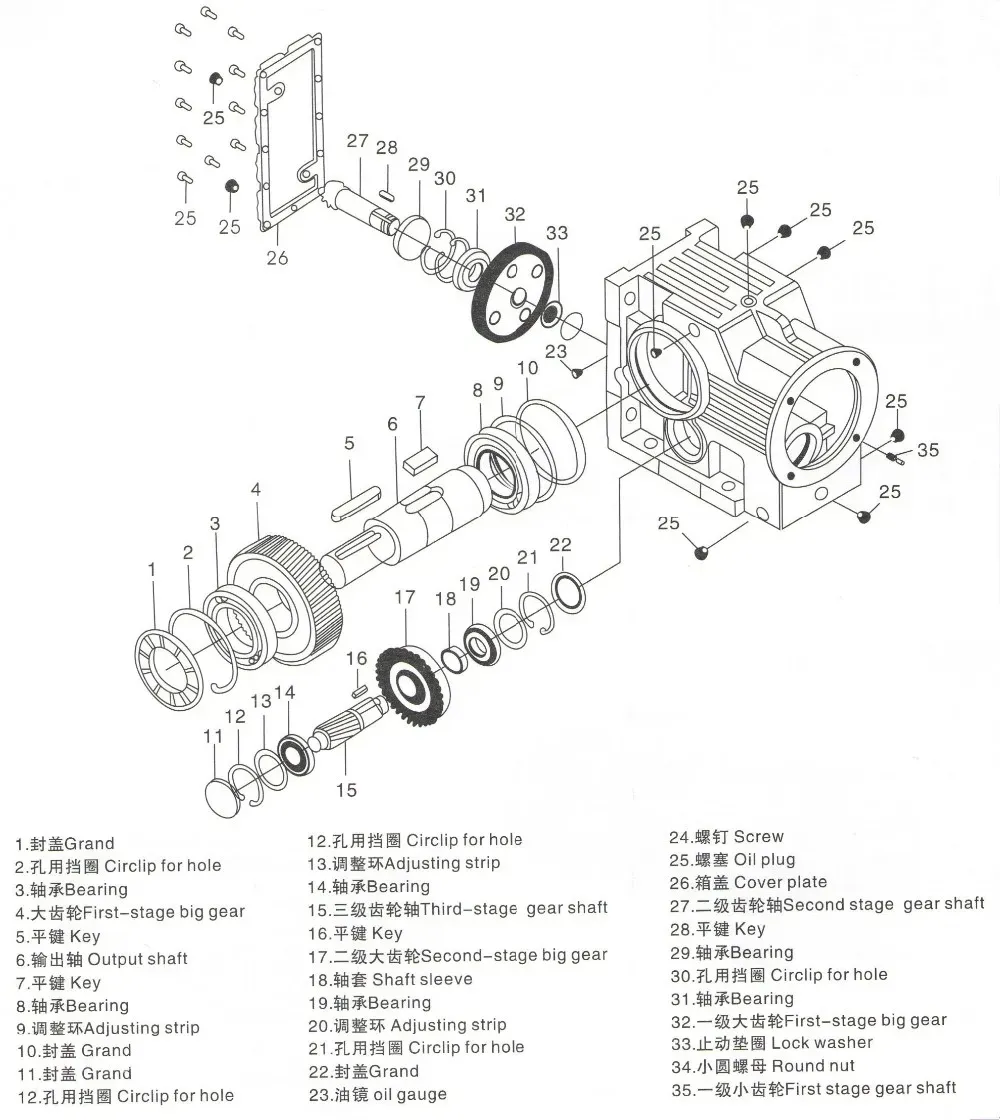

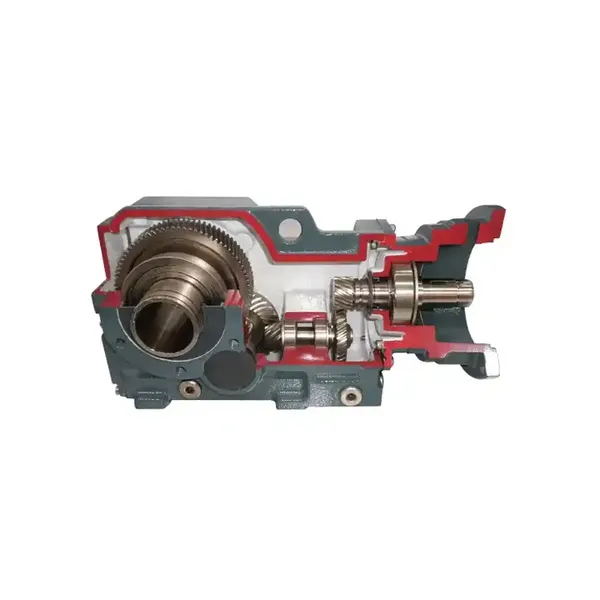

KAF Series Helical Bevel Gearbox Structure Drawing:

KAF Series Helical Bevel Gearbox Specifications:

Product name:	KAF series helical bevel gearbox
Model:	KAF37/47/57/67/77/87/97/107/127/157/167/187
Mounting ways:	Foot mounted and flange mounted
Input ways:	Motor input, AM (IEC) flange input and shaft input
Output way:	Solid shaft output or hollow shaft output
Efficiency:	over 95%
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Pywood case

KAF Series Hollow Shaft Helical Bevel Gearbox Parameters:

Size	37	47	57	67	77	87	97	107	127	157	167	187
Structure	K KA KF KAF KAZ KAT KAB
Input power(kW)	0.18-3.0	0.18-3.0	0.18-5.5	0.18-5.5	0.37-11	0.75-22	1.1-30	3-45	7.5-90	11-160	00	18.5
Ratio	5.36-106.38	5.81-131.87	6.57-145.14	7.14-144.79	7.24-192.18	7.19-197.37	8.95~176.05	8.74-141.46	8.68-146.07	12.65-150.41	17.28-163.91	17.27-180.78
Permissible torque(N.m)	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000

KAF Series Helical Bevel Gearbox Parts Manufacture:

The housing of KAF series helical bevel gearbox is made of HT250 high-strength cast iron, with a shot-shaped inner cavity, which effectively reduces the wear of parts, dissipates heat quickly, and increases the bearing capacity of the thickened box.The gears are made of low-carbon alloy steel, processed by imported gear grinding machines, with high hardness, stable performance, vacuum carburizing treatment, and uniform carburization.The gear shaft is made of high-strength bearing steel, quenched and finished, with strong bearing capacity and stable transmission.The output shaft has undergone multiple precision machining, and has passed the rigorous dynamic and static balance test to ensure that the reducer runs smoothly and has low noise.The accessories we only choose high-precision bearings, imported brand oil seal, which effectively reduce friction, making the high transmission efficiency and less leakage.

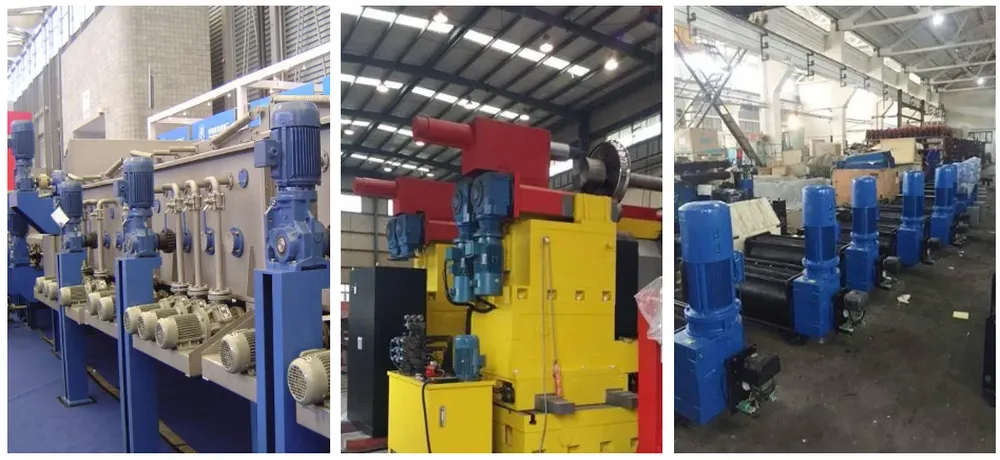

KAF Series Helical Bevel Gearbox Use Application Industry:

This series helical gear reducer is designed and manufactured on the basis of module combination system, with a great number of motor combinations, installation forms and structure schemes, and fine transmission ratio classification, meeting different working conditions, with superior performance. High rigidity cast iron box with steel bars; Hard tooth surface gear is made of high quality alloy steel, the surface is carburized, quenched and hardened, and the teeth are ground for fine processing. Low temperature rise, long life. KAF series helical gearbox widely used in metallurgy, sewage treatment, chemical, pharmaceutical and other industries. KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted

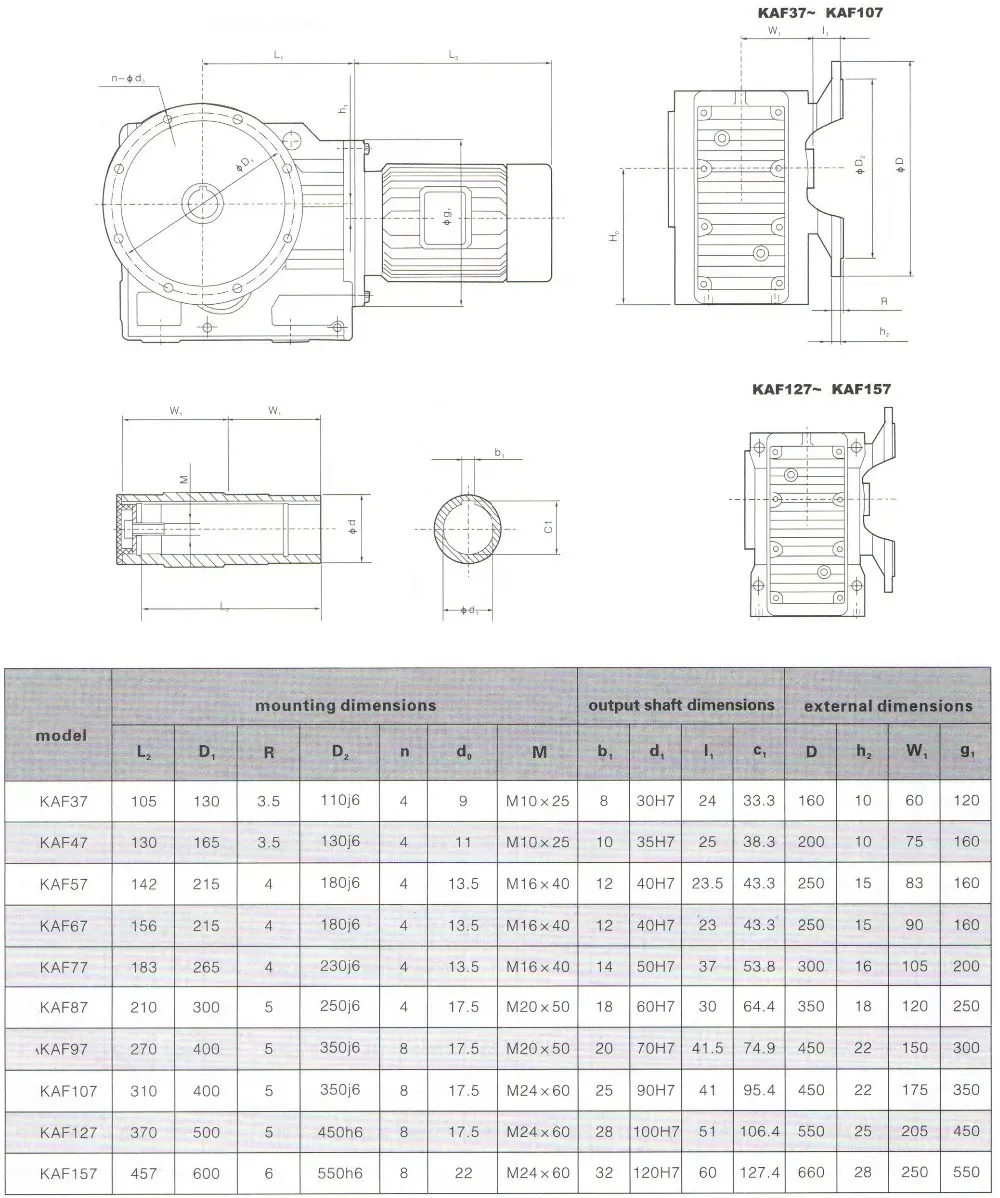

KAF Series Helical Bevel Gearbox Mounting Dimensions:

Helical Bevel Gearboxes Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, HB series helical gearboxes, ZY series parallel shaft helical gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you. KAF Series Hollow Shaft Output Helical Bevel Gearbox with Flange Mounted
