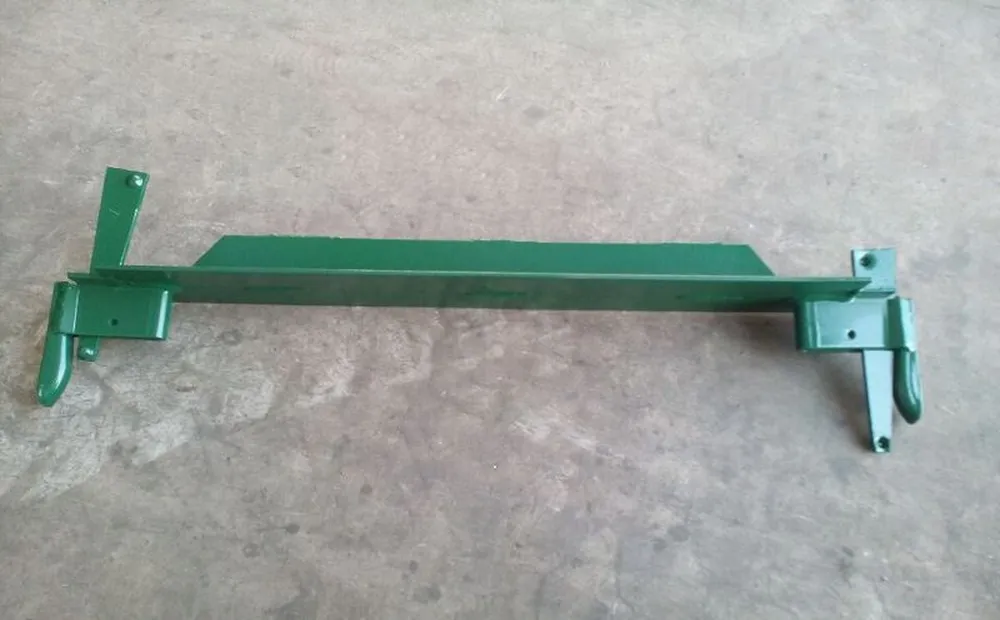

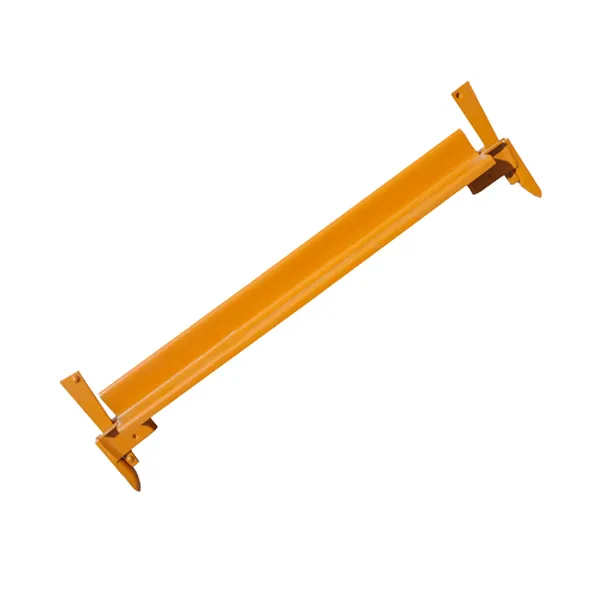

Kwikstage Scaffolding Intermediate Transom for Building Construction

The kwikstage scaffolding transom is a steel batten assistance part for mobile easy stage set scaffold body, which is utilized and preferred in Australian and British Types of Kwikstage Scaffolding Systems.The transom is helped made from 50x5mm steel slant structural in higher steel grade along with wedge pin securing to kwikstage scaffold requirements. It gives steel slabs without hooks(additionally referred to as platform battens) an extensive help system.According to Australian and British Standards, kwikstage transoms' common dimensions may be 0.76 m, 1.27 m, 1.83 m, and 2.44 m. The measurements of the kwikstage scaffolding transom may support one panel, two panels, three boards, four panels, and five panels to gain access to podiums.Kwikstage scaffolding transom can be coated, or even hot dip galvanized, HDG, and identified color. Emboss Mark is demanded according to Australian as well as British Standards.

Products Specification

Product name: Kwikstage TransomPlace of Origin: China (Mainland)Material: Q235Surface: Powder Coated  Standard: On RequestMain Export Markets: Asia, South America, North America, Mid East, EuropePayment: TT-30% in advance; The balance 70% before shipment; L/C-100% irrevocable at sight; TT+L/C -TT in advance, the balance L/CDelivery Details: Within 30-45 days after receiving the prepayment

Kwikstage Scaffolding Intermediate Transom
Product Code	Specification(mm)	Material	Surface Treatment
TY-KT050	angle bar 50*50*5*500	Q235	hot-dip galvanized or painting
TY-KT073	angle bar 50*50*5*730	Q235	hot-dip galvanized or painting
TY-KT100	angle bar 50*50*5*1000	Q235	hot-dip galvanized or painting
TY-KT127	angle bar 50*50*5*1270	Q235	hot-dip galvanized or painting
TY-KT150	angle bar 50*50*5*1500	Q235	hot-dip galvanized or painting
TY-KT183	Angle bar 50*50*5*1830	Q235	hot-dip galvanized or painting
TY-KT244	Angle bar 50*50*5*2440	Q235	hot-dip galvanized or painting
TY-KT300	Angle bar 50*50*5*3000	Q235	hot-dip galvanized or painting

Features● Quick stage Scaffolding Horizontal Ledgers are part of the horizontal part.● They provide horizontal support for the planks.● Hot dip galvanized or powder coated.● Transoms fit into the lower "V" pressings on the standards to carry steel boardsInstructions for UseLift the wedge pin.Put away the end into the hole of the cups of the kwikstage standard.Hammer down the wedge pin until it stays in position.

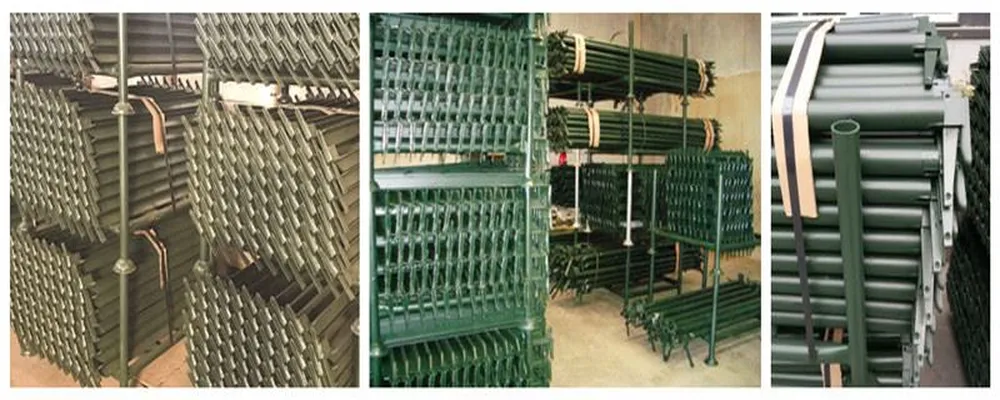

Product Display
