Kwikstage Scaffolding Standards/Vertical for Construction Engineering

The kwikstage scaffolding standard is a vertical member that transfers loads to the supporting structure. It makes the scaffolding system stronger.

Products Specification

1. Normal Tube Size:Φ48.3x4.0mm

2. Available in Hot Dip Galvanized Surface, Painted or Customized

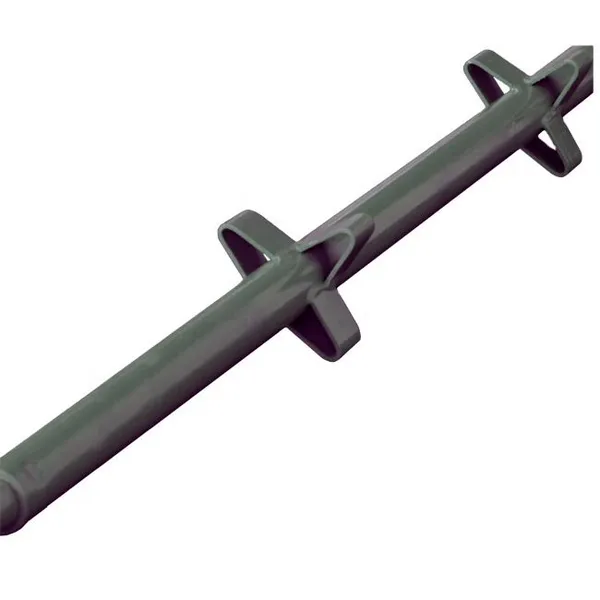

Standards are vertical structural members of the scaffold system, which are made from Φ48.3x 4mm Tubes. Standards have V-style pressings in clusters at 495 mm center, which provide location points for Transoms, Ledgers, Braces, Hop up, etc. and a spigot fixed at the top.

Item No.	Description	Length		Unit Weight
RSKS 030	0.30M Kwikstage Standard	0.30 M	11.8’’	3.00 KG	6.61 LBS
RSKS 050	0.50M Kwikstage Standard	0.50 M	1’7.5’’	3.50 KG	7.72 LBS
RSKS 100	1.00M Kwikstage Standard	1.00 M	3’3’	6.40 KG	14.11 LBS
RSKS 150	1.50M Kwikstage Standard	1.50 M	4’10.5’’	9.15 KG	20.18 LBS
RSKS 200	2.00M Kwikstage Standard	2.00 M	6’6’’	12.10 KG	26.68 LBS
RSKS 250	2.50M Kwikstage Standard	2.50 M	8’1.5’’	14.65 KG	32.20 LBS
RSKS 300	3.00M Kwikstage Standard	3.00 M	9’9’’	17.75 KG	39.13 LBS

Note: Other Size Can be Customized.

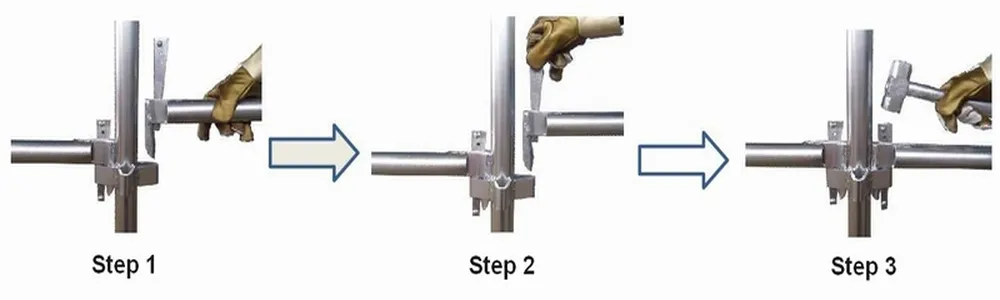

Descriptions:Length: 0.5m to 3mPipes: Dia. 48.3mm * 3.8mmSurface Treatment: Galvanized, Hot Dip Galvanized, Painting, Powder coated, and othersPackaging: Rack Pallets and Bundles are availableLead time: 30 daysCapacity: 1000 tons per monthOEM: AvailableInstructions for UsePut the kwikstage vertical standard in position.Connect another post by the spigot if it needs to be extended.Erect the horizontal ledger but ham the wedge pin until it stays tightened.
