LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder

LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder

The LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder is a cutting-edge hydraulic component designed to meet the demands of various industrial applications. With its robust construction, exceptional force output, and unique left and right foot design, this hydraulic cylinder offers superior power, precision, and versatility. Whether heavy lifting, pushing, or pulling, the LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder delivers reliable performance to optimize industrial operations.Essential Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: Constructed with high-quality materials such as rugged steel or alloy, the LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder ensures durability and longevity. Its sturdy build allows it to handle heavy loads, high pressures, and challenging environmental conditions, making it suitable for demanding industrial tasks.High Force Output: This hydraulic cylinder boasts impressive force output, making it ideal for applications requiring substantial power. Its large piston diameter and high-pressure capabilities provide exceptional strength to handle heavy-duty tasks easily.Left and Right Foot Design: The LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder features a unique left and right foot design, allowing for versatile mounting options. This design enables easy installation and integration into various hydraulic systems and equipment configurations, providing flexibility and adaptability.Precise Control: Equipped with precision-machined components and high-quality seals, this hydraulic cylinder ensures accurate and reliable operation. It provides precise control over the movement and positioning of loads, enabling efficient and proper handling.

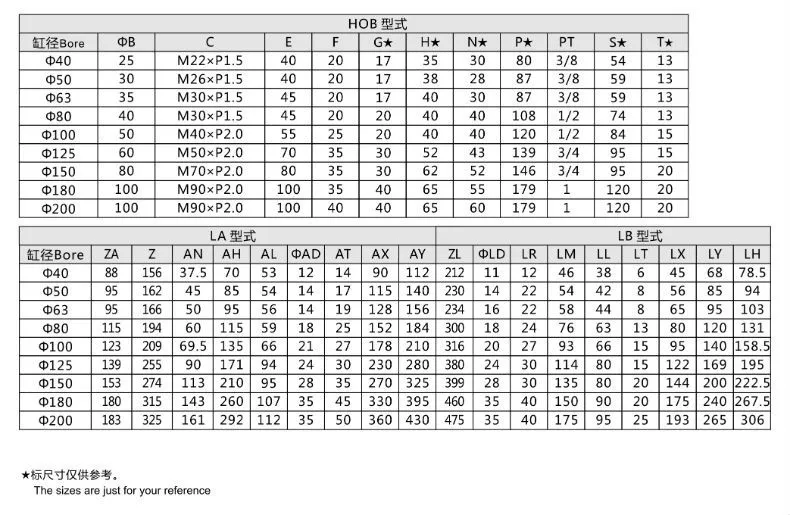

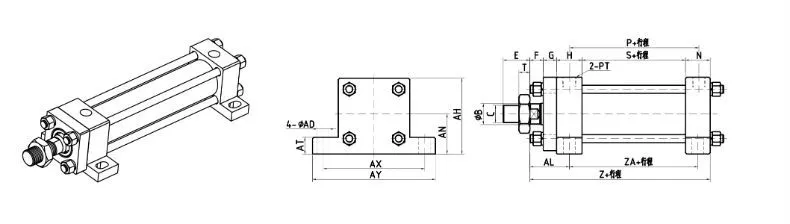

LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder using appropriate brackets or fixtures. Ensure proper alignment and stability during installation to prevent misalignment or stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings according to the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of LA Left And Right Foot Type Heavy Rod Hydraulic Cylinder:

Regular maintenance is crucial to ensure optimal performance and longevity of the LA left and right foot type heavy rod hydraulic cylinder. Follow these maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, piston rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How To Control Hydraulic Cylinder Speed？

Controlling the speed of a hydraulic cylinder is essential to ensure safe and efficient operation in various applications. There are several methods to control the speed of a hydraulic cylinder, including the following:

1. Flow Control Valves: Flow control valves are commonly used to regulate the speed of hydraulic cylinders. These valves control the flow rate of hydraulic fluid entering or exiting the cylinder, thereby controlling the cylinder's speed. There are two types of flow control valves:a. Throttle Valves: Throttle valves restrict the flow of hydraulic fluid by creating a narrow passage. They regulate the speed by controlling fluid flow through the valve. Throttle valves are often adjustable, allowing for precise speed control.b. Needle Valves: Needle valves have a tapered needle-like plunger that can be adjusted to restrict or allow fluid flow. By adjusting the position of the needle, the flow rate and, consequently, the cylinder speed can be controlled.
2. Proportional Control Valves: Proportional control valves offer more precise control over the speed of hydraulic cylinders. These valves modulate the flow of hydraulic fluid based on electrical or electronic signals, allowing for fine adjustment of the cylinder's speed. Proportional control valves are often used in applications where precise speed control is critical, such as in automation systems.
3. Variable Displacement Pumps: In some hydraulic systems, variable displacement pumps control the speed of hydraulic cylinders. These pumps adjust the volume of fluid delivered to the cylinder, thereby regulating the cylinder speed. By changing the pump's displacement or stroke volume, the speed of the cylinder can be adjusted accordingly.
4. Load-Sensing Systems: Load-sensing systems are advanced hydraulic systems that adjust the pump's output to match the load requirements. These systems monitor the pressure in the hydraulic circuit and adjust the pump's displacement accordingly. By maintaining a constant pressure, load-sensing systems can regulate the cylinder speed even under varying load conditions.
5. Accumulators: Hydraulic accumulators can be used to control the speed of hydraulic cylinders in specific applications. An accumulator stores hydraulic fluid under pressure, which can be released to supplement the flow from the pump. By controlling fluid release from the accumulator, the speed of the cylinder can be adjusted.
6. Gearboxes or Transmission Systems: In some cases, mechanical gearboxes or transmission systems can be employed to indirectly control the speed of hydraulic cylinders. By adjusting the gear ratio or transmission settings, the rotational speed of the input shaft can be translated into the desired speed for the hydraulic cylinder.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
