A large excavator boom cylinder is a hydraulic cylinder that is used to lift and lower the boom of an excavator. It is one of the largest cylinders on an excavator, and it is responsible for lifting the heaviest loads. The large excavator boom cylinder is typically made of steel and has a bore size of 6 inches to 12 inches. The stroke length can vary depending on the size of the excavator, but it is typically 3 feet to 6 feet.

The large excavator boom cylinder is a double-acting cylinder, which means that it can extend and retract. When hydraulic fluid is pumped into the cylinder, the piston extends, lifting the boom. When the hydraulic fluid is drained from the cylinder, the piston retracts, lowering the boom.

The large excavator boom cylinder is a critical component of an excavator, and it is essential for its operation. It is subject to a lot of wear and tear, so it is important to regularly inspect and maintain it. If the large excavator boom cylinder fails, the excavator will not be able to lift or lower the boom, which can make it very difficult to operate.

Large Excavator Boom Cylinder Specifications:

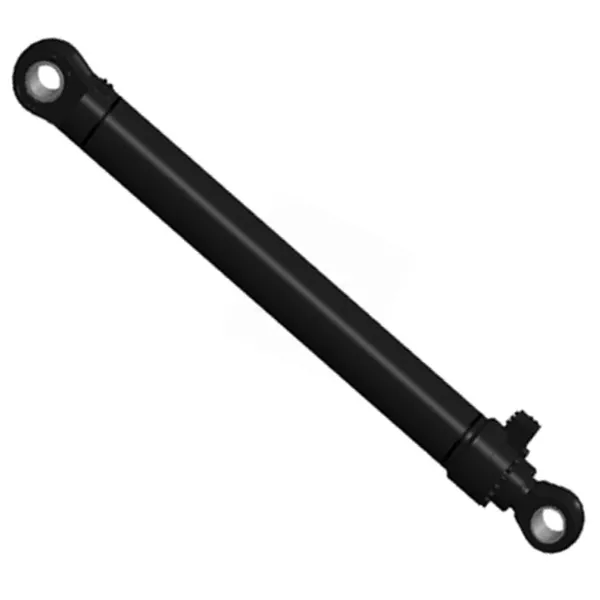

Product Name	Large Excavator Boom Cylinder
Features:	Control the lifting motion of the big arm
Bore diameter:	200mm～420mm
Rod diameter:	140mm～300mmStroke≤3500mm
Thrust force:	Maximum 4846.6KN
Bore diameter:	420mm/pressure35MPa

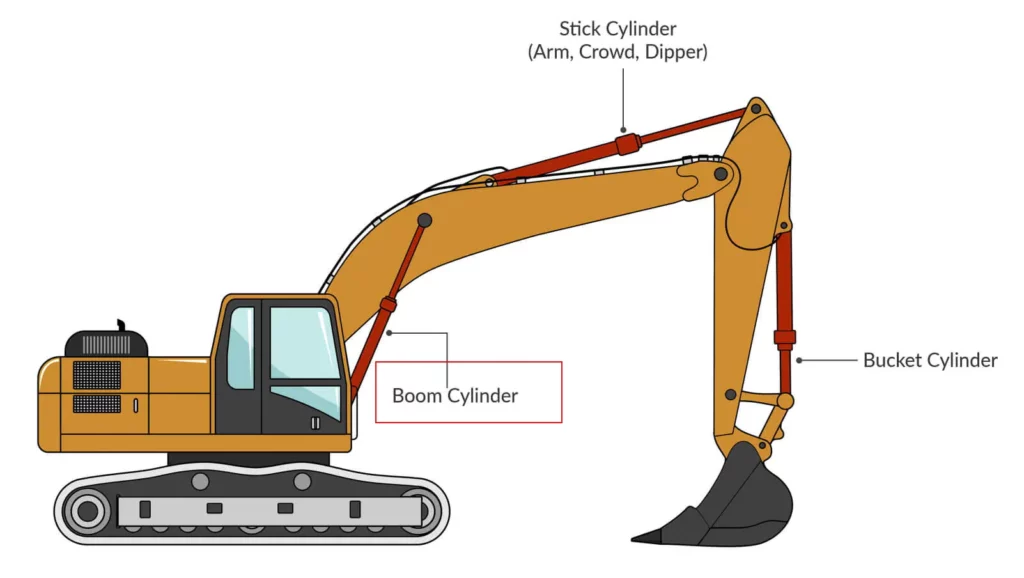

Large Excavator Boom Cylinder Design Features:

• The compact structure design, the use of high-strength materials, the special heat treatment, and welding processes ensure that the large excavator boom cylinder has a very high fatigue life with high pressure and heavy load.• The design has a wide range of temperature resistance (-25℃～+120℃) and can provide higher or lower-temperature large excavator boom cylinders• Provide a variety of surface anti-corrosion treatment solutions: Ni/Cr plating, ceramic spraying, laser cladding, QPQ, zinc-nickel plating, etc.• It can be designed and integrated with P.O. check valves, pipe burst safety valves, oil pipes, etc.• The mature cushion design makes the bucket reduce the impact of the large excavator boom cylinder during the excavation operation without reducing the excavation force and affecting the work efficiency.• For the earrings of the integral die forgings, you can choose the standard self-lubricating bushings, which also can be configured according to customer needs.• Large-diameter dual oil ports can be selected according to customer needs and pressure test points can be added for real-time monitoring.• Increase the cushion adjustment spool to adjust the cushion effect in real-time according to the operating experience.• Optimize the design at the easy failure point of the oil cylinder to reduce stress, and use a special process to ensure the reliability and stability of the oil cylinder.• Working pressure, size specifications, installation methods, etc. can be customized according to the customer's needs.

Large Excavator Boom Cylinder Vs Small Excavator Boom Cylinder

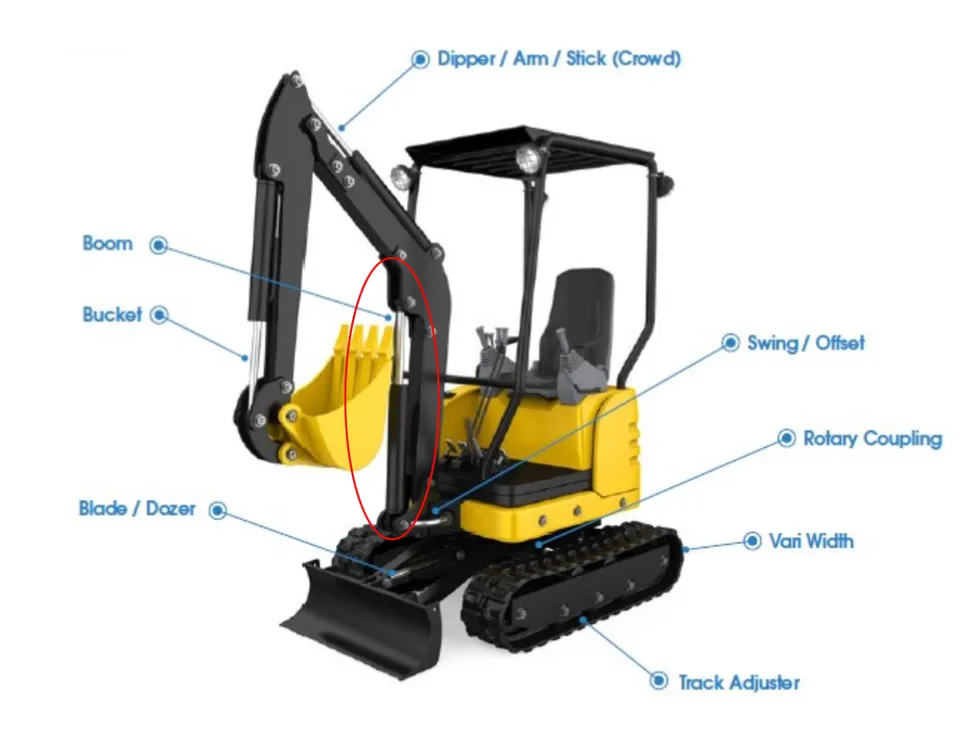

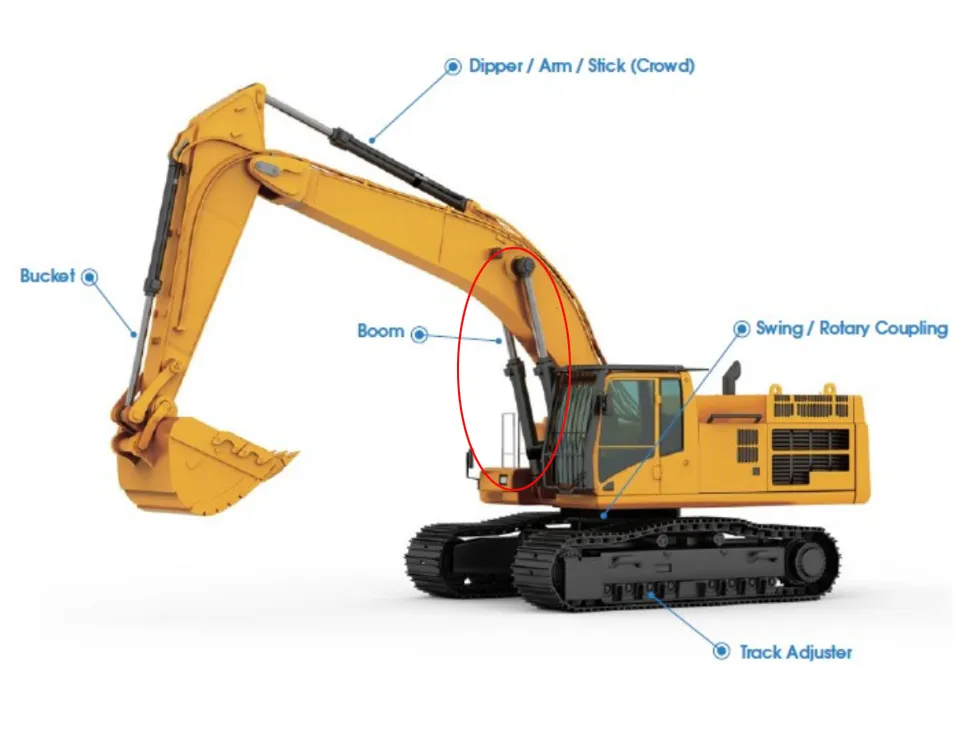

The main difference between a large excavator boom cylinder and a small excavator boom cylinder lies in their size, capacity, and the specific applications they are designed for. Here are some key points of comparison:(1) Size and Capacity: Large excavators typically have significantly larger boom cylinders compared to small excavators. The size of the boom cylinder directly correlates to the size and reach of the boom. Large excavators require more hydraulic power and force to extend and retract their boom due to the heavier loads they handle. In contrast, small excavators have smaller boom cylinders designed to match their lighter operating capacities.(2) Reach and Digging Depth: Large excavators are designed for heavy-duty applications, such as mining, construction of tall buildings, and major earthmoving projects. Their large excavator boom cylinders enable them to reach greater heights and achieve deeper digging depths. Small excavators, on the other hand, are more suitable for smaller-scale projects, such as landscaping, utility work, and residential construction, where their compact size and agility are advantageous.(3) Power and Performance: Large excavators generally have more powerful hydraulic systems, including large excavator boom cylinders, to handle the demanding tasks they are built for. They are capable of lifting and moving heavier loads with greater precision and efficiency. Small excavators have smaller boom cylinders that provide sufficient power for their lighter workloads, allowing them to maneuver in confined spaces and perform tasks that require more agility.(4) Stability and Balance: Due to their larger size and weight, large excavators require robust large excavator boom cylinders to maintain stability and balance during operation. The boom cylinders play a crucial role in supporting the boom and preventing it from sagging or losing control under heavy loads. Small excavators have smaller boom cylinders that are designed to maintain stability while operating within their lighter load capacities.(5) Cost and Maintenance: Large excavators generally have higher initial costs, and their large excavator boom cylinders are more expensive to manufacture due to their size and higher load-bearing capacity. Similarly, maintenance and repair costs for large excavators, including their boom cylinders, tend to be higher compared to small excavators. However, the frequency and complexity of maintenance tasks may vary depending on the specific model and usage.In summary, the key differences between large and small excavator boom cylinders lie in their size, capacity, reach, power, and the applications they are designed for. Large excavator boom cylinders are built for heavy-duty tasks, while small excavator boom cylinders are more suitable for lighter projects requiring agility and maneuverability.
