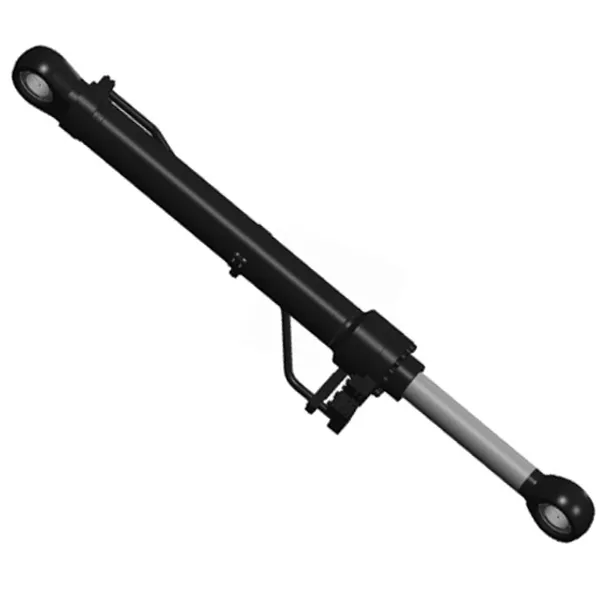

Large Excavator Bucket Cylinder

Large Excavator Bucket Cylinder

The large excavator bucket cylinder is a crucial component of heavy construction equipment, specifically excavators. It is an essential hydraulic cylinder that is responsible for the movement and operation of the bucket attachment, which is used for digging, lifting, and moving large quantities of soil, rock, or other materials.The large excavator bucket cylinder is designed to provide the necessary force and control to manipulate the excavator bucket effectively. It is typically a double-acting hydraulic cylinder, meaning it can exert force in both directions. This allows the operator to control the bucket's movement, including extending, retracting, and tilting, to perform various tasks with precision and efficiency.The large excavator bucket cylinder consists of a cylinder barrel, piston, piston rod, and a set of seals. The cylinder barrel is a sturdy, cylindrical tube that houses the piston and allows it to move back and forth. The piston divides the cylinder barrel into two chambers, one on each side. The piston rod is connected to the piston and extends outside the cylinder barrel, providing a connection point for the bucket attachment.Hydraulic fluid, typically oil, is used to transfer force and control the movement of the cylinder. When hydraulic pressure is applied to one chamber, it pushes the piston and piston rod in one direction, extending the bucket cylinder and moving the bucket accordingly. Reversing the hydraulic pressure in the other chamber causes the piston to retract and the bucket to move in the opposite direction.The large excavator bucket cylinder is engineered to withstand heavy loads, harsh operating conditions, and repetitive use. It is constructed using high-quality materials, such as hardened steel, to ensure durability and longevity. The seals within the cylinder prevent hydraulic fluid leakage and maintain the necessary pressure to operate efficiently.Overall, the large excavator bucket cylinder plays a vital role in the operation of heavy construction equipment, enabling efficient digging, lifting, and material handling. Its robust design and hydraulic functionality make it an essential component for various construction, mining, and excavation projects.

Large Excavator Bucket Cylinder Specifications:

Product Name	Large Excavator Bucket Cylinder
Features:	Control the action of the bucket
Bore diameter:	200mm～360mm
Rod diameter:	140mm～260mmStroke≤2500 mm
Thrust force:	Maximum 3560.8KN
Bore diameter:	420mm/pressure35MPa

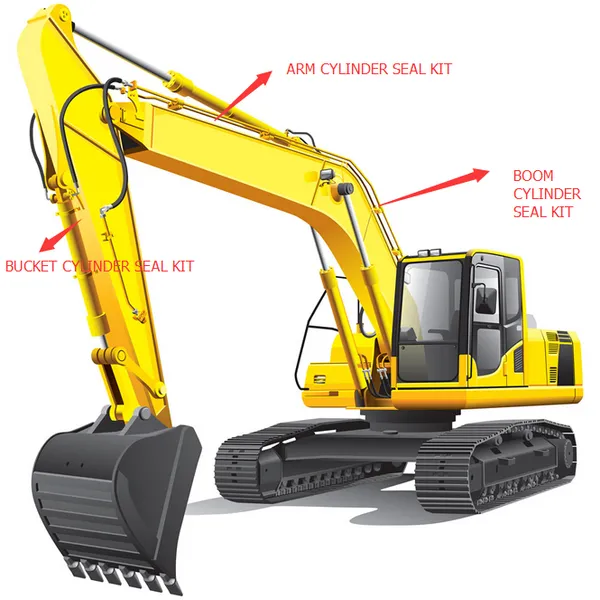

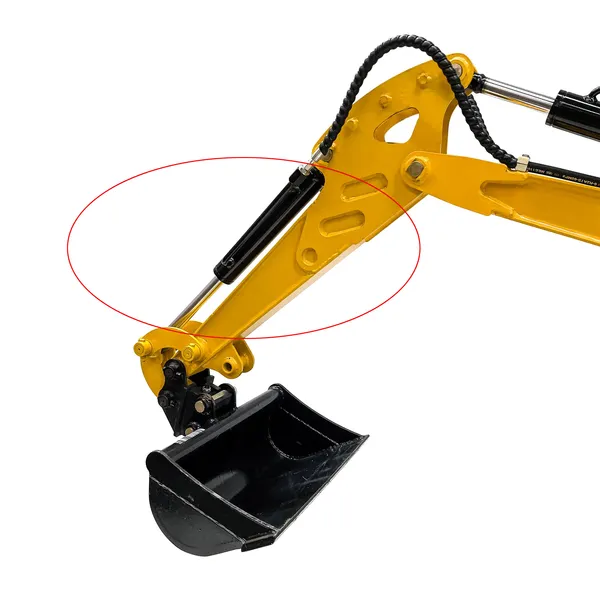

Large Excavator Bucket Cylinder Advantages:

The large excavator bucket cylinder offers several advantages that contribute to the efficiency and effectiveness of heavy construction equipment. Some of the key advantages include:1. Powerful Digging Force: The large excavator bucket cylinder provides significant force to the bucket attachment, allowing it to dig through various types of soil, rocks, and other materials. Its hydraulic power enables the excavator to tackle demanding excavation tasks quickly and effectively.2. Precise Control: The large excavator bucket cylinder's hydraulic system enables precise control of the bucket's movement. Operators can accurately position the bucket, making it easier to dig, load, and unload materials with accuracy. This level of control enhances productivity and reduces the chances of errors or damage to the surrounding environment.3. Versatility: The large excavator bucket cylinder allows for a wide range of bucket movements and configurations. It enables the bucket to extend, retract, and tilt, providing versatility in digging angles, dumping, and material handling. This versatility makes it suitable for a variety of construction and excavation applications.4. Durability and Reliability: Being a critical component of heavy machinery, the large excavator bucket cylinder is built to withstand rigorous use and heavy loads. It is designed with robust materials and seals to ensure durability, longevity, and resistance to wear and tear. This reliability minimizes downtime and maintenance costs.5. Efficient Operation: By utilizing hydraulic power, the large excavator bucket cylinder enables swift and efficient operation of the excavator. The hydraulic system provides strong force when needed and allows for smooth and controlled movements, resulting in improved productivity and time savings on construction sites.6. Compatibility and Interchangeability: Large excavator bucket cylinders are typically designed to be compatible with various excavator models and brands. They can be easily replaced or interchanged, allowing for flexibility in equipment maintenance and repairs.

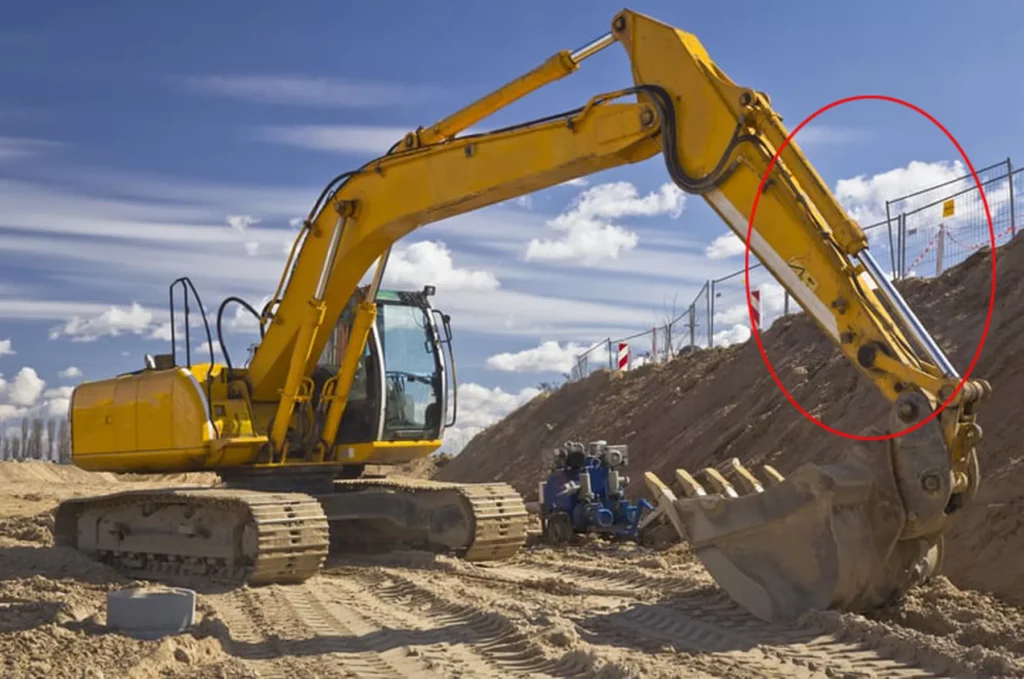

How Does a Large Excavator Bucket Cylinder Work?

A large excavator bucket cylinder works on the principle of hydraulics. Hydraulics is a system that uses liquid under pressure to transmit power. In the case of an excavator bucket cylinder, the liquid is hydraulic fluid.

The large excavator bucket cylinder is a long, cylindrical tube with a piston inside. The piston is connected to the bucket, and the hydraulic fluid is pumped into the cylinder through a port at one end. When the fluid is pumped in, it pushes the piston and the bucket forward. When the fluid is pumped out, it pulls the piston and the bucket back.

The amount of force that the large excavator bucket cylinder can exert is determined by the pressure of the hydraulic fluid. The higher the pressure, the greater the force. The speed at which the bucket moves is determined by the flow rate of the hydraulic fluid. The faster the fluid flows, the faster the bucket moves.

The large excavator bucket cylinder is controlled by a hydraulic valve. The operator of the excavator can use the valve to control the flow of hydraulic fluid into and out of the cylinder, which in turn controls the movement of the bucket.

The size of a large excavator bucket cylinder depends on the size of the excavator and the type of work that the excavator is doing. Large excavators that are used for heavy-duty construction work typically have larger bucket cylinders than smaller excavators that are used for lighter-duty work.

The large excavator bucket cylinder is a critical component of an excavator. It allows the excavator to load, unload, and move materials, which is essential for many construction and excavation projects.

Here are some additional details about the bucket cylinder for large excavator:

• The cylinder is typically made of steel or aluminum.
• The piston is made of a hard material, such as steel or bronze.
• The hydraulic fluid is typically a mineral oil.
• The hydraulic valve is typically a proportional valve, which means that it can control the flow of hydraulic fluid in a precise manner.
• The bucket cylinder is typically mounted on the end of the dipper arm.

The large excavator bucket cylinder is a complex and precision-engineered component. It is essential for the safe and efficient operation of an excavator.

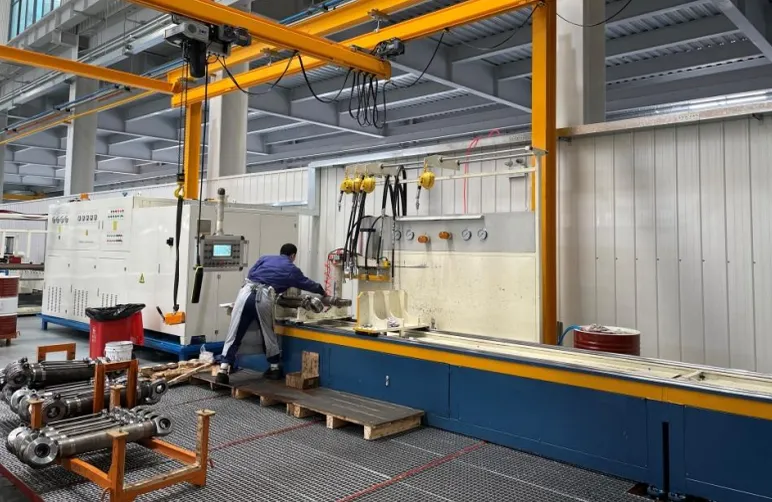

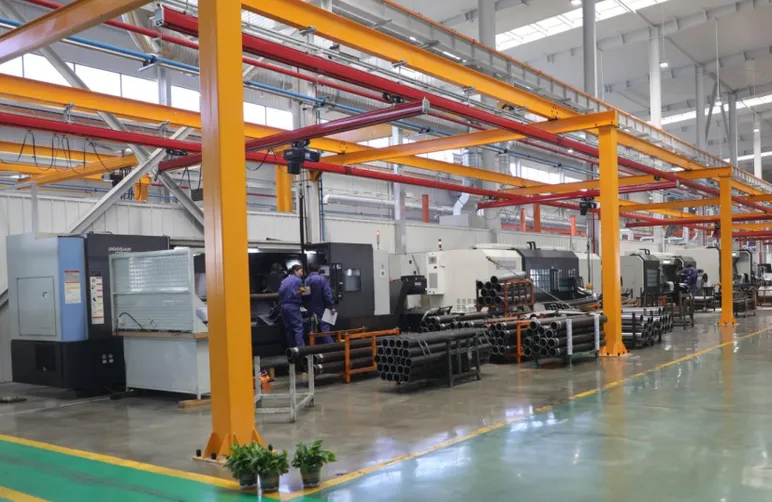

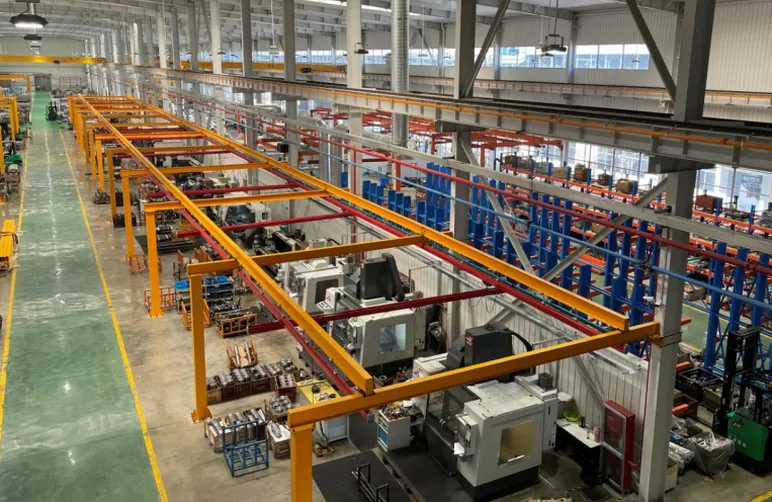

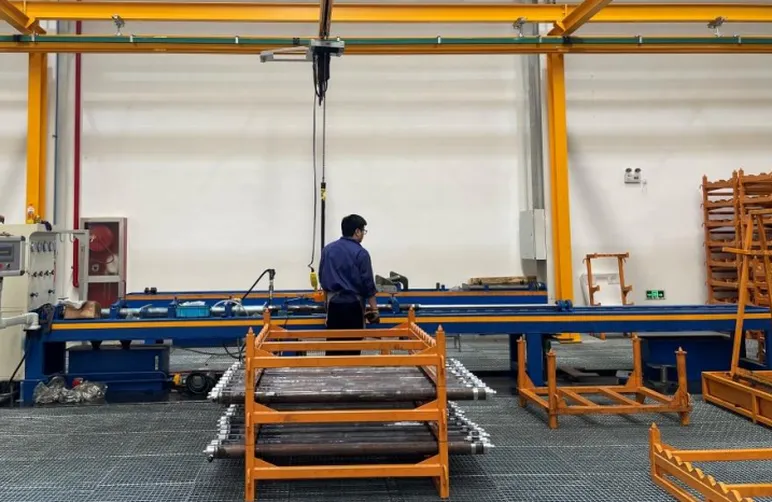

China Large Excavator Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, small excavator boom cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
