Small Excavator Bucket Cylinder

Small Excavator Bucket Cylinder

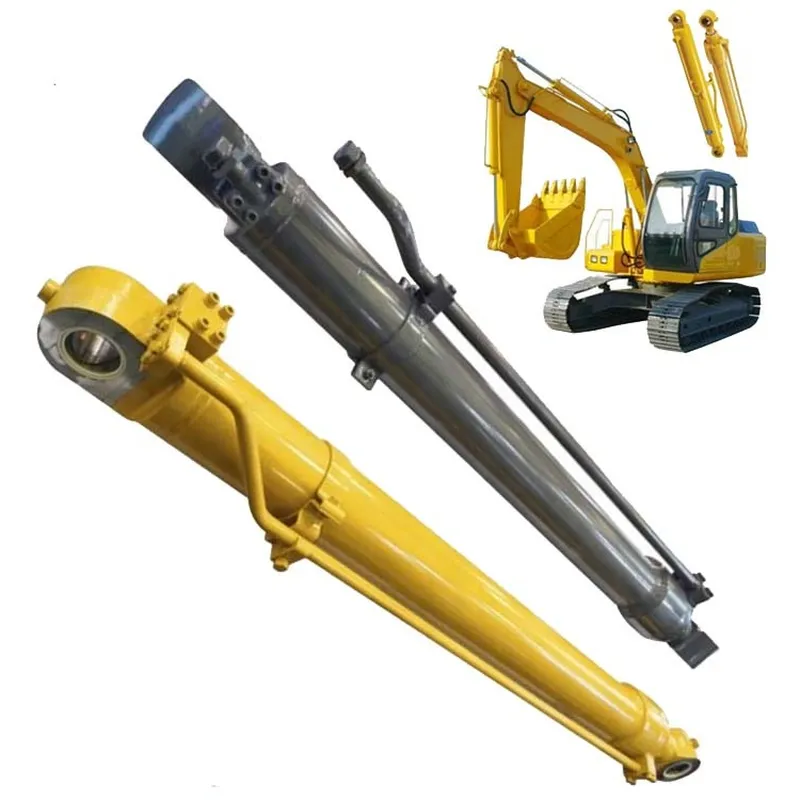

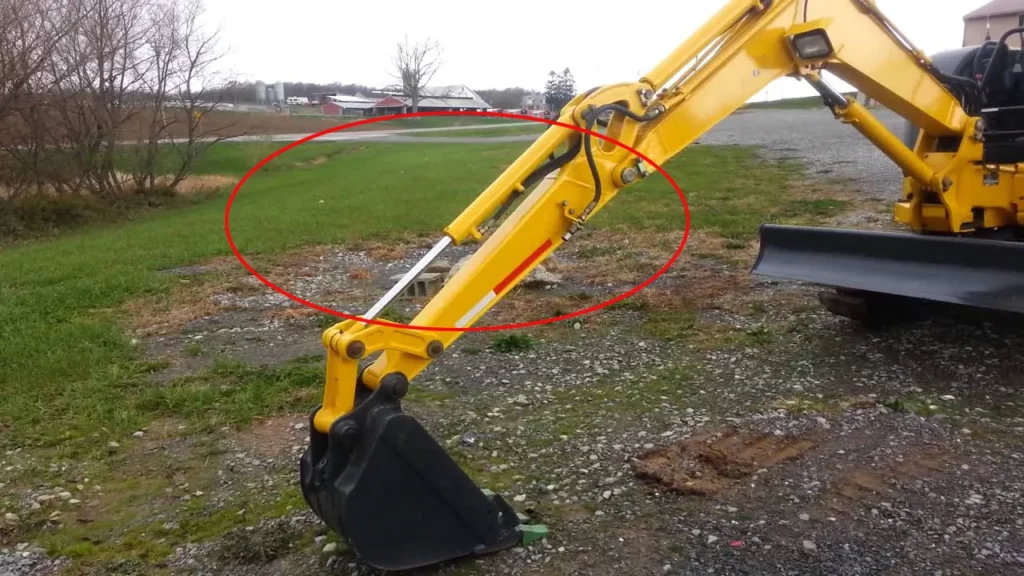

A small excavator bucket cylinder is a hydraulic cylinder that is used to operate the bucket of a small excavator. It is typically made of steel and has a double-acting design, meaning that it can extend and retract. The cylinder is connected to the bucket by a linkage system, and it is powered by the excavator's hydraulic system.

The size of a small excavator bucket cylinder will vary depending on the size of the excavator and the bucket. The smallest excavator bucket cylinders are typically found on mini excavators, and they can have a bore size of just a few inches. Larger excavators will have larger bucket cylinders, with bore sizes of up to 12 inches or more.

The stroke length of a small excavator bucket cylinder will also vary depending on the application. For example, a cylinder used for digging will need to have a longer stroke than a cylinder used for loading.

Small excavator bucket cylinders are an important part of the excavator's hydraulic system. They allow the excavator to operate the bucket, which is essential for digging, loading, and other tasks.

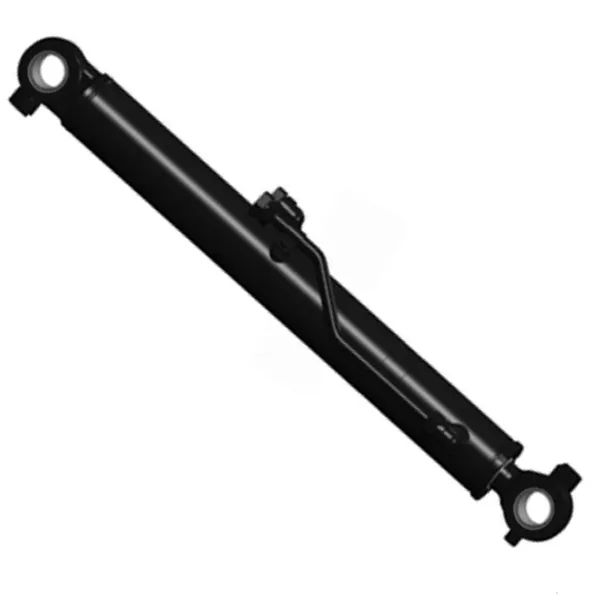

Small Excavator Bucket Cylinder Specifications:

Product Name	Small Excavator Bucket Cylinder
Features:	Control the action of the bucket
Bore diameter:	50mm～105mm
Rod diameter:	25mm～70mmStroke≤1000 mm
Thrust force:	Maximum 255KN
Bore diameter:	105mm/pressure29.4MPa

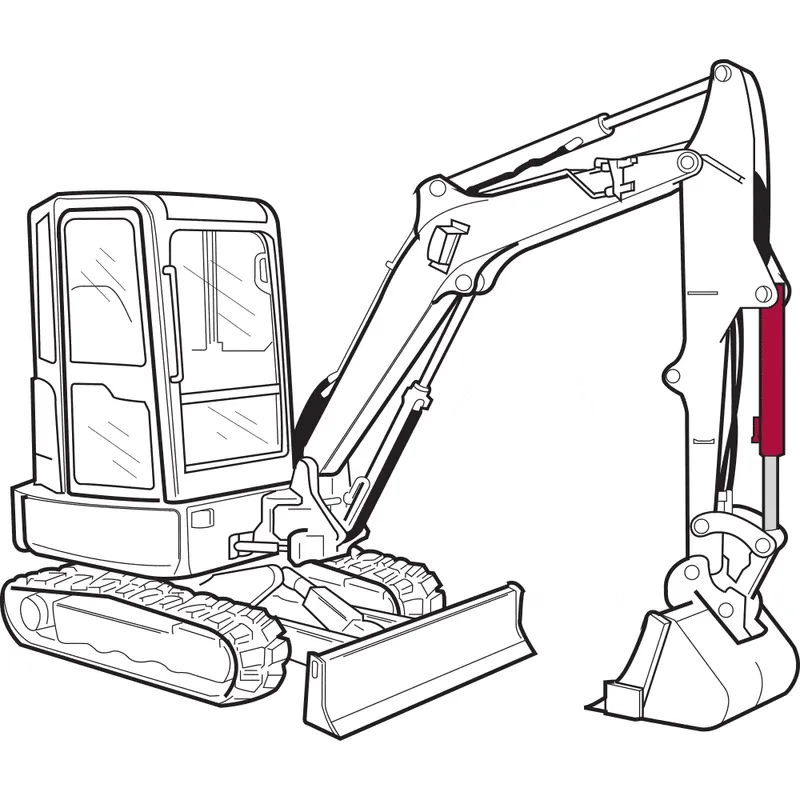

Small Excavator Bucket Cylinder Features:

Key features of a small excavator bucket cylinder may include:1. Compact design: These small excavator bucket cylinders are designed to fit within the limited space constraints of smaller excavators. They are lightweight and provide optimal performance without compromising on power.2. High lifting capacity: Despite their smaller size, small excavator bucket cylinders are engineered to generate substantial force, allowing the bucket to lift heavy loads and handle various materials efficiently.3. Smooth operation: The small excavator bucket cylinder's hydraulic system ensures smooth and precise control over the bucket's movement, enabling operators to perform delicate tasks with accuracy.4. Durability: These small excavator bucket cylinders are built to withstand the demanding conditions of excavation work. They are constructed from robust materials and incorporate seals and other components that provide resistance against wear, corrosion, and leakage.5. Versatility: Small excavator bucket cylinders are compatible with a range of attachments, such as buckets, rippers, thumbs, and grabs. This versatility enables the excavator to adapt to different tasks and maximize its productivity on the job site.

How to Choose the Right Small Excavator Bucket Cylinder?

When choosing the right small excavator bucket cylinder, there are several factors to consider to ensure optimal performance and compatibility with your specific excavator. Here are some key points to keep in mind:Excavator Specifications: Start by understanding the specifications of your excavator, such as its make, model, and size. Different excavators have varying hydraulic systems, mounting configurations, and weight capacities. Ensure that the small excavator bucket cylinder you choose is compatible with your excavator's specifications.Cylinder Size and Capacity: Consider the size and capacity of the cylinder. The small excavator bucket cylinder size should match the dimensions of your excavator, ensuring a proper fit within the available space. Additionally, the cylinder's lifting capacity should be suitable for the load requirements of your typical digging and lifting tasks.Operating Pressure and Flow Rate: Check the recommended operating pressure and flow rate of the hydraulic system on your excavator. The bucket cylinder you select should be capable of operating within those parameters. Ensure that the cylinder's pressure rating matches or exceeds the hydraulic system's pressure capacity.Quality and Durability: Look for a small excavator bucket cylinder from a reputable manufacturer known for producing high-quality hydraulic components. Durability is crucial, as the cylinder will be subjected to heavy loads and harsh working conditions. It should be constructed from robust materials and incorporate reliable seals to prevent leaks and premature wear.Application and Attachments: Consider the specific applications and attachments you intend to use with the excavator. Ensure that the bucket cylinder is compatible with various attachments like buckets, rippers, thumbs, or grabs that you may need for your projects.

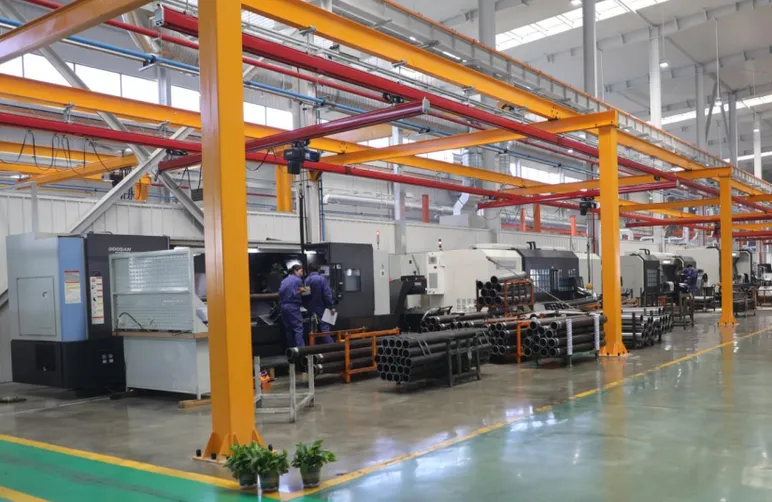

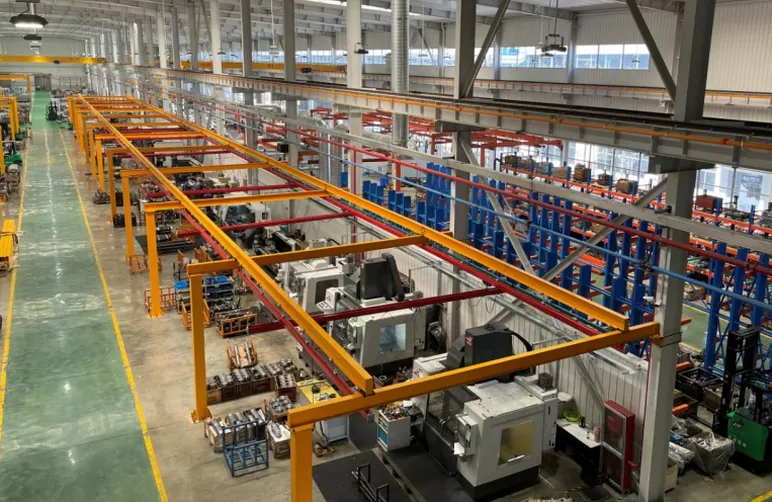

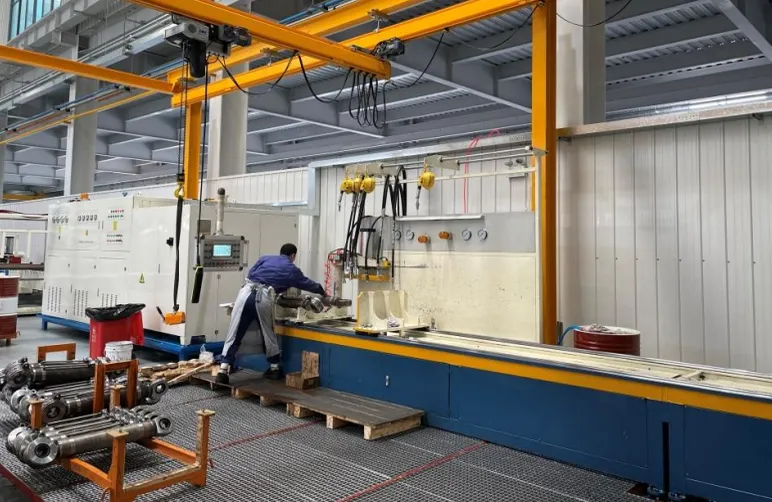

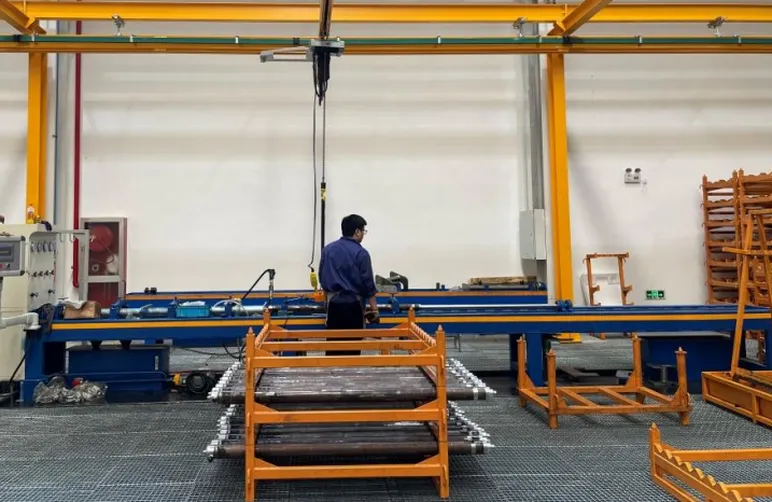

China Excavator Bucket Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, excavator bucket cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.Raydafon is committed to providing customers with efficient hydraulic technology solutions and products, maintaining strong partnerships with customers, and leading the development of China’s hydraulic industry through more scientific solutions. Raydafon aims to make more contributions to the sustainable development of society, the construction of green cities, and building a better future.
