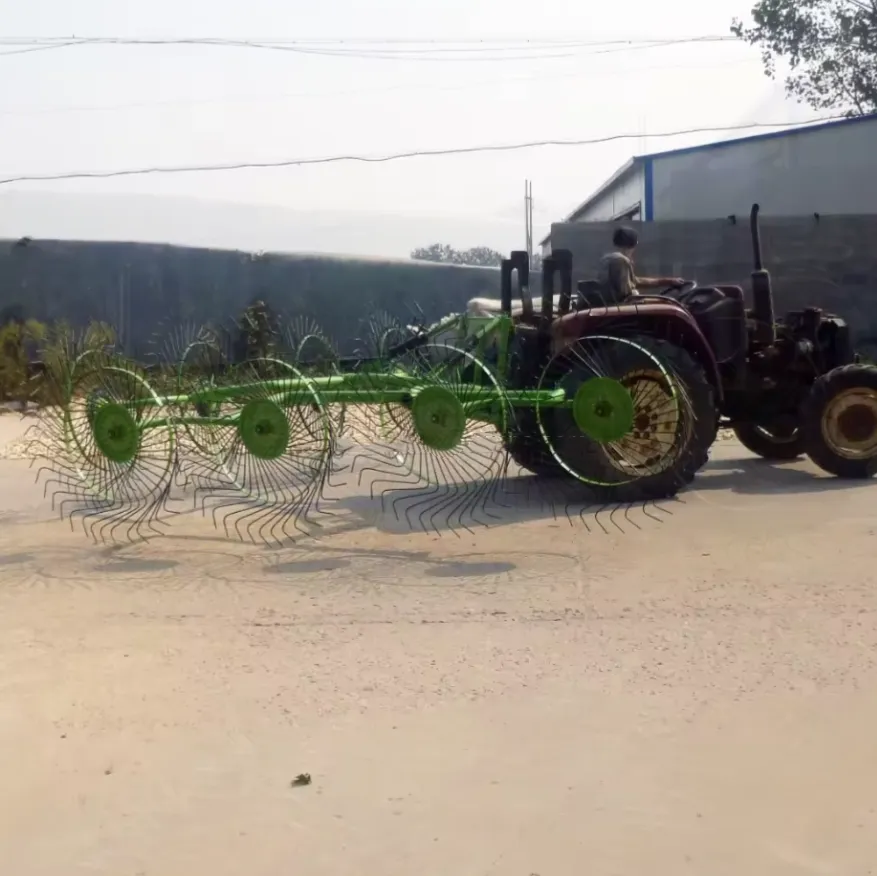

Large Vertical Hay Rake for Collect Grass and Cutting Crop RXHR-3 RXHR-4 RXHR-5

[embed]https://youtu.be/R7EALpVlwwc[/embed]

Large Vertical Hay Rake for Collect Grass and Cutting Crop RXHR-3 RXHR-4 RXHR-5

A large vertical hay rake, also known as a hay tedder or hay rake, is a specialized agricultural machine used for collecting grass and cutting crops. It is an essential tool in the process of haymaking and silage production. The primary purpose of the vertical hay rake is to spread and fluff freshly cut or mown hay or crops, allowing them to dry more efficiently by exposing a larger surface area to air and sunlight. The design of a large vertical hay rake typically consists of a series of rotating tines or arms attached to a central rotor. The rotor is driven by a power take-off (PTO) shaft connected to a tractor or other power source. As the machine moves forward, the rotating tines lift and turn the hay or crop material, breaking up clumps and promoting even drying. The tines can be adjusted to control the spreading width and intensity, allowing farmers to customize the drying process based on their specific needs. One of the key advantages of a large vertical hay rake is its ability to work efficiently over a wide area, covering a significant amount of ground in a relatively short amount of time. This makes it especially useful for large-scale farming operations or fields with extensive hay or crop acreage. By improving drying time, the hay rake helps preserve the nutritional value of the forage, reducing the risk of spoilage and mold formation. Additionally, using a large vertical hay rake can enhance the quality of the harvested forage. By separating the cut material and exposing it to air, the rake helps remove excess moisture, preventing the hay or crop from becoming overly damp or prone to rotting. This results in higher-quality feed for livestock, as well as improved hay or crop storage.

Large Vertical Hay Rake RXHR-3 RXHR-4 RXHR-5 Specifications

Model	RXHR-3	RXHR-4	RXHR-5
Weight  kgs	150	295	345
Working speed  km/h	5-10	5-10	5-10
Productivity ha/h	1	1.5~3.5	3~5
Matched power HP	15/20	20/27	40/55
Working width m	3	4	4.8
NO.of wheels	4	6	8
Disc diameter  m	1.46	1.46	1.46
No.of tines/  pcs	40	40	40
grass width m	1~1.5	1~1.5	1~1.5
Mounted type	three point mounted

Benefits of Using the Large Vertical Wheel Hay Rake

The large vertical wheel hay rake is another type of hay rake commonly used in agricultural settings. It offers several benefits that make it a popular choice for farmers. Here are some of the advantages of using a large vertical wheel hay rake: 1. Increased Efficiency: The large vertical wheel hay rake is designed to cover a wide swath of land in a single pass. Its large wheels, typically positioned on the sides of the machine, allow for efficient and quick raking. This helps farmers save time and complete the raking process more rapidly, especially in large fields. 2. Gentle Handling of Forage: The vertical wheel configuration of this hay rake ensures that the tines or teeth make minimal contact with the ground. This gentle handling reduces the risk of soil contamination and preserves the quality of the forage, resulting in higher-quality feed for livestock. 3. Versatility: Large vertical wheel hay rakes are versatile machines that can be used in various types of forage and crop conditions. Whether it's hay, straw, or other crops, the rake can effectively lift and turn the material, facilitating the drying process and promoting quality preservation. 4. Adjustable Raking Height: The large vertical wheel hay rake usually comes with adjustable raking height settings. This feature allows farmers to adapt to different field conditions, such as uneven terrain or varying crop heights. By adjusting the height, they can achieve optimal raking without damaging the forage or the rake itself. 5. Maneuverability: Thanks to its wheel configuration, the large vertical wheel hay rake offers excellent maneuverability. Farmers can easily navigate around obstacles, such as bales or rocks, without getting stuck or causing damage to the machine. This makes it a practical choice for fields with challenging terrain or obstacles to navigate. 6. Improved Drying: Similar to other hay rakes, the large vertical wheel hay rake helps accelerate the drying process by spreading and aerating the forage. By exposing a larger surface area to air and sunlight, it facilitates moisture evaporation, resulting in faster drying times and reduced risk of mold or spoilage.

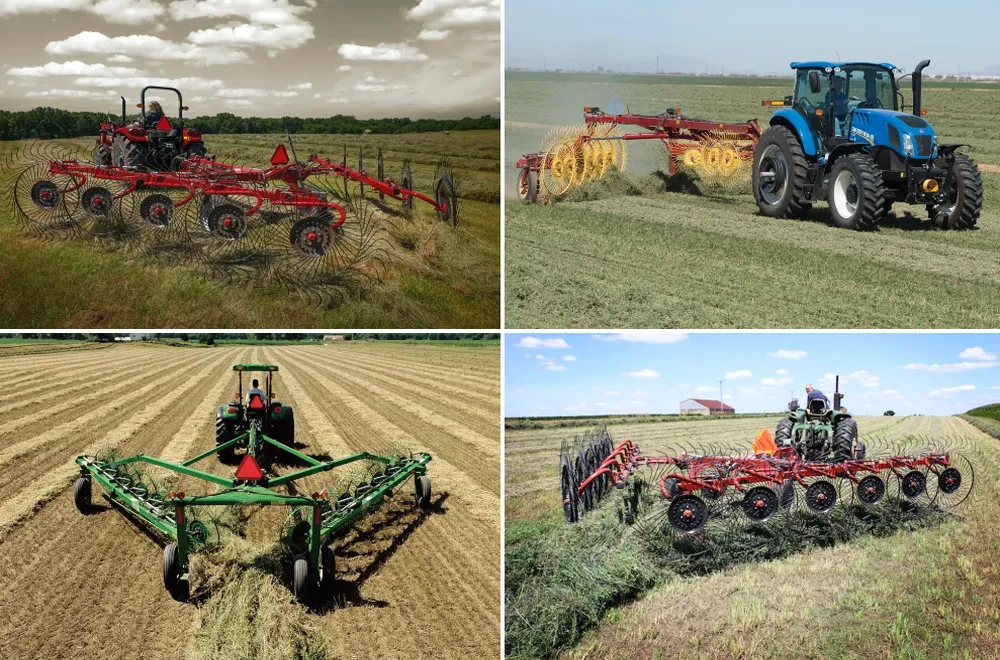

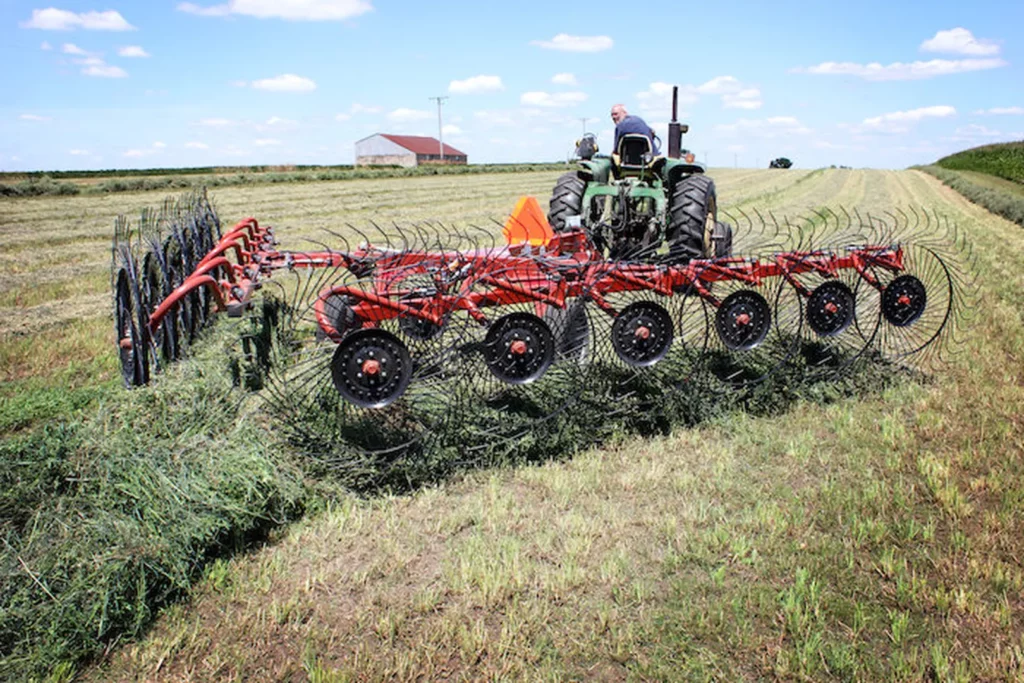

Common Applications of Large Vertical Wheel Hay Rake

The large vertical wheel hay rake is a versatile agricultural machine that finds applications in various aspects of haymaking and crop production. Here are some common applications of the large vertical wheel hay rake: (1) Hay Raking: The primary application of the large vertical wheel hay rake is for raking and tedding hay. After the hay is cut or mown, the rake is used to spread and fluff the hay, allowing it to dry more efficiently. The rotating wheels lift and turn the hay, breaking up clumps and promoting even drying across the field. (2) Silage Production: The large vertical wheel hay rake is also used in the production of silage. Silage is made by fermenting high-moisture forage crops, such as corn or grass, in an anaerobic environment. Before the forage is ensiled, it needs to be wilted to achieve the desired moisture content. The hay rake helps with wilting by spreading and aerating the forage, reducing its moisture content and preparing it for the ensiling process. (3) Crop Conditioning: Apart from hay and forage crops, the large vertical wheel hay rake can be used for conditioning other crops as well. It is commonly employed in the preparation of crops like straw, alfalfa, and wheat. By spreading and fluffing the cut crop material, the rake facilitates drying and prepares it for further processing or storage. (4) Residue Management: After harvesting certain crops like corn or soybeans, there may be significant plant residue left on the field. The large vertical wheel hay rake can be used to gather and windrow this residue, making it easier for subsequent operations such as baling or incorporation into the soil. Proper residue management helps improve soil health, reduce erosion, and enhance the effectiveness of subsequent planting operations. (5) Seedbed Preparation: In some cases, the large vertical wheel hay rake can be utilized for seedbed preparation. By raking and leveling the soil, it helps create a smooth and even surface, providing an optimal environment for seed germination and crop establishment. This application is particularly relevant when establishing new pastures or preparing fields for reseeding.

Large Vertical Wheel Hay Rake Vs Rotary Hay Rake

When it comes to hay raking, two common types of hay rakes are the large vertical wheel hay rake and the rotary hay rake. Let's compare these two types and highlight their differences:

1. Design and Operation:
   • Large Vertical Wheel Hay Rake: This type of hay rake typically has large wheels positioned on the sides of the machine. The wheels are equipped with tines or teeth that lift and turn the hay, spreading it out for drying. The tines make minimal contact with the ground, resulting in gentle handling of the forage.
   • Rotary Hay Rake: Rotary hay rakes feature a horizontal rotor with spinning tines or arms. The rotor is usually positioned in the center of the machine and is driven by a power take-off (PTO) shaft. As the machine moves forward, the spinning tines pick up the hay and throw it to the side, forming windrows.
2. Raking Width and Speed:
   • Large Vertical Wheel Hay Rake: These hay rakes typically have a larger raking width compared to rotary hay rakes. They can cover a wider swath of land in a single pass, resulting in increased efficiency and faster raking. However, they may have a slower operating speed.
   • Rotary Hay Rake: Rotary hay rakes generally have a narrower raking width compared to large vertical wheel hay rakes. They require multiple passes to cover the same area, which can be time-consuming. However, they often have a higher operating speed.
3. Maneuverability:
   • Large Vertical Wheel Hay Rake: The large vertical wheel hay rake offers good maneuverability, especially in fields with obstacles or uneven terrain. The wheels are positioned on the sides, allowing the machine to navigate around obstacles without getting stuck easily.
   • Rotary Hay Rake: Rotary hay rakes may have lower maneuverability compared to large vertical wheel hay rakes. The central rotor can limit their ability to maneuver around obstacles, and they may be more prone to getting caught on rocks or debris.
4. Forage Quality and Contamination:
   • Large Vertical Wheel Hay Rake: The gentle handling of forage provided by the large vertical wheel hay rake helps preserve the quality of the hay. The tines make minimal contact with the ground, reducing the risk of soil contamination and maintaining the nutritional value of the forage.
   • Rotary Hay Rake: Rotary hay rakes can be more aggressive in their operation, as the spinning tines throw the hay to the side. This may increase the risk of soil contamination, and there is a possibility of picking up rocks, debris, or foreign objects along with the hay.
5. Versatility:
   • Large Vertical Wheel Hay Rake: Large vertical wheel hay rakes are versatile machines that can be used for various crops and forage materials. They are suitable for hay raking, silage production, crop conditioning, and pasture management.
   • Rotary Hay Rake: Rotary hay rakes are primarily designed for hay raking. Their operation is well-suited for creating windrows for baling or further processing.

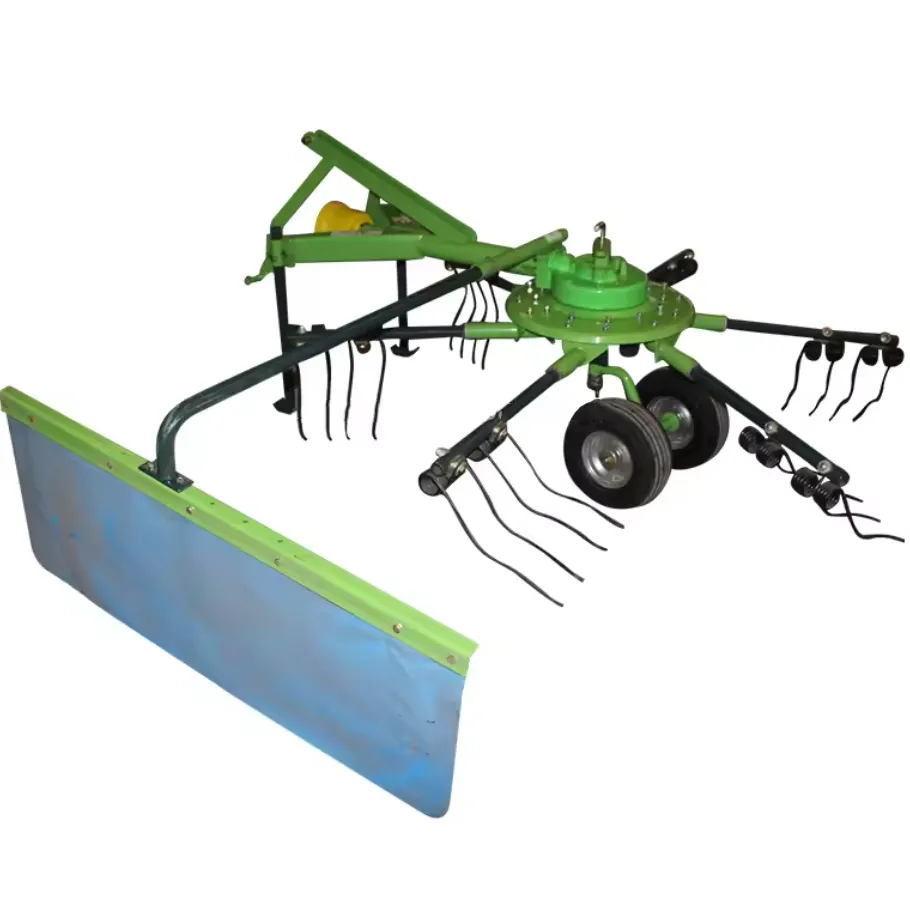

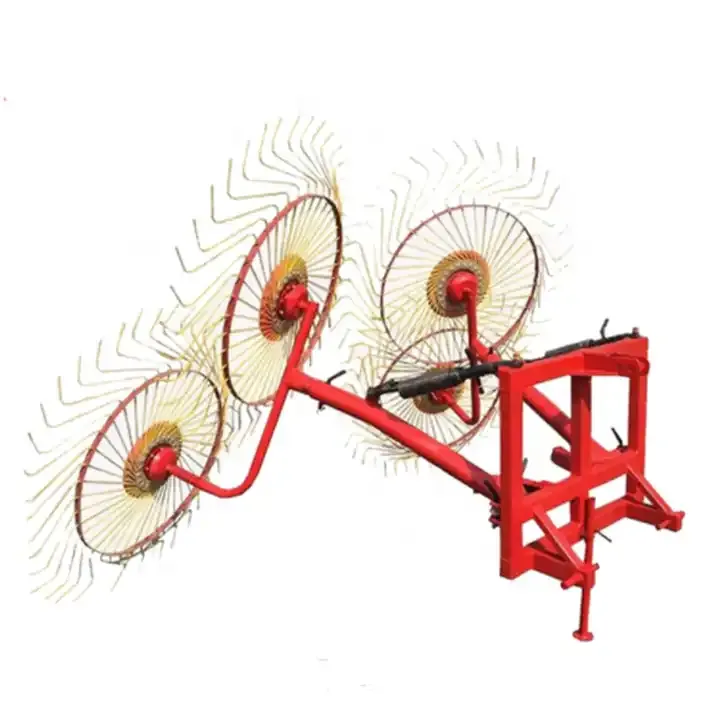

Wheel Hay Rake	Rotary Hay Rake
