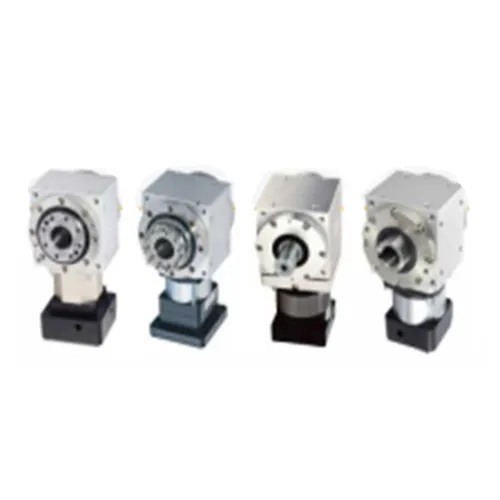

LD-AS Precision Input Planetary Right Angle Reducer

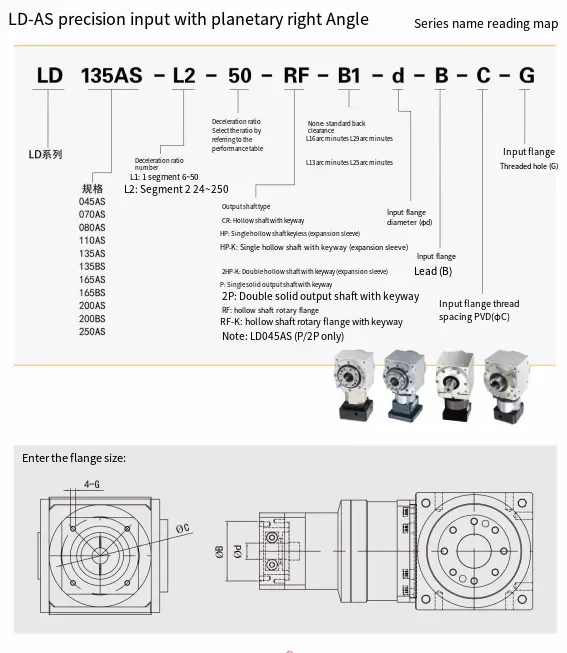

A Precision Input Planetary Right Angle Reducer combines the compact, high-efficiency characteristics of planetary gearing with a right-angle configuration to provide an advanced solution for space-constrained applications requiring precise motion control and power transmission. These devices are an integral part of various mechanical systems where both the direction of drive needs to be altered and the input speed needs to be adjusted (usually reduced) with high precision and efficiency.

Key Features

• High Efficiency: Planetary gears are known for their ability to distribute loads across multiple gear teeth, resulting in higher efficiency and load capacity compared to single gear solutions.
• Compact and Space-Saving Design: The combination of planetary gearing with a right-angle output allows these reducers to fit into tight spaces without sacrificing performance.
• High Precision: They offer reduced backlash and higher precision, making them ideal for applications requiring precise positioning and smooth operation.
• Versatility: With various ratio options, they can be tailored to meet a wide range of speed and torque requirements.
• Durability: Designed for durability and reliability, these reducers are capable of handling high stress and loads.

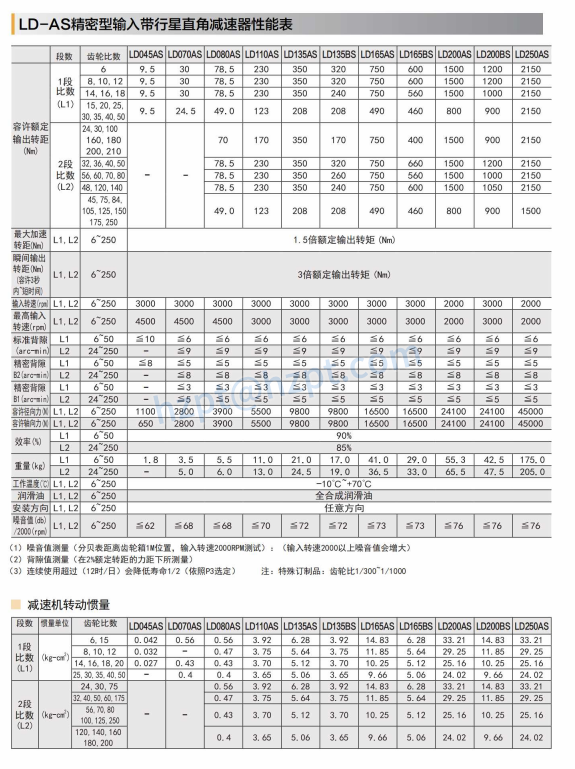

LD-AS precision type planetary right angle reducer performance table

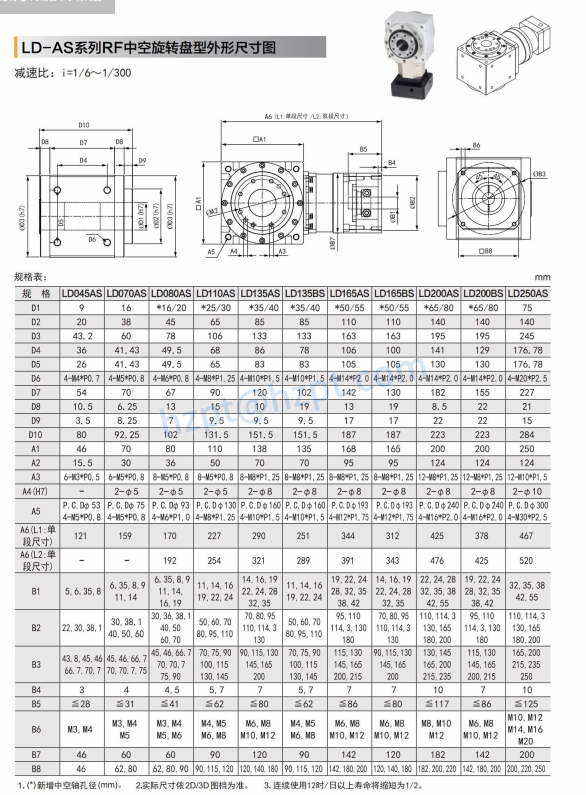

LD-AS Series RF Hollow Rotating Disk Model Dimensions

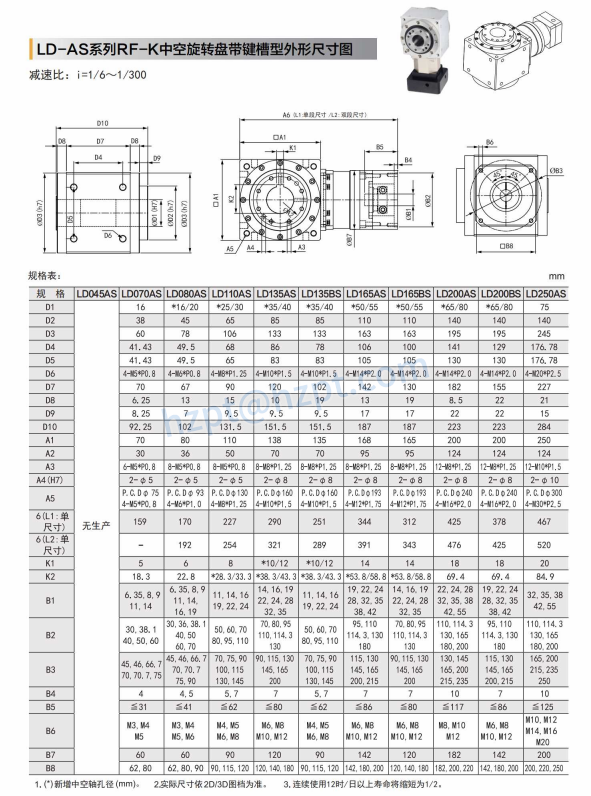

LD-AS series RF-K hollow rotating disc with keyway type overall dimension drawing

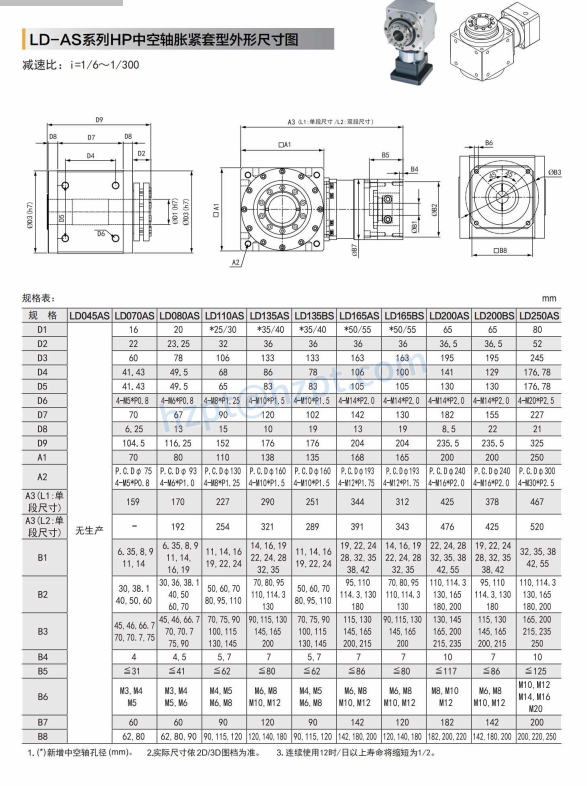

Dimensional drawing of LD-AS series HP hollow shaft expansion sleeve type

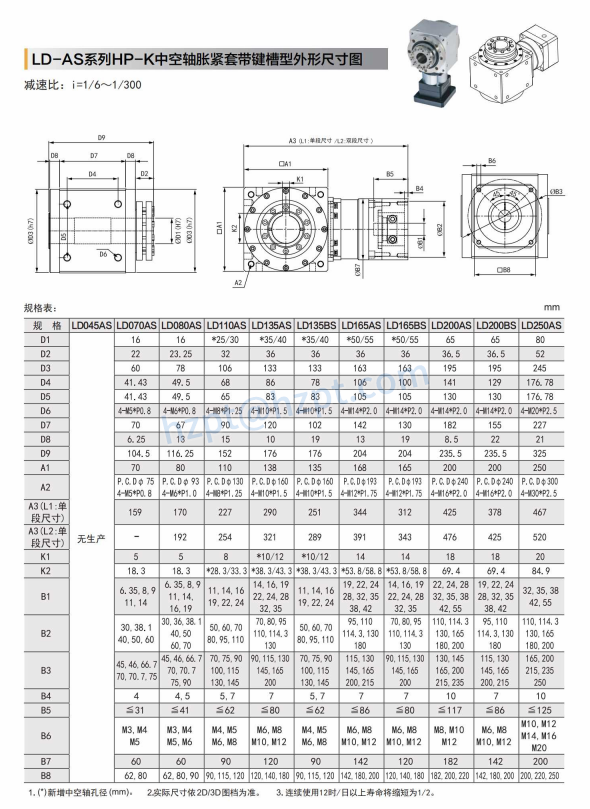

LD-AS series HP-K hollow shaft expansion sleeve with keyway type outline dimension drawing

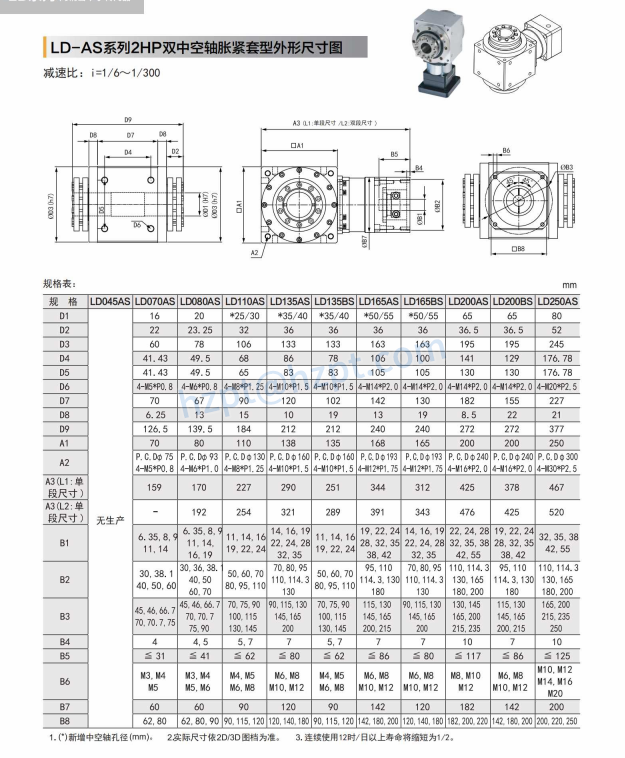

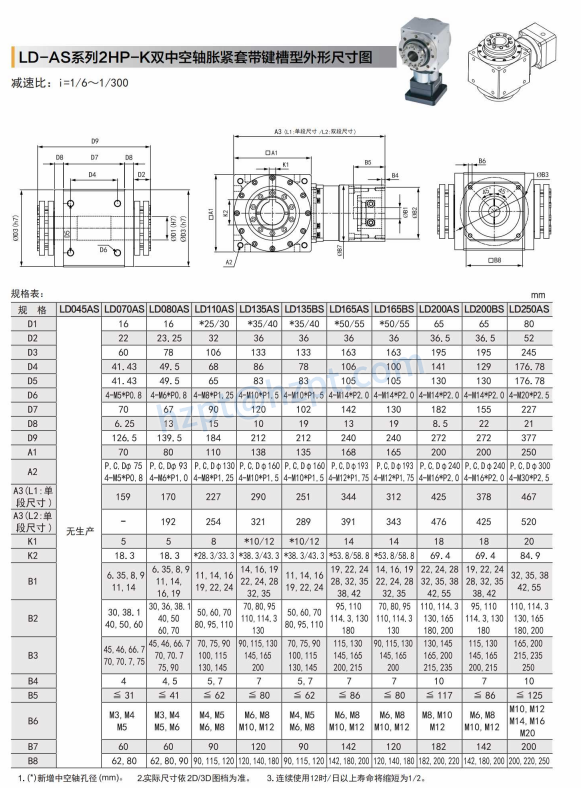

Dimensional drawing of LD-AS series 2HP double hollow shaft expansion sleeve type

LD-AS series 2HP-K double hollow shaft expansion sleeve with keyway type outline dimension drawing

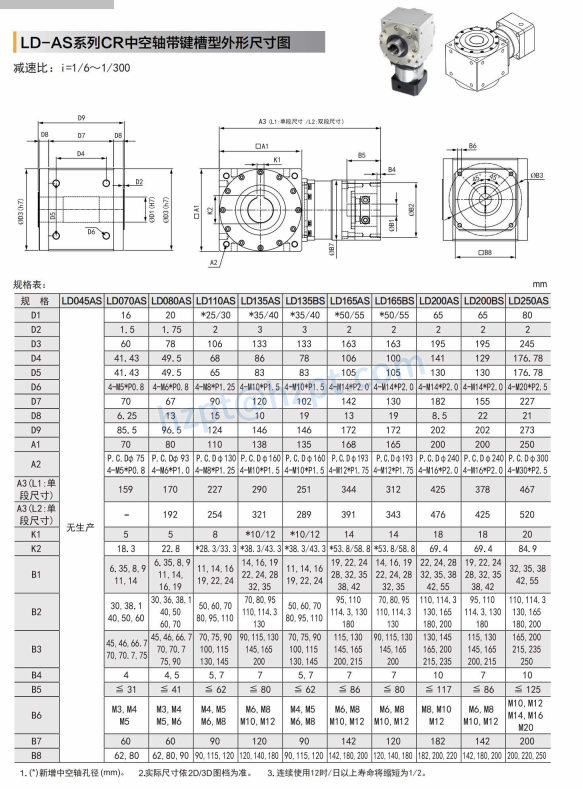

LD-AS series CR hollow shaft with keyway type outline dimension drawing

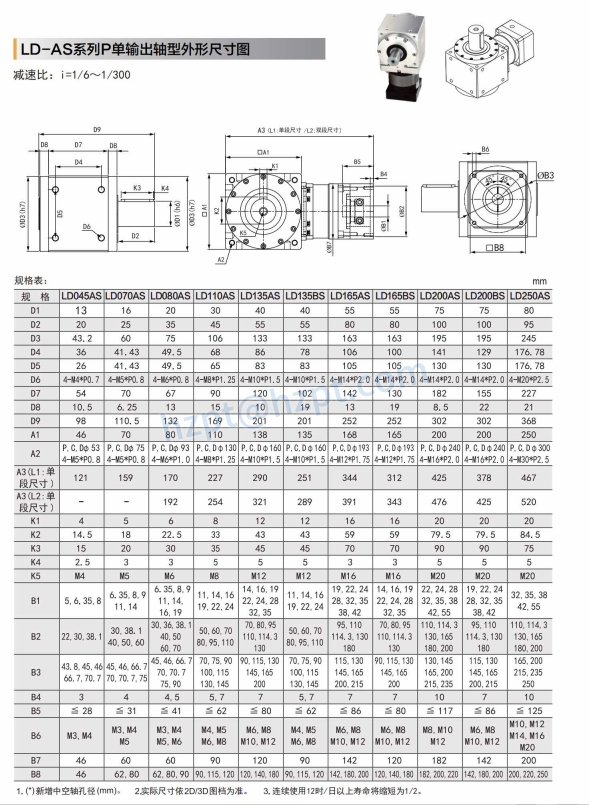

LD-AS series P single output shaft dimension drawing

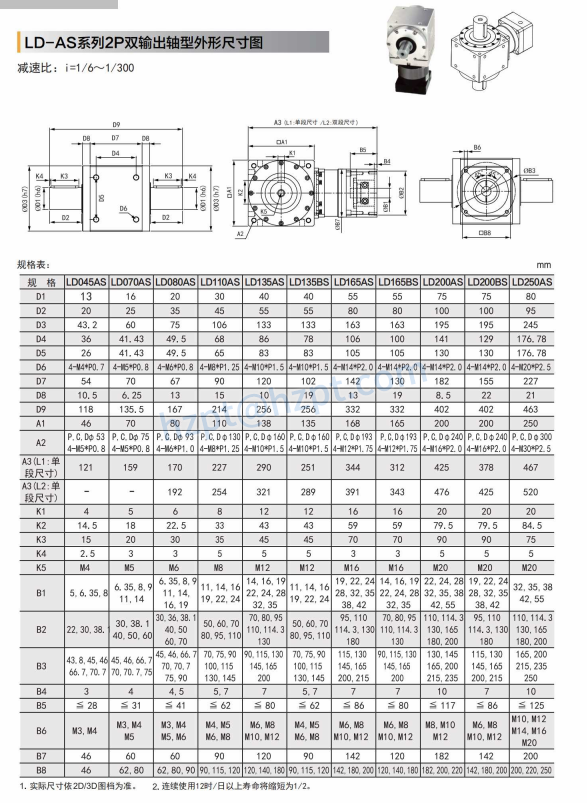

LD-AS series 2P double output shaft type outline dimension drawing

Applications

Precision Input Planetary Right Angle Reducers are widely used in fields where space efficiency and precise control are paramount. Common applications include:

• Robotics: For precise control of robotic arms and other mechanisms.
• Aerospace: In applications requiring compact and reliable gear systems.
• Automotive: In advanced drivetrain and steering systems.
• Packaging and Material Handling Equipment: Where space constraints and the need for precise motion control are common.
• Medical Devices: In equipment requiring high precision and reliability.

Selection Considerations

When selecting a Precision Input Planetary Right Angle Reducer, consider:

• Load Requirements: Ensure the reducer can handle the required torque and load.
• Backlash: Lower backlash is essential for precision applications.
• Ratios: Choose a gear ratio that matches your speed and torque requirements.
• Mounting Configuration: Ensure the reducer fits within the mechanical design and space constraints of your application.
• Material and Construction: Consider the operating environment and select materials that ensure longevity and reliability.
