Locking Assembly HD Series Power Locks

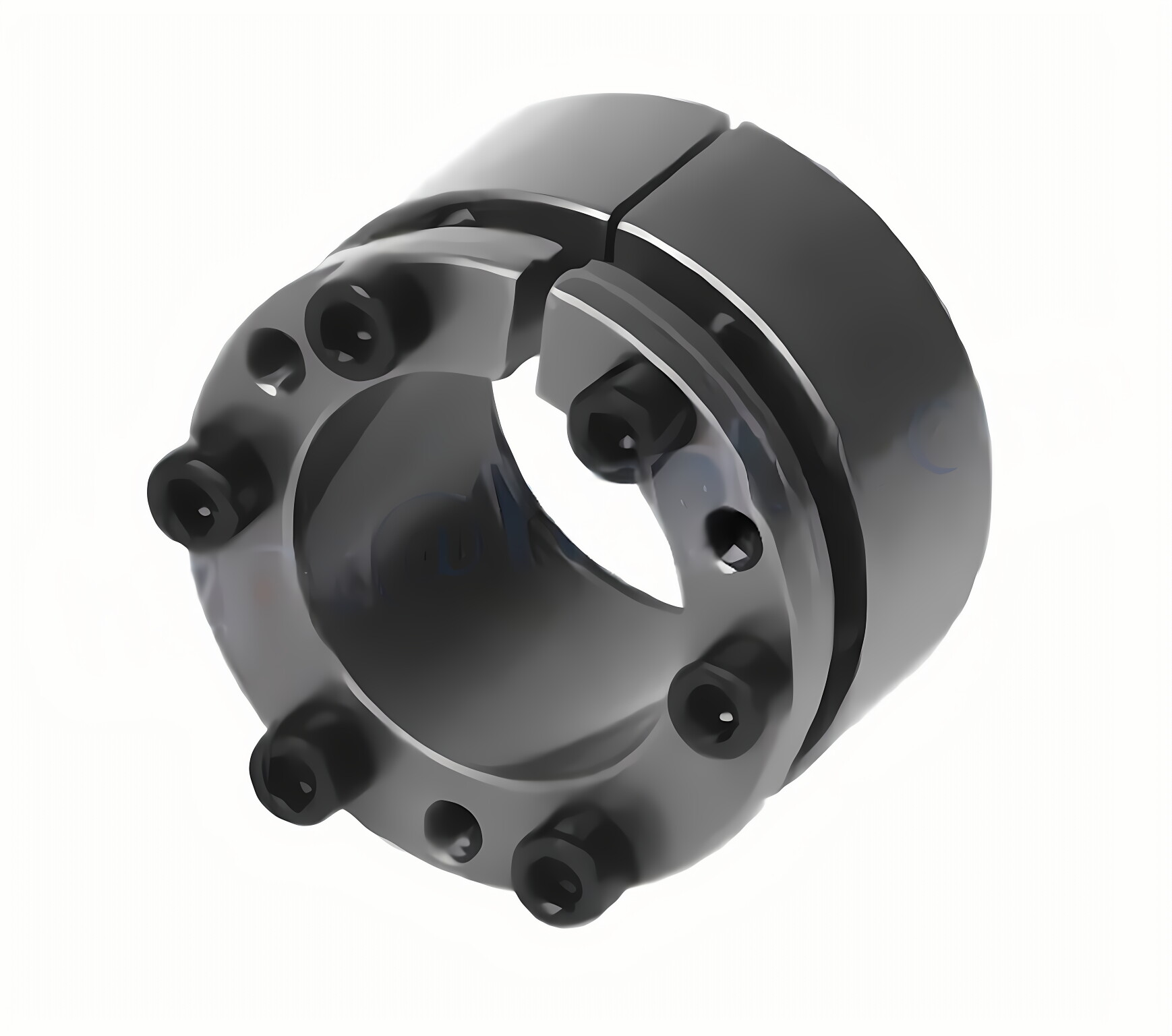

HD Series Locking Assembly

HD Series locking assembly is an assembly that produces a keyless coupling between a machine part and a shaft. The locking assembly may include several keyless elements. It may include a cap ring with recesses, a nut, and a washer. It is designed to eliminate the need for expensive tools and pressurized equipment. It is also easy to assemble and disassemble.

HD Series Locking Assembly Features

• Medium low torque
• Compacter axial size
• Self-centering
• Self-locking
• Axial movement during clamping

HD Series Locking Assembly Dimensions

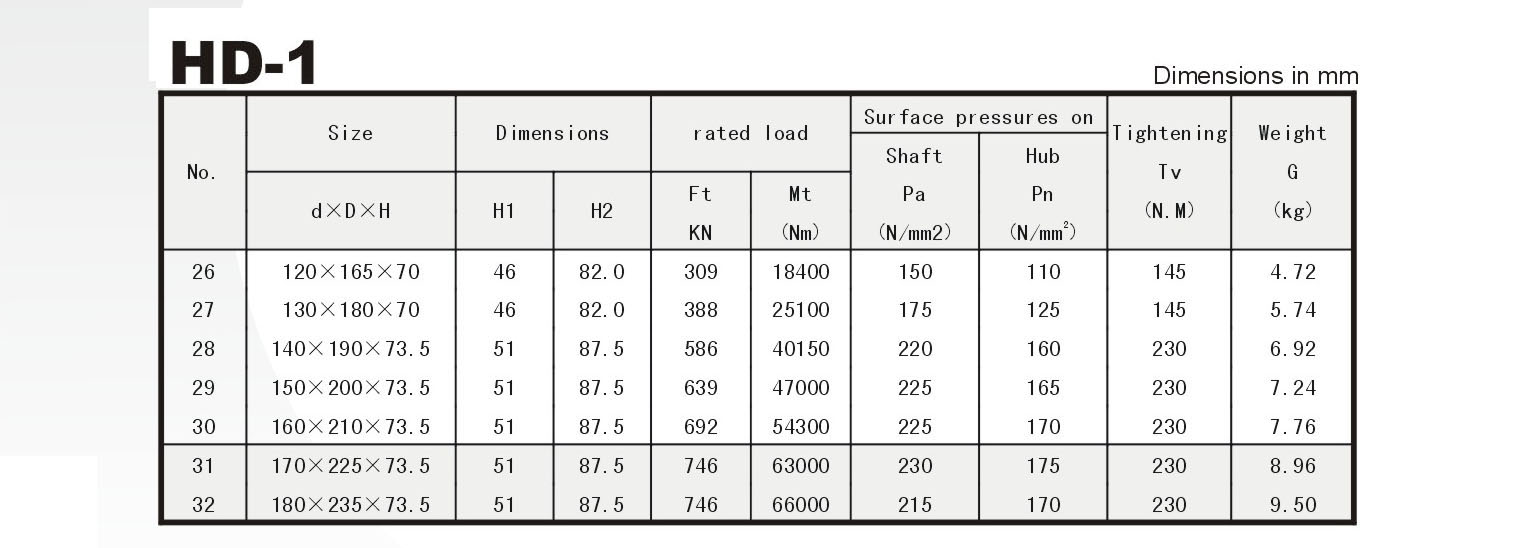

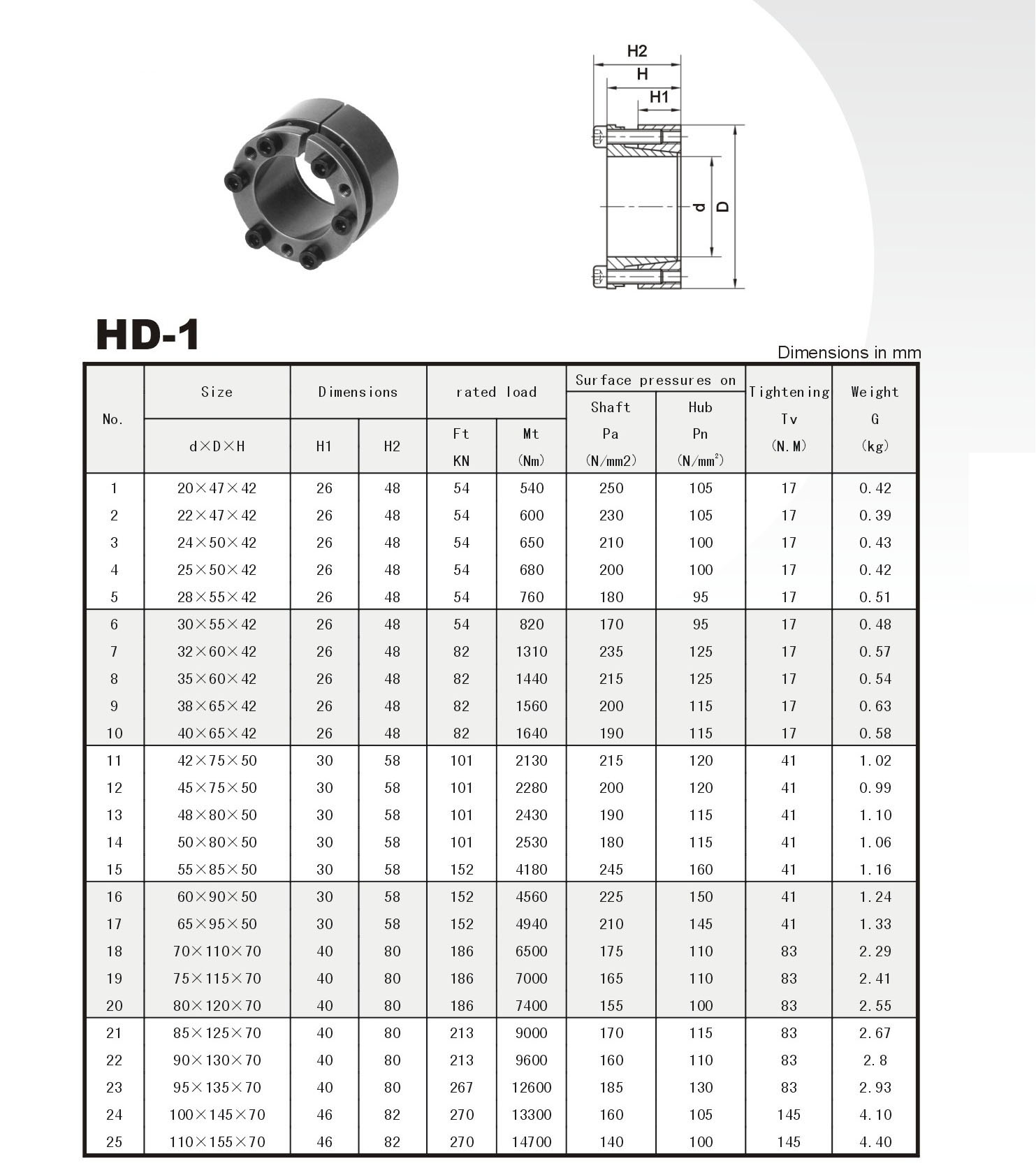

HD-1 Locking Assembly

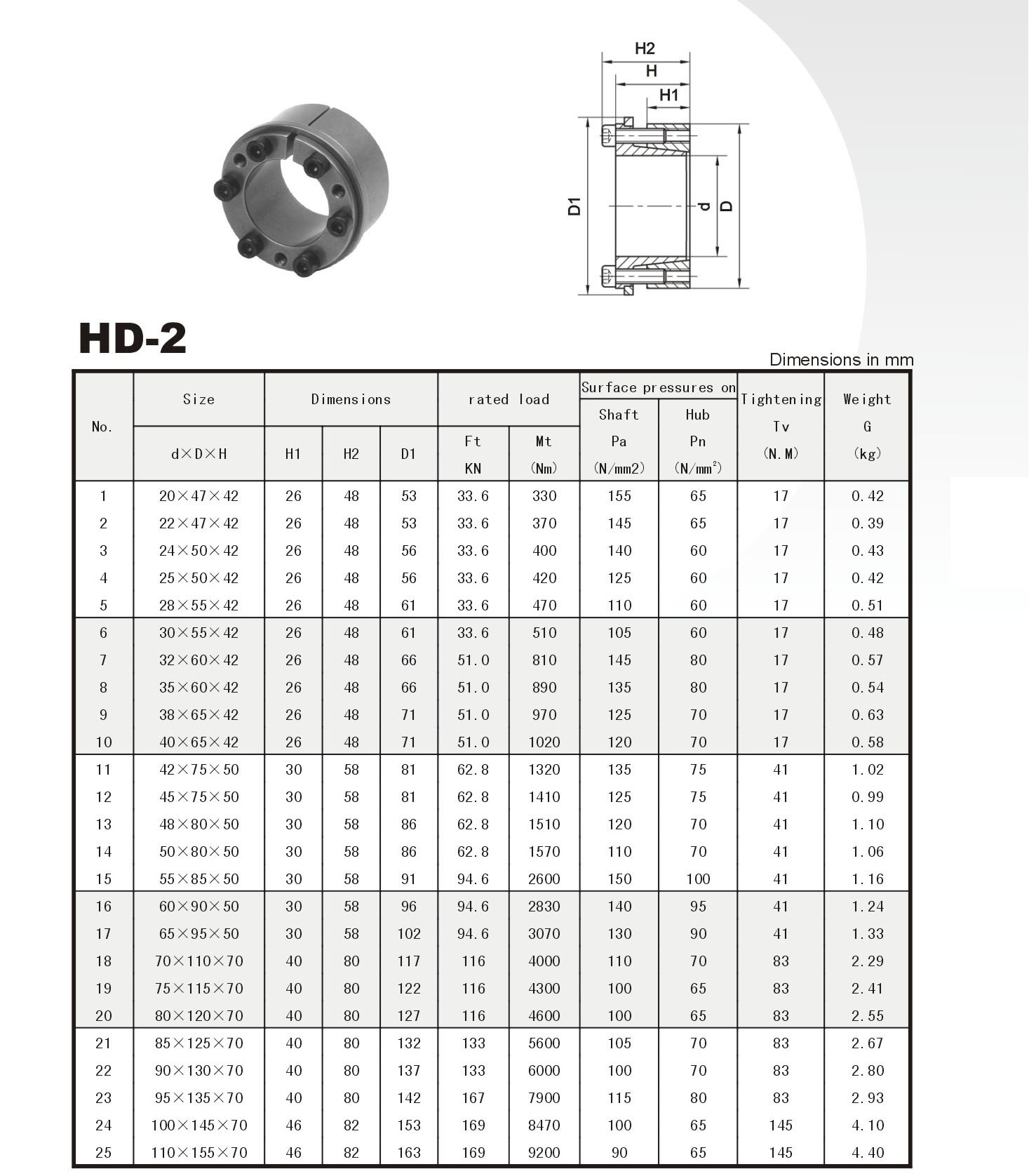

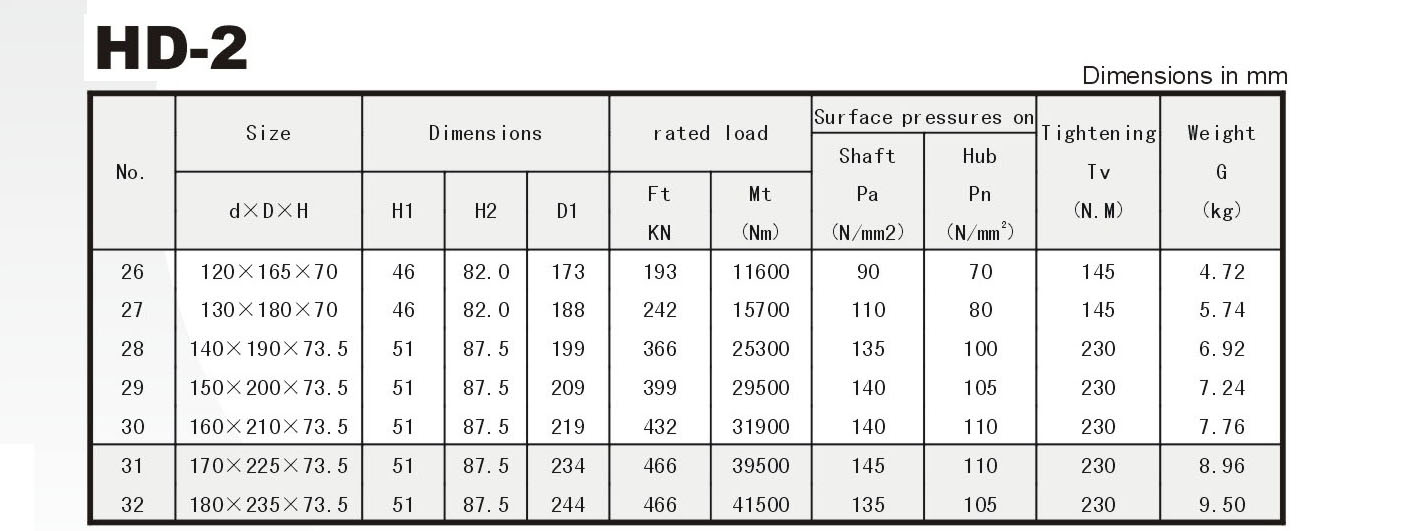

HD-2 Locking Assembly

Locking Assembly Characteristics

Whether used for torque transmission, vibration isolation, or contamination resistance, locking assemblies provide reliable frictional coupling between a shaft and a hub. Locking assemblies have a few advantages over other coupling types, including lower maintenance costs and higher resistance to wear.Locking assemblies are a common component in the mining industry, where the reliable coupling is essential to maintain the flow of materials. In addition, they are a cost-effective solution for applications with a large rotational speed or radial load.Locking assemblies provide an interference fit, which helps transmit torque and bending moments. In addition, they offer great concentricity and vibration characteristics. These characteristics make them ideal for applications with critical concentricity and radial loads.
