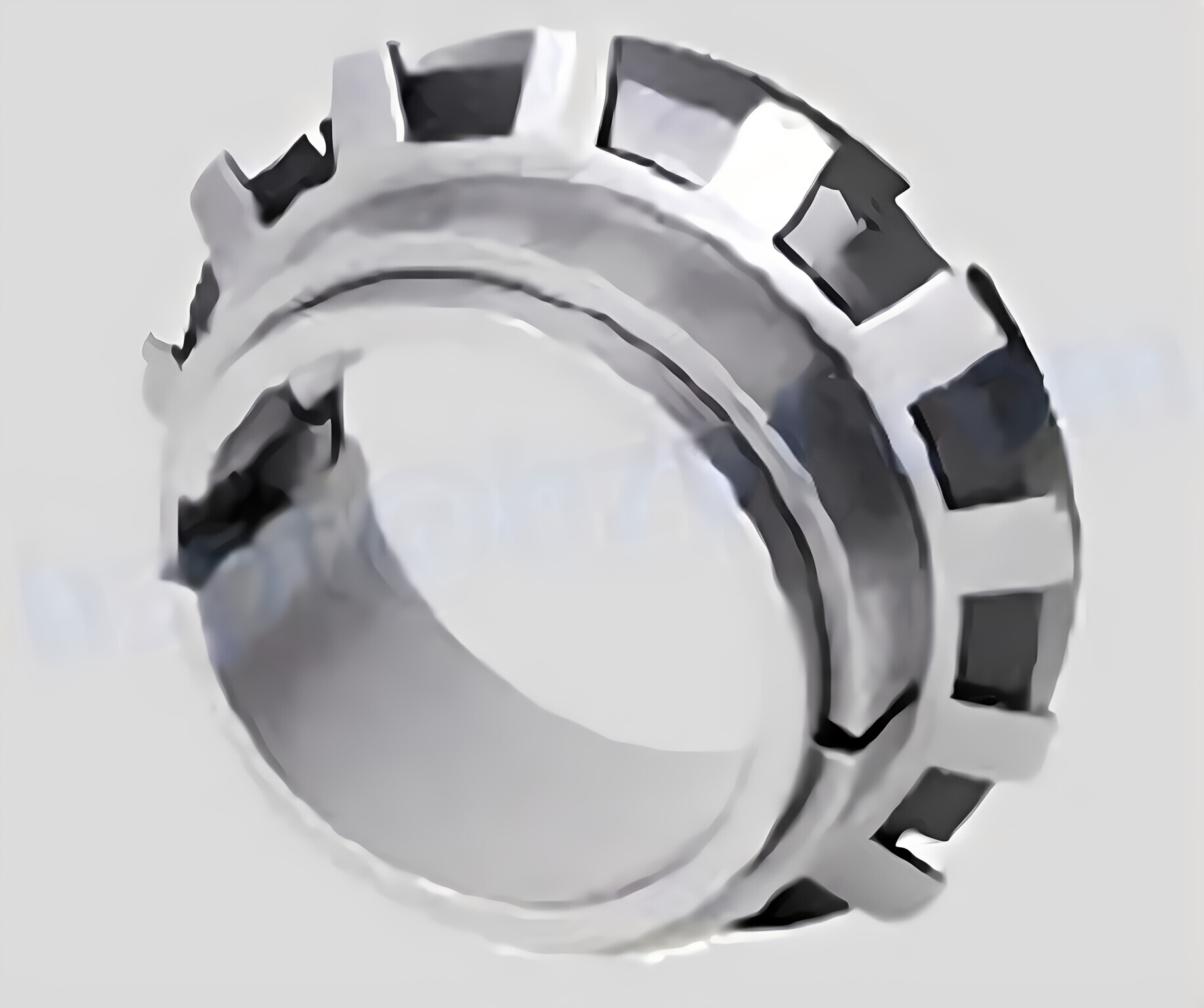

Locking Assembly W Series Power Locks

W Series Locking Assembly

W Series Locking Assembly Features

• Low torque
• Not self-centering
• Self-releasing
• Suited for thin-walled hubs
• Axial movement during clamping

W Series Locking Assembly Technical Qualification

Tolerance: Shaft h8/ Hub H8Surface Roughness: Ra max 12.5

How Does a Locking Assembly Work？

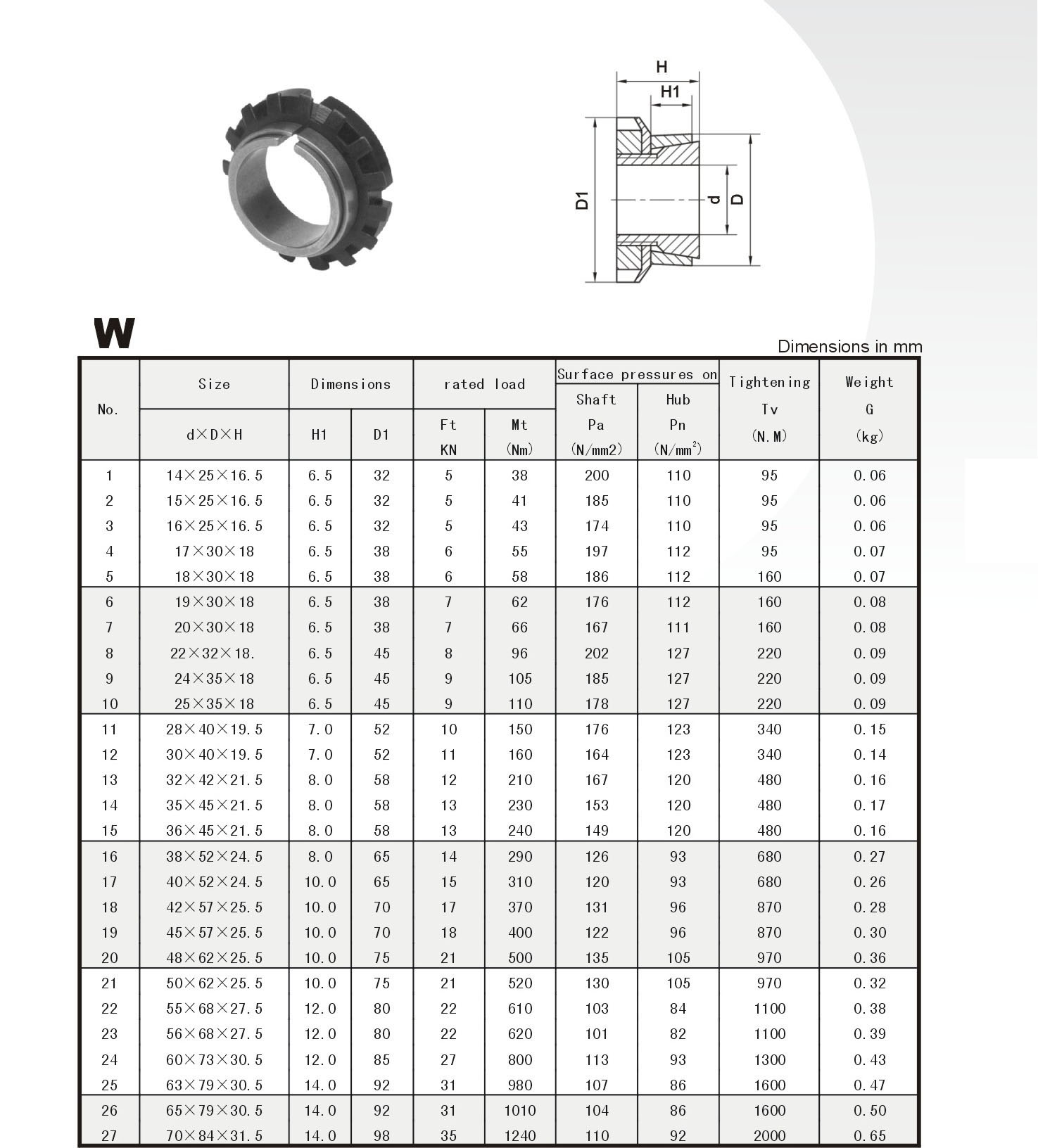

The locking assembly is a kind of keyless locking device which is realized by tightening the pressure and friction force between the inclusion surface by tightening the high-strength bolts in the coupling of wheel and shaft, and is a kind of keyless coupling structure of transmission parts. Under the action of axial force, the inner jacket of the coupling assembly shrinks and rises to make the shaft and hub close together and generate enough friction to transmit torque, so as to achieve the purpose of the mechanism operation, and the keyless locking assembly itself does not transmit any torque and load.Ordering CodeW-014 14X25X16.5Part No. d X D X HRaydafon offers a wide range of locking assemblies of high quality at reasonable prices! Contact us now if you are interested!
