The low-pressure hydraulic cylinder with a front flange is a special hydraulic cylinder with a front flange. This flange is a mounting point or connection port used to connect the cylinder to other parts or equipment. Below is an overview of low-pressure hydraulic cylinders with front flanges:Design and Construction Of Low-pressure Hydraulic Cylinder:

• The cylinder block is usually high-strength steel or durable material to withstand hydraulic pressure and external forces. The cylinder block houses the piston and other internal components.
• Piston and rod: The piston is a cylindrical component moving back and forth in the barrel. It is connected to a rod that passes through the front end of the cylinder and is responsible for transferring fluid pressure.

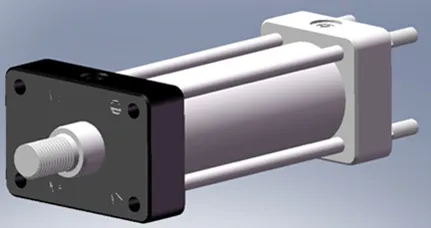

• Front flange: The front flange is a flat or round plate at the front of the cylinder. It is designed with mounting holes or other connecting mechanisms for easy connection to other devices or components.

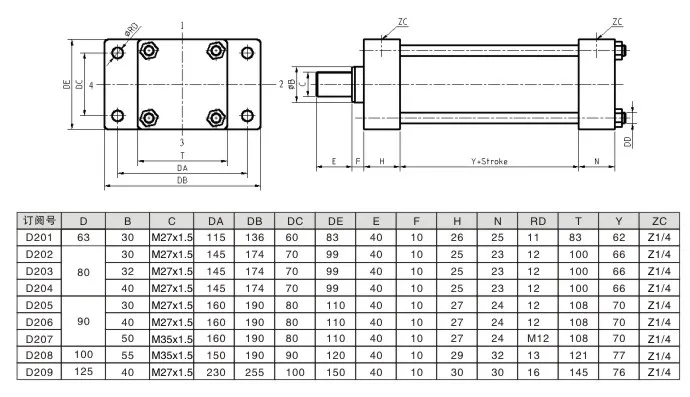

Low-Pressure Hydraulic Cylinder Front Flange Parameter:

 Low-Pressure Hydraulic Cylinder Front Flange Applications:

• Low-pressure hydraulic cylinders with front flanges find applications in various industries and systems that operate under lower hydraulic pressures.
• They are commonly used in industrial machinery, mobile equipment, and other systems where space constraints or specific mounting requirements exist.
• These cylinders are suitable for material handling, lifting mechanisms, conveyor systems, and other equipment requiring linear force or motion.

Low-Pressure Hydraulic Cylinder Front Flange Advantages:

• Easy installation: The front flange simplifies the installation process by providing a dedicated mounting point, eliminating the need for additional brackets or adapters.
• Sturdy connection: The flange design offers a robust and secure connection, ensuring stability and minimizing the risk of misalignment or detachment during operation.
• Space-saving: The front flange eliminates additional mounting hardware or space-consuming adapters, making it a compact solution for tight installation spaces.

How Does A Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy (pressure and fluid flow) into linear force and motion. It consists of a cylinder, a piston, a piston rod and various seals. The following is a brief overview of the working principle of the hydraulic cylinder:

1. Hydraulic Fluid Supply: The hydraulic cylinder is connected to a hydraulic system that supplies pressurized hydraulic fluid, typically oil, to the cylinder.
2. Cylinder Barrel and Piston: The cylinder barrel is a cylindrical tube that contains hydraulic fluid. The piston divides the cylinder barrel into two chambers: the rod side and the cap side.
3. Piston and Piston Rod: The piston is a cylindrical component that fits tightly within the cylinder barrel. It is attached to a piston rod, which extends through a seal in the cylinder head.
4. Seals: The hydraulic cylinder employs various seals to prevent fluid leakage between the piston and the cylinder barrel. These seals include piston seals, rod seals, and wiper seals.
5. Hydraulic Pressure Application: Hydraulic fluid is supplied to the cylinder, creating pressure within the cylinder chambers—the pressurized fluid acts on the piston, generating a force.
6. Force and Motion Generation: When hydraulic fluid is supplied to the cap side of the cylinder, the force generated by the fluid pressure pushes the piston and piston rod outward, creating extension or outward motion. Conversely, when fluid is supplied to the rod side, the force pushes the piston and piston rod inward, creating retraction or inward motion.
7. Load Application: The piston rod is connected to the load or equipment that needs to be moved. As the piston and piston rod extend or retract due to hydraulic pressure, the linear force is transmitted to the load, allowing it to move.
8. Control and Direction: The direction of motion and control of the hydraulic cylinder are achieved by controlling the flow of hydraulic fluid into the appropriate cylinder chamber. This is typically done using directional control valves, which selectively direct the fluid flow to the desired side of the cylinder.
9. Return Stroke: When the fluid flow to one side of the cylinder is stopped or redirected, the hydraulic fluid on the opposite side is allowed to return to the hydraulic reservoir, and the cylinder returns to its original position due to external forces or springs.
