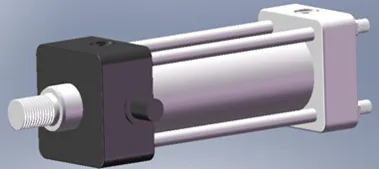

Low-Pressure Hydraulic Cylinder Front Pin

Low-Pressure Hydraulic Cylinder Front Pin

In the context of a low-pressure hydraulic cylinder, the term "front pin" typically refers to a pin or shaft located at the front end of the cylinder. This pin serves as a connection point or pivot for attaching or mounting the cylinder to other components or equipment. Here's some information about the front pin in a low-pressure hydraulic cylinder:Design and Construction Of Low-pressure Hydraulic Cylinder:

• Front Pin: The front pin is usually a solid metal pin or shaft that extends through the front end of the hydraulic cylinder. It is designed to provide a secure connection and pivot point for the cylinder.
• Mounting Holes: The front pin is inserted through mounting holes or brackets on the cylinder housing or front flange. These mounting holes are aligned with corresponding holes or brackets on the equipment or structure to which the cylinder is being attached.
• Retention Mechanism: The front pin may be secured in place using retaining clips, bolts, or other fasteners to prevent unintended disconnection or movement.

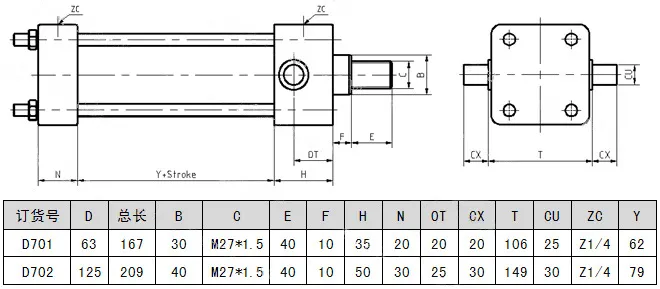

Low-Pressure Hydraulic Cylinder Front Pin Parameter:

Low-Pressure Hydraulic Cylinder Front Pin Applications:

• Low-pressure hydraulic cylinders with front pins are used in various industries and applications, especially in systems that operate under lower hydraulic pressures.
• They are commonly employed in industrial machinery, mobile equipment, and other systems where space constraints or specific mounting requirements exist.
• These cylinders are suitable for applications such as material handling, lifting mechanisms, conveyor systems, and other equipment that requires linear force or motion.

Low-Pressure Hydraulic Cylinder Front Pin Mounting and Connection:

• Mounting the Cylinder: The front pin allows for direct attachment of the hydraulic cylinder to other equipment or structural elements. The pin is inserted through the mounting holes or brackets on the cylinder and the mating holes or brackets on the equipment or structure.
• Fastening the Front Pin: Once the front pin is inserted through the mounting points, it is typically secured in place using retaining clips, bolts, or other fasteners. These fasteners ensure a stable and rigid connection between the cylinder and the mating surface.

How To Measure A Hydraulic Cylinder?

1. Bore Diameter:
   • Measure the inside diameter of the cylinder barrel. This is known as the "bore diameter."
   • Place the calipers inside the cylinder barrel and extend the jaws until they make contact with the inner walls.
   • Take note of the measurement displayed on the calipers.
2. Rod Diameter:
   • Measure the outside diameter of the piston rod. This is known as the "rod diameter."
   • Place the calipers around the piston rod and adjust the jaws until they lightly grip the rod surface.
   • Take note of the measurement displayed on the calipers.
3. Stroke Length:
   • Determine the stroke length, which is the maximum distance the piston can travel inside the cylinder.
   • Extend the piston rod to the fully extended position and measure the distance from the front face of the cylinder to the end of the piston rod.
   • Take note of the measurement as the stroke length.
4. Mounting Dimensions:
   • Measure the mounting dimensions to determine how the hydraulic cylinder will be attached to the equipment or structure.
   • Measure the distance between the mounting holes or brackets on the cylinder's mounting flange.
   • Measure the hole diameter, if applicable.
5. Overall Length:
   • Measure the overall length of the hydraulic cylinder, which includes the length of the cylinder barrel, the piston rod, and any other protruding components.
   • Place a straightedge across the front face of the cylinder and measure the distance from the front face to the furthest point at the opposite end.
6. Additional Measurements:
   • Depending on the specific requirements of your application, you may need to measure additional details such as the length of the piston, the thickness of the end caps, or the dimensions of any ports or fittings.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of low-pressure hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle low-pressure hydraulic cylinders, Aerial work vehicle low-pressure hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The low-pressure hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
