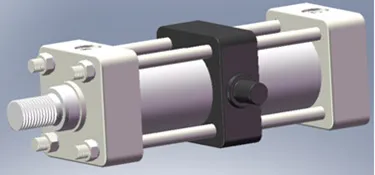

Low-Pressure Hydraulic Cylinder Intermediate Pin

Low-Pressure Hydraulic Cylinder Intermediate PinIn a low-pressure hydraulic cylinder, an intermediate pin refers to a pin or shaft between the piston and the piston rod. It is a connecting element that transfers force from the piston to the piston rod, allowing for linear motion.Design and Construction Of Low-pressure Hydraulic Cylinder:

• The intermediate pin is typically a solid metal pin or shaft within the cylinder barrel.
• It is positioned between the piston and rod, connecting these two components.
• The intermediate pin is designed to transmit the hydraulic force generated by the piston to the piston rod, enabling the desired linear motion of the cylinder.

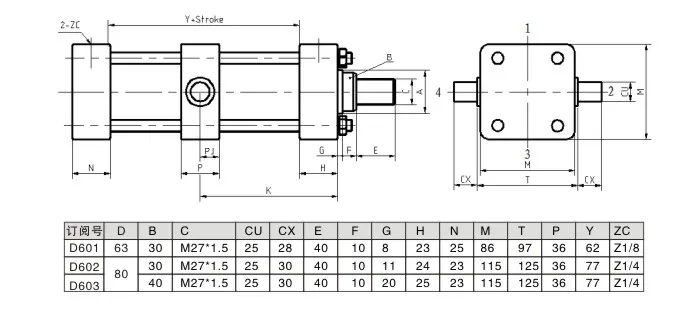

Low-Pressure Hydraulic Cylinder Intermediate Pin Parameter:

Low-Pressure Hydraulic Cylinder Intermediate Pin Function and Operation:

• As hydraulic pressure is applied to the piston, it exerts force on the intermediate pin, causing it to move.
• The movement of the intermediate pin transfers the force to the piston rod, which results in the extension or retraction of the hydraulic cylinder.
• The intermediate pin ensures that the force generated by the hydraulic pressure is effectively transmitted to the piston rod, enabling the desired motion of the cylinder.

Low-Pressure Hydraulic Cylinder Intermediate Pin Maintenance and Replacement:

• During maintenance or rebuild of a low-pressure hydraulic cylinder, the condition of the intermediate pin should be inspected.
• If there is any sign of wear, damage, or excessive play, the intermediate pin should be replaced with a new one to ensure the proper functioning of the cylinder.
• It is important to follow the manufacturer's guidelines and specifications when replacing the intermediate pin to ensure compatibility and optimal performance.

How To Find Seal Kit For Hydraulic Cylinder?

To find a seal kit for a hydraulic cylinder, you can follow these steps:

1. Gather Information: Collect as much information as possible about the hydraulic cylinder for which you need a seal kit. This includes the make and model of the cylinder, the cylinder's dimensions (bore size, rod diameter, stroke length), and any other relevant specifications.
2. Identify the Manufacturer: Determine the manufacturer of the hydraulic cylinder. This information can usually be found on the cylinder itself or in the equipment documentation. Knowing the manufacturer will help you locate the appropriate seal kit.
3. Manufacturer's Resources: Visit the manufacturer's website or contact their customer support to inquire about seal kits for their hydraulic cylinders. Many manufacturers offer seal kits specifically designed for their cylinders and can provide guidance on selecting the right kit.
4. Distributors and Dealers: Check with authorized distributors or dealers of the hydraulic cylinder manufacturer. These suppliers often carry seal kits for the cylinders they sell. They can provide you with the correct kit based on the cylinder's make and model.
5. Online Suppliers: Search for hydraulic seal kit suppliers or hydraulic component suppliers online. There are numerous websites and online marketplaces that specialize in hydraulic seals and kits. Enter the relevant information about your hydraulic cylinder to find compatible seal kits.
6. Dimensions and Specifications: Compare the dimensions and specifications of the seal kits available with the requirements of your hydraulic cylinder. Ensure that the kit matches the cylinder's bore size, rod diameter, and other critical parameters.
7. Quality and Compatibility: Consider the quality and compatibility of the seal kit. It's important to choose a reputable supplier that provides high-quality seals to ensure proper functioning and longevity of the hydraulic cylinder.
8. Purchase and Installation: Once you have identified the appropriate seal kit, proceed with the purchase from the selected supplier. Follow the manufacturer's instructions for installation or consult a hydraulic system expert if you are unsure about the replacement process.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of low-pressure hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle low-pressure hydraulic cylinders, Aerial work vehicle low-pressure hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The low-pressure hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
