Machine Tool Low-Pressure Hydraulic Cylinder

Machine Tool Low-Pressure Hydraulic Cylinder

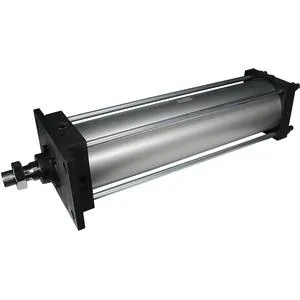

Low-pressure tie rod hydraulic cylinder is the company's advantage products, rich manufacturing experience, mature technology, cost-effective, and can replace the cylinder.Combined with the market demand, sorted out the low-pressure tie rod hydraulic cylinder parameters for the machine tool industry, such as the hydraulic cylinder for band sawing machine.Customers order according to the following parameters, convenience and fast, fast delivery time.

• Low cost: Low-pressure hydraulic cylinders are typically less expensive than other types of cylinders.
• Simple design: Low-pressure hydraulic cylinders are relatively simple to design and manufacture.
• Easy to maintain: Low-pressure hydraulic cylinders are relatively easy to maintain.



Low-Pressure Hydraulic Cylinder Parameter:

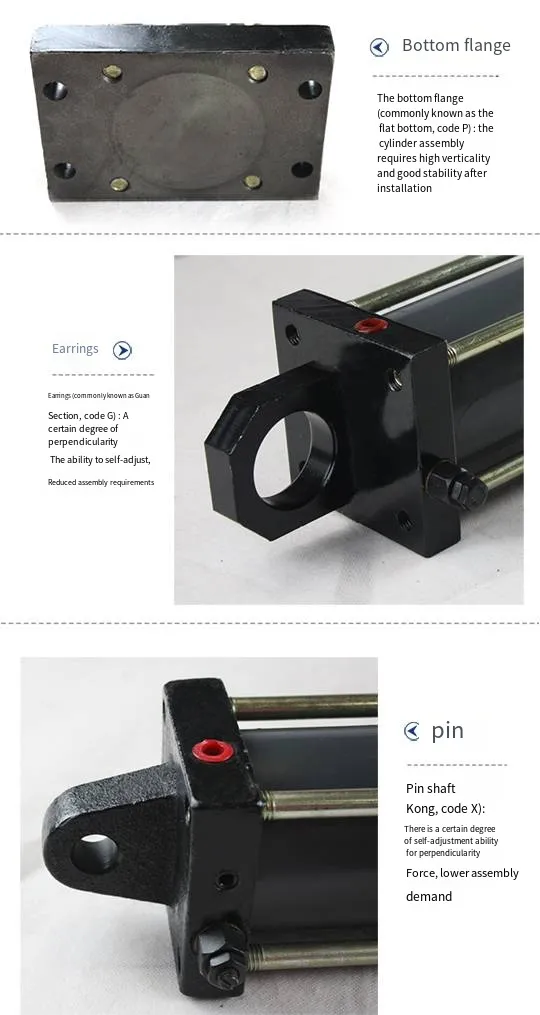

(1) Low-Pressure Hydraulic Cylinder Front Flange:

(2)Low-Pressure Hydraulic Cylinder Back Flange:

(3) Low-Pressure Hydraulic Cylinder Front Pin:

(4) Low-Pressure Hydraulic Cylinder Intermediate Pin:

(5) Low-Pressure Hydraulic Cylinder Rear Pin:

(6) Low-Pressure Hydraulic Cylinder Footstand Parameter:

Low-Pressure Hydraulic Cylinder Technical Parameter:

The installation mode can be selected from the following options1) Piston rod end thread size: an internal thread or external thread, thread size and length2) oil port position;3) The "total length" in the parameter table, that is, the length of the cylinder when the stroke is 0, such as the stroke is 100mm, the total length of the cylinder = the "total length" value +100

Low-Pressure Hydraulic Cylinder Scope Of Application:

1) The use of pressure range is below 5MPA;2) The front cover, back cover, and piston are made of castings, the cylinder is No. 20 steel, and the piston rod is No. 45 steel chrome-plated;3) The default is that the cylinder is mainly subject to thrust; if it is mainly subject to tension, the customer needs to make special instructions;4) The inner diameter range of this series of products is 63~125 mm, and the maximum thrust is 4.8 tons;5) The default is no buffer; if the buffer is required, the customer needs to make special instructions.

How Does A Hydraulic Cylinder Work?

Here is a simplified explanation of how a hydraulic cylinder works:

1. Basic Components:
   • Cylinder Barrel: It is a cylindrical tube that forms the main body of the hydraulic cylinder.
   • Piston: A movable component that fits inside the cylinder barrel and divides the cylinder into two chambers.
   • Piston Rod: It is connected to the piston and extends out of the cylinder through a seal.
   • Seals: These are placed in various locations to prevent fluid leakage and ensure proper operation of the cylinder.
2. Hydraulic Fluid:
   • The hydraulic cylinder is filled with a hydraulic fluid, usually oil, which is stored in a reservoir and circulated by a hydraulic pump.
   • The fluid is pressurized by the pump and distributed through hydraulic lines to the cylinder.
3. Piston Movement:
   • When pressurized fluid is introduced into one chamber of the cylinder, it acts on the piston surface, creating a force.
   • This force causes the piston to move in the cylinder barrel, along with the connected piston rod.
   • As the piston moves, it exerts a linear force and motion, which can be used for various applications such as lifting, pushing, or pulling.
4. Fluid Transfer:
   • When the piston moves in one direction, it displaces the hydraulic fluid from one chamber to the other.
   • The displaced fluid flows through internal passages or channels within the cylinder to transfer from one side of the piston to the other.
   • The fluid pressure is maintained to ensure continuous force generation and smooth operation of the cylinder.
5. Control:
   • The flow of hydraulic fluid into and out of the cylinder is controlled by valves, which regulate the fluid flow direction and rate.
   • Valves can be manually operated or controlled by electronic or mechanical systems, allowing precise control of the cylinder's movement.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of low-pressure hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle low-pressure hydraulic cylinders, Aerial work vehicle low-pressure hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The low-pressure hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
