Mini Hay Press for Baling Hay

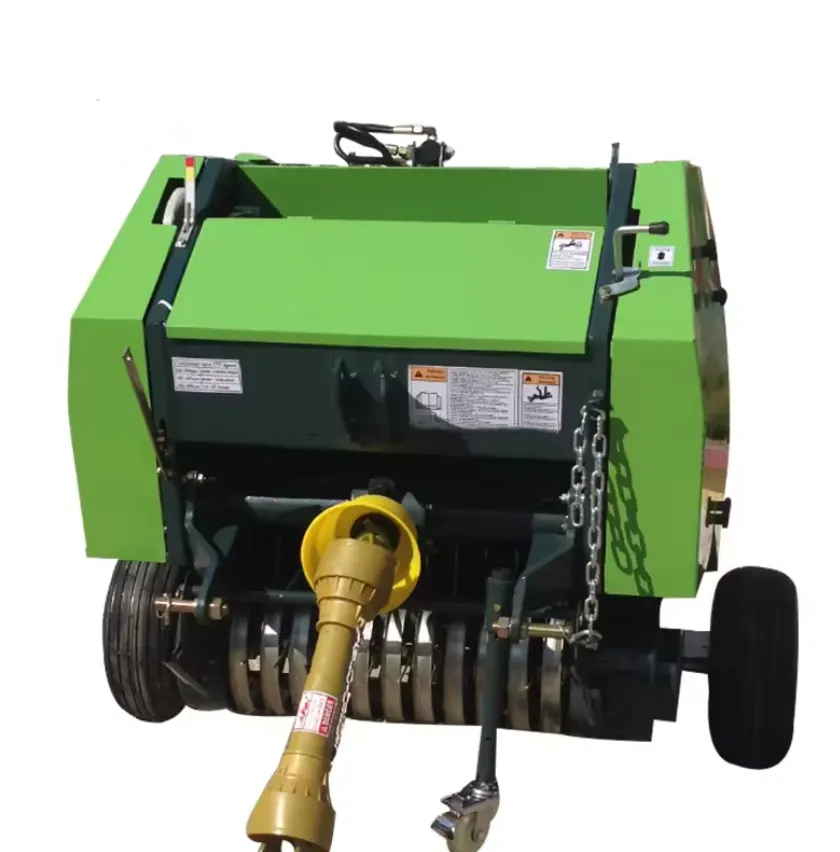

Make your hay baling process more efficient with our mini hay press. This compact machine is a round baler, operating at speeds of 3-10km/h. Brand new with model numbers RXYK0850 and RXYK0870, this hay press is designed for picking up and baling grass, alfalfa, wheat, rice straw, and more. With dimensions of 1300x1300x1350mm and weighing 425 kg, this robust machine is perfect for small to medium-sized operations. It comes with a warranty of 2 years and ISO, CE certification. The baler uses twine as the rope and is powered by a tractor of 20-50HP. It has a pickup width of 80cm and comes in a fresh, green color. It comes packaged in an iron crate with plastic films, ready for shipping from Qingdao, China.

Why Choose Our Mini Hay Press?

1. Compact Size: The mini hay press is compact in size which makes it perfect for small or medium-sized farms.
2. High Efficiency: With an operating speed of 3-10km/h, it can efficiently pickup and bale grass, alfalfa, wheat, and rice straw.
3. Quality Assurance: The product comes with a 2-year warranty and is ISO, CE certified, guaranteeing its quality.
4. Low Power Requirement: The mini hay press operates efficiently with a matched power of 20-50HP, making it a cost-effective option.
5. User-friendly: With a pickup width of 80cm, it is easy to operate and control.
6. Durable and Robust: Weighing 425 kg, the mini hay press is sturdy and robust, ensuring longevity and durability.

Applications of the Mini Hay Press

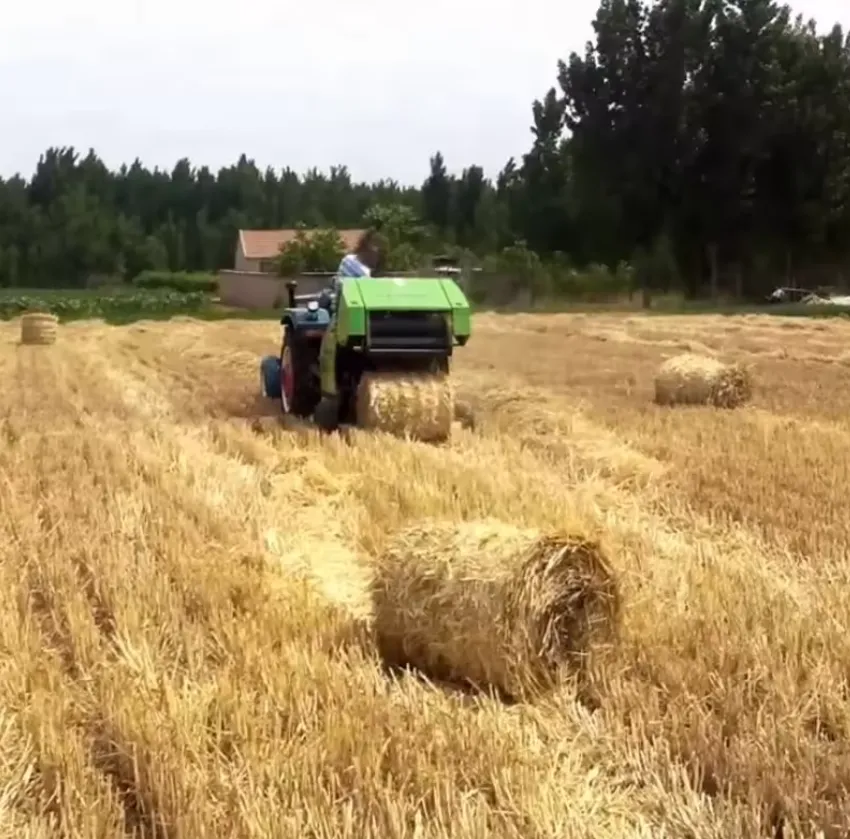

1. Farm Use: The mini hay press is perfect for small to medium-sized farms, making the process of baling hay efficient and easy.
2. Horse Stables: The round bales produced by the mini hay press are ideal for horse stables where small amounts of feed or bedding straw are needed.
3. Pineyards and Orchards: The mini hay press is also suitable for use in pineyards and orchards.

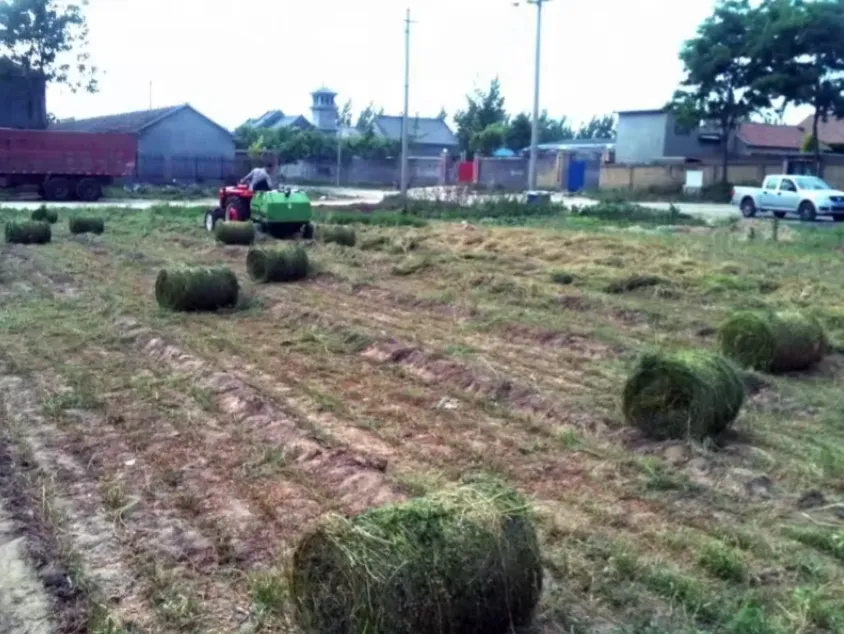

4. Landscaping Businesses: Landscaping businesses can use the mini hay press to collect and bale grass clippings and other yard waste.
5. Small Agricultural Businesses: Small agricultural businesses can use the mini hay press to create bales for sale or for their own use.
6. Environmental Conservation: The mini hay press can be used in environmental conservation efforts to bale straw or grass for erosion control or habitat restoration projects.

How Does the Tractor Mounted Mini Hay Round Baler Work?

1. Preparing the tractor: The tractor must be equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler.
2. Hitching the baler: The baler is attached to the tractor's three-point hitch or another compatible attachment mechanism for a secure and stable connection.
3. Adjusting settings: The appropriate baling parameters are set based on the desired bale size, density, and other factors.

4. Operating the pickup attachment: The pickup attachment of the baler is lowered onto the ground using the tractor's hydraulic controls to collect the hay or straw.
5. Bale formation: The collected material is conveyed into the baling chamber of the baler, where it is compressed and formed into a round bale.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground.

How to Install the Mini Hay Round Baler to Tractor?

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted.

Maintenance of the Mini Hay Round Baler

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components.

6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery, with a strong focus on innovation and quality. We have over 100 employees, including 20 technical staff and five senior R&D personnel. Our production technology is strong, and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. Our main products include farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. These products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Professionalism

With over a decade of experience in production, we offer professional and reliable agricultural machinery solutions. Our team of engineers and technical staff is always ready to provide expert advice and assistance.

International Certifications

We are proud to be ISO, CE certified, demonstrating our commitment to quality, safety, and international standards.

Customized Services

We understand that every farm is unique, and we offer customized solutions to meet your specific needs. Our team will work closely with you to design and manufacture machinery that fits your requirements.

Production Facilities

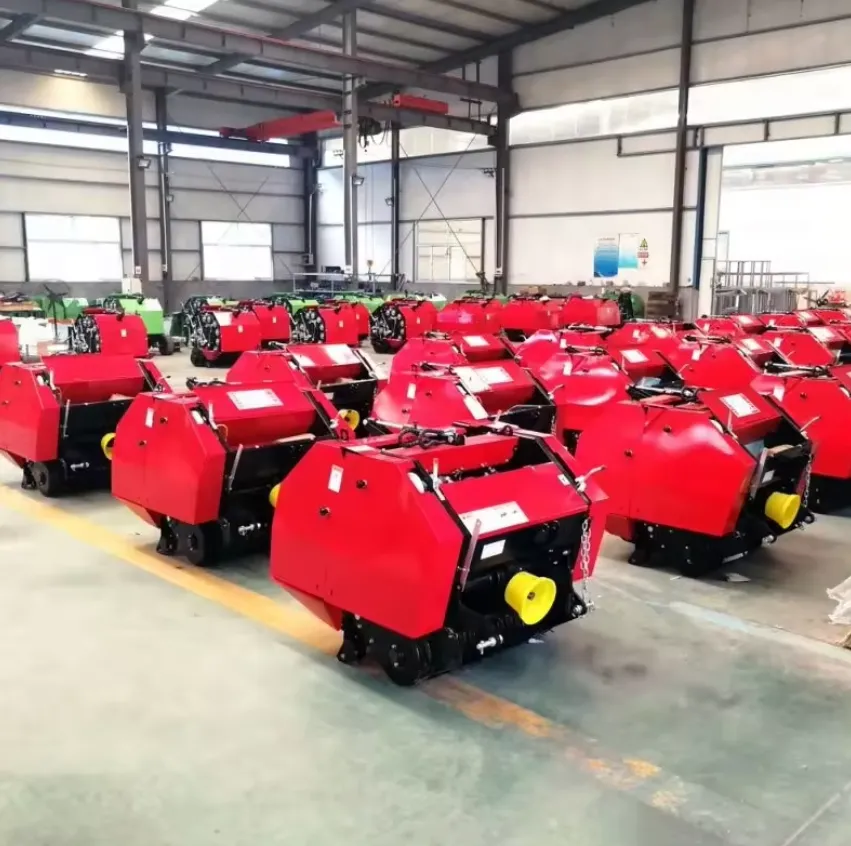

Our state-of-the-art production facilities enable us to produce high-quality, durable, and efficient agricultural machinery. We have advanced casting, forging, machining, heat treatment, and lacquering production lines.

After-sales Services

We stand by our products with excellent after-sales service. Our team of trained professionals is ready to assist you with any questions or issues that may arise.
