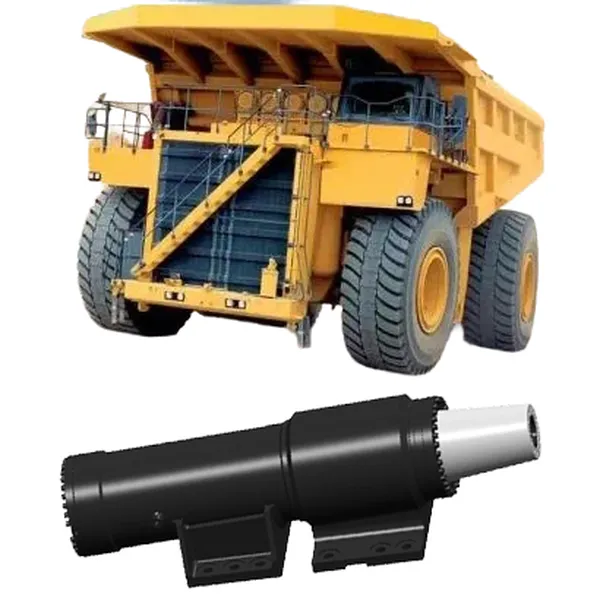

Mining Dump Truck Front Suspension Cylinder

Mining Dump Truck Front Suspension Cylinder

Mining dump truck front suspension cylinders are essential components of heavy-duty vehicles used in mining and construction industries. These cylinders play a crucial role in maintaining stability and providing effective suspension for the front axle of dump trucks specifically designed for hauling heavy loads over rough terrain.The front suspension cylinder is typically a hydraulic cylinder that acts as a linkage between the truck's chassis and the front axle. It is responsible for absorbing shocks and vibrations generated during operation, ensuring a smooth and controlled ride. The cylinder works in conjunction with other suspension components, such as springs and shock absorbers, to provide optimal performance.The primary function of the front suspension cylinder is to support the front axle and distribute the weight of the load evenly across the wheels. This helps to minimize stress on the chassis and frame, preventing excessive wear and tear. Additionally, the cylinder enables the truck to maintain good traction and stability, even on uneven surfaces or when navigating challenging terrains.In terms of construction, mining dump truck front suspension cylinders are designed to withstand extreme conditions and heavy loads. They are typically made from high-strength materials such as steel or alloy, capable of withstanding immense pressure and repetitive movements. The cylinder is equipped with seals and gaskets to prevent hydraulic fluid leakage and maintain operational efficiency.

Mining Dump Truck Front Suspension Cylinder Size:

Product Name	Mining Dump Truck Front Suspension Cylinder
Features:	Support weight, absorb, and eliminate vibration
Bore diameter:	150mm～450mm
Rod diameter:	120mm～400mmStroke≤400mm
Thrust force:	Maximum38MPa
Front Suspension Cylinder Applications:	Mining Dump Truck

Mining Dump Truck Front Suspension Cylinder Features:

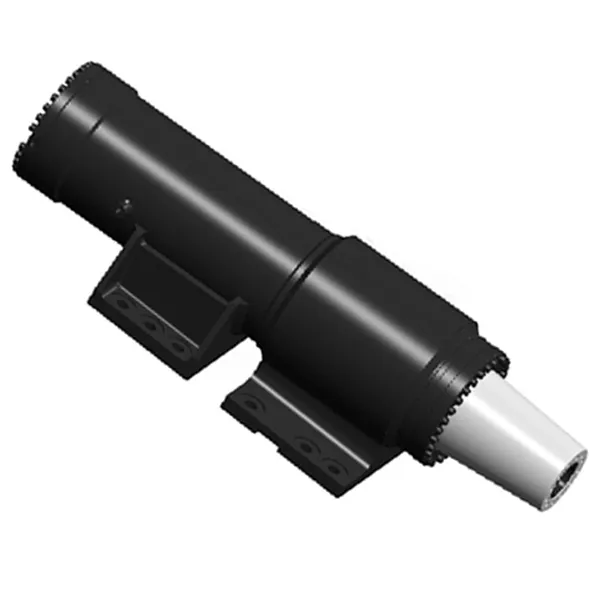

The mining dump truck front suspension cylinder is typically made of a steel piston rod and a cylinder barrel. The piston rod is sealed in the cylinder barrel by a piston seal. The cylinder is filled with hydraulic fluid, which is pressurized by a pump. When the pump pressurizes the fluid, the piston rod moves, raising or lowering the front of the truck.

The mining dump truck front suspension cylinder is mounted on the front axle of the truck. It is connected to the chassis of the truck by a set of linkages. The linkages allow the cylinder to move up and down while keeping the chassis of the truck stable.

The mining dump truck front suspension cylinder is an important safety feature. It helps to prevent the truck from tipping over and protects the chassis and other components from damage. It also helps to improve the ride quality of the truck, making it more comfortable for the operator.

Here are some of the key safety features of a mining dump truck front suspension cylinder:

• The cylinder is made of strong materials that can withstand the weight of the truck and the forces of shock and vibration.
• The piston seal is designed to prevent leaks of hydraulic fluid.
• The cylinder is mounted in a way that prevents it from coming loose or becoming damaged.
• The linkages are designed to keep the chassis of the truck stable even when the cylinder is moving.

The mining dump truck front suspension cylinder is a critical component of the suspension system. It helps to keep the truck stable and prevent damage to the chassis and other components. It is also an important safety feature, helping to prevent the truck from tipping over.

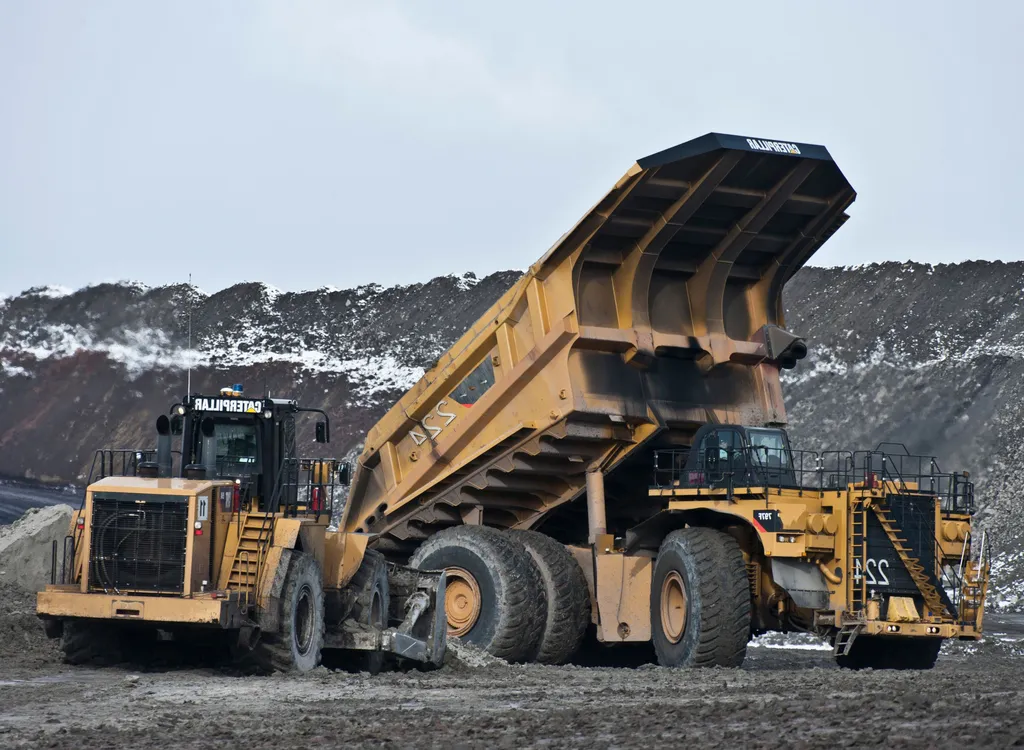

Mining Dump Truck Front Suspension Cylinder Applications:

Mining dump truck front suspension cylinders have several important applications in the mining and construction industries. Here are some key applications:(1) Load Support: Front suspension cylinders are responsible for supporting the weight of the load carried by the dump truck. These hydraulic cylinders help distribute the load evenly across the front axle, ensuring stability and preventing excessive strain on the chassis and frame.(2) Shock Absorption: Mining dump trucks operate in rugged terrains and encounter various shocks and vibrations during operation. The front suspension cylinder, along with other suspension components, absorbs these shocks and vibrations, providing a smoother and more comfortable ride for the operator and minimizing the impact on the truck's components.(3) Terrain Adaptability: Dump trucks are often required to navigate challenging terrains, such as uneven surfaces, inclines, and rough off-road conditions. The front suspension hydraulic cylinder plays a vital role in maintaining traction and stability, allowing the dump truck to maneuver safely and effectively in these demanding environments.(4) Load Hauling Efficiency: The front suspension cylinder helps optimize the load-hauling capacity of mining dump trucks. By providing stable and controlled suspension, the cylinder allows the truck to transport heavy loads without compromising safety or performance. This efficiency is crucial for maximizing productivity in mining and construction operations.(5) Vehicle Safety: Front suspension cylinders contribute to overall vehicle safety by enhancing stability and handling. They help mitigate the risks associated with sudden movements, uneven terrain, and high-speed operation, ensuring that the dump truck remains stable and balanced throughout its operation.
