Mining Dump Truck Steering Cylinder

Mining Dump Truck Steering Cylinder

A mining dump truck steering cylinder is a hydraulic cylinder that is used to control the steering of a mining dump truck. It is a critical component of the truck's steering system, and it must be able to withstand the harsh operating conditions of a mining environment.

The mining dump truck steering cylinder is typically made of a high-strength steel alloy and is filled with a high-pressure hydraulic fluid. It has a piston rod that extends and retracts to move the steering linkages. The cylinder is mounted on the truck's frame and is connected to the steering linkages by a series of pins and bushings.

The mining dump truck steering cylinder is operated by a hydraulic pump. When the pump is activated, it pressurizes the hydraulic fluid in the cylinder. This causes the piston rod to extend, which in turn moves the steering linkages. The amount of steering force is controlled by the amount of pressure applied to the cylinder.

The mining dump truck steering cylinder is a complex and critical component of the truck's steering system. It must be properly maintained and inspected to ensure that it operates safely and efficiently.

Mining Dump Truck Steering Cylinder Specifications:

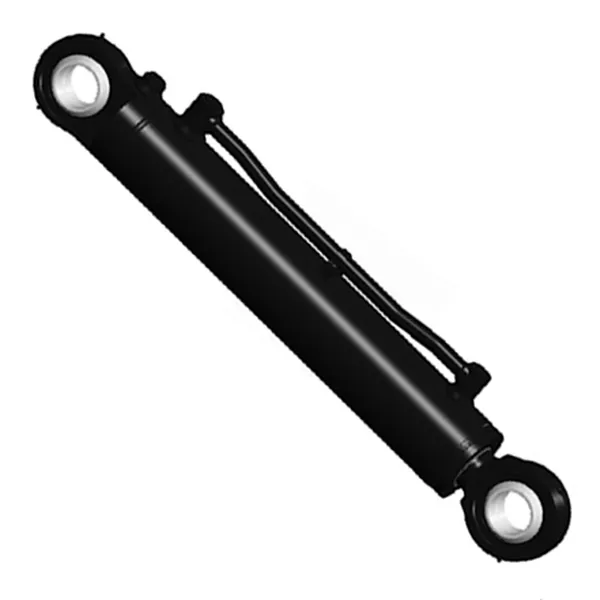

Product Name	Mining Dump Truck Steering Cylinder
Features:	Wheel steering provides assistance
Bore diameter:	63mm～210mm
Rod diameter:	40mm～100mmStroke≤2000mm
Thrust force:	Maximum779KN(Bore diameter 210mm/pressure22.5MPa)
Steering Cylinder Applications:	Mining Dump Truck

Mining Dump Truck Steering Cylinder Working Principle:

The steering cylinder in a mining dump truck is a hydraulic cylinder that is used to turn the wheels of the truck. It is located in the front axle of the truck and is connected to the steering gear. When the driver turns the steering wheel, the steering gear activates the steering cylinder, which in turn causes the wheels to turn.

The steering cylinder works on the principle of hydraulics. Hydraulics is the use of liquid to transmit force. In the case of the steering cylinder, the liquid is oil. When the steering gear activates the steering cylinder, it pumps oil into one side of the cylinder. This causes the piston in the cylinder to move, which in turn turns the wheels of the truck.

The steering cylinder is a critical component of the steering system of a mining dump truck. It allows the driver to safely and easily maneuver the truck around obstacles and in tight spaces.

Here is a more detailed explanation of the working principle of the steering cylinder:

1. The steering wheel is turned by the driver.
2. The steering gear activates the steering cylinder.
3. Oil is pumped into one side of the cylinder.
4. The piston in the cylinder moves.
5. The wheels of the truck turn.

Mining Dump Truck Steering Cylinder Uses:

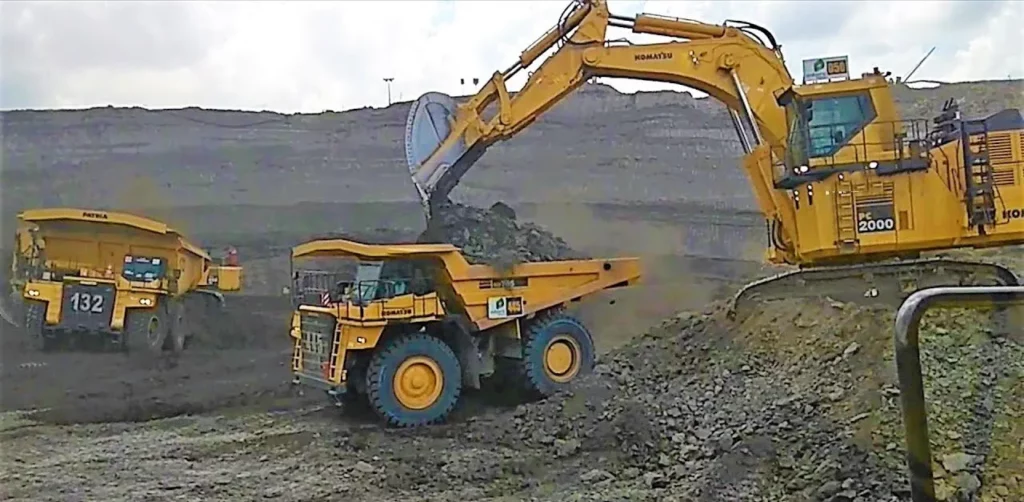

The steering cylinder in a mining dump truck has several important applications that contribute to the overall performance and functionality of the vehicle. Here are some key applications of the steering cylinder:Steering Control: The primary application of the steering cylinder is to enable steering control of the mining dump truck. By converting hydraulic pressure into linear motion, the cylinder helps turn the wheels in the desired direction. It allows the operator to navigate the vehicle through various terrains, corners, and obstacles.Maneuverability: The steering cylinder plays a crucial role in enhancing the maneuverability of a mining dump truck. It enables the vehicle to make precise turns and negotiate tight spaces, such as mining pits, loading and unloading areas, and narrow access roads. The cylinder's responsiveness and ability to accurately translate the operator's input into wheel movement contribute to the truck's agility.Stability and Control: The steering hydraulic cylinder assists in maintaining stability and control of the mining dump truck. It allows for smooth and controlled steering, which is essential when operating a heavy vehicle in challenging conditions. Proper steering control helps prevent rollovers, improves traction on uneven surfaces, and enhances overall safety during operation.Load Distribution: The steering cylinder indirectly contributes to load distribution in a mining dump truck. By steering the wheels, the cylinder allows the operator to adjust the vehicle's trajectory and distribute the weight of the load appropriately. This helps optimize the truck's balance and stability, especially when carrying a heavy payload.Articulation Control: Some mining dump trucks employ an articulated steering mechanism, where the vehicle is divided into two sections connected by a pivot joint. The steering cylinder assists in controlling the articulation of the truck, allowing it to navigate sharp turns and uneven terrain. The cylinder's movement helps maintain the desired angle between the front and rear sections of the vehicle, ensuring smooth articulation and maneuverability.Operator Comfort: The mining dump truck steering cylinder indirectly contributes to operator comfort by providing smooth and responsive steering. A well-functioning steering system, including the cylinder, reduces the effort required to steer the truck and minimizes vibrations and jolts transferred to the operator's steering input. This helps reduce operator fatigue and improves the overall driving experience.
