MRV050 Worm Gear Reducer for Electric Doors and Windows

The MRV050 series worm gear reducer is an innovative product designed for various applications, including electric doors and windows, and more. This modified RV reducer is known for its high cost-performance ratio, wide applicability, and convenience of installation. It is more flexible than XRV and supports motor power ranging from 0.25kw to 0.75kw. Along with matching flanges, it caters to the diverse needs of customers.The worm gear reducer for electric doors and windows is designed to streamline motion control with its compact structure and high reduction ratios. These reducers are typically constructed using hardened steel gears and a durable aluminum casing to ensure longevity and withstand daily wear and tear. The unique design of the worm gear allows for a large reduction ratio in a single-gear stage, providing smoother operation and minimal noise, which is essential in residential and commercial environments.

Specifications of MRV050 Door Opener Worm Gear Motor

Type	Ratio	Flange	Power
MRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.06KW 0.09KW 0.12KW 0.18KW 0.20KW 0.25KW 0.37KW 0.55KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW 5.5KW 7.5KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
MRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180

Key Features of the Gate Opener Worm Gear Reducer

• Modular flange and other component options, allowing universal mounting configurations.
• Large ratio range, providing flexibility in various applications.
• IP Grade can reach IP67, adapting to most spraying conditions.
• Compact body that can fit into most equipment structures.
• Lubricated with Full-Synthetic Oil (viscosity choices of 320/220).
• The housing material is ADC12 with powder painting, which ensures better anticorrosive properties and appearance.
• Equipped with NOK oil seal (NBR), offering excellent sealability.
• Worms are made from 20CrMnTi with carburizing and quenching, providing thickness of 0.25-0.45mm, HRCSS-62.
• Wheels are made from QT450+GcuSn12, ensuring high wear resistance.

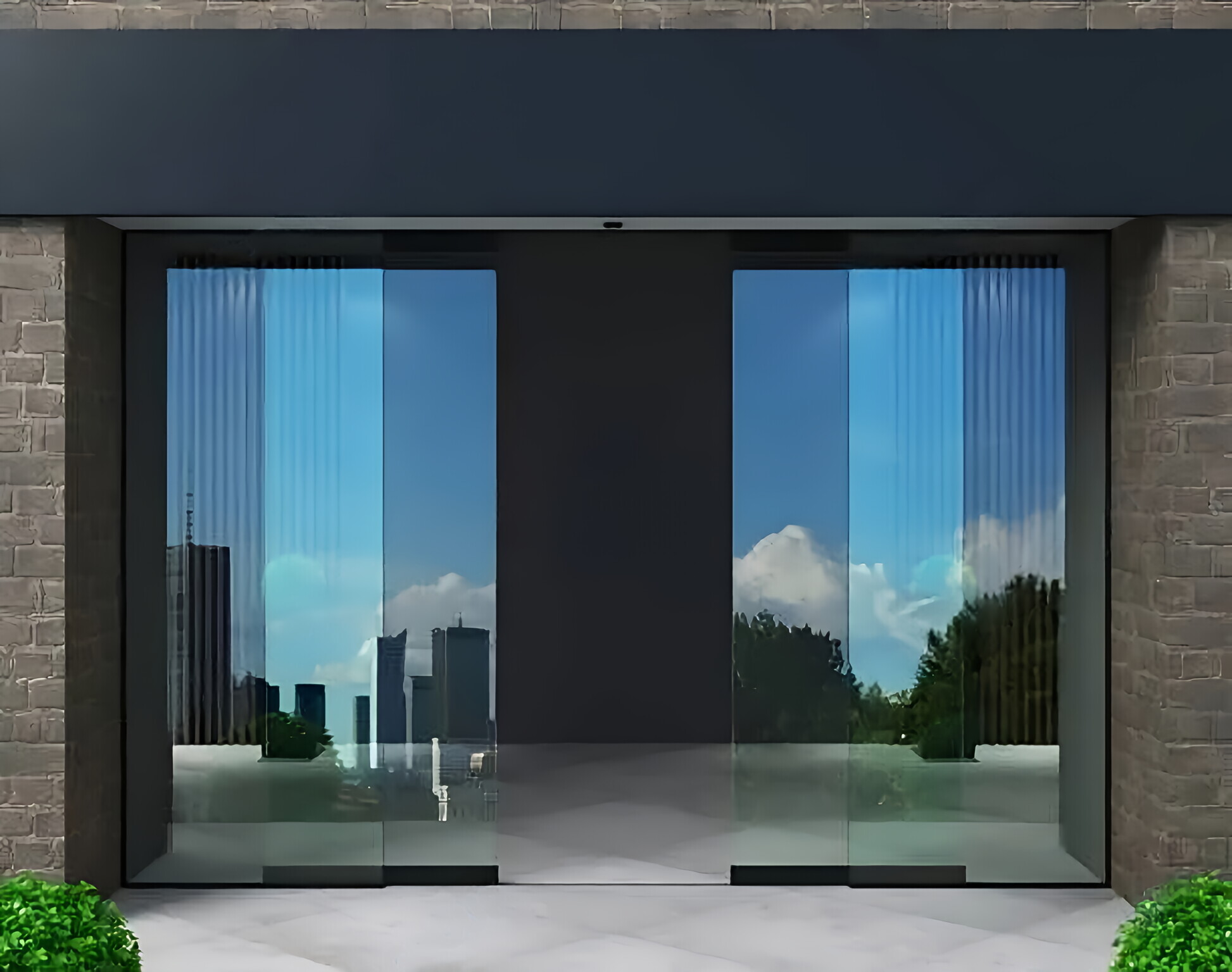

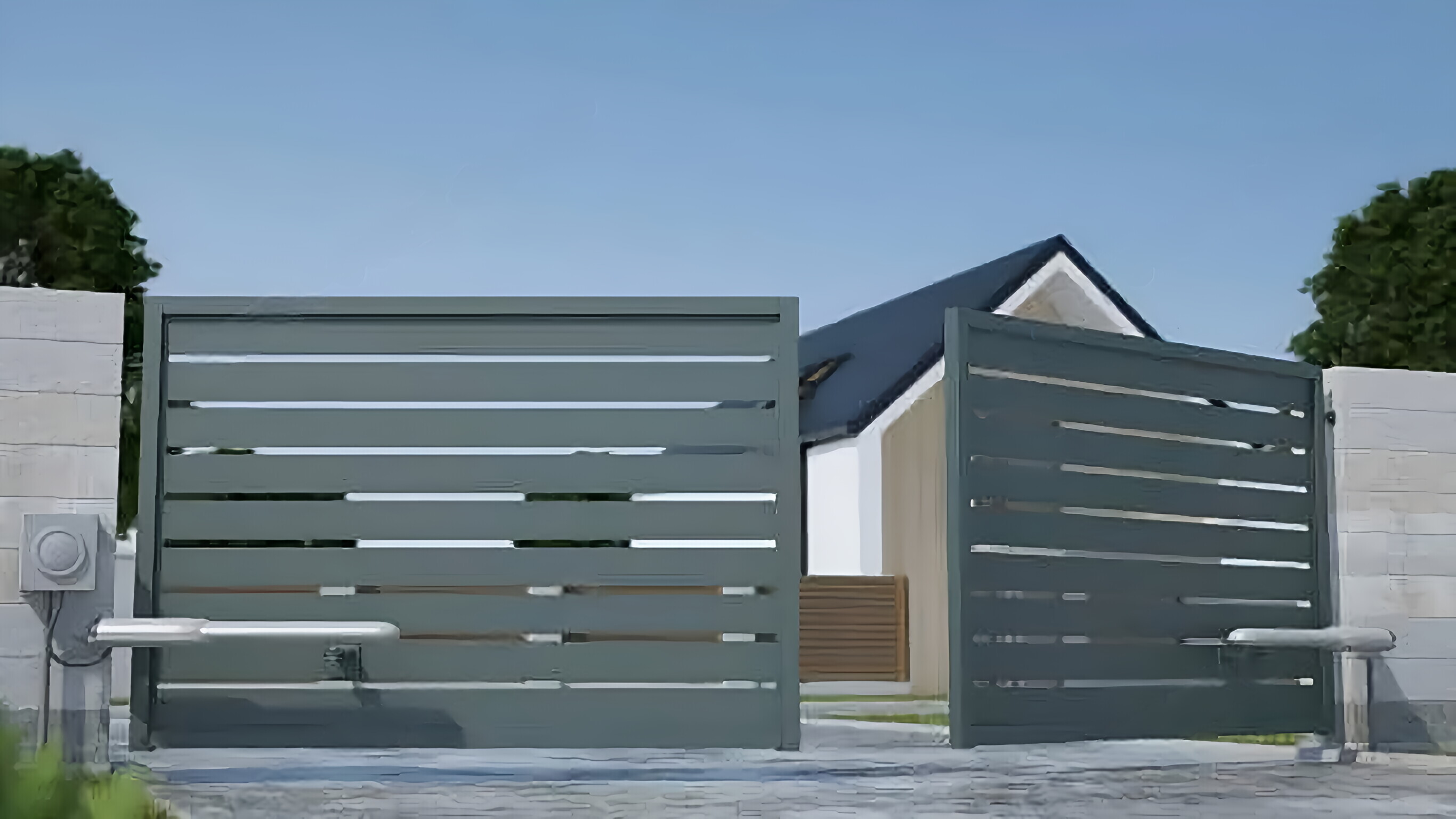

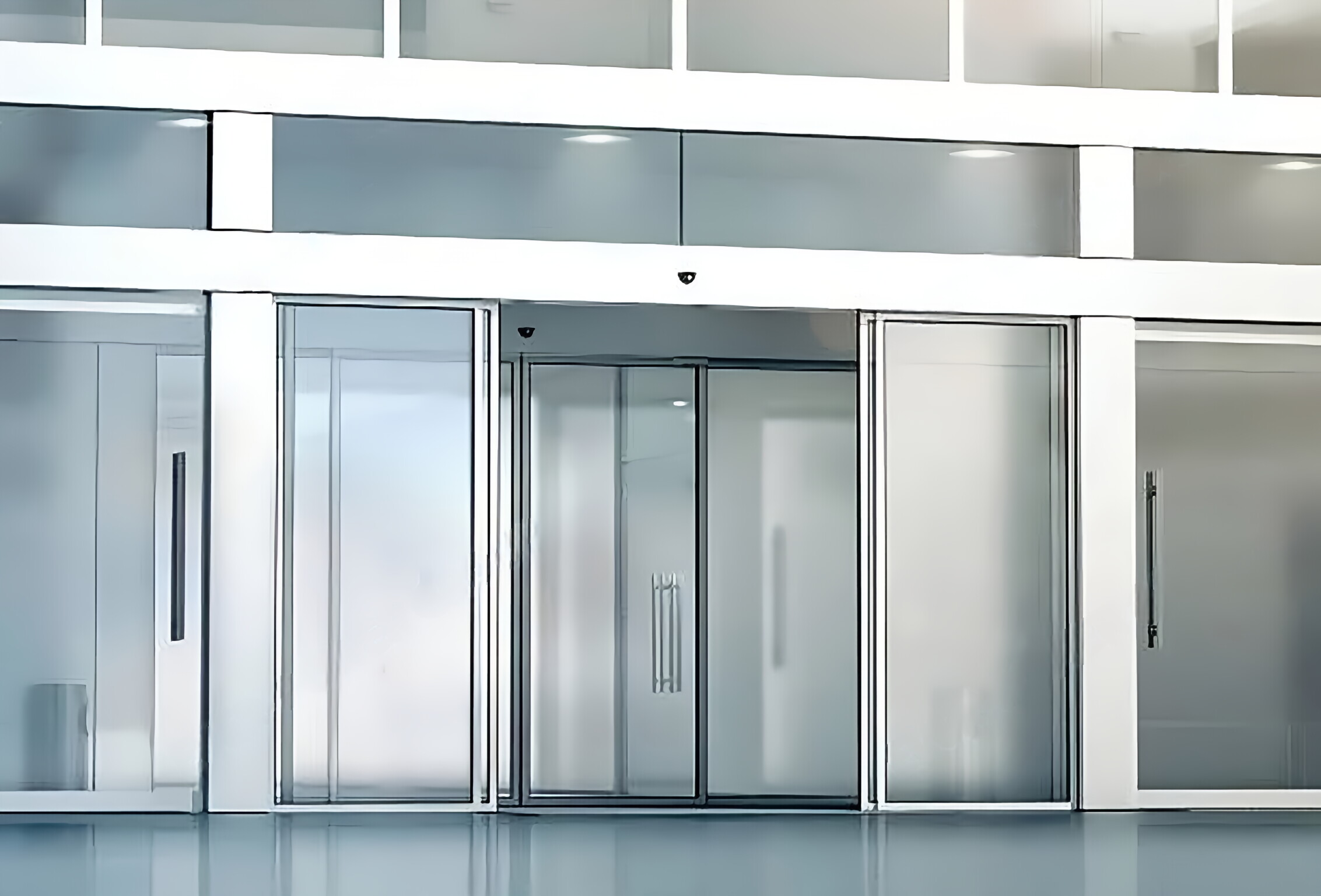

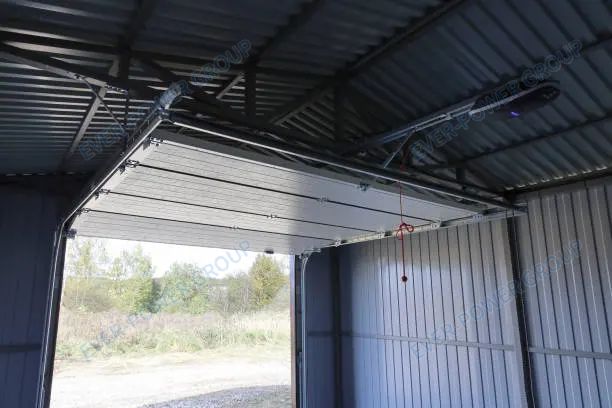

Applications of Door Opener Worm Gearbox

Worm gear reducers are versatile and can be applied in various settings:

• Residential Buildings: Enhancing the usability and security of windows and patio doors in homes.
• Commercial Spaces: Ideal for large-scale installations such as in shopping malls, hotels, and office buildings, where reliability and noise reduction are crucial.
• Healthcare Facilities: Ensures smooth and silent operation, necessary for environments that require minimal disturbance.

Advantages of Automatic Door and Window Opener Gearboxes

• High Torque and Load Capacity: The worm gear reducer can handle higher loads, making it suitable for various door and window sizes without compromising on performance.
• Compact Design: The sleek configuration of the worm gear reducer makes it easy to integrate into existing systems without requiring extensive modifications.
• Enhanced Safety Features: Equipped with self-locking ability, it prevents the back-driving of doors and windows, thus enhancing the security of the mechanism.
• Energy Efficiency: Optimized gear design reduces energy consumption, leading to lower operational costs and eco-friendliness.
• Low Maintenance: The robust construction and quality materials minimize the need for frequent maintenance, saving time and cost over the product's lifespan.

Choosing the Right Worm Gear Reducer

Choosing the appropriate worm gear reducer depends on a variety of factors. Here are a few key points to consider:

• Understand the requirements of your application.
• Determine the necessary gear ratio and torque capacity.
• Consider the operating environment and select a model with the appropriate IP rating.
• Ensure the reducer's dimensions fit the space available in your equipment.
• Consider the service life and maintenance requirements of the reducer.

Motors for Worm Gear Reducers

The motor is a critical component of any gear reducer, including the MRV050 worm gear reducer. It provides the necessary power to drive the reducer, ensuring optimal performance and efficiency. Our company also offers compatible electric motors for sale.

Motor Dimensions

IP67 Motor DimensionIP67 Motor Dimension

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14	190	140	85	14	M6	180	120	85	14	M6
80B14	215	158	100	19	M6	205	135	100	19	M6

About Raydafon

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With over 15 years of experience in the design, production, manufacture, and sales of gearboxes, we serve customers across Europe, America, Africa, Asia, and more. We've earned high praise in the market for our commitment to quality and efficiency.We invite you to explore our wide range of products and leverage our expertise to meet your unique needs. Contact us today to learn more about our MRV050 worm gear reducer and other offerings.

FAQs

1. Q: What is the power range of the MRV050 Worm Reducer?A: The supporting motor power of the MRV050 Worm Reducer ranges from 0.25kw to 0.75kw.
2. Q: What are the key features of the MRV050 Worm Reducer?A: Some of the notable features include a modular flange, large ratio range, IP67 grade, compact body, and high wear resistance.
3. Q: What are the applications of the MRV Worm Reducer?A: The MRV Worm Reducer is used in various sectors like packaging, food machinery, conveying equipment, warehousing and logistics, electric doors and windows, intelligent drive, and more.
