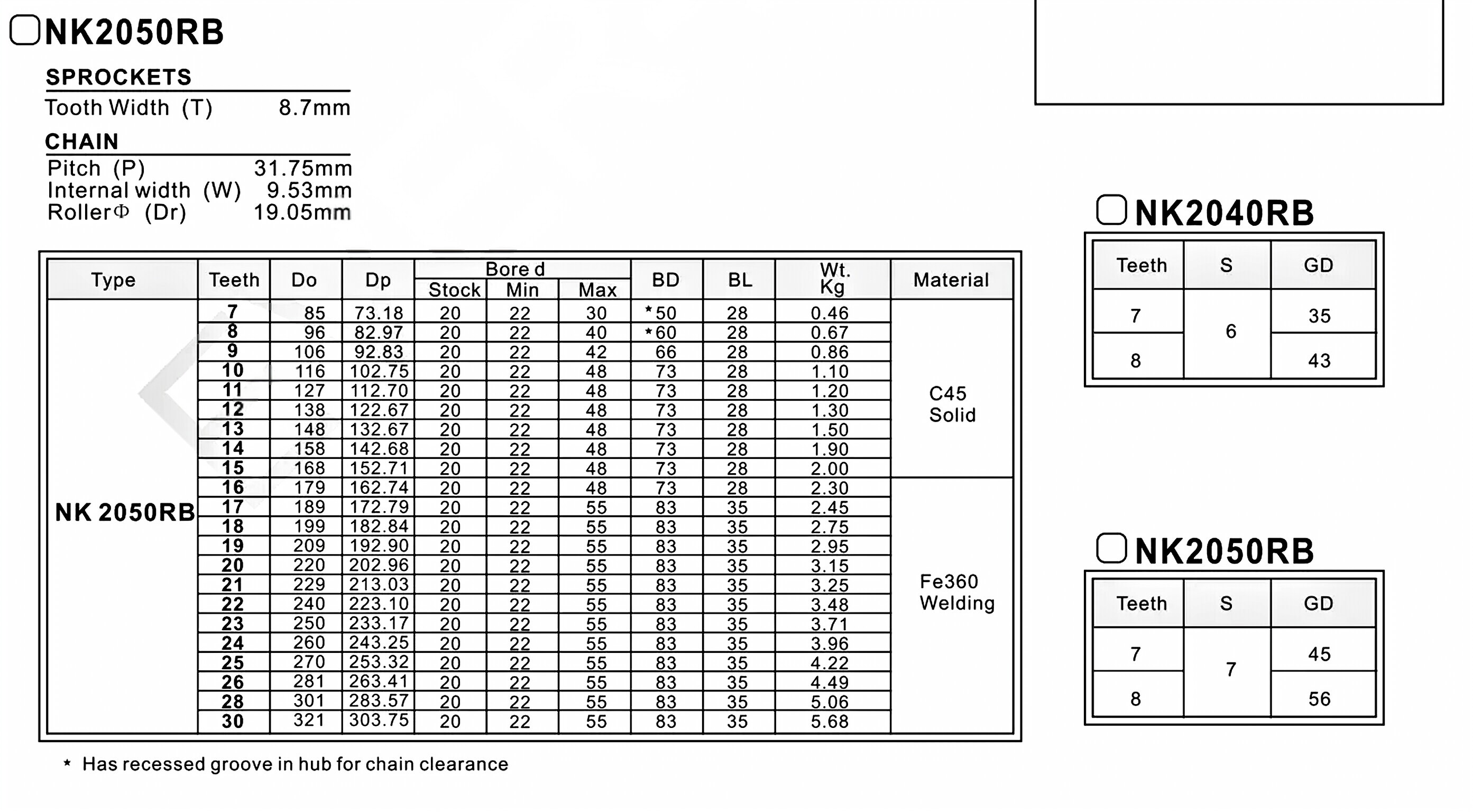

NK2050RB Double Pitch Sprocket

Introduction

The NK2050RB Double Pitch Sprocket is a type of sprocket used in power transmission systems. It is designed to work with a specific type of chain known as a double pitch chain. Double pitch sprockets offer several advantages over standard sprockets, including a larger tooth spacing, higher load capacity, and smoother operation.

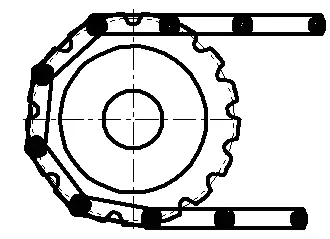

Definition and Basic Structure

• Definition: A double pitch sprocket is a type of sprocket with a larger tooth spacing than a standard sprocket. This design is intended to work with a double pitch chain, which has twice the pitch of a standard chain.
• Basic structure: A double pitch sprocket consists of a hub, spokes, and teeth. The teeth are spaced farther apart than those on a standard sprocket, and are designed to fit the larger rollers of a double pitch chain.

Main Features

• Larger tooth spacing: The larger tooth spacing of a double pitch sprocket allows for a wider chain, which can transmit more power.
• Higher load capacity: The larger rollers of a double pitch chain allow for a higher load capacity compared to a standard chain.
• Smooth operation: Double pitch sprockets are designed with a larger tooth profile, which provides smoother operation and reduced noise levels.

Materials

Double pitch sprockets can be made from several different materials, including carbon steel, alloy steel, and stainless steel. The choice of material will depend on the specific application.

• Carbon steel: A common choice for lower-load applications where cost is a factor.
• Alloy steel: Offers increased strength and durability, making it suitable for high-load applications.
• Stainless steel: Provides excellent corrosion resistance, making it ideal for use in harsh environments.

Manufacturing Process

Our double pitch sprockets are made using a precise manufacturing process that involves several steps:

• Raw material preparation: The appropriate grade of steel is selected and prepared for forging or casting.
• Forging or casting: The sprocket blank is formed either through forging or casting.
• Machining: The sprocket blank is machined to the correct dimensions and tooth profile.
• Tooth rolling: The teeth are formed using a specialized rolling machine.
• Heat treatment: The sprocket is heat treated to improve its strength and durability.
• Surface treatment: The sprocket is finished with a coating or plating to protect against corrosion.
• Quality inspection: The finished sprocket undergoes a rigorous quality inspection to ensure it meets our high standards.

Customization Services

We offer several customization services to help you get the exact double pitch sprocket you need:

• Material selection: We can help you choose the best material for your specific application.
• Tooth profile design: We can design the tooth profile to meet your unique requirements.
• Bore and keyway: We can customize the bore and keyway to fit your shaft.

FAQ

1. What is a double pitch sprocket?

A double pitch sprocket is a type of sprocket with a larger tooth spacing than a standard sprocket. This design is intended to work with a double pitch chain, which has twice the pitch of a standard chain. Double pitch sprockets offer several advantages over standard sprockets, including a larger tooth spacing, higher load capacity, and smoother operation.

2. What material is best for a double pitch sprocket?

The choice of material will depend on the specific application. Carbon steel is a common choice for lower-load applications where cost is a factor. Alloy steel offers increased strength and durability, making it suitable for high-load applications. Stainless steel provides excellent corrosion resistance, making it ideal for use in harsh environments.

3. What customization services do you offer?

We offer several customization services, including material selection, tooth profile design, and bore/keyway customization.

4. What is the manufacturing process for double pitch sprockets?

Double pitch sprockets are made using a precise manufacturing process that involves several steps, including raw material preparation, forging/casting, machining, tooth rolling, heat treatment, surface treatment, and quality inspection.

5. What are the main features of a double pitch sprocket?

The main features of a double pitch sprocket include a larger tooth spacing, higher load capacity, and smoother operation.
