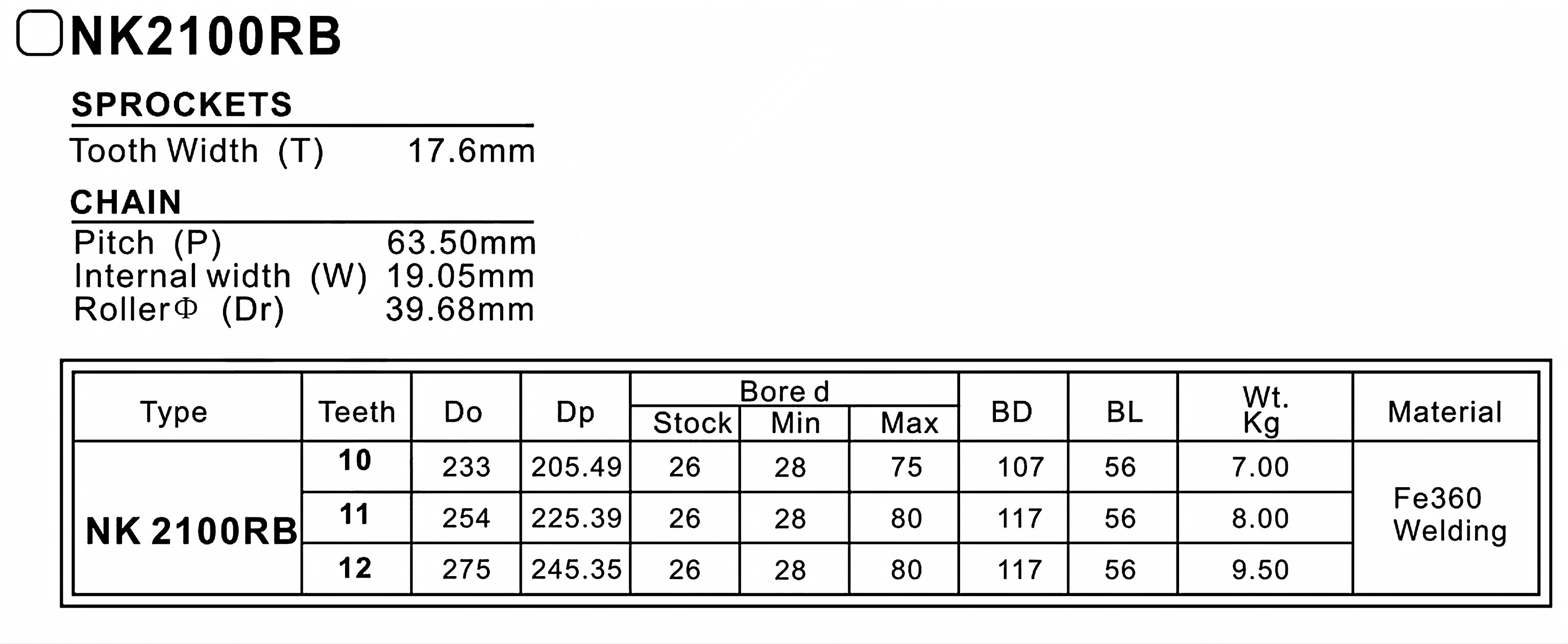

NK2100RB Double Pitch Sprocket

NK2100RB Double Pitch Sprocket

The NK2100RB Double Pitch Sprocket is a type of sprocket that is commonly used in power transmission systems. It is designed to work with double pitch roller chains, which are chains that have a longer pitch than standard roller chains. This type of sprocket is used in a wide range of applications, including conveyor systems, packaging equipment, and other industrial machinery.

Definition and Basic Structure

The double pitch sprocket is defined as a type of sprocket that has a pitch that is twice the pitch of a standard roller chain. It is composed of two sets of teeth that are spaced further apart than those on a standard sprocket. These teeth are designed to engage with the longer pitch of the double pitch roller chain.

The basic structure of a double pitch sprocket includes two sets of teeth that are spaced further apart than those on a standard sprocket. It also includes a center hub that is designed to fit onto a shaft or spindle.

Main Features

• Greater Pitch: The double pitch sprocket has a greater pitch than standard sprockets, which allows for a larger roller chain to be used.
• Higher Load Capacity: The double pitch sprocket has a higher load capacity than standard sprockets, which makes it ideal for use in heavy-duty applications.
• Smooth Operation: The double pitch sprocket is designed to run smoothly and quietly, which makes it ideal for use in applications where noise is a concern.

Material Selection

Double pitch sprockets can be made from a variety of materials, including carbon steel, alloy steel, and stainless steel. Each material has its own unique properties and is suitable for different applications.

• Carbon Steel: Carbon steel is a common material for double pitch sprockets. It is strong, durable, and cost-effective.
• Alloy Steel: Alloy steel is a high-strength material that is ideal for heavy-duty applications.
• Stainless Steel: Stainless steel is a corrosion-resistant material that is ideal for use in food processing and other applications where cleanliness is a concern.

Manufacturing Process

The manufacturing process for double pitch sprockets involves several steps, including:

1. Raw Material Preparation: The raw material is selected and prepared for the manufacturing process.
2. Forging or Casting: The sprocket is either forged or cast into the desired shape.
3. Machining: The sprocket is machined to the correct dimensions and tolerances.
4. Tooth Rolling: The teeth are rolled onto the sprocket using a specialized machine.
5. Heat Treatment: The sprocket is heat treated to improve its strength and durability.
6. Surface Treatment: The sprocket is finished with a protective coating to prevent corrosion.
7. Quality Control: The finished sprocket is inspected to ensure that it meets the required specifications.

Customization Services

We offer a range of customization services for our double pitch sprockets, including material selection, tooth profile design, bore and keyway options.

• Material Selection: We offer a variety of materials to choose from, including carbon steel, alloy steel, and stainless steel.
• Tooth Profile Design: We can design custom tooth profiles to meet your specific requirements.
• Bore and Keyway Options: We offer a range of bore and keyway options to fit your machinery.

FAQ

1. What is a double pitch sprocket? A double pitch sprocket is a type of sprocket that has a pitch that is twice the pitch of a standard roller chain.
2. What is the main feature of a double pitch sprocket? The main feature of a double pitch sprocket is that it has a larger pitch than standard sprockets, which allows for a larger roller chain to be used.
3. What materials are double pitch sprockets made from? Double pitch sprockets can be made from a variety of materials, including carbon steel, alloy steel, and stainless steel.
4. What is the manufacturing process for double pitch sprockets? The manufacturing process for double pitch sprockets involves several steps, including forging or casting, machining, tooth rolling, heat treatment, surface treatment, and quality control.
5. What customization services are available for double pitch sprockets? We offer a range of customization services for our double pitch sprockets, including material selection, tooth profile design, bore and keyway options.

Author: Miya
