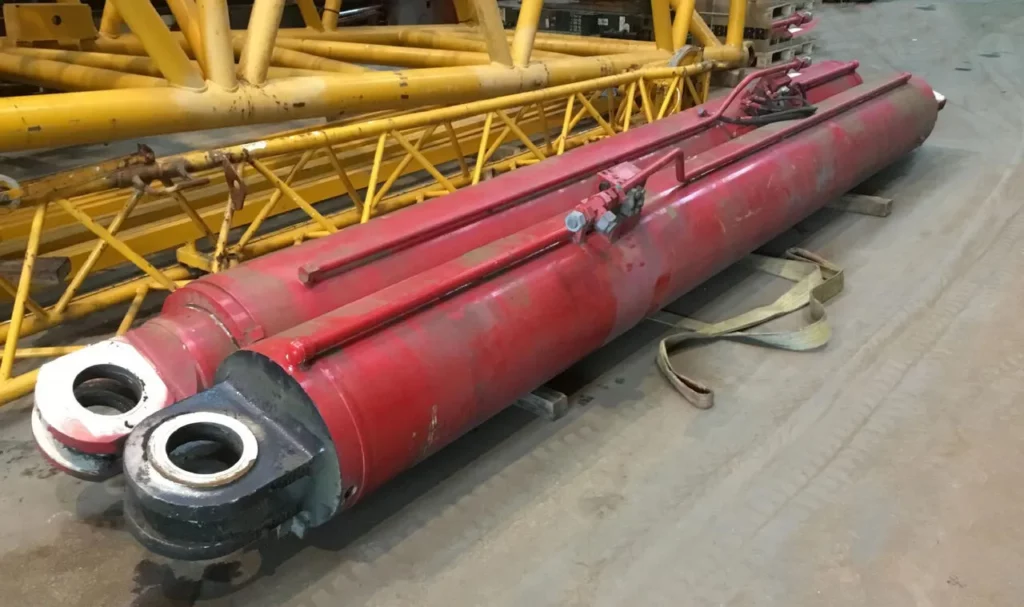

Offshore Crane Main Boom Luffing Cylinder

Offshore Crane Main Boom Luffing Cylinder

The offshore crane main boom luffing cylinder is a hydraulic cylinder that is used to raise and lower the main boom of an offshore crane. It is a critical component of the crane, as it allows the crane to reach its full lifting height and capacity.

The main boom luffing cylinder consists of a piston and cylinder arrangement, typically hydraulic, that provides the necessary force and control for boom luffing operations. Hydraulic systems are commonly used in offshore cranes due to their ability to generate high forces and precise control.

To operate the main boom luffing cylinder, hydraulic fluid is supplied to one side of the cylinder, while the other side is connected to a return line. By controlling the flow of hydraulic fluid, the operator can extend or retract the cylinder's piston, causing the main boom to move up or down accordingly.

Here are some of the key advantages of using offshore crane main boom luffing cylinders:

• High lifting capacity: Offshore crane main boom luffing cylinders are capable of lifting heavy loads, which is essential for many offshore applications.
• Long stroke: Offshore crane main boom luffing cylinders can have a long stroke, which allows cranes to reach their full lifting height.
• Reliability and durability: Offshore crane main boom luffing cylinders are designed to operate in harsh offshore environments with high winds, salt spray, and extreme temperatures.
• Ease of maintenance: Offshore crane main boom luffing cylinders are relatively easy to maintain, which helps to reduce downtime.

Offshore crane main boom luffing cylinders are an essential component of offshore crane operations. They allow cranes to reach their full lifting height and capacity, which is necessary for a variety of offshore tasks, such as installing and maintaining oil and gas platforms, offshore wind turbines, and other offshore structures.

Offshore Crane Main Boom Luffing Cylinder Specifications:

Product Name	Offshore Crane Main Boom Luffing Cylinder
Features:	Provides thrust force to realize the pitching of the crane boom
Bore diameter:	Up to 580mm
Rod diameter:	Up to 440mmStroke up to 5635mm
Thrust force:	Maximum 8454KN(Cylinders diameter 580mm/pressure 32MPa)
Applications:	Offshore Crane

The Role of Offshore Crane Main Boom Luffing Cylinder:

The main boom luffing cylinder on an offshore crane is a hydraulic cylinder that is used to raise and lower the main boom. It is a critical component of the crane, as it allows the crane to reach different heights and pick up and place loads at different distances from the crane.

The main boom luffing cylinder is typically located at the base of the main boom, and it is connected to the boom by a series of linkages. When the crane operator commands the luffing cylinder to raise the boom, hydraulic fluid is pumped into the cylinder, which causes the piston to extend. This extension of the piston lifts the boom up. To lower the boom, hydraulic fluid is pumped out of the cylinder, which causes the piston to retract. This retraction of the piston lowers the boom.

The main boom luffing cylinder must be able to lift and lower the main boom with a significant amount of force, as offshore cranes often have to lift and place very heavy loads. The cylinder must also be able to operate reliably in harsh offshore environments, which can be characterized by extreme temperatures, high winds, and salt spray.

Offshore crane main boom luffing cylinders are typically made of high-strength steel and are designed to withstand the rigors of offshore operation. They are also equipped with a number of safety features to prevent overloading and other accidents.

The main boom luffing cylinder plays a vital role in the operation of offshore cranes. It allows the crane to reach different heights and pick up and place loads at different distances from the crane. This is essential for a variety of offshore operations, such as loading and unloading ships, installing and repairing offshore platforms, and constructing offshore pipelines.

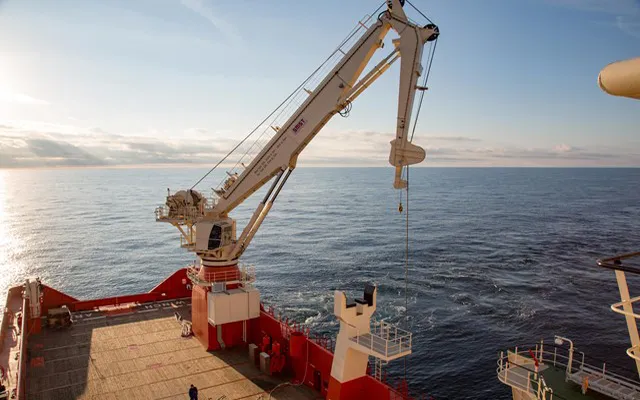

Applications of Offshore Crane Main Boom Luffing Cylinder:

Here are some specific examples of the role of the main boom luffing cylinder in offshore crane operations:

1. Loading and unloading ships: The main boom luffing cylinder is used to raise and lower the boom so that the crane can reach the cargo on the ship. The crane operator can then use the hoisting winch to lift the cargo onto the ship or vice versa.2. Installing and repairing offshore platforms: The main boom luffing cylinder is used to raise and lower the boom so that the crane can reach the offshore platform. The crane operator can then use the hoisting winch to lift and place materials on the platform.3. Constructing offshore pipelines: The main boom luffing cylinder is used to raise and lower the boom so that the crane can reach the offshore pipeline. The crane operator can then use the hoisting winch to lift and place pipe sections onto the pipeline.

The main boom luffing cylinder is a critical component of offshore cranes, and it plays a vital role in a variety of offshore operations.

Specific examples of applications for offshore crane main boom luffing cylinders include:

• Lifting and installing modules for new offshore platforms
• Removing old platforms and other structures from the seabed
• Performing maintenance on offshore oil and gas pipelines
• Installing and maintaining wind turbines at sea
• Loading and unloading cargo from ships to offshore platforms
• Transferring personnel between ships and offshore platforms
• Performing construction tasks on offshore platforms

China Offshore Crane Cylinder Manufacturers

The special application environment at sea brings great challenges to offshore cranes. On the one hand, it needs to have higher reliability and smooth operation to ensure positioning accuracy and transportation efficiency. On the other hand, there are high requirements for its corrosion resistance and low-temperature resistance. Raydafon can provide standard nickel-chromium coatings, plasma spray coatings, supersonic flame spray coatings, other corrosion-resistant technologies, and integral stainless steel piston rods according to customer needs and the actual use environment of offshore cranes.For equipment with low-temperature resistance requirements, materials with excellent low-temperature impact properties will also be used to ensure that the crane is sufficient to withstand harsh environments. In addition, Raydafon provides luffing cylinders for cranes that provide thrust force and pulling force. Its innovative structural design makes the weight lighter and improves the efficiency of the entire hydraulic system. Raydafon can provide a complete set of hydraulic cylinders according to the needs of offshore cranes, such as main boom luffing cylinders, folding arm tilt cylinders, mast crane luffing cylinders, etc. It can be customized according to customer requirements.Moreover, we go beyond offshore crane cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
