Jack-up Offshore Platform Bolt Cylinder

Jack-up Offshore Platform Bolt Cylinder

A jack-up offshore platform bolt cylinder is a critical component used in the construction and operation of jack-up rigs, which are specialized drilling platforms commonly used in offshore oil and gas exploration and production. These platforms are designed to be mobile and self-elevating, allowing them to stand on the seabed while drilling operations take place.The jack-up offshore platform bolt cylinder is a hydraulic device that facilitates the jacking mechanism of the platform. It consists of a large cylinder with a piston inside that is connected to the legs of the platform. The cylinder is usually located at the base of each leg, and multiple cylinders are installed to support the entire structure.The main purpose of the bolt cylinder is to raise and lower the legs of the jack-up platform. When the platform arrives at the designated location, the legs are lowered to the seabed, providing stability and support for the rig. Once in position, the bolt cylinders are activated to lift the entire platform above the water surface, raising it to a safe working height. This elevation allows the platform to operate in shallow waters while providing a stable and secure platform for drilling, production, and other offshore activities.The bolt cylinder operates using hydraulic pressure. When hydraulic fluid is pumped into the cylinder, it applies force to the piston, causing it to move upward or downward. This movement translates into the extension or retraction of the platform's legs, enabling the jack-up platform to adjust its height as needed.The jack-up offshore platform bolt cylinder is designed to withstand harsh offshore conditions, including extreme temperatures, high pressures, and corrosive environments. It is typically constructed using durable materials such as high-strength steel and corrosion-resistant alloys to ensure long-lasting performance and reliability.

Jack-up Offshore Platform Bolt Cylinder Specifications:

Product Name	Jack-up Offshore Platform Bolt Cylinder
Features:	Insert and pull out the cylindrical pin on the ring beam to realize the locking of the ring beam
Bore diameter:	Up to 100mm
Rod diameter:	Up to 60mm
Pressure：	Up to 32Mpa
Sensor:	It can be equipped with a built-in displacement sensor device to reduce the installation size of the hydraulic cylinders
Applications:	Jack-up Offshore Platform

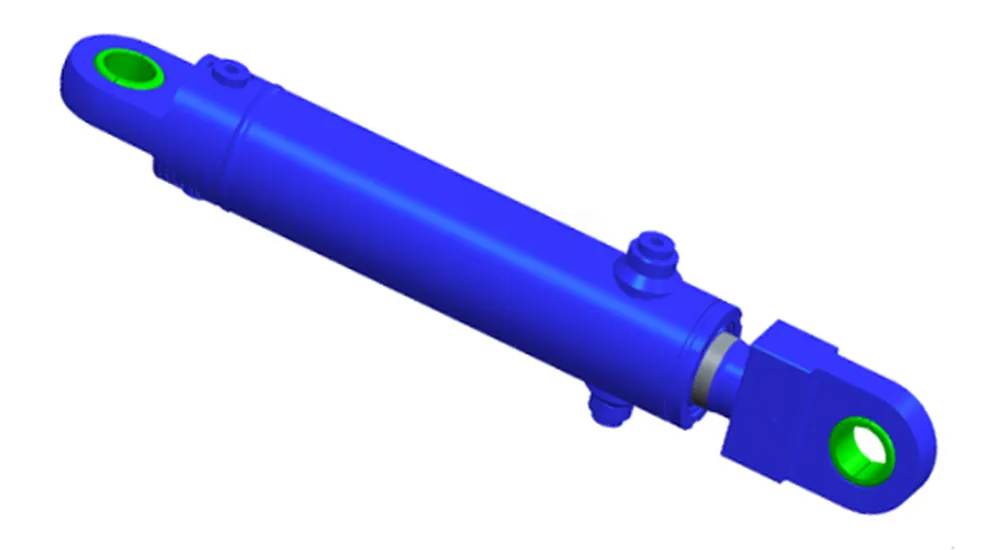

Benefits of Jack-up Offshore Platform Bolt Cylinder:

The bolt cylinder is a key component of a jack-up offshore platform. It is used to raise and lower the platform's legs, which allows it to move from one location to another and to adjust its height to the desired working depth.

The benefits of using a bolt cylinder in a jack-up offshore platform include:

• Increased stability: The bolt cylinder helps to stabilize the platform by providing a rigid connection between the legs and the platform deck. This is important in areas with high wave activity or currents.
• Greater lifting capacity: The bolt cylinder can support a large amount of weight, which allows the platform to lift its legs and move to a new location.
• Improved safety: The bolt cylinder is designed to prevent the platform from collapsing, which helps to protect the personnel and equipment on board.
• Reduced maintenance costs: The bolt cylinder is a relatively simple and robust component, which means that it requires less maintenance than other types of jack-up systems.

Overall, the bolt cylinder is a valuable asset for any jack-up offshore platform. It helps to improve the stability, lifting capacity, safety, and maintenance costs of the platform.

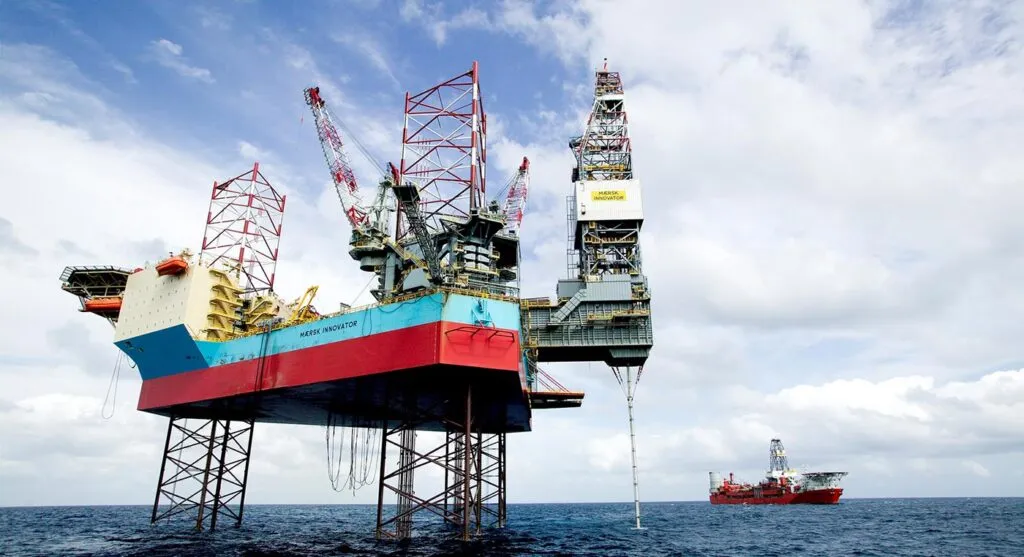

Applications of Jack-up Offshore Platform Bolt Cylinder:

A jack-up offshore platform bolt cylinder is a type of hydraulic cylinder that is used to lock the legs of a jack-up platform in place. The cylinder has a piston rod that extends and retracts, which moves the bolt that secures the leg to the seabed.

The jack-up offshore platform bolt cylinder is used in a variety of applications, including:

• Drilling for oil and gas: Jack-up platforms are used to drill for oil and gas in offshore locations. The bolt cylinders are used to lock the legs of the platform in place, which prevents it from moving in the water.
• Installing offshore wind turbines: Offshore wind turbines are becoming increasingly popular as a way to generate renewable energy. Jack-up platforms are used to install these turbines, and the bolt cylinders are used to lock the legs of the platform in place.
• Laying submarine cables: Submarine cables are used to transmit data and power across long distances underwater. Jack-up platforms are used to lay these cables, and the bolt cylinders are used to lock the legs of the platform in place.
• Conducting oceanographic research: Jack-up platforms are used to conduct oceanographic research, such as studying marine life or mapping the seabed. The bolt cylinders are used to lock the legs of the platform in place, which ensures that the platform remains stable during research operations.

The jack-up offshore platform bolt cylinder is an essential component of these and other offshore operations. It helps to ensure the safety and reliability of these platforms, which are vital for the exploration and development of offshore resources.

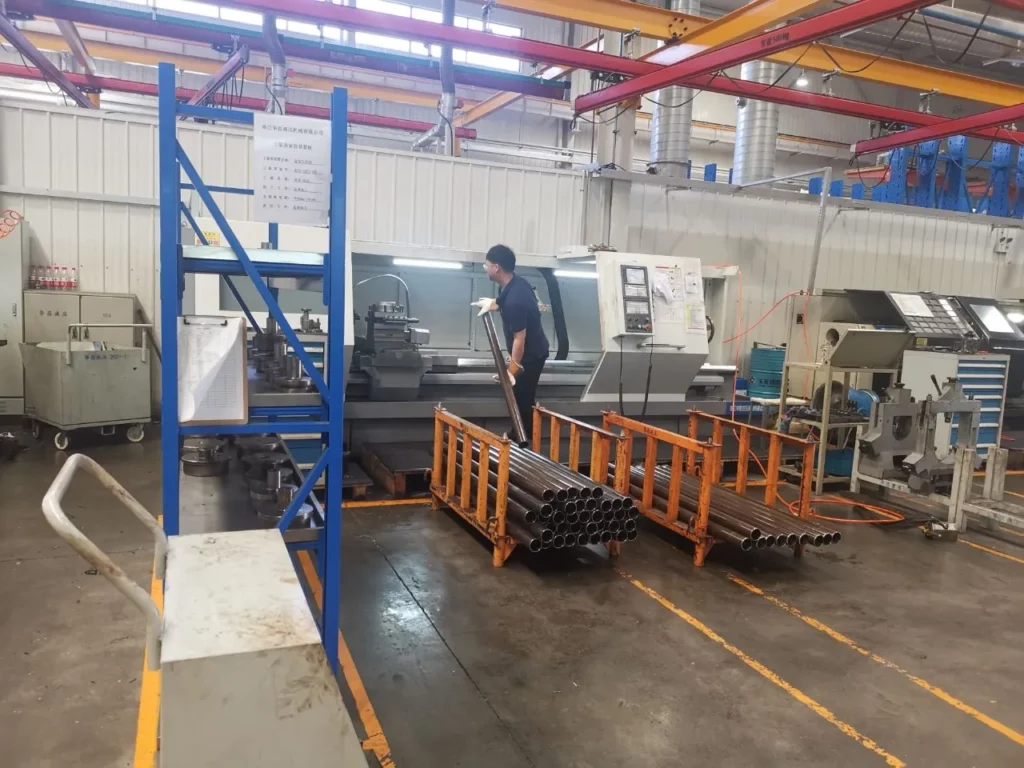

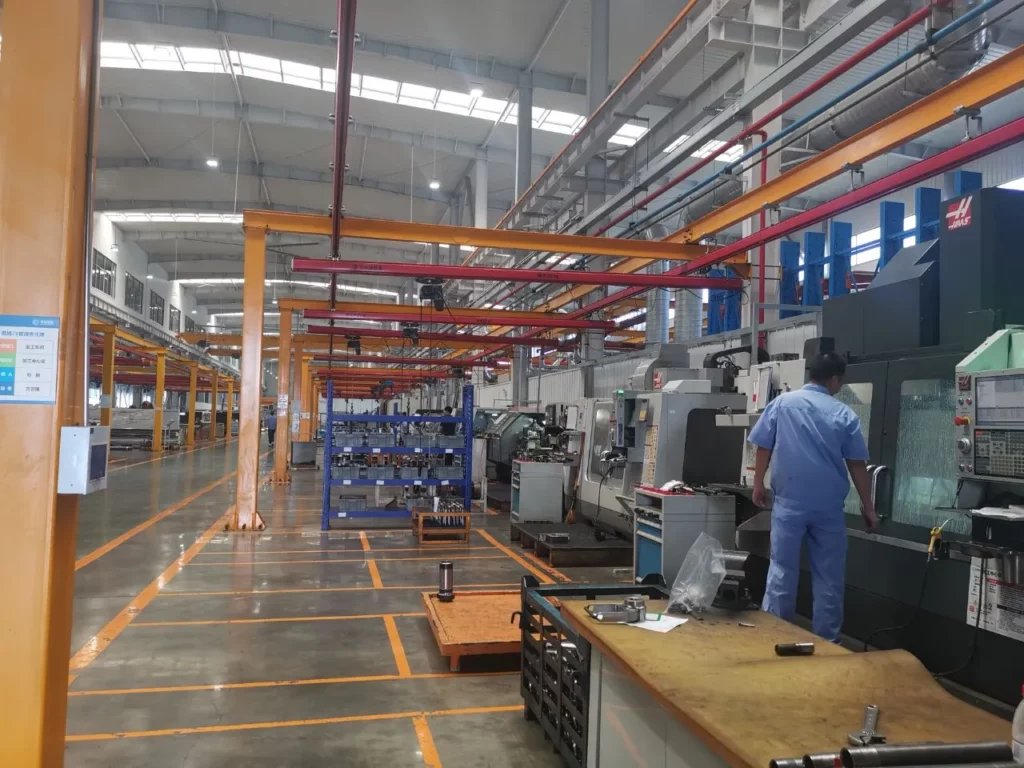

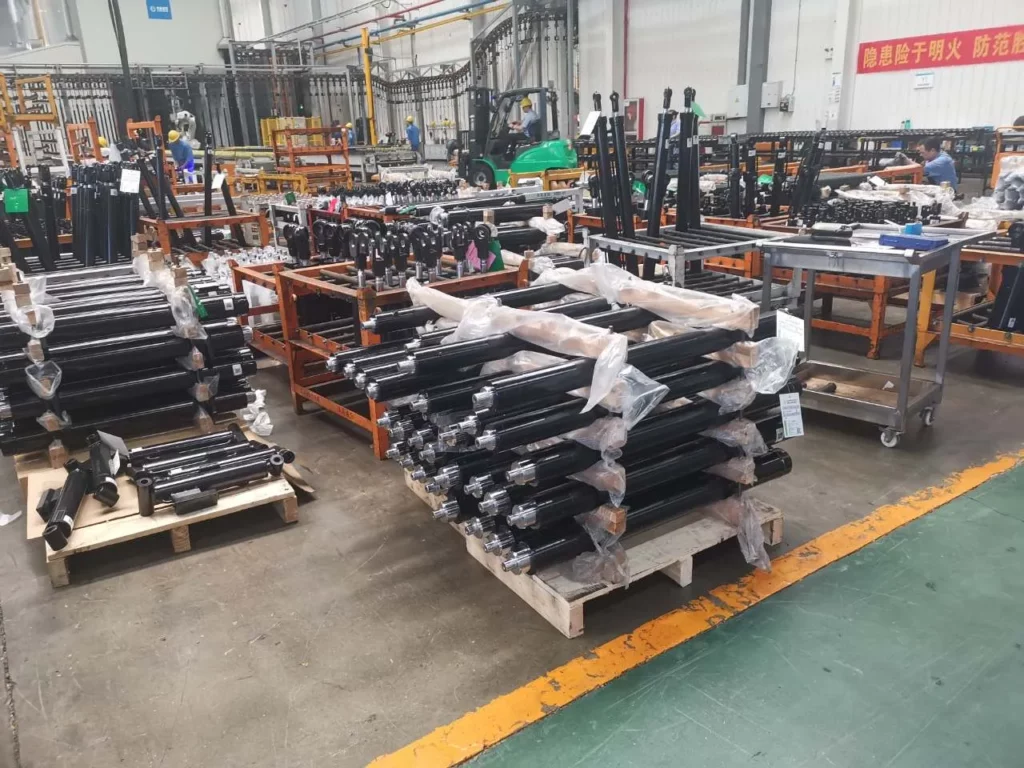

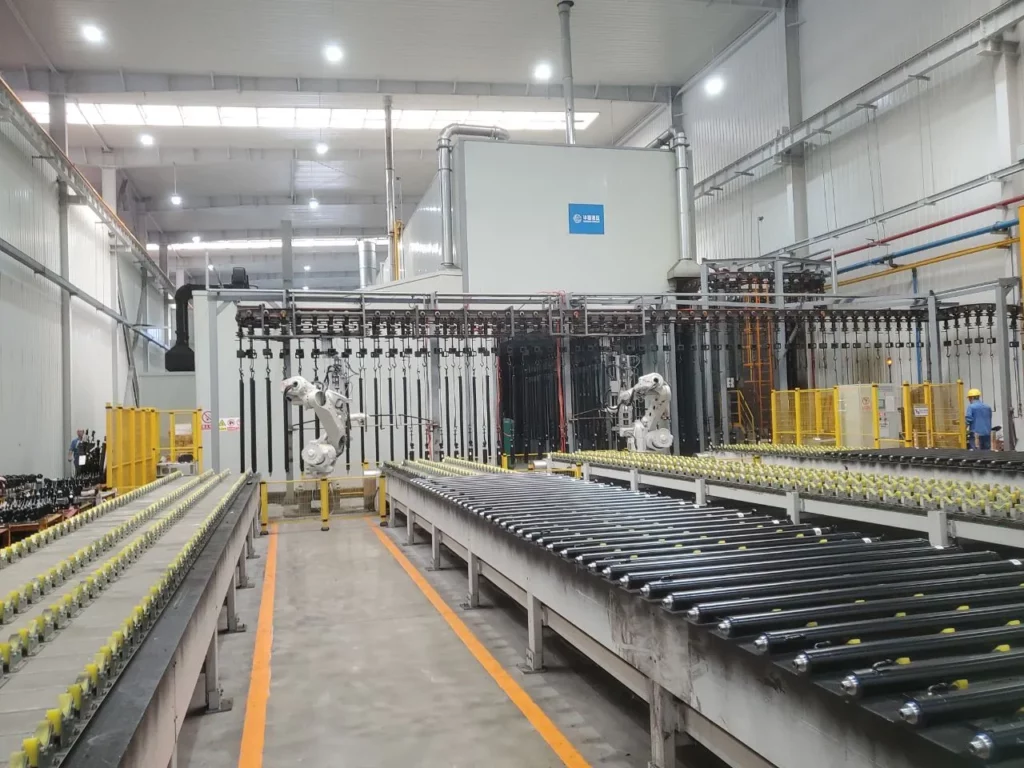

China Jack-up Offshore Platform Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, industrial engineering hydraulic cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
