The open tunnel boring machine (TBM) torque cylinder is a hydraulic cylinder that is used to rotate the cutterhead of the tunnel boring machine. It is one of the most important components of the tunnel boring machine, as it is responsible for driving the machine forward and excavating the tunnel.

The torque cylinder is typically located at the rear of the tunnel boring machine and is attached to the cutterhead by a series of gears and linkages. When the hydraulic fluid is pressurized, the cylinder piston extends and rotates the cutterhead. The torque cylinder is also used to steer the tunnel boring machine in the desired direction.

Open tunnel boring machines are used in hard rock conditions, where the surrounding rock is strong enough to support the machine without the need for a protective shield. This means that the torque cylinder on an open tunnel boring machine is exposed to the harsh conditions of the tunnel environment and must be able to withstand high levels of dust, vibration, and impact.

Open TBM torque cylinders are typically very large and powerful, with bore diameters of up to 450 mm and stroke lengths of up to 260 mm. They are also designed to operate at high pressures, up to 35 MPa.

Here are some of the key features of open tunnel boring machine torque cylinders:

• High strength and durability to withstand the harsh conditions of the tunnel environment
• Large bore diameters and stroke lengths to provide the necessary torque and power
• Ability to operate at high pressures
• Reliable and efficient operation

Open tunnel boring machine torque cylinders are a critical component of these machines and play a vital role in the construction of tunnels and other underground infrastructure.

Open Tunnel Boring Machine Torque Cylinder Specifications:

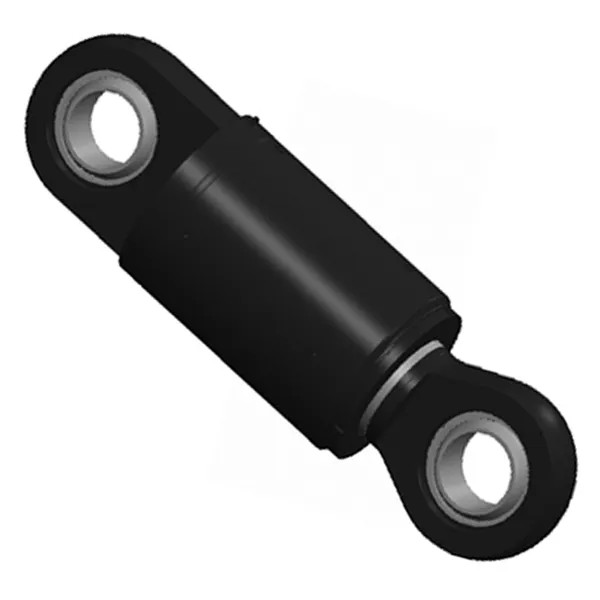

Product Name	Open Tunnel Boring Machine Torque Cylinder
Features:	Used for tunnel boring machine direction adjustment and transmission of cutter head torque
Bore diameter:	220mm～450mm
Rod diameter:	125mm～260mmStroke 200mm～260mm
Pressure:	up to 35MPa
Applications:	Open Tunnel Boring Machine

Open Tunnel Boring Machine Torque Cylinder Benefits:

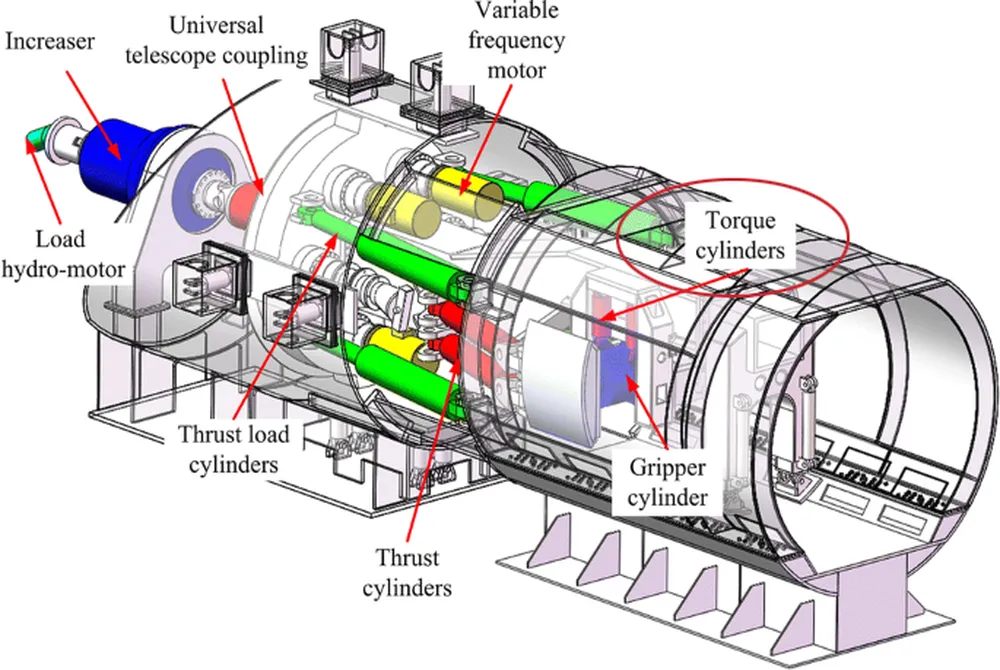

The torque cylinder in a tunnel boring machine (TBM) is a critical component that provides rotational force to the cutting head, allowing it to excavate tunnels efficiently. Here are some advantages of an open tunnel boring machine torque cylinder:1. Increased Power: An open TBM torque cylinder design allows for higher torque and power transmission to the cutting head. This results in improved excavation capabilities, allowing the TBM to cut through various types of rock formations and soils more effectively.2. Enhanced Reliability: The open design of the torque cylinder provides better access for maintenance and inspection. This facilitates easier troubleshooting and reduces downtime during repairs or component replacements. Regular maintenance can be carried out more efficiently, ensuring the tunnel boring machine's long-term reliability.3. Flexibility: Open tunnel boring machine torque cylinders can be designed to accommodate different cutting head configurations, including single disc cutters, roller disc cutters, or other specialized cutting tools. This flexibility enables the tunnel boring machine to adapt to different geological conditions, optimizing excavation performance.4. Improved Cooling: Tunnel boring machines generate significant heat during operation. An open TBM torque cylinder design allows for better cooling of the cylinder itself and its internal components, such as seals and bearings. This cooling capability helps maintain optimal operating temperatures and extends the lifespan of these critical parts.5. Reduced Wear and Tear: The open design allows for efficient lubrication of the torque cylinder, reducing friction and wear between moving parts. Proper lubrication helps minimize component fatigue and extends the overall service life of the torque cylinder, contributing to the longevity of the tunnel boring machine.6. Safety: Open tunnel boring machine torque cylinders often come equipped with safety features such as pressure relief valves, temperature sensors, and monitoring systems. These safety measures help prevent excessive pressure buildup, overheating, or other potentially hazardous conditions, ensuring the safety of the tunnel boring machine operators and the surrounding environment.

Open Tunnel Boring Machine Torque Hydraulic Cylinder Maintenance:

Proper maintenance of the torque hydraulic cylinder in an open tunnel boring machine (TBM) is essential to ensure its efficient operation and longevity. Here are some key maintenance practices for the torque hydraulic cylinder:(1) Regular Inspection: Perform regular visual inspections of the torque hydraulic cylinder to check for any signs of leaks, damage, or excessive wear. Inspect the cylinder body, seals, piston, and other components for any abnormalities. Pay attention to the hydraulic connections, hoses, and fittings as well.(2) Lubrication: Follow the manufacturer's guidelines for lubrication intervals and use the recommended lubricants. Ensure that the torque hydraulic cylinder is properly lubricated to reduce friction and wear between moving parts. Pay attention to lubricating the seals to prevent dryness and improve their performance.(3) Seal Maintenance: Inspect the seals for signs of wear, cracks, or leakage. Replace worn-out or damaged seals promptly to prevent hydraulic fluid leaks and maintain the hydraulic cylinder's performance. Ensure that seals are correctly installed and properly lubricated.(4) Cleaning: Keep the torque hydraulic cylinder and its surrounding area clean. Regularly remove dirt, debris, and any foreign substances that may accumulate on the cylinder. Be cautious not to introduce contaminants into the hydraulic system during cleaning.(5) Pressure Testing: Periodically test the torque hydraulic cylinder's pressure to ensure it is operating within the recommended parameters. This helps identify any potential issues with the cylinder's performance or leaks that may require attention.(6) Hydraulic Fluid Maintenance: Monitor the hydraulic fluid levels regularly and ensure that it is clean and within the recommended range. Contaminated or degraded hydraulic fluid can affect the cylinder's operation and lead to premature wear. Regularly replace the hydraulic fluid according to the manufacturer's guidelines.

Tunnel Boring Machine Hydraulic Cylinder Manufacturers

Raydafon has been developing and producing tunnel boring machine cylinders since 2005, has successfully exported them all over the world, and has a leading global market share. For example, in the Bertha tunnel boring machine in Seattle, the entire set of high-pressure hydraulic cylinders is from Raydafon. Even though the equipment was constructed underground for two years, Raydafon's hydraulic cylinders did not suffer from corrosion and seal aging. We customized solutions for customers to fully meet the needs of complex working conditions such as high frequency, high load, vibration, and pollution during underground construction. Raydafon uses its strength to build a comprehensive service brand for hydraulic transmission and control systems in the field of tunnel boring equipment.In addition, we not only provide shield machine cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
