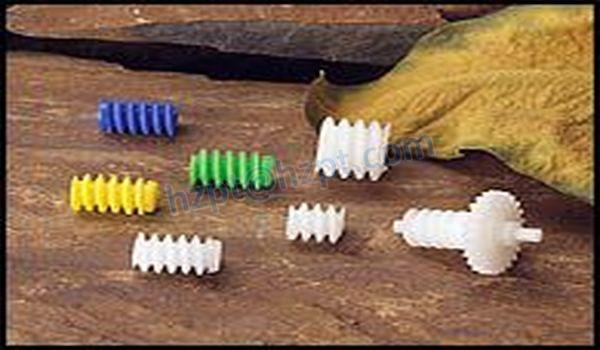

Plastic Worm Gears

We supply worm gears and gear-related products with the best quality and price. Compared with spur gears, worm gears can offer quieter force driving. The plastic worm gear-related products include worm gear valve drives, worm gear pumps, linear actuators, etc.

Features of Plastic Worm Gears:

• High efficiency
• Irreversible motion
• Good for Compact design
• High load capacity
• Reduced vibration and noise

Specifications:

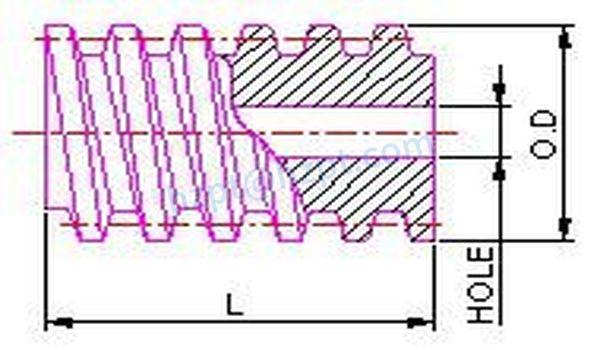

Type	Worm
Module	M0.2 - M2.0
Material	Polyacetal (POM) / Nylon
Bore	Ø1.40mm/ Ø1.90mm
Outer Diameter	Ø4.0mm/ Ø5.0mm/ Ø6.0mm (Flexible)
Length	6.0mm/ 8.5mm/ 10.0mm (Flexible)

Inquiry: Please provide gear specifications.Raydafon provides handmade/ machined custom gears, so tests of gears can be done before mold making.Our plastic gears meet all kinds of needs for laser printers, digital cameras, scanners, CD-ROMs, stepping motors, medical equipment, vending machines, gear pumps, household appliances, fax machines, watches, toys, etc. other specialized products.

•
• Specification

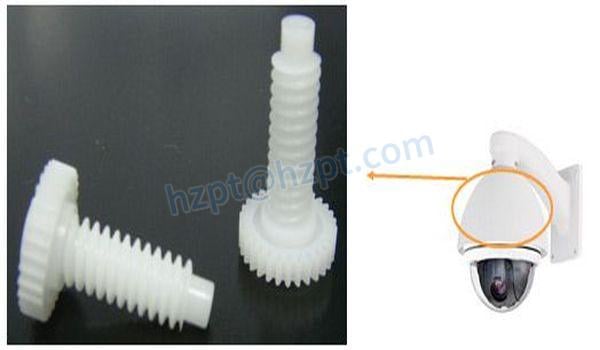

  Item	M0.4*30T Gear+Worm
  Material	TEPCON_M90-10
  Module	M0.4
  No. of Teeth	30T / 1T
  Weight	0.75g / pcs
  Application	IP Camera, monitor, etc.

•
• Specification

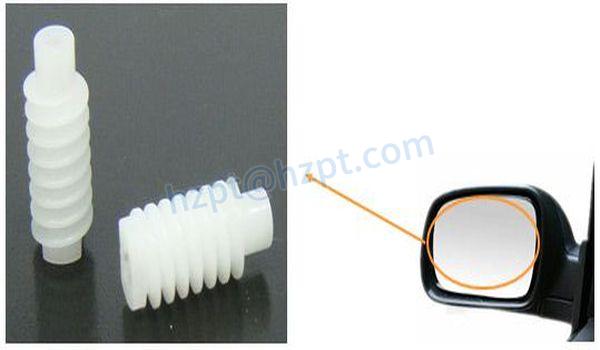

  Item	M0.4 RH Worm
  Material	TEPCON_M90-10
  Module	M0.4
  No. of Teeth	1T (RH)
  Weight	0.22g / pcs
  Application	Applies in the gearbox to adjust the automotive rearview mirror.

•
• Specification

  Item	Gear Screw & Screw Nut
  Material	ODM
  Module	ODM
  No. of Teeth	ODM
  Weight	ODM
  Application	Applies in the gearbox to adjust the water valve.

About Plastic Gears

A gear is a toothed wheel designed to transmit force to another equipment or toothed component. The teeth of a gear can be shaped to minimize wear, vibration, and noise and maximize power transmission efficiency.Gears of differing sizes are often used in pairs for a mechanical advantage, allowing the torque of the driving gear to produce an enormous torque in the driven gear at a lower speed or a smaller torque at a higher rate.The Advantages of Plastic Gars:

1. Plastic gears are easily molded into various shapes, giving them a more comprehensive range of configurations.
2. Plastic gears are less expensive and are lighter in weight.
3. Plastic gears are chemical and corrosion-resistant.
4. Plastic gears have a quieter and smoother operation and offer more efficient drive geometry.
5. Plastic gears are inherent self-lubricating.

While plastic gears offer these many advantages over metal gears, their practical use requires proper design and engineering to account for possible dimensional and property variations over the expected range of operating conditions.
